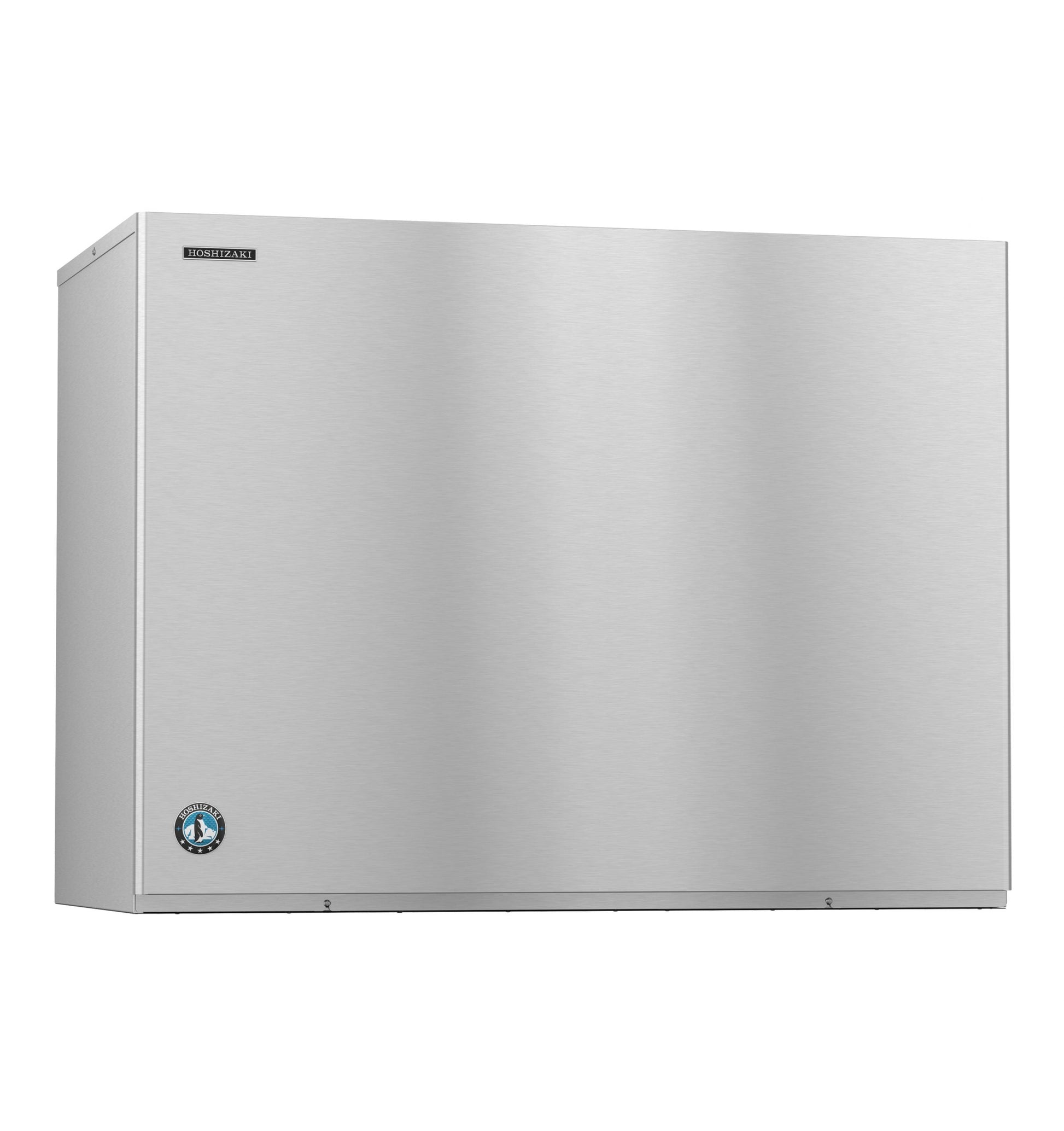

Hoshizaki | 48" Wide 3 Phase Remote-Cooled Crescent Cuber Ice Maker (Bin & Condenser Sold Separately) - KM-2600SRJZ3
The KM-2600SRJZ3 is capable of producing approximately 2617 lbs of Crescent Cube style ice cubes per day, and the built-in dispensing system holds up to lbs of insulated storage to ensure you always have enough ice on hand! This commercial Remote-cooled icemaker is the only one-piece dispenser design on the market! This makes it easy to install and service, and a quiet operating system makes it ideal for use in hotels and similar applications. EverCheck™ alert system and is Protected by H-GUARD Plus Antimicrobial Agent. This sanitary icemaker/dispenser features a user-friendly dispensing mechanism that allows clean, individual, crescent ice cubes to be dispensed with a simple push of a button. This model features CycleSaver™ design and is ENERGY STAR® qualified. The KM-2600SRJZ3 requires a Single phase, 208-230v/60/1, 4 wire, including ground. If neutral is not available transformer kit (HS-5030) is required electrical connection and comes with a cord and plug. Please consult the Specification Sheet for additional details.
Features
- Dimensions: 48″ W x 27-3/8″ D x 36-7/16″ H
- Up to 2617 lbs of ice produced per 24 hours
- Stack 2 units for 2x the ice production
- Produces crescent shaped ice cubes
- Durable stainless steel exterior

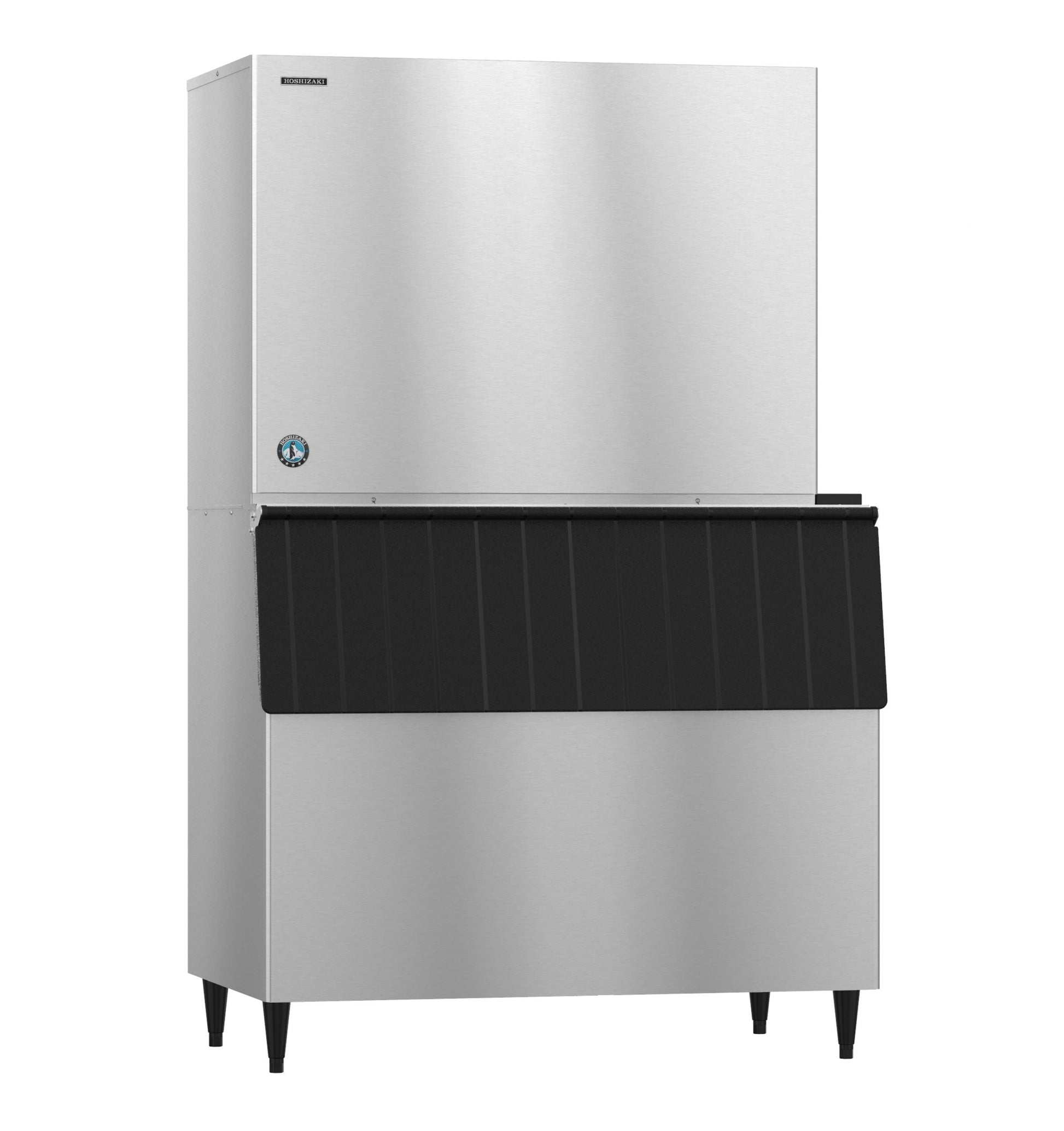

- Compatible bins & dispensers, sold separately: B-800, B-900, B-1150, B-1300, B-1500, B-1650
- EverCheck™ alert system
- CycleSaver™ design
- Protected by H-GUARD Plus Antimicrobial Agent
- R-404A refrigerant (19 lbs. 13.5 oz. / 9000 g)
- Heat Rejection:36000 BTU/hr
- Ambient temperature range: 45 – 100°F
- Water temperature range: 45 – 90°F
- Water pressure: 10 – 113psig
- Voltage range: 187 – 253V
- 20.6 amps (30 Amp Max fuse)
- 3.61 kwh/100 lbs. 90/70
- Three phase, 208-230v/60/3 4 wire, including ground. Must be hardwired at site, no cord/plug included
- ENERGY STAR qualified
Specifications
| Brand |
Hoshizaki |
| Model Number |
KM-2600SRJZ3 |
| Weight |
440 lbs |
| Width |
48" |
| Depth |
27.38" |
| Height |
36.44" |
| Compatible With |
ice storage bin |
| Cooling |
air-cooled |
| Ice Type |
crescent cubes |
| Refrigeration |
remote (refrigeration not included) |
| Energy Efficiency |
ENERGY STAR® |
| Production per 24 hr (Lbs) |
2617 |
| Voltage |
208/230 |
| Phase |
3 |
| Drain Type |
gravity drain |
| Certifications |
AHRI, ENERGY STAR, NSF, UL |
What Our Experts Think
The Hoshizaki KM-2600SRJZ3 48" Wide 3 Phase Remote-Cooled Crescent Cuber Ice Maker is a top-tier choice for large-scale operations. Here’s why it excels:
-
High-Volume Ice Production: Produces up to 2,605 lbs. of Hoshizaki’s signature crescent ice per day—ideal for high-demand environments like hotels, stadiums, and large restaurants.
-
Remote-Cooled Efficiency: Keeps heat and noise away from the main workspace, improving overall operational comfort.
-
Durable Stainless Steel Build: Ensures longevity and easy cleaning, making maintenance simple.
-
Energy-Efficient Design: Uses advanced technology to optimize water and energy use without compromising performance.
-
Flexible Storage Options: Compatible with a variety of ice storage bins (sold separately) for customizable setups.
Q&A
Q: What is the Hoshizaki KM-2600SRJZ3 Ice Maker used for?
A: The Hoshizaki KM-2600SRJZ3 is a 48-inch-wide, remote-cooled crescent cuber ice maker designed for high-demand commercial settings like restaurants, hotels, bars, and hospitals.
Q: How much ice does it produce daily?
A: It produces up to 2,617 lbs. of crescent-shaped ice per day, making it ideal for large-scale operations requiring continuous ice production.
Q: What type of ice does it make?
A: It produces crescent-shaped ice cubes, known for being slow-melting, space-efficient, and perfect for beverages, ice storage, and food preservation.
Q: Does it come with a storage bin and condenser?
A: No, the ice storage bin and remote condenser are sold separately.
Q: What are the advantages of a remote-cooled system?
A: Remote cooling helps minimize heat and noise in the workspace, making it an excellent choice for commercial kitchens, foodservice areas, and businesses needing a quieter environment.
Q: Is this unit new?
A: Yes, the KM-2600SRJZ3 is a brand-new, high-capacity ice maker, built for maximum efficiency and durability in demanding commercial applications.
Maintenance Tips
-
Clean the Exterior: Wipe the stainless steel surfaces regularly with a damp cloth and mild detergent to maintain a clean appearance.
-
Sanitize Ice-Making Components: Every 3-6 months, use a Hoshizaki-approved cleaning solution to sanitize the evaporator, water distribution system, and internal parts.
-
Inspect & Replace Water Filters: Change water filters as recommended to prevent scale buildup and ensure optimal ice quality.
-
Monitor Ice Production: If ice output decreases or cubes appear irregular, check for mineral deposits, water flow issues, or condenser inefficiencies.
-
Maintain the Ice Bin (Sold Separately): Regularly clean and sanitize the ice storage bin to prevent contamination and ensure proper ice storage.
-
Inspect the Remote Condenser (Sold Separately): Ensure the condenser is clean and free of dust and debris for efficient cooling performance.
-
Check Water Supply & Lines: Inspect for leaks, blockages, or pressure fluctuations that could impact ice production.
-
Schedule Professional Maintenance: Arrange an annual inspection with a qualified technician to check refrigerant levels, electrical components, and overall system efficiency.
