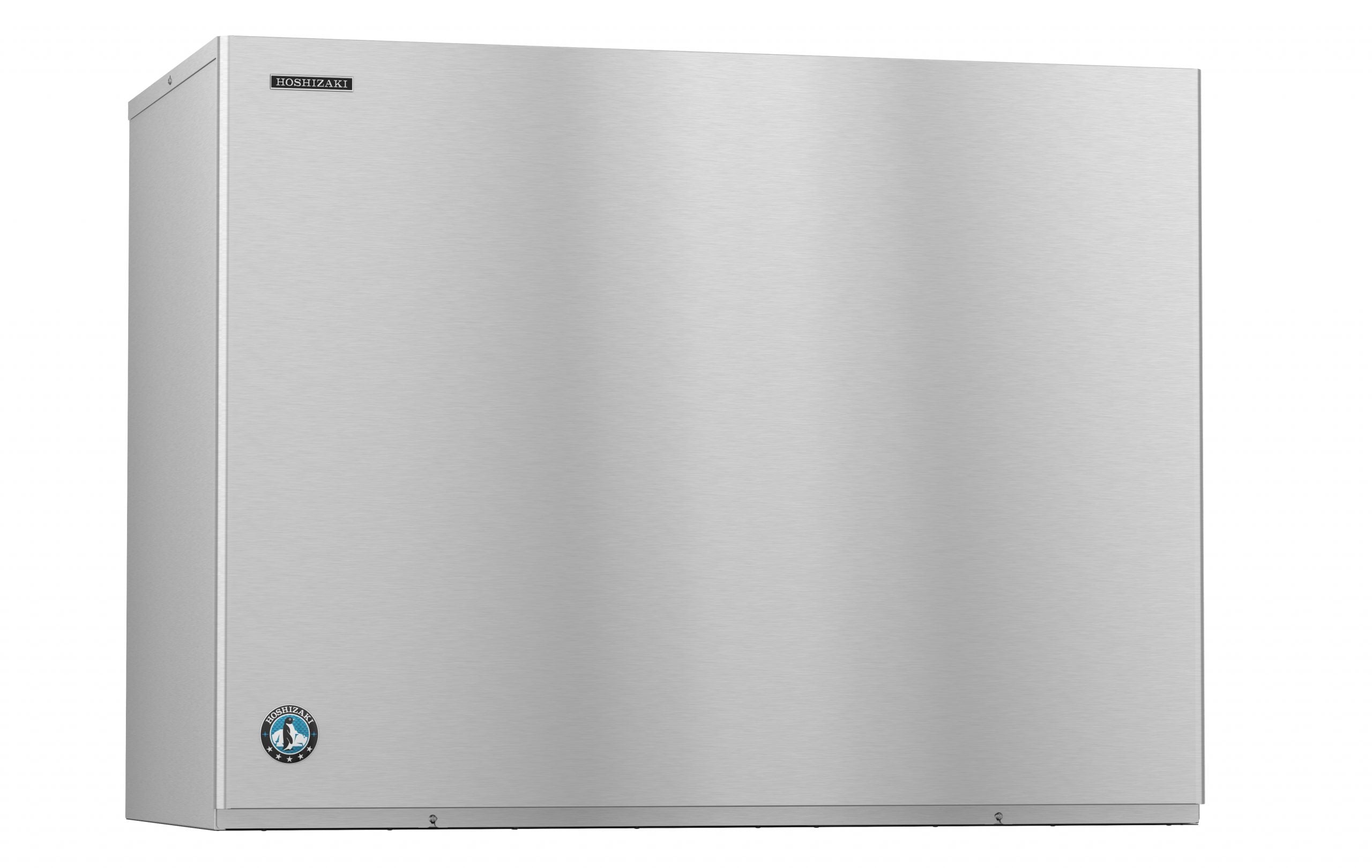

Hoshizaki | 48" Wide 3 Phase Stackable Remote-Cooled Crescent Cuber Ice KM-2200SRJZ3

Hoshizaki  | 48" Wide 3 Phase Stackable Remote-Cooled Crescent Cuber Ice KM-2200SRJZ3

The KM-2200SRJZ3 is capable of producing approximately 2206 lbs of crescent cubed ice, Stack 2 units for 2x the ice production in the same floor space! Our efficient double-sided stainless steel evaporators create our unique crescent shaped ice cubes. It is the purest and hardest ice on the market and is a perfect fit for a wide range of applications. This Remote-cooled with URC-22FZ icemaker features a CycleSaver design and includes the EverCheck alert system making the unit energy efficient and simple to maintain. The KM-2200SRJZ3 requires a Three phase, 208-230v/60/3 4 wire, including ground. Must be hardwired at site, no cord/plug included electrical connection that is hard-wired at the installation site. Remote condenser sold separately. Compatible bins & dispensers, sold separately: B-800, B-900, B-1150, B-1300, B-1500, B-1650. ENERGY STAR® qualified. Please consult the Specification Sheet for additional details. .

Features

• Dimensions: 48″ W x 27-3/8″ D x 36- 7/16″ H
• Up to 2206 lbs of ice produced per 24 hours
• Stack 2 units for 2x the ice production
• Produces crescent shaped ice cubes
• Durable stainless steel exterior

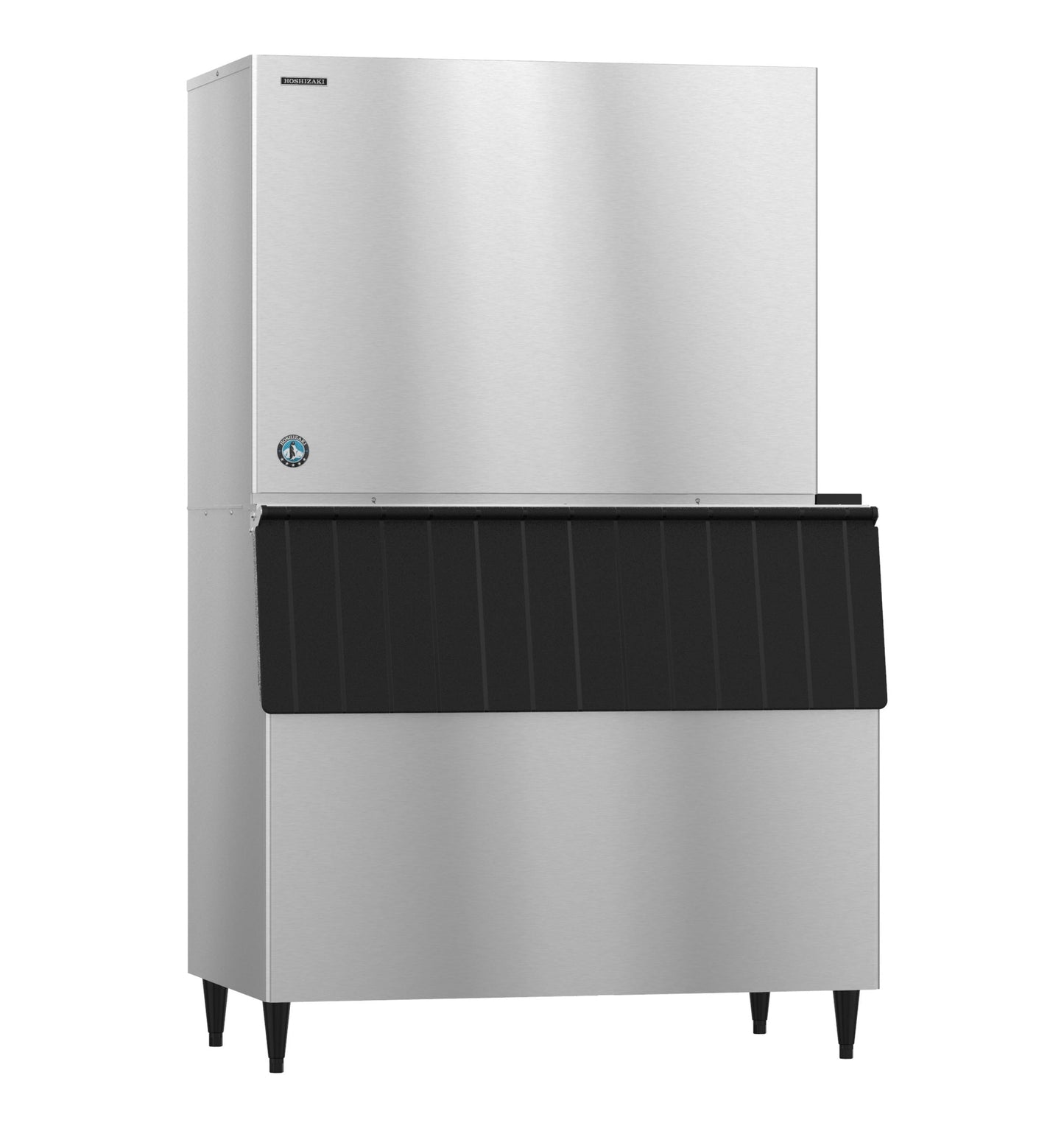

• Compatible bins & dispensers, sold separately: B-800, B-900, B-1150, B-1300, B-1500, B-1650
• EverCheck™ alert system
• CycleSaver™ design
• Protected by H-GUARD Plus Antimicrobial Agent
• R-404A refrigerant (8 lbs. 6 oz. / 3800 g)
• Heat Rejection:26700 BTU/hr
• Ambient temperature range: 45 – 100°F
• Water temperature range: 45 – 90°F
• Water pressure: 10 – 113psig
• Voltage range: 187 – 253V
• 15.9 amps (20 Amp Max fuse)
• 3.75 kwh/100 lbs.90/70
• Three phase, 208-230v/60/3 4 wire, including ground. Must be hardwired at site, no cord/plug included
• ENERGY STAR qualified

Specifications

What Our Experts Think

The Hoshizaki KM-2200SRJZ3 is a high-capacity, stackable remote-cooled ice maker built for demanding commercial environments.

• High Ice Production – Produces large quantities of crescent cube ice, perfect for high-traffic operations.
• Remote-Cooled Efficiency – Reduces heat and noise in the ice-making area.
• Stackable Design – Expand production capacity by stacking multiple units.
• 48” Wide Heavy-Duty Construction – Built for durability in busy food service and hospitality settings.
• Bin Sold Separately – Compatible with Hoshizaki ice bins for customizable storage solutions.

Q&A

Q: What is the daily ice production capacity?
A: The KM-2200SRJZ3 can produce up to 2,230 lbs of crescent ice per day under optimal conditions.

Q: What type of ice does this machine produce?
A: It produces crescent-shaped ice cubes, which are hard, slow-melting, and ideal for beverages.

Q: Is the ice storage bin included?
A: No, the storage bin is sold separately and must be purchased based on capacity needs.

Q: Can this ice maker be stacked?
A: Yes, it is stackable, allowing for increased ice production by adding additional units.

Q: Is this unit remote-cooled?
A: Yes, it is designed for remote cooling, meaning the condenser is located separately to reduce heat and noise in the workspace.

Q: What are the electrical requirements?
A: This unit operates on 3-phase power, making it suitable for high-demand commercial applications.

Q: Is professional installation required?
A: Yes, professional installation is recommended to ensure proper refrigerant line setup, electrical connections, and performance.

Maintenance Tips

• Clean the Ice Maker Regularly: Use a Hoshizaki-approved cleaner to remove scale and mineral buildup for efficient ice production.
• Inspect & Maintain the Remote Condenser: Ensure the condenser is free from dust and debris to optimize cooling performance.
• Sanitize Internal Components: Regularly clean and disinfect ice-making surfaces to prevent bacterial growth and contamination.
• Check Water Lines & Filters: Inspect for leaks, blockages, or sediment buildup that could affect water quality and ice formation.
• Monitor Ice Production & Performance: Ensure consistent ice output and check for unusual noises or efficiency drops, addressing any issues promptly.
