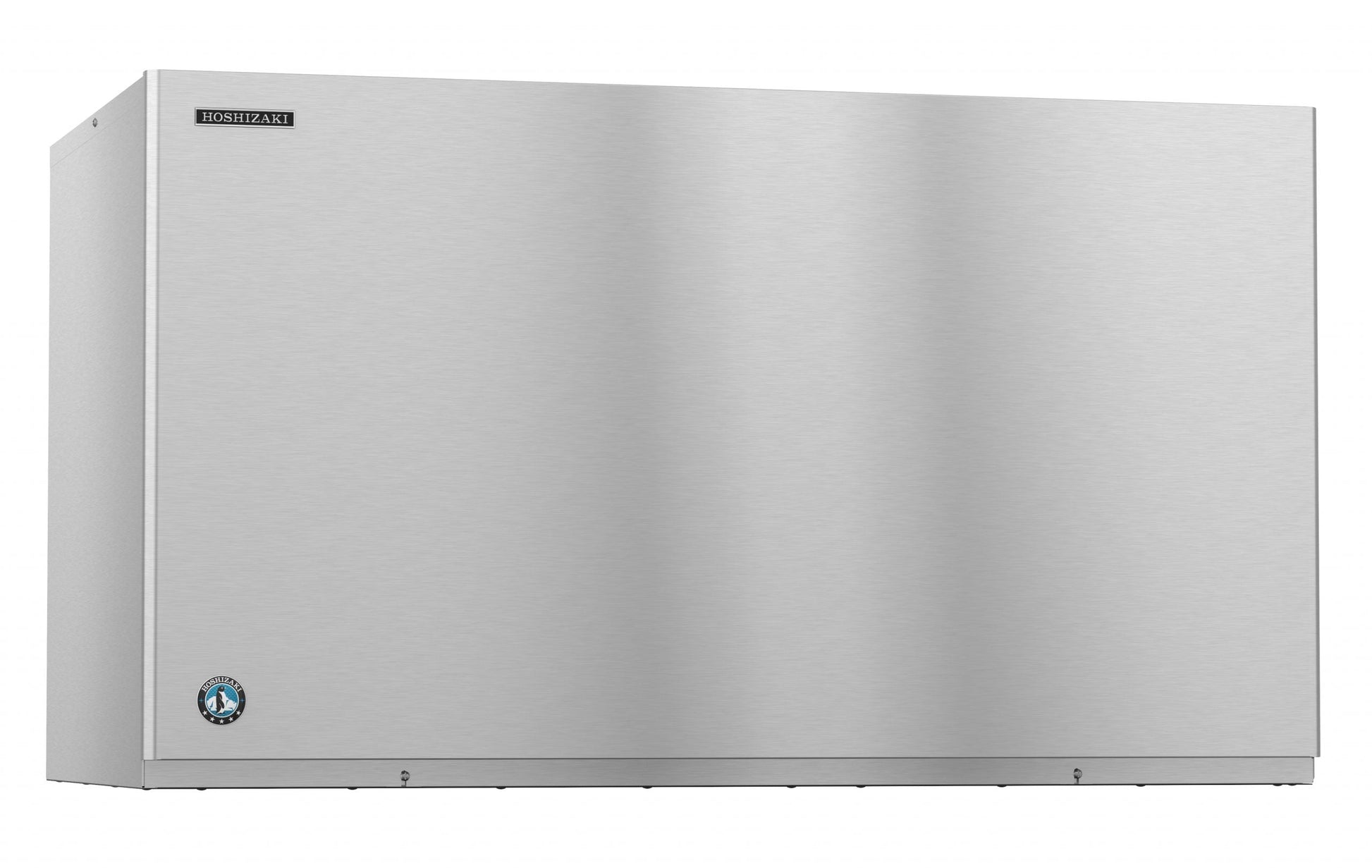

Hoshizaki | 48" Wide 3 Phase Water-Cooled Crescent Cuber Ice Maker (Bin Sold Separately) - KM-1601SWJ3
The KM-1601SWJ3 is capable of producing approximately 1671 lbs of crescent cubed ice, Stack 2 units for 2x the ice production in the same floor space! Our efficient double-sided KMEdge stainless steel evaporators create our unique crescent shaped ice cubes. It is the purest and hardest ice on the market and is a perfect fit for a wide range of applications. This Water-cooled, Stackable, 3 Phase icemaker features a CycleSaver design and includes the EverCheck alert system making the unit energy efficient and simple to maintain. The KM-1601SWJ3 requires a Three phase, 208-230v/60/3, 4 wire, including ground. Must be hardwired at site, no cord/plug included electrical connection that is hard-wired at the installation site. Compatible bins & dispensers, sold separately: B-800, B-900, B-1150, B-1300, B-1500, B-1650. Please consult the Specification Sheet for additional details. Replaces KM-1601MWH3.
Features
- Dimensions: 48″ W x 27-3/8″ D x 27-3/8″ H
- Up to 1671 lbs of ice produced per 24 hours
- Stack 2 units for 2x the ice production
- Produces crescent shaped ice cubes
- Durable stainless steel exterior

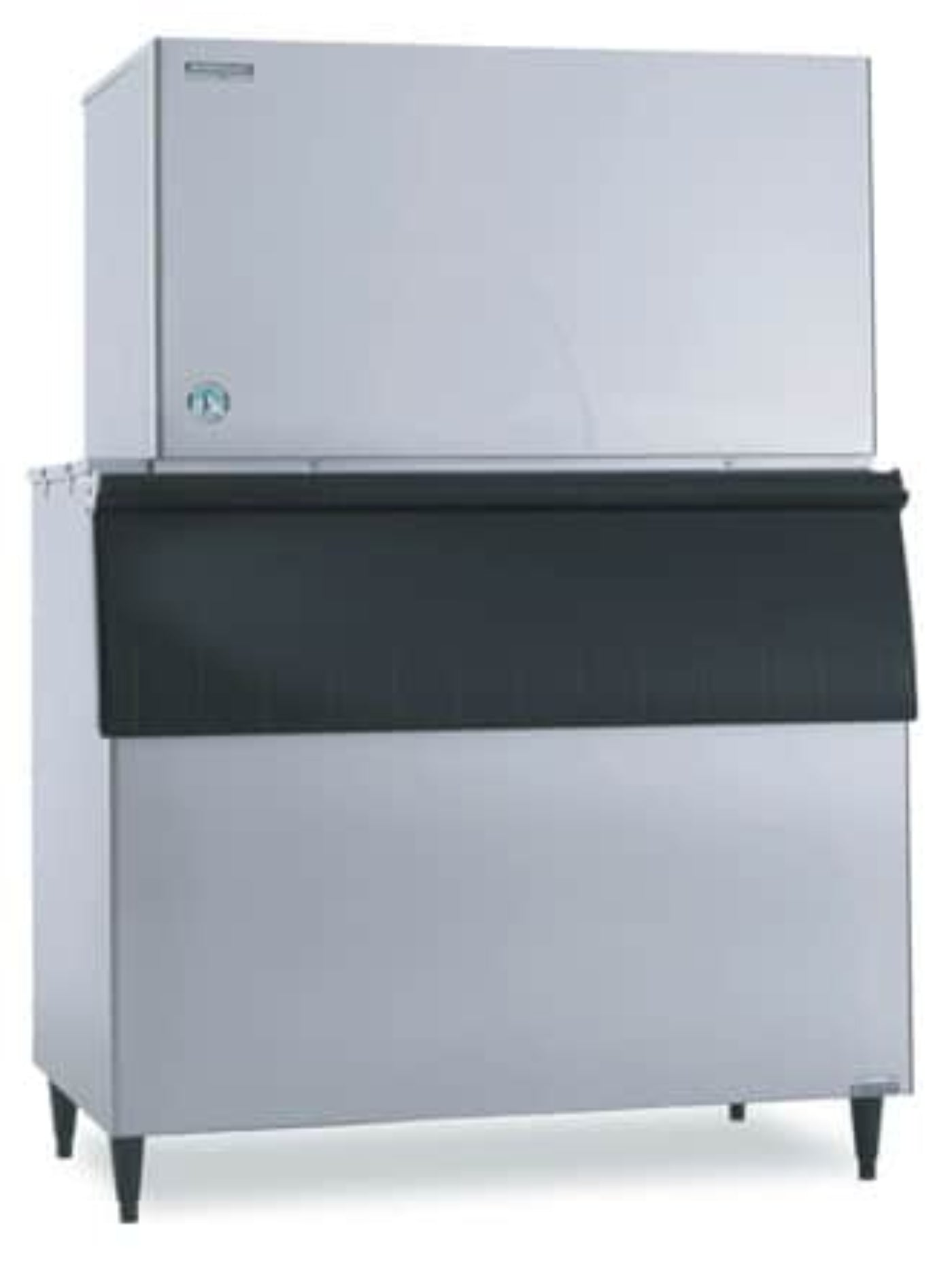

- Compatible bins & dispensers, sold separately: B-800, B-900, B-1150, B-1300, B-1500, B-1650
- EverCheck alert system
- CycleSaver design
- Protected by H-GUARD Plus Antimicrobial Agent
- R-404A refrigerant (2 lbs. 10.3 oz. / 1200 g)
- Heat Rejection:19900 BTU/hr
- Ambient temperature range: 45 – 100°F
- Water temperature range: 45 – 90°F
- Water pressure: 10 – 113psig
- Voltage range: 187 – 253V
- 8.8 amps (20 Amp Max fuse)
- 3.32 kwh/100 lbs.@ 90/70
- Three phase, 208-230v/60/3, 4 wire, including ground. Must be hardwired at site, no cord/plug included
- Clean ice and easy maintenance lead to longer unit life span
- Three Years: Parts & Labor warranty on entire machine.
- Five Years: Parts & Labor warranty on evaporator.
 Specifications
| Brand |
Hoshizaki |
| Model Number |
KM-1601SWJ3 |
| Weight |
345 lbs |
| Width |
48" |
| Depth |
27.38" |
| Height |
27.38" |
| Compatible With |
ice storage bin |
| Cooling |
water-cooled |
| Ice Type |
crescent cubes |
| Refrigeration |
self-contained refrigeration |
| Production per 24 hr (Lbs) |
1671 |
| Voltage |
208/230 |
| Phase |
3 |
| Drain Type |
gravity drain |
What Our Experts Think
-
Large-Scale Production: 48-inch wide unit designed for high-volume ice production, ideal for large commercial establishments.
-
Water-Cooled System: Efficient water-cooled technology for quieter operation and consistent performance, even in warmer environments.
-

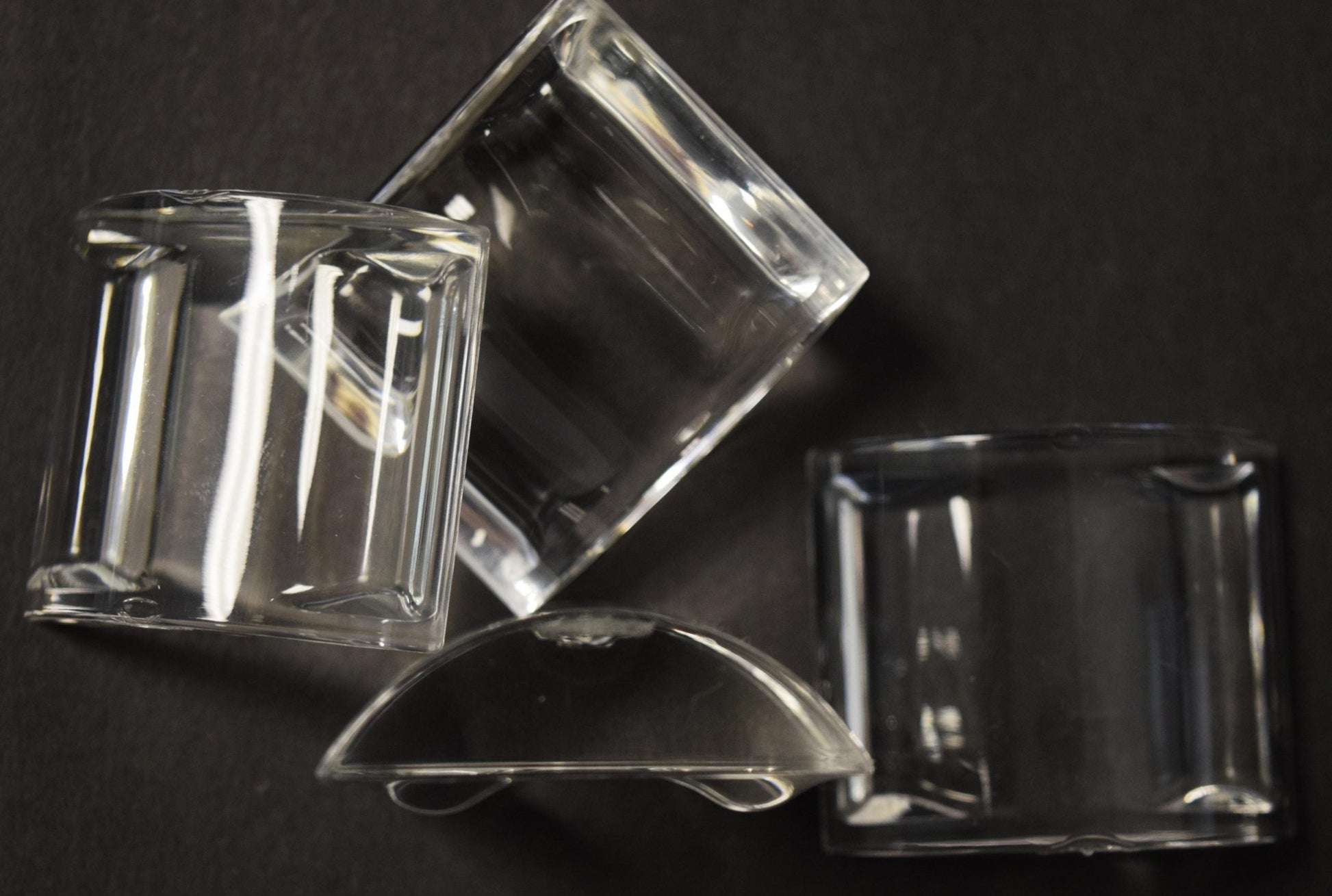

Crescent Ice: Produces high-quality, clear crescent-shaped ice that is perfect for beverages and slow-melting.
-
Durable & Heavy-Duty: Built to withstand continuous, heavy-duty use, ensuring reliable ice production during peak demand.
-
Bin Sold Separately: Offers flexible storage options with a separate bin purchase, allowing for customized ice storage capacity.
Q&A
Q: What is the Hoshizaki KM-1601SWJ3?
A: The Hoshizaki KM-1601SWJ3 is a 48-inch wide water-cooled crescent cuber ice maker designed for high-volume ice production in commercial settings. (Bin sold separately.)
Q: What type of ice does the Hoshizaki KM-1601SWJ3 produce?
A: It produces crescent-shaped ice, known for its slow melt and consistent cooling, perfect for beverages and food service.
Q: Is the ice maker water-cooled?
A: Yes, the KM-1601SWJ3 is water-cooled, providing efficient ice production in environments where water cooling is preferred for performance and space optimization.
Q: Does the Hoshizaki KM-1601SWJ3 come with a bin?
A: No, the bin is sold separately, giving you the flexibility to choose the right storage solution.
Q: How much ice does the Hoshizaki KM-1601SWJ3 produce?
A: The KM-1601SWJ3 can produce up to 1,600 pounds of crescent ice per day, making it ideal for high-demand commercial use.
Maintenance Tips
-
Regular Cleaning: Wipe the exterior and interior with a damp cloth and mild detergent to remove buildup.
-
Descale the Unit: Regular descaling is essential to prevent mineral buildup and maintain efficient ice production.
-
Inspect Water Filter: Clean or replace the water filter as needed to ensure proper water flow and ice quality.
-
Check Water Supply: Ensure the water supply is securely connected and free of obstructions to prevent leaks and blockages.
-
Empty the Bin: Empty the ice bin regularly to ensure ice freshness and prevent odors.
