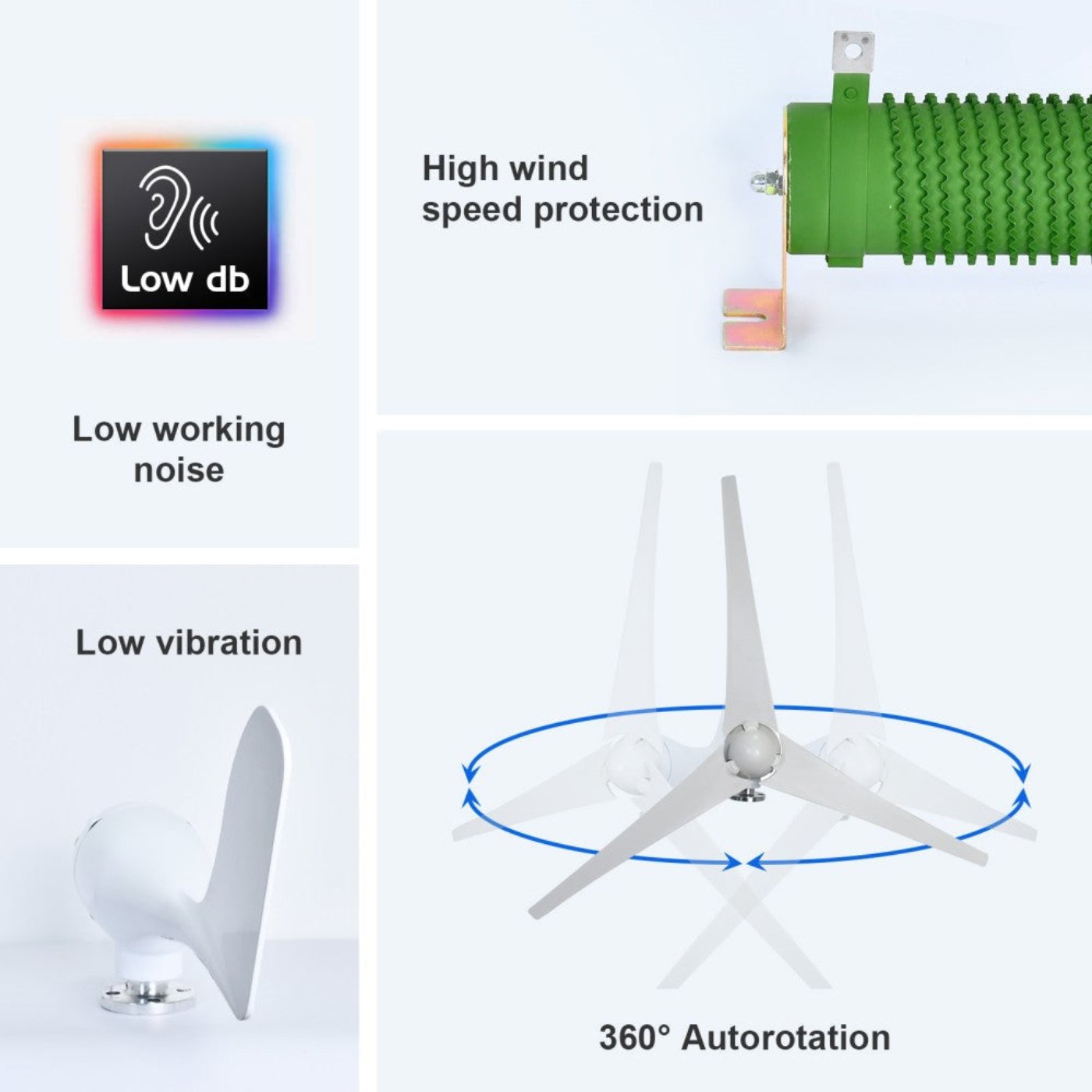

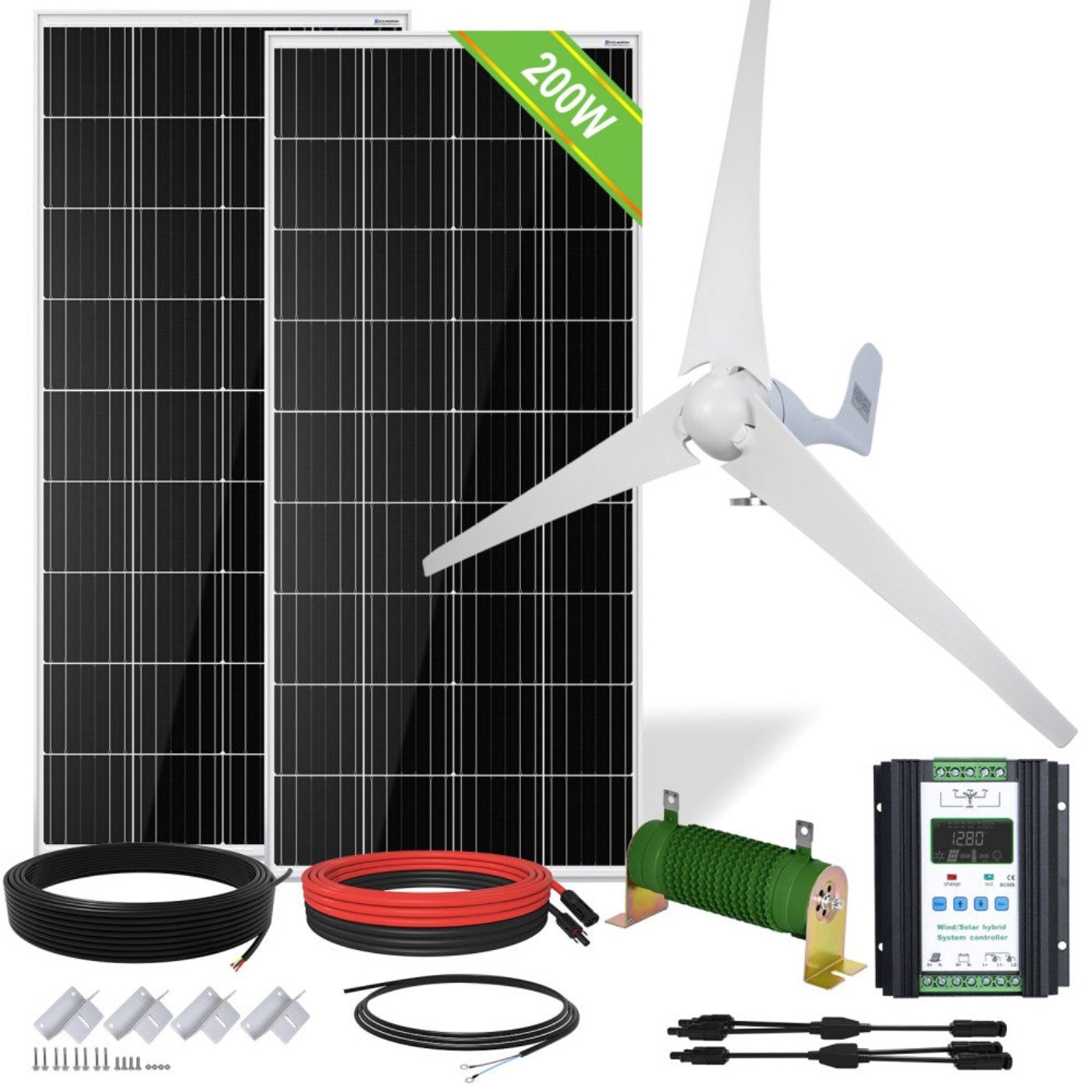

400W Wind Turbine Generator
Rated voltage: 24V |
Rated wind speed: 13M/S |
Starting wind speed: 2.0M/S |
Maximum wind speed: 50M/S |
Blade diameter: 1.3M |
Rated power: 400W |
Net weight: 5kg |
|
40A Hybrid Controller
Battery system voltage level: 24V |
PV array maximum open circuit voltage: 55.2V |
Recovery Voltage after PV array maximum open circuit voltage: 52.8V |
PV array minimum operating voltage: >Vbat+1V |
Photovolinic rated current rating: 40A |
PV module power: ≤1000W |
Fan rated voltage level: 24V |
Fan array maximum open circuit voltage: 51.2V |
Fan rated current: 33A |
Wind Turbine Power: ≤800W |
Voltage of restriction charging: Vbat>BCV+0.4V |
DC load output rated current: 30A |

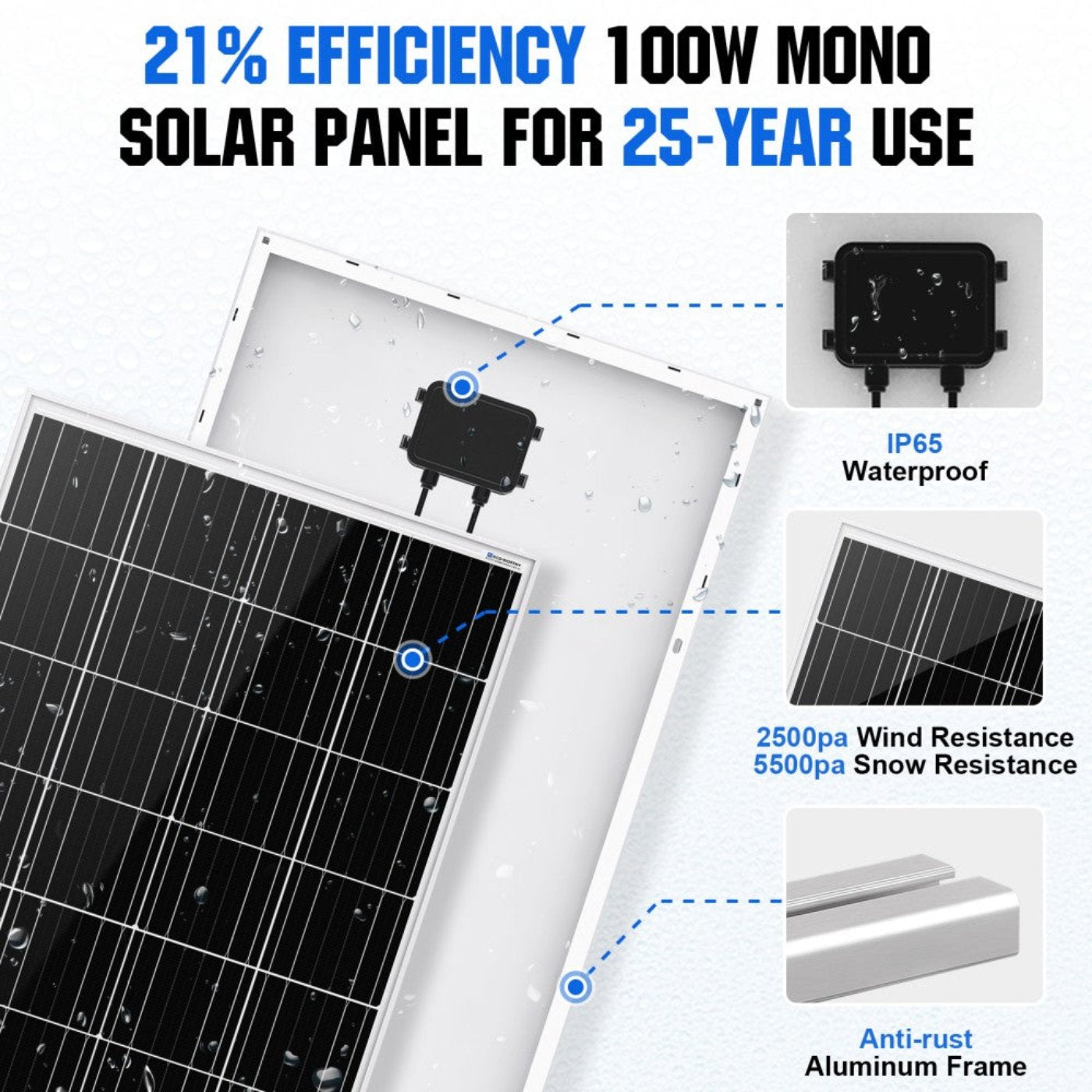

100W Monocrystalline Solar Panel
Rated Power: 100W |
Solar Cell: Monocrystalline |
Maximum/Peak Voltage(Vmp): 18V |
Open Circuit Voltage(Voc): 21.6 V |
Short circuit current: 6.11A |
Maximum current: 5.55A |
Output Tolerance: ±3% |
Temperate coefficient of Isc: (010+/-0.01)%/℃ |
Temperate coefficient of Voc: -(0.38+/-0.01)%/℃ |
Temperature range:-40℃~ +85℃ |
Frame: Aluminum alloy frame |
Length of extension cable: 90cm(2.95ft) |
Size of extension cable: 4mm²(11AWG)/MC4 Connector |
Weight: 13.14 lbs(5.96 kg) |
Size: 985mm*535mm*35mm |
|

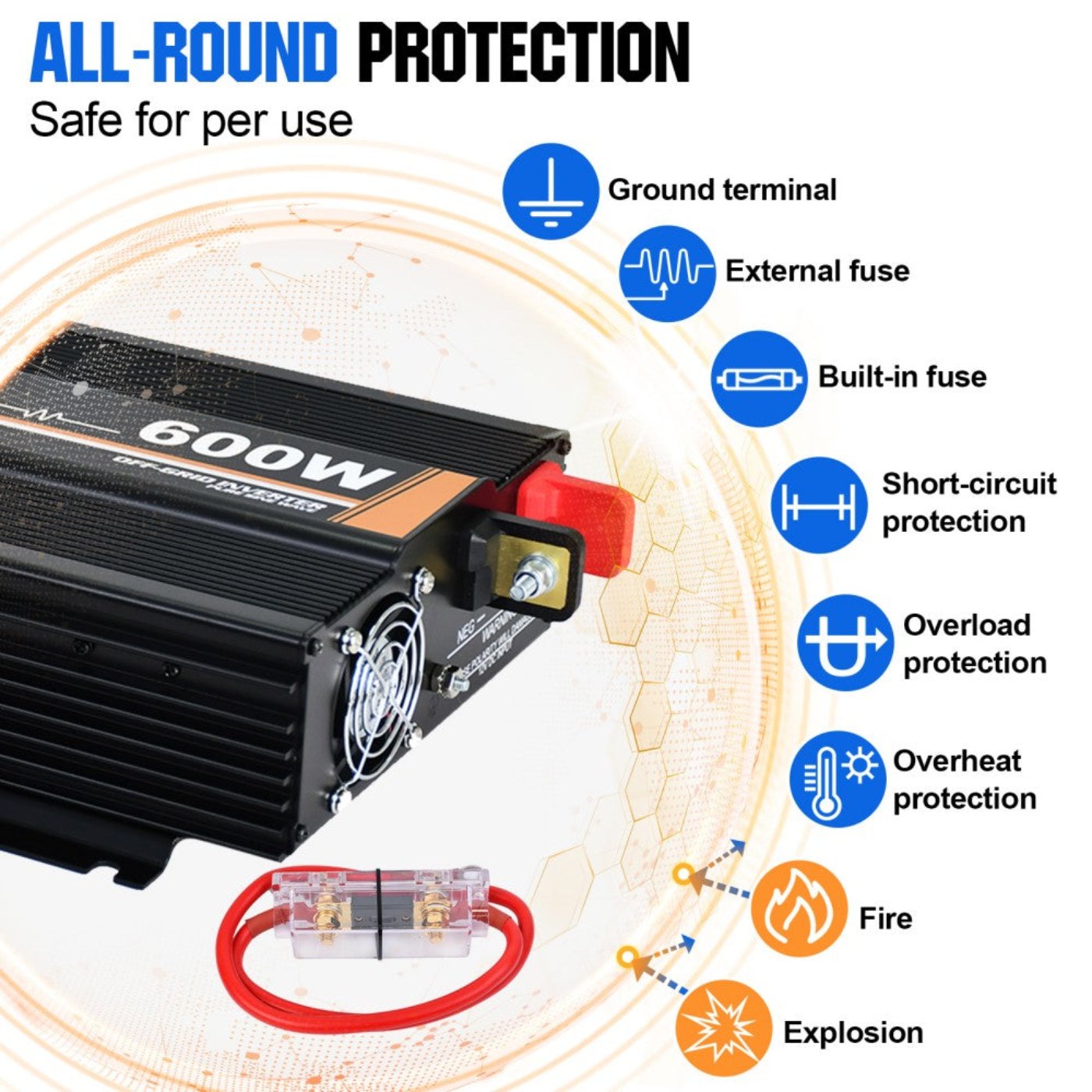

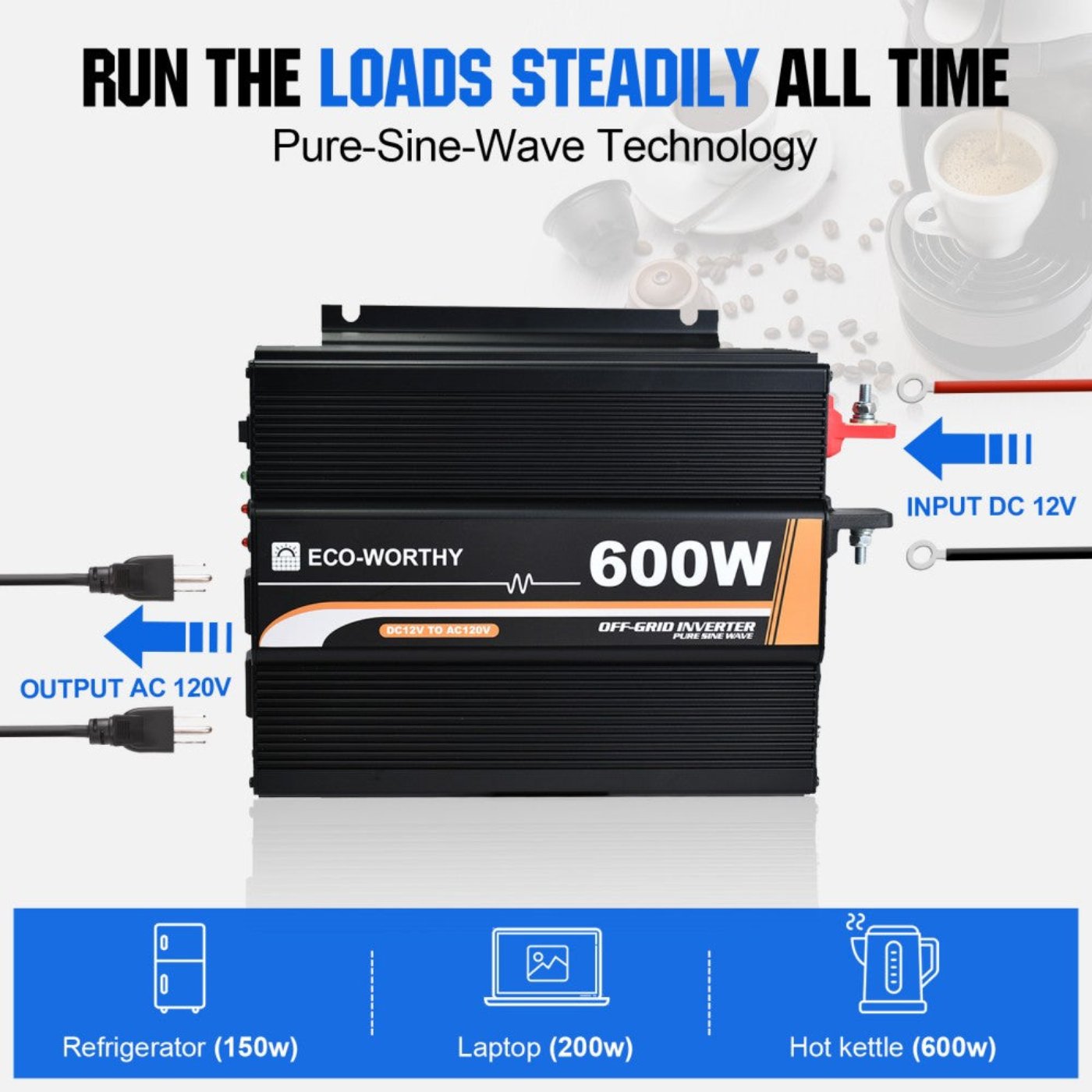

600W 12V Off Grid Inverter
Rated Output Power: 600W |
Surge Output Power: 1000W |
Rated Output Voltage: 120Vac ± 1% |
Output Freq.: 60Hz ± 0.2Hz |
Waveform: Pure Sine Wave |
Total Harmonic Distortion: < 3% |
Input PV Voltage Range: 10V-15V |
Efficiency: > 85% |
No Load Current Draw: 0.85A |
Low Battery Alarm: 10.7V |
Low Battery Shut-Down: 10V |
Dimension (L x W x H): 12*6.77*2.95 inch |
Weight: 2.5kg (5.5 lbs) |
|

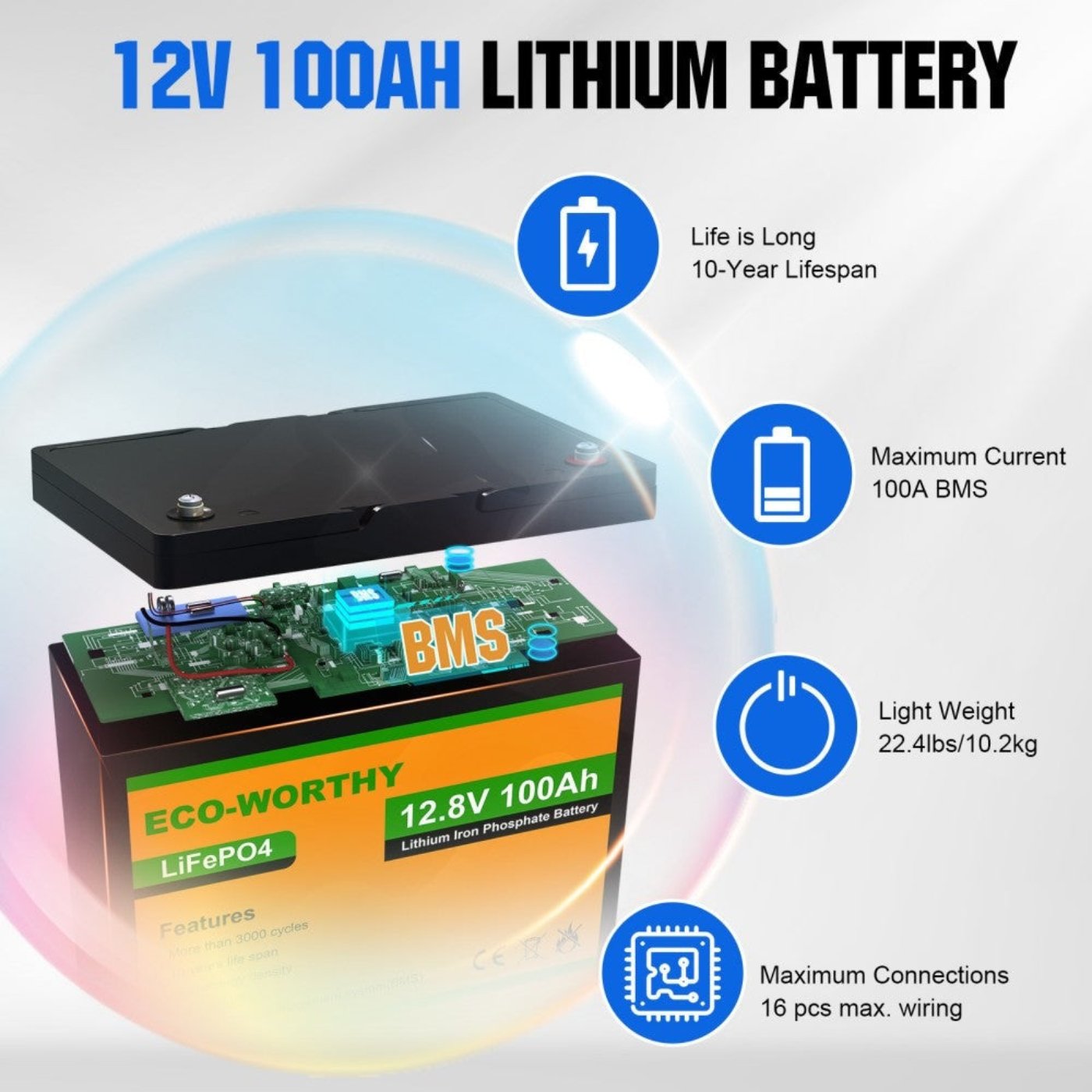

100Ah LiFePO4 Lithium Battery
Battery Capacity: 100Ah |
Battery Power: 1200Wh |
Battery Voltage: 12.8V |
Maximum Charge/ Discharge Current: 80A/100A |
Charge Temperature Range: 0-55℃ |
Disharge Temperature Range:﹣20-55℃ |
Maximum Charge Voltage: 14.5V |
Discharge Cut-Off Voltage: 10V |
Screw size: M8 |
Battery Size: 260*168*209mm(10.2*6.6*8.2inch) |
Battery Weight: 9.55kg/21 lbs |
|
16.4 feet 12AWG Cables
Cable Type: Connecting Solar Panels to Charge Controller |
Rating Voltage: 600/1000V |
Length: 5 meters(16 ft) |
Conductor: Tinned copper wire |
AWG: 11 |
Normal Cross Sectional Area of the Conductor (mm2): 4 |
Waterproof: IP 65 Protection |
Temperature: -40°F to +185°F |
Connector: MC4 |
Weight: 0.742KG |
Z Mounting Brackets
4 pieces of Z shape solar panel brackets |
8 pieces of stainless steel nuts and cap bolts |
Y Branch Cable MC4 Connectors
Compatible with MC4 solar connector. |
Easy installation for 2 solar panels connected in parallel. |
