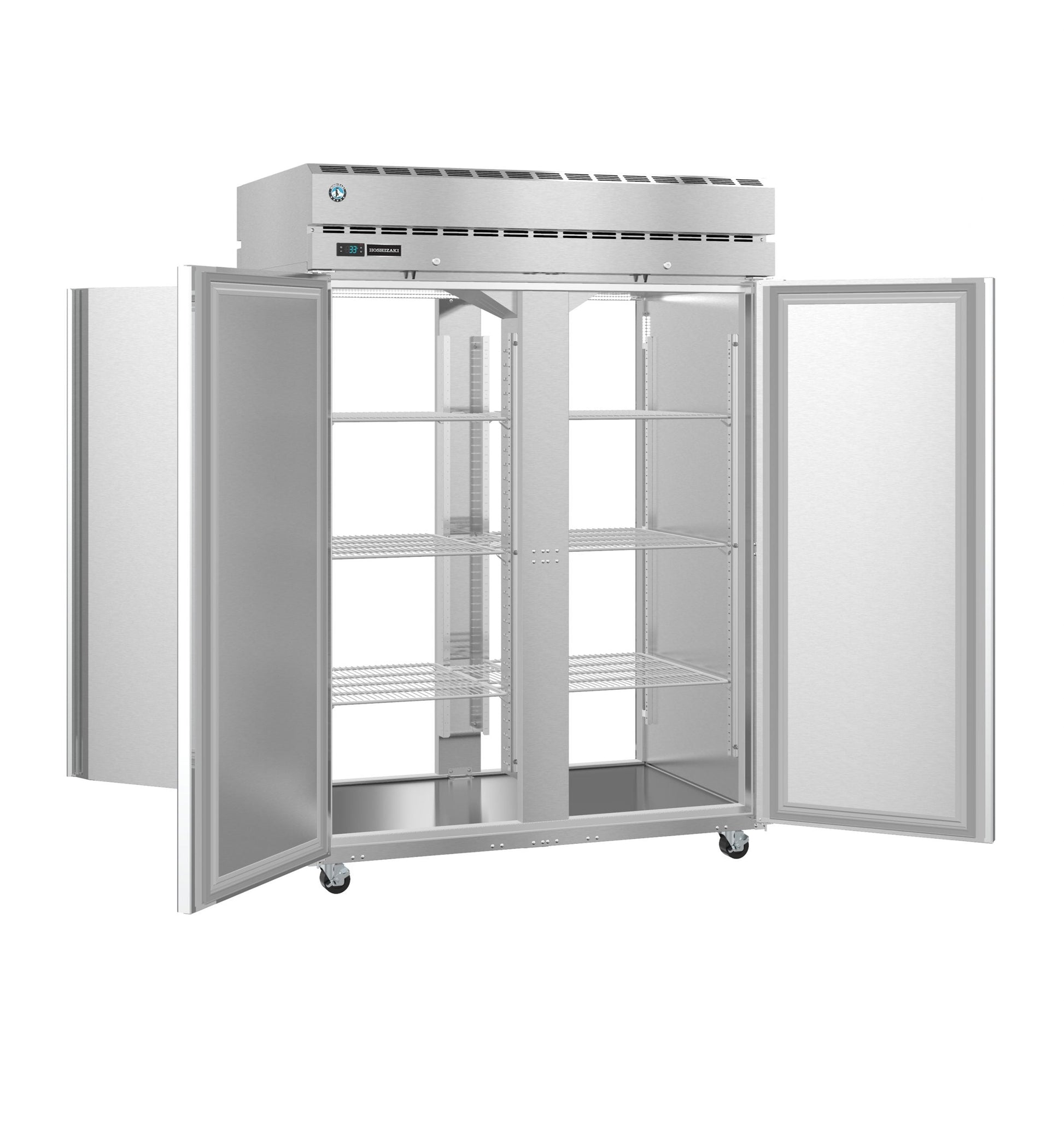

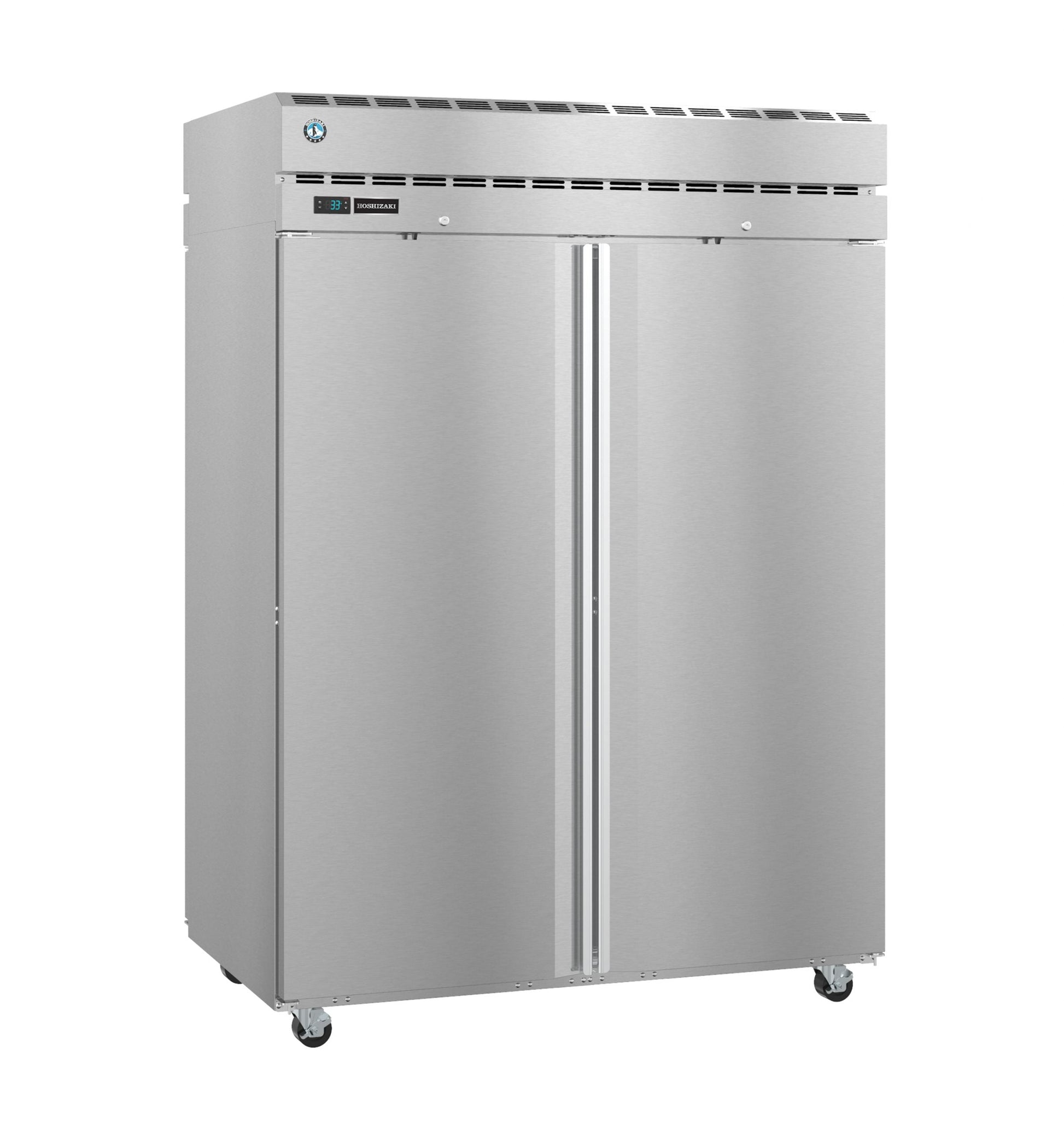

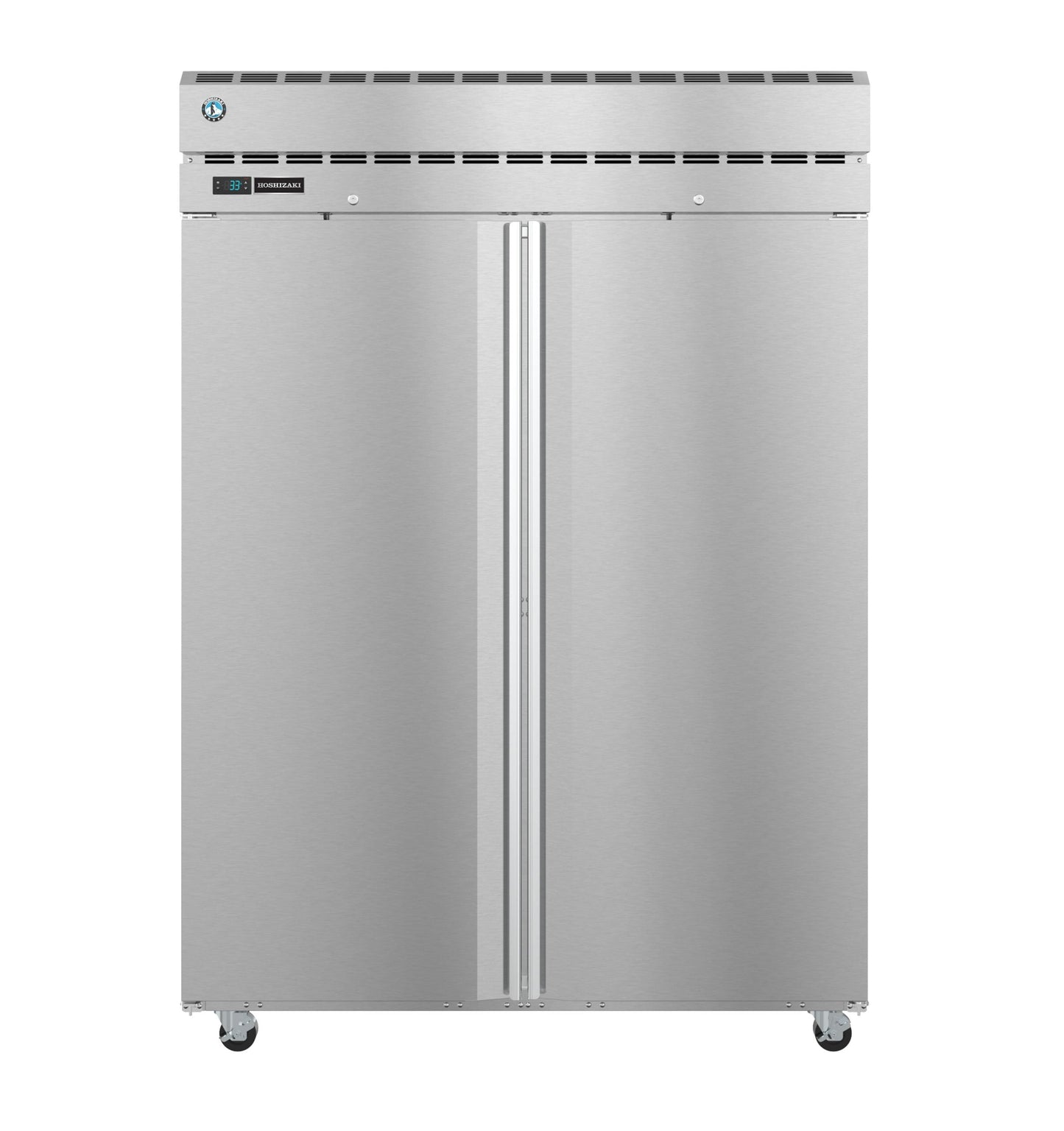

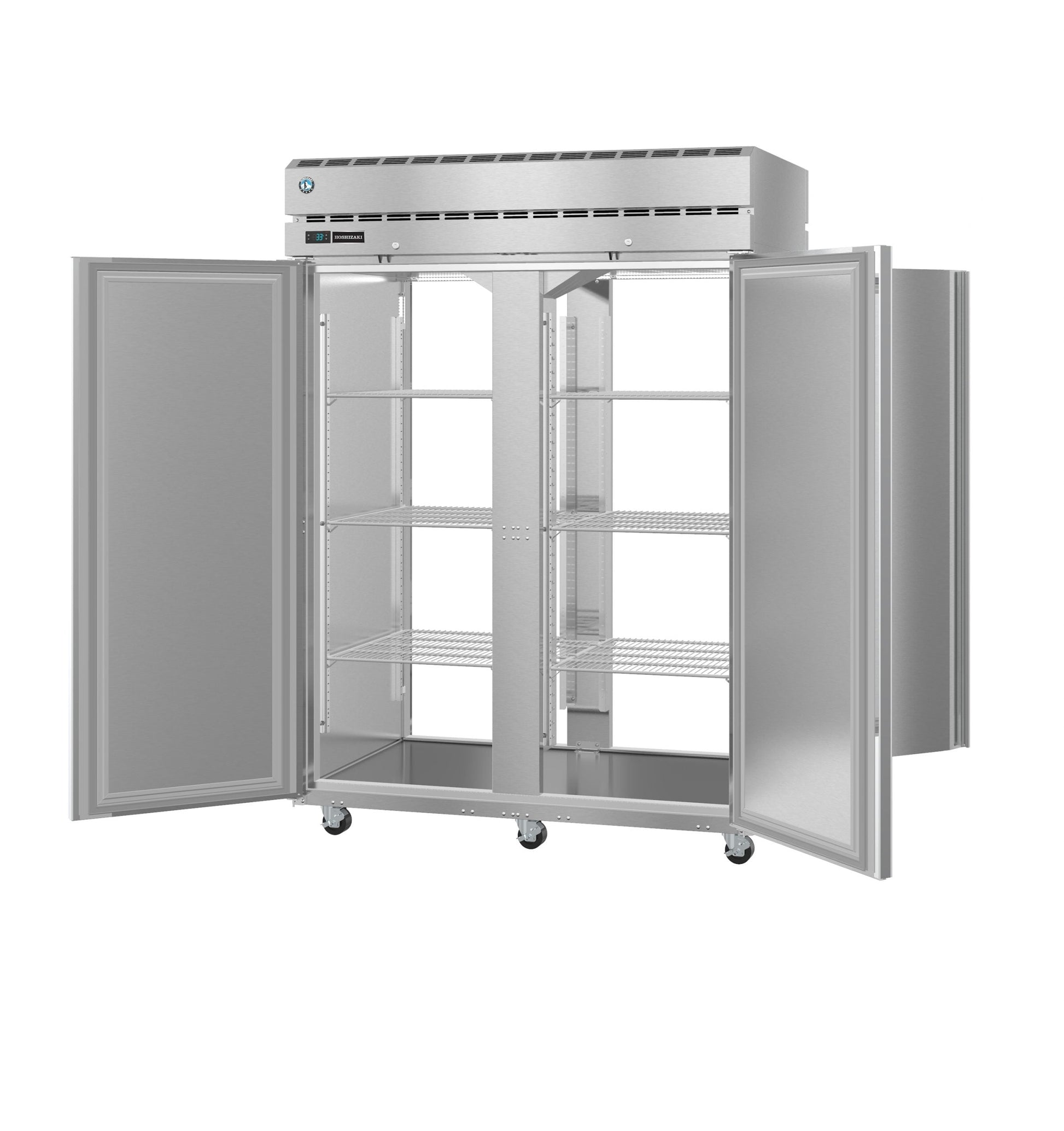

Hoshizaki PT2A-FS-FS | 55" Wide 4 Door Top Mount Pass-Thru Refrigerator - PT2A-FS-FS
The PT2A-FS-FS Steelheart Series Pass Thru two section refrigerator with full stainless doors is a space saving workhorse. Solid state digital controller with temperature alarms and LED display (°F or °C). With a interior capacity of 52.5 cubic feet this efficient pass thru refrigerator and front air flow design is perfect for hot/tight kitchens. The PT2A-FS-FS is constructed of stainless steel, which protects this unit from accidental damage and rust. Plus, it is easy to clean.
The PT2A-FS-FS also includes Interior LED light bar is mounted horizontally on the ceiling, (6) 4″ stem casters (3 with brakes) are standard, plus a field reversible, spring assisted self closing doors with stay open feature (no kit req’d). Electrical consumption of 3.24 kWh/day at 8 Amps, 10 ft long cord with a 5 – 15P NEMA plug. Optional kits: 6″ Legs, Epoxy or stainless steel shelves, Tray/pan slides, Foot pedal door opener, Additional air filter. The unit is ETL Safety (US & C) Listed, ETL Sanitation and includes a six years parts , five years labor , and seven years compressor .
Features
- Dimensions: 55″ W x 35.75″ D x 79.5″ H
- Interior capacity of 52.5 cubic feet
- Unique “ducted” air distribution system
- Epoxy electrocoated (E-Coat) evaporator coil to help fight corrosion for extended life
- Stainless steel exterior (front, sides, top) and a stainless steel interior
- Field reversible, spring assisted self closing doors with stay open feature (no kit req’d)
- One piece, full door length, extruded aluminum flush mount door handle
- Lockable Full Stainless Doors
- Insulated with 2 3/8″ CFC free, foamed in place polyurethane
- Interior LED light bar is mounted horizontally on the ceiling
- Solid state digital controller with temperature alarms and LED display (°F or °C)
- R290 refrigerant
- (6) 4″ Stem Casters (3 with brakes) are standard
- Includes 6 epoxy coated wire coated wire shelves adjustable in 1″ increments on stainless steel supports
- Optional kits: 6″ Legs, Epoxy or stainless steel shelves, Tray/pan slides, Foot pedal door opener, Additional air filter
- Nominal Compres. of 1545 BTU/hr at 1/2 HP
- 115v/60/1, 10 ft. cord and plug
- Shipping Crate: 58″ L x 38.125″ D x 81″ H at 592 lbs
- Top mounted energy efficient non-electric evaporation system
Specifications
| Brand |
Hoshizaki |
| Model Number |
PT2A-FS-FS |
| Weight |
592 lbs |
| Width |
55" |
| Depth |
35.75" |
| Height |
79.5" |
| Door Type |
solid |
| Refrigerator Type |
Pass-Thru |
| Size |
2 section |
| Door Quantity |
4 |
| Exterior Finish |
stainless steel front & sides |
| Compressor Location |
top mounted |
| Compressor HP |
1/2 HP |
| Capacity (Cu. Ft.) |
53 |
| Interior Finish |
all stainless steel interior |
| Supports |
casters |
| Hinge Location |
left / right |
| Door Style |
swing / full |
What our Experts Think
-
Spacious 4-Door Design – Maximizes storage and organization for high-volume kitchens.
-
Pass-Thru Convenience – Dual-sided access improves workflow and efficiency.
-
Top-Mount Refrigeration – Keeps the system away from floor debris for better performance.
-
Stainless Steel Durability – Corrosion-resistant, easy to clean, and built to last.
-
Precise Temperature Control – Ensures consistent cooling for food safety and freshness.
Q&A
Q: What type of refrigerator is the Hoshizaki PT2A-FS-FS?
A: This is a pass-thru refrigerator with four solid stainless steel doors, allowing access from both sides—ideal for commercial kitchens, catering, and food prep areas.
Q: What are the dimensions and storage capacity?
A: This unit is 55 inches wide and offers ample storage space, making it suitable for high-volume kitchens.
Q: What kind of cooling system does it use?
A: The refrigerator features a top-mounted self-contained refrigeration system, which helps maintain optimal cooling performance while maximizing storage space inside.
Q: Is this refrigerator durable?
A: Yes, the stainless steel exterior and interior provide exceptional durability, corrosion resistance, and easy cleaning.
Q: Does it have adjustable shelves?
A: Yes, the refrigerator comes with sturdy, adjustable shelves, allowing you to customize storage based on your needs.
Q: What temperature control features does it have?
A: It includes electronic temperature controls with an LED display, ensuring precise temperature regulation for food safety.
Q: Is it energy-efficient?
A: Yes, the unit is designed with efficient insulation and energy-saving components to minimize power consumption.
Maintenance Tips
-
Clean Doors & Gaskets: Wipe daily to ensure a tight seal and prevent air leaks.
-
Monitor Temperature: Keep between 34-40°F for optimal food preservation.
-
Inspect & Clean Coils: Every 3 months, remove dust for efficient cooling.
-
Check & Clear Drain Lines: Prevent water buildup and leaks.
-
Ensure Proper Airflow: Avoid overloading to maintain consistent refrigeration.
