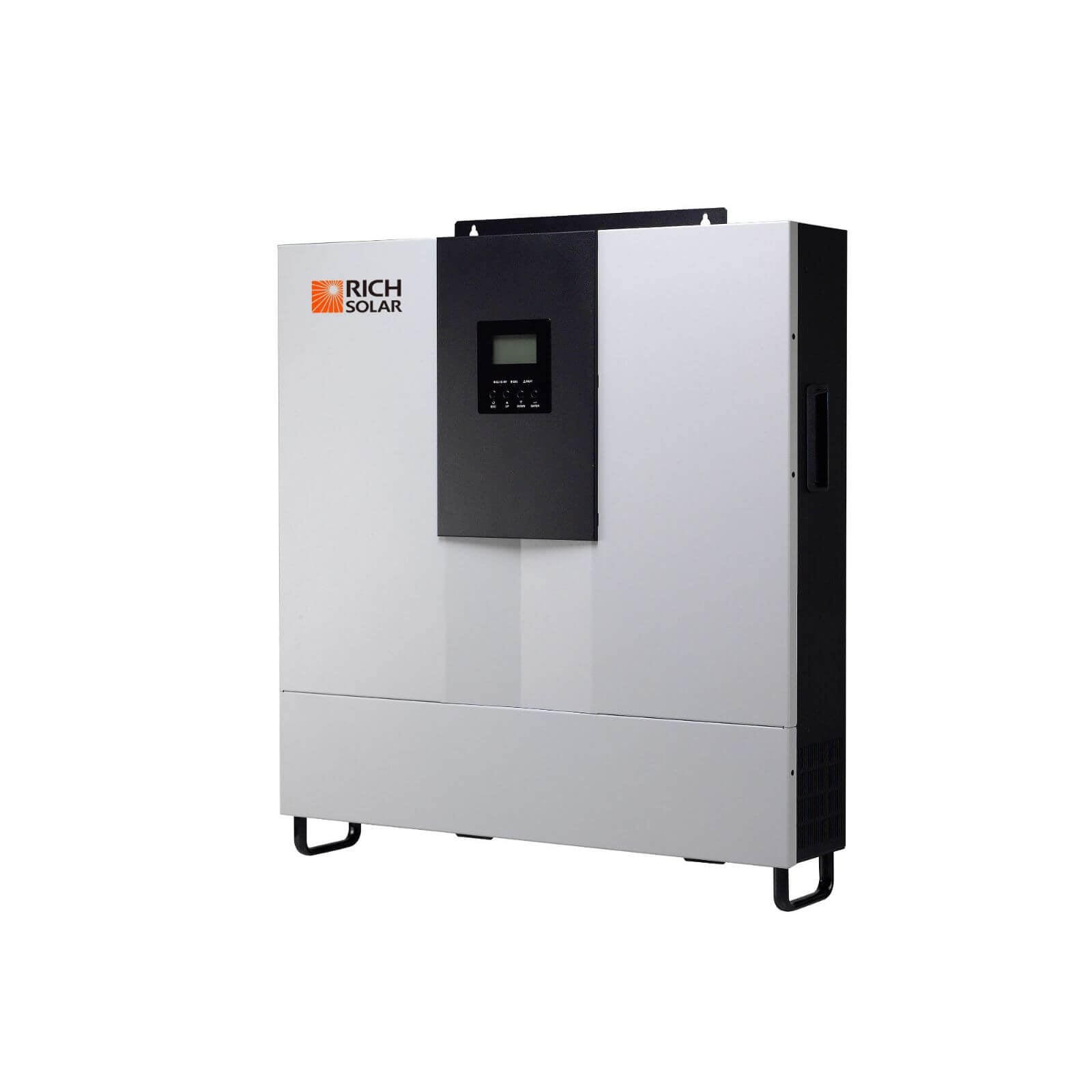

6000 Watt Off-grid Hybrid Split Phase Solar Inverter

6000 Watt Off-grid Hybrid Split Phase Solar Inverter

Features

• Pure sine wave inverter
• Selectable output voltage at 120VAC/208VAC/240VAC depending on applications
• Built-in 2 strings of MPPT solar charge controller
• Selectable input voltage range for home appliances and personal computers
• Configurable AC/Solar input priority via LCD setting
• Compatible to mains voltage or generator power
• Auto restart while AC is recovering
• Overload and short circuit protection
• Smart battery charger design for optimized battery performance
• Cold start function
• Maximum 3 units in parallel operation for single phase, split phase and three phase applications

Specifications

Rated Power: 6000VA/6000W
Parallel Capability: Yes, 3 units

INPUT

Rated Input Voltage: 110/120 VAC(L-N or L1-N-L2)
Input Voltage Range: '95 ~ 140 VAC (For Personal Computers), 65 ~ 140 VAC (For Home Appliances)'
Frequency Range: 50 Hz/60 Hz (Auto sensing)

OUTPUT

AC Voltage Regulation (Batt. Mode): 110/120 VAC(L-N or L1-N-L2)
Efficiency(Peak): 90%
Transfer Time: '10 ms (For Personal Computers), 20 ms (For Home Appliances)'
Waveform: Pure sine wave

BATTERY

Battery Voltage: 48 VDC
Floating Charge Voltage: 54 VDC
Overcharge Protection: 60VDC

SOLAR CHARGER & AC CHARGER

Solar Charger Type: MPPT
Maximum PV Array Open Circuit Voltage: 145 VDC
Number of MPP Trackers: 2
Maximum PV Array Power: 4000 W x 2
MPP Range @ Operating Voltage: 60 VDC ~ 115 VDC
Maximum Solar Charge Current: 80 A x 2
Maximum AC Charge Current: 60 A
Maximum Charge Current: 220 A
Maximum MPPT Charging Efficiency: 96%
Maximum AC Charging Efficiency: 92%

OPERATING ENVIRONMENT

Humidity: 5% ~ 95% non-condensing
Operating Temperature: -10°C ~ 50°C
Storage Temperature: -15ºC ~ 60ºC

PHYSICAL

Dimension(D X W X H): 130 x 622.6 x 610 mm
Net Weight: 30 kg
