Product Highlight:

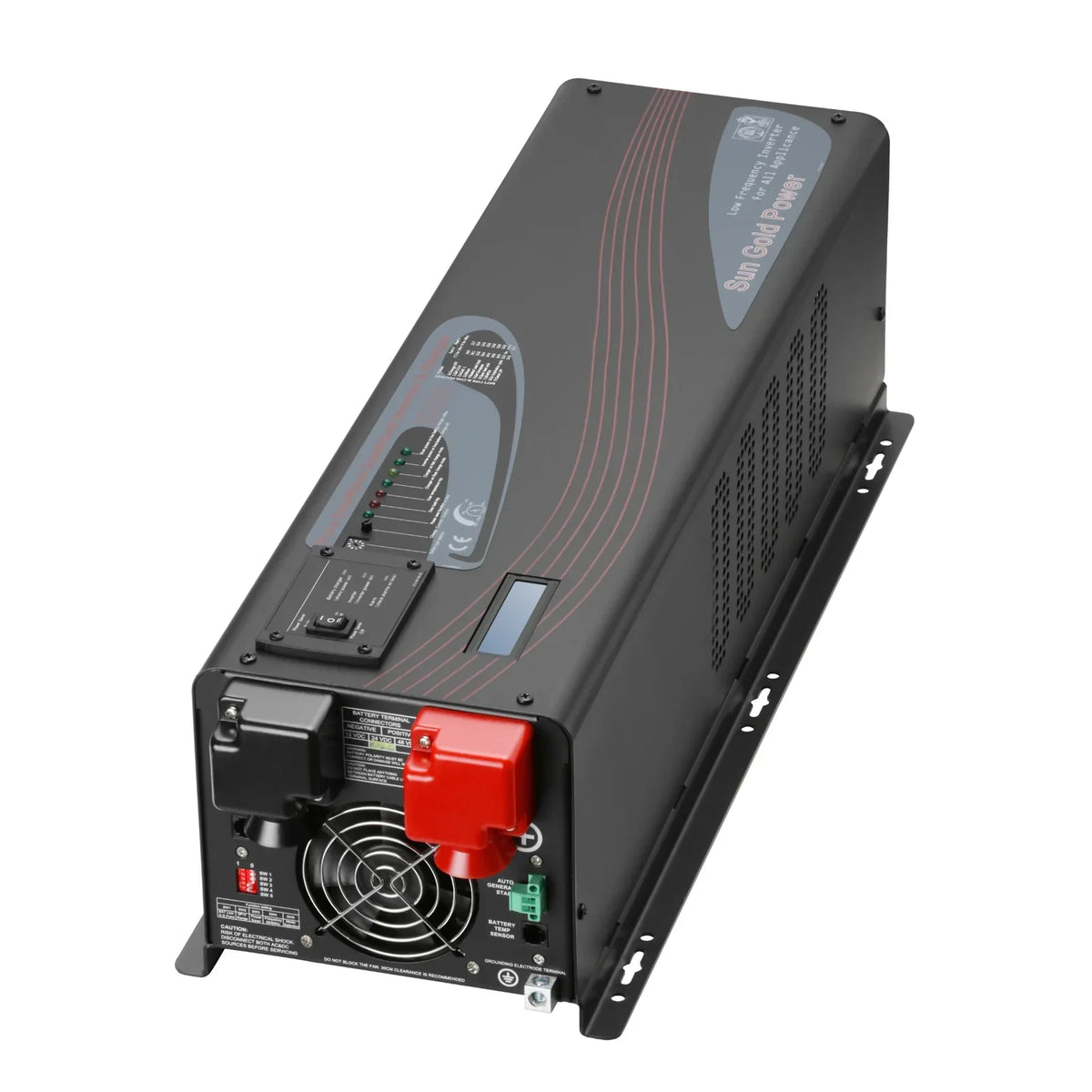

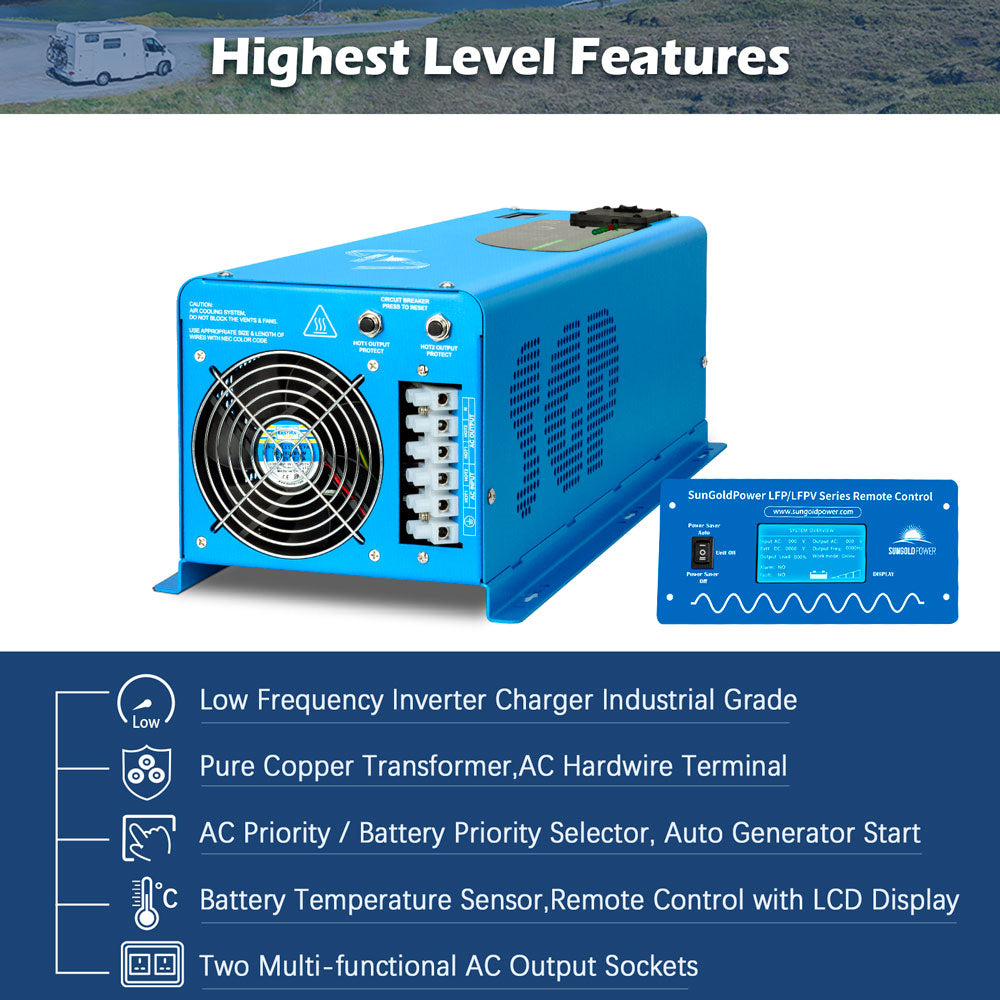

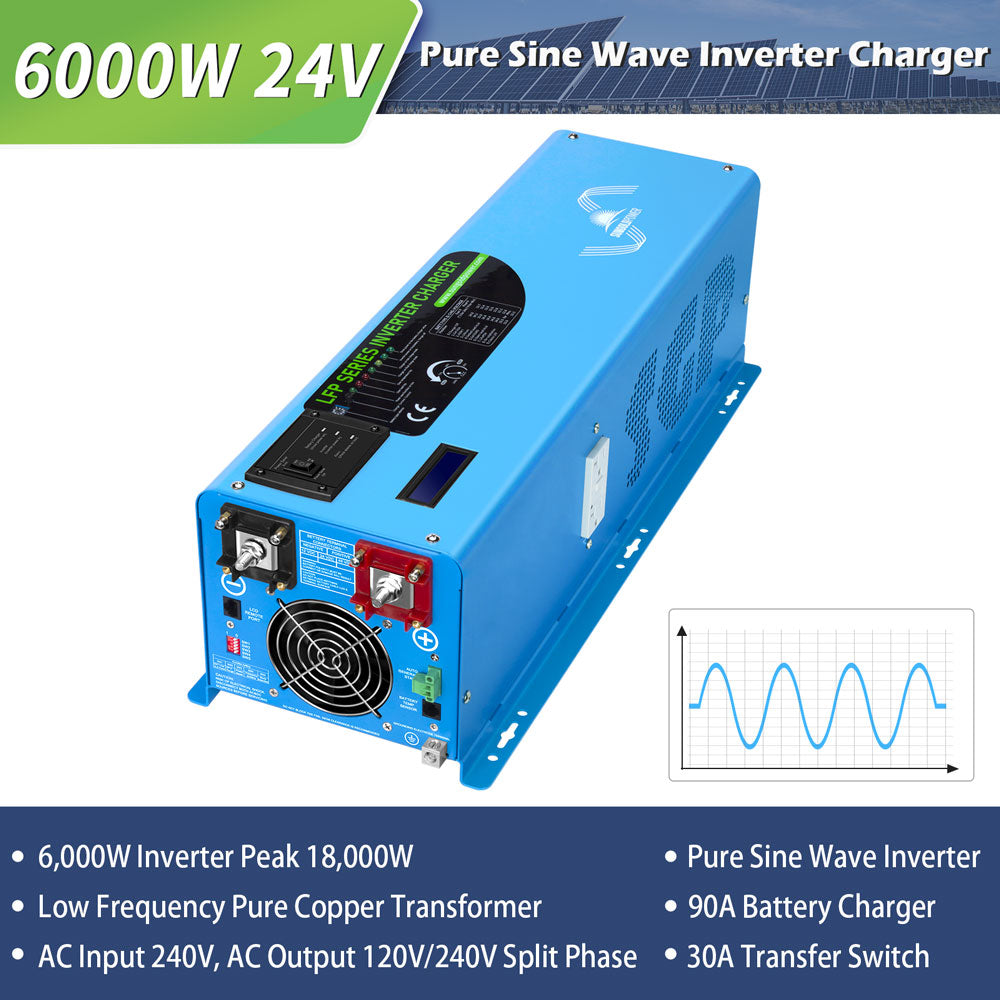

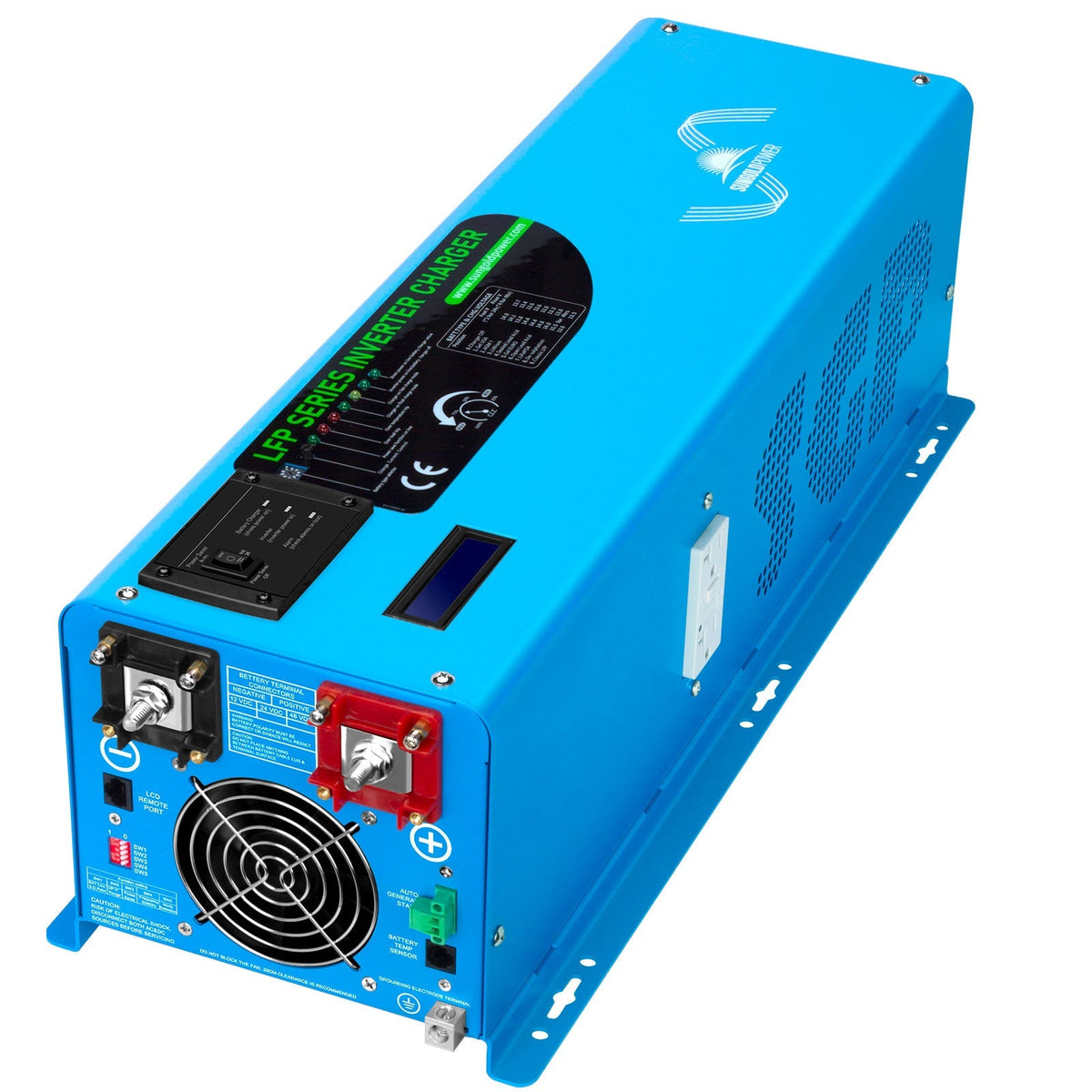

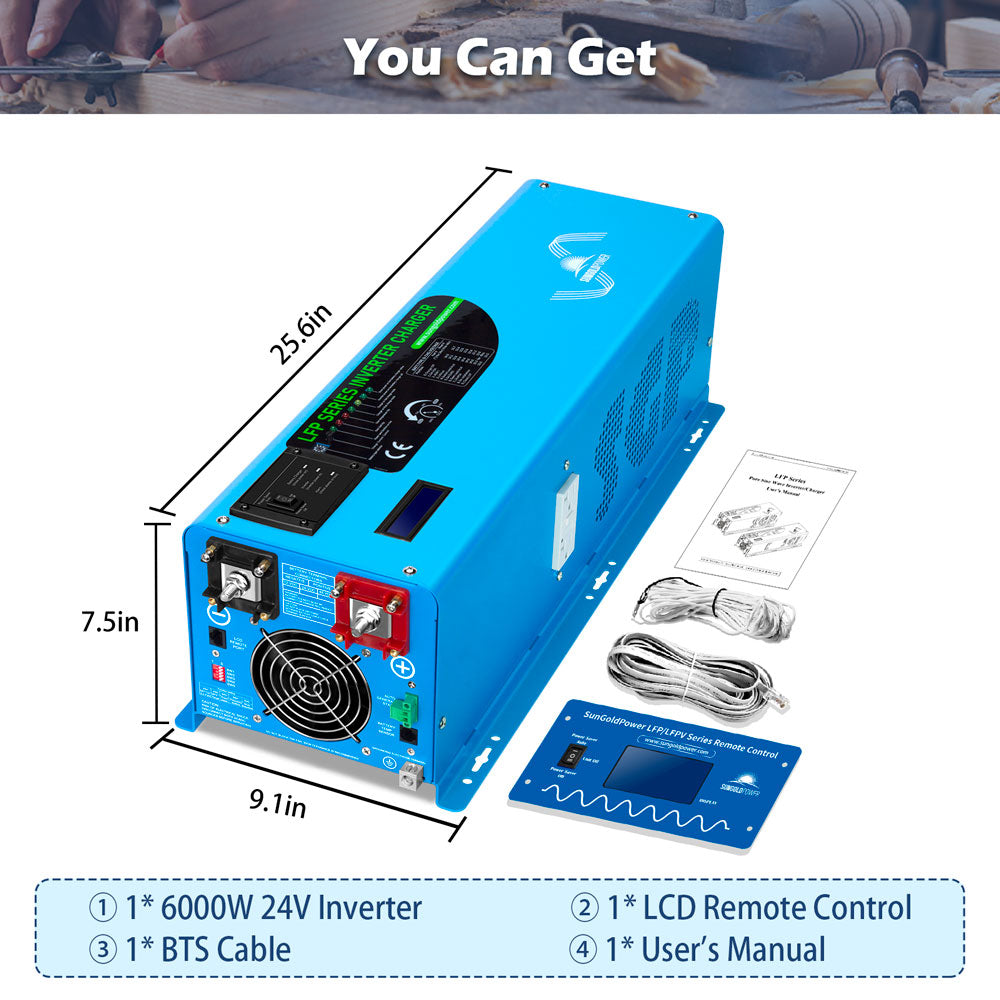

★ This LFP Series Pure Sine Wave Inverter is a combination of a 6000-watt inverter, battery charger, and AC auto-transfer switch. Low frequency, low Idle Current, BTS cable, remote control.
★ The split-phase inverter requires 240VAC input and can provide 120VAC or 240VAC output power for all kinds of appliances, and it can output 50 or 60Hz via the SW4.
★ AC/Battery Priority: Our 240-volt inverter is designed with AC priority by default, you can choose the battery priority by SW5 switch.
★ Adjustable Charging Current: The max charge current can be adjusted from 0%-100% via a liner switch.
★ Auto Gen Start: The 24v inverter can start up a generator when the battery voltage goes low, and turn the generator off after battery charging is finished.
Specifications
Main Features
*6000W Low Frequency Pure Sine Inverter With Charger.
*AC/Battery Priority Selector.
*Automatic Generator Start.
*Safety and Convenient.
*The low frequency inverter can power all kinds of appliances.
*LCD Display, Remote Control.
*Low Idle Consumption.

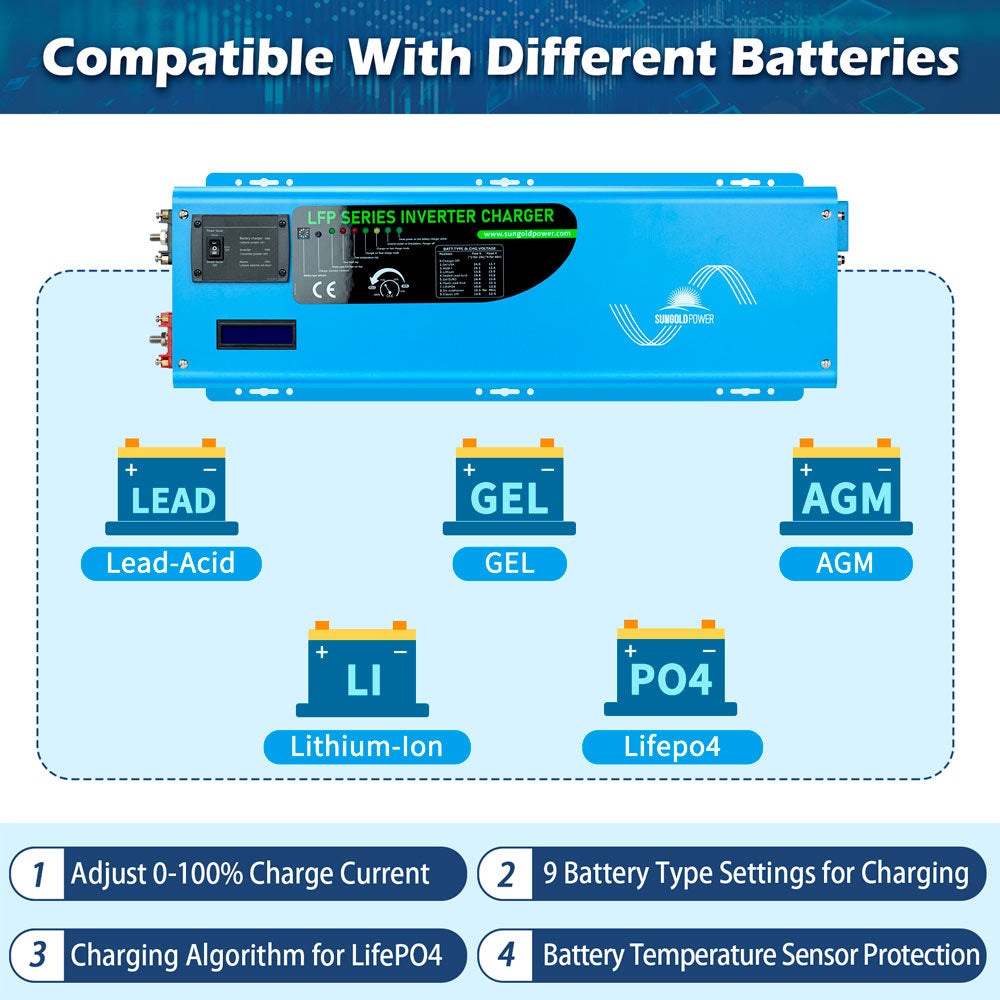

*9 battery type settings for charger.
*Multi Stage Smart charger 90+/-5A, charger can be disable.
*10msec typical transfer time.
Inverter Output
*Continuous Output Power: 6000W
*Surge Rating: 18000W (20 Seconds)
*AC Output: AC 120V and AC 240V *AC Input: 240V
*Output Wave: Pure Sine Wave (bypass mode)
*Typical Transfer Time: 10ms (MAX)
*Nominal Efficiency: >88%
DC Input
*Nominal Input Voltage: 24.0Vdc
*Minimum Start Voltage: 20.0Vdc
*Low Battery Alarm: 21.0Vdc-22.0Vdc
*Low battery Trip: 20.0Vdc-21.0Vdc (select by SW1)
*High Voltage Alarm: 32.0Vdc
*Low battery Voltage Restart: 26Vdc
*Idle Consumption: 77W
*Power Saver Mode Idle Consumption: 29W
AC Charger
*Charger Rate: 90+/-5A
*AC input Range (Grid or Generator): 140V-270VAC/184V-253VAC (select by SW2)
High Power Output: Delivers 6,000W continuous power, suitable for demanding off-grid and backup systems.
Split-Phase Functionality: Offers 120V/240V output, supporting a wide range of appliances and heavy-duty equipment.
Pure Sine Wave Technology: Provides clean, stable power, ensuring the safe operation of sensitive electronics.
24V DC System: Ideal for medium-sized energy setups with 24V battery banks, including RVs, boats, and small homes.
Integrated Charger: Combines inverter and battery charging for seamless energy management.
Enhanced Safety Features: Built with overload, over-voltage, and short-circuit protections for reliable and safe operation.
User-Friendly Design: Compact, easy to install, with intuitive controls and clear indicators for monitoring system status.
Q&A
Q: What is the 6000W DC 24V Split Phase Pure Sine Wave Inverter with Charger (LFP6K24V230VSP)? A: A 6000W pure sine wave inverter with split-phase 120V/240V output and an integrated charger, designed for 24V battery systems to provide stable power for a variety of applications.
Q: What are its key features? A:
6000W continuous pure sine wave output
Split-phase 120V/240V for versatile appliance compatibility
Supports 24V battery systems
Integrated charger for efficient battery recharging
Built-in protections: overload, overheat, and short circuit

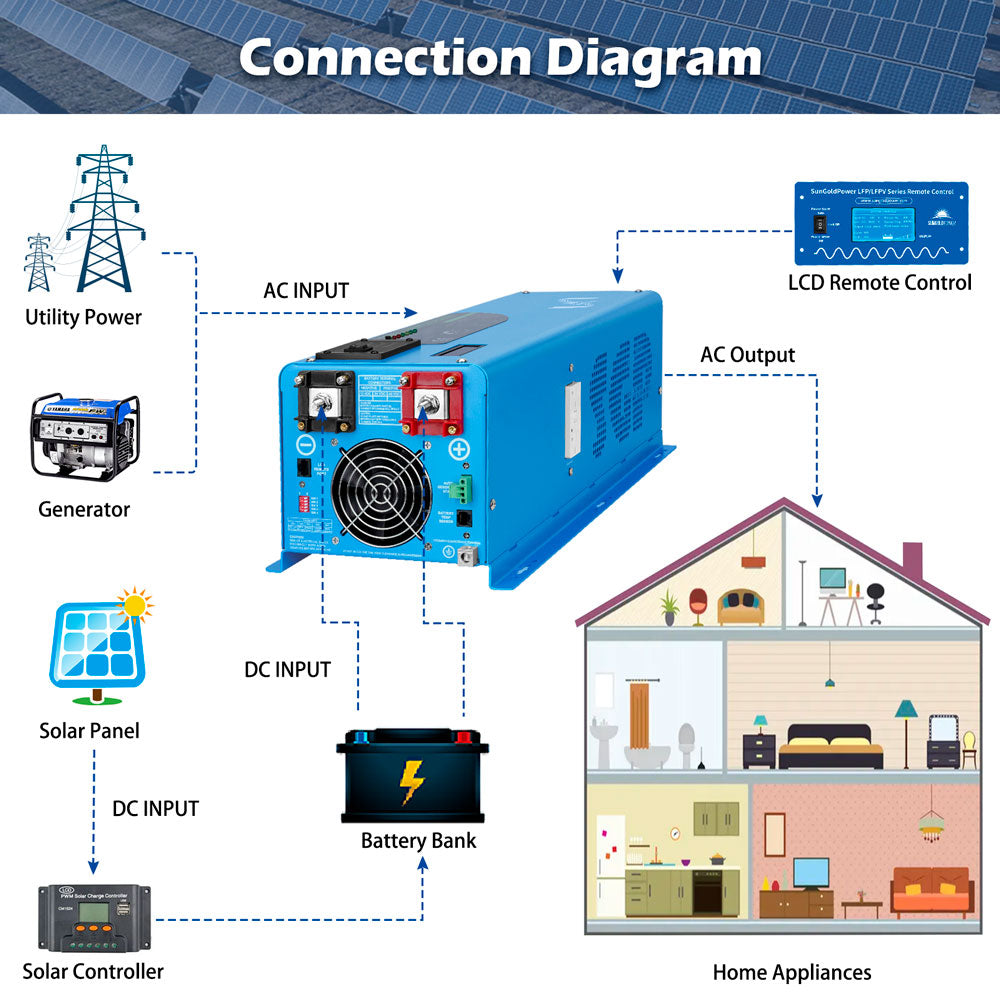

Q: What applications is it suitable for? A: Ideal for off-grid solar systems, RVs, boats, and backup power, supporting both 120V and 240V appliances.
Q: Can it handle high-demand appliances? A: Yes, it can power heavy-duty devices like water pumps, refrigerators, and power tools with ease.
Q: Is it safe for sensitive electronics? A: Yes, the pure sine wave output ensures stable operation for sensitive electronics like TVs, laptops, and medical equipment.
Q: Is it easy to set up? A: Yes, it features a user-friendly design for simple installation and reliable performance
Maintenance Tips
Cooling System: Clean vents and fans regularly to prevent overheating.
Battery Maintenance: Inspect battery voltage, terminals, and charge cycles frequently for proper operation.
Wiring Check: Tighten and inspect all cables for corrosion, wear, or damage.
Environment: Install in a dry, ventilated, and dust-free location to protect internal components.
Performance Monitoring: Use the display or monitoring tools to track input/output levels and system health.
Firmware Updates: Update firmware periodically to ensure optimal performance and compatibility.
Safe Maintenance: Disconnect all power sources, including batteries, before performing any servicing.
