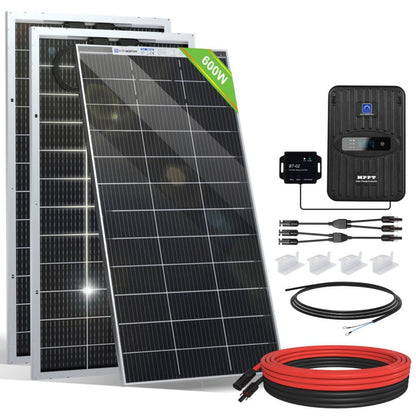

Bifacial 195W Monocrystalline Solar Panel
Rated Power: 195W |
Solar Cell: Monocrystalline |
Maximum/Peak Voltage(Vmp): 19.8V |
Open Circuit Voltage(Voc): 23.7V |
Short circuit current: 10.5A |
Maximum current: 9.85A |
Output Tolerance: ±3% |
Temperate coefficient of Isc: (010+/-0.01)%/℃ |
Temperate coefficient of Voc: -(0.38+/-0.01)%/℃ |
Temperature range: -40℃~ +85℃ |
Frame: Aluminum alloy frame |
Weight: 20.48 lbs(9.29 kg) |

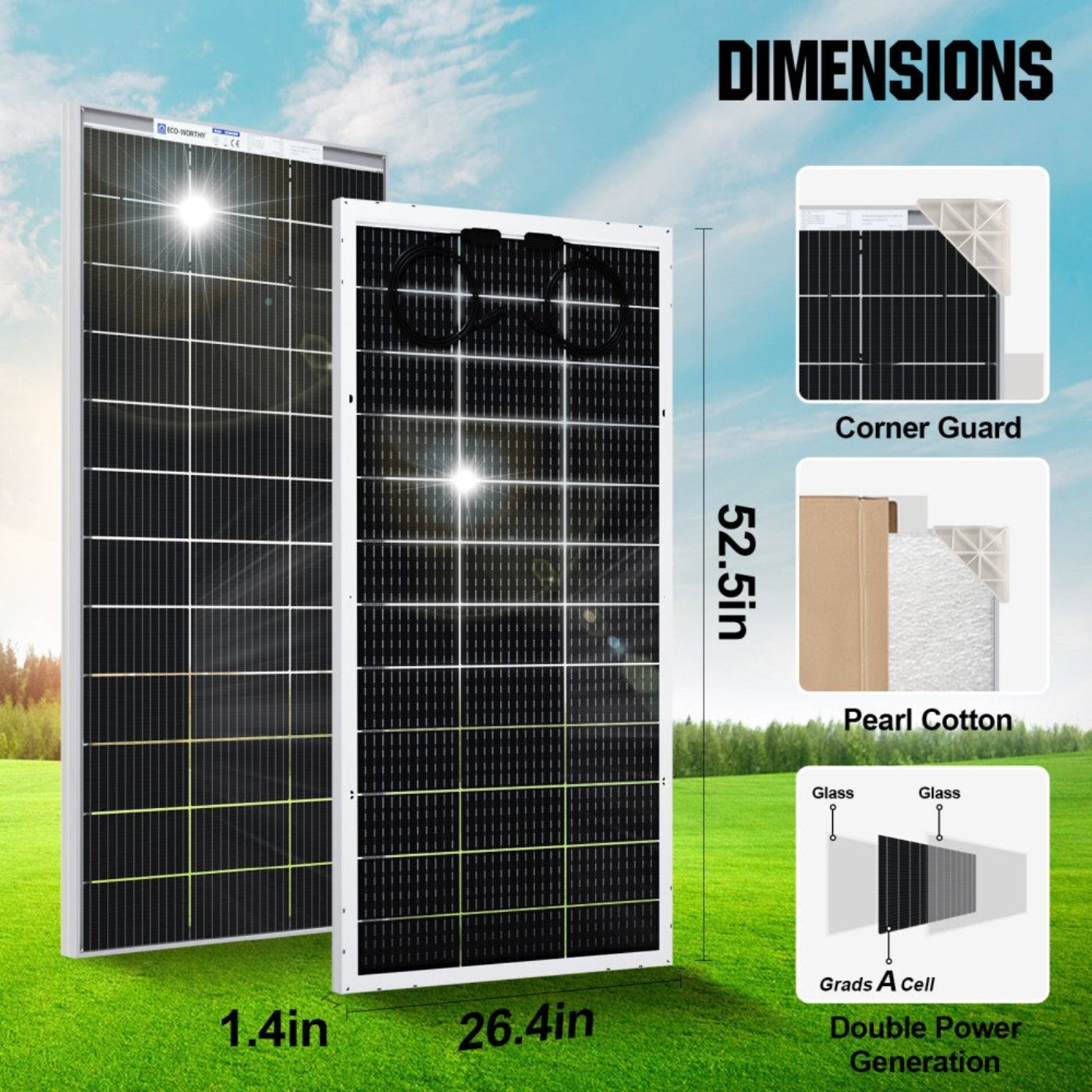

Size: 52.6x26.38x1.38in (1335*670*35mm) |
|
40A MPPT Solar Charge Controller
Battery voltage:12V/24V |
Max Solar Input Power:560/1120W |
Charging mode:MPPT |
Rated Load Current:20A |
Charge Efficiency (Peak):97% |
Self-Consumption:1~2W |
Battey Type:LiFePO4,AGM,Sealed,Gel,Flooded |
Size:220*148*64mm/8.7*5.8*2.5inch |
Max Charge current:40A |
Weight:1.5KG |
Max.PV Open-Circuit Voltage:<100V |
|

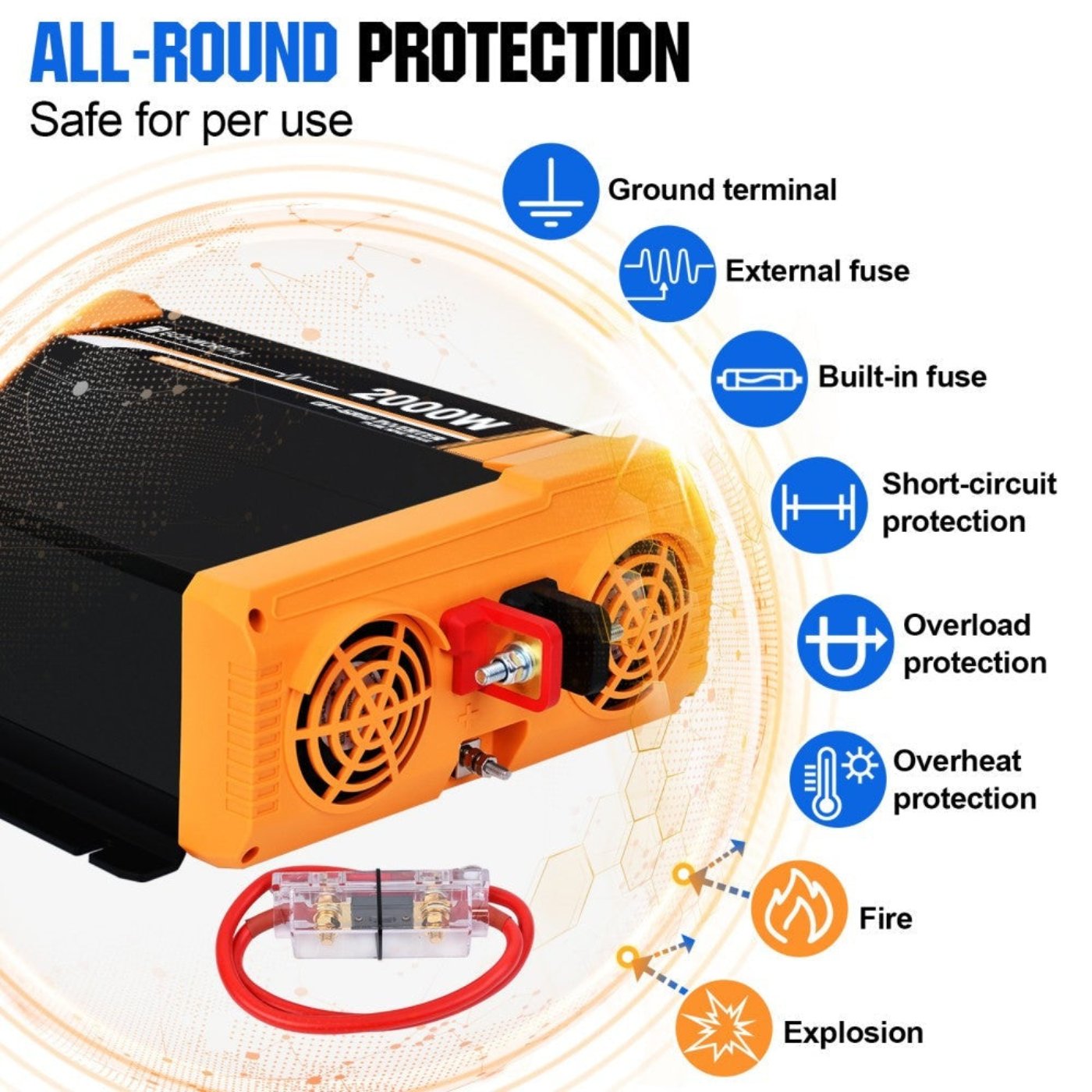

2000W 12V Off Grid Inverter
Output Continuous Watts(W): 2000W+18W USB |
Surge Capacity (PeakPower): 4000W |
Rated Input DC (V,A): 12V Battery, 200A |
Input Voltage Range: 10.5-16Vdc±0.3V |
Rated Frequency (Hz): 60Hz±1 |
Rated Output AC (V,A): 115Vac±10%, 18A |
Rated Output USB (V,A): 2*QC3.0 USB Ports (5V/3A,9V/2A,18W max) |
No Load Current: <1.2A |
Optimum Efficiency: 85% min |
Fuse (A): 40A*6 |
FuseType: Internal Blade |
Output Wave Form: Pure Sine Wave |
Touch Temperature: 65℃(149℉)max |
Operating Temperature: -20℃~40℃ (4℉~104℉) |
Operating/Storage Humidity RH: 5~95% |
Cooling System: Thermo Fan |
THD: <4.5% |
Dimensions (L*W*H): 16.8*9.8*4.1 in |
Assembled Weight (kg): 7.67 lbs |
|

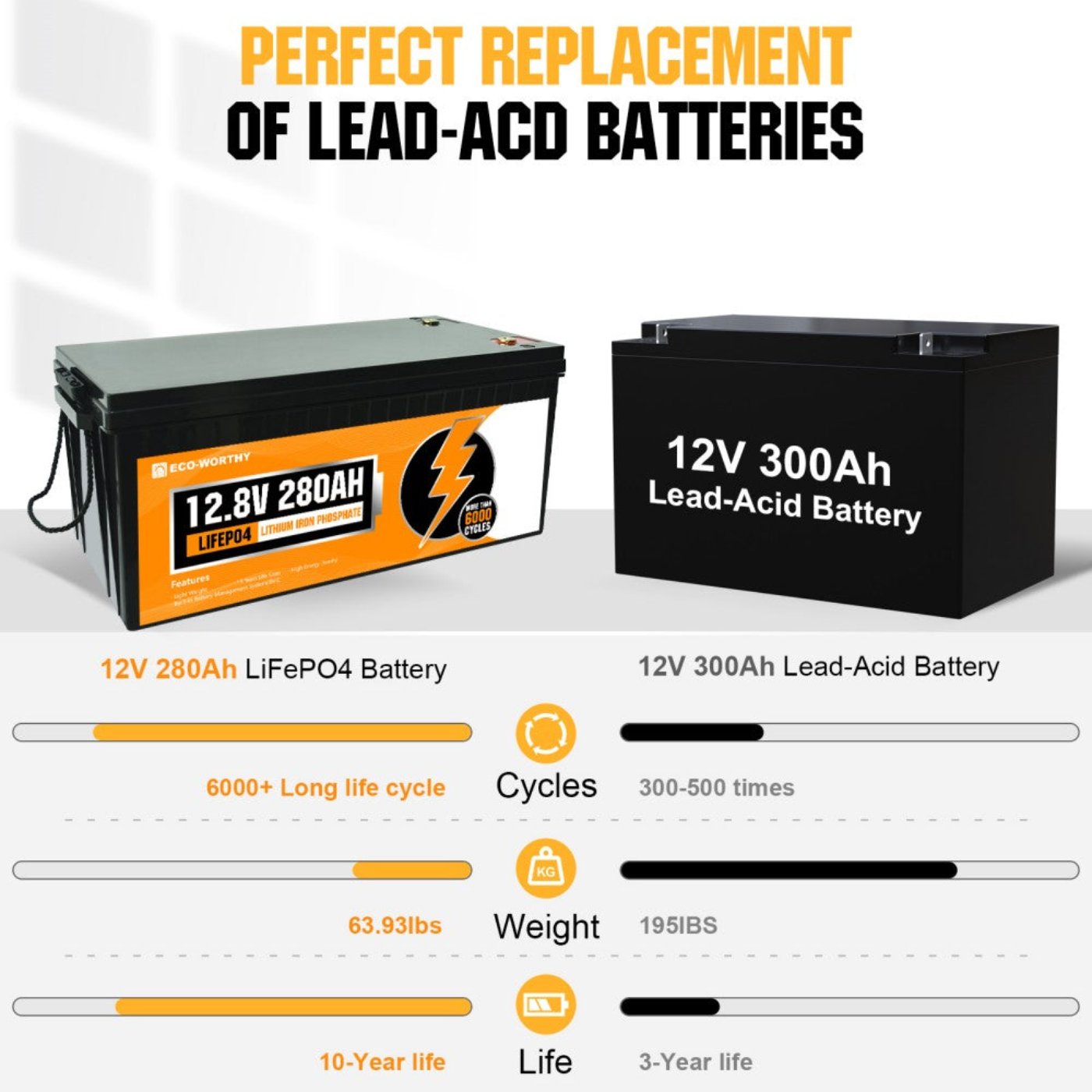

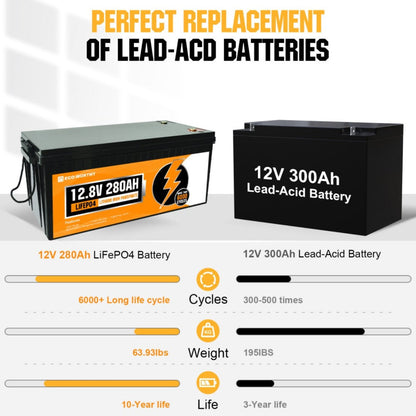

280Ah LiFePO4 Lithium Battery
Battery Capacity: 280Ah |
Battery Power: 3584Wh |
Battery Voltage: 12.8V |
Maximum Charging Current: 250A |
Maximum Discharging Current: 250A |
Max Charge Voltage: 14.5V |
Discharge Cut-Off Voltage: 10V |
Operating Temperature: -4°F to 140°F |
Cycle Life: ≥6000 at 50% DoD (depth of discharge) |
Size: 20.98*9.48*8.81inch |
Weight: 63.93lbs |
|
16.4 feet 12AWG Cables
Cable Type: Connecting Solar Panels to Charge Controller |
Rating Voltage: 600/1000V |
Length: 5 meters(16 ft) |
Conductor: Tinned copper wire |
AWG: 11 |
Normal Cross Sectional Area of the Conductor (mm2): 4 |
Waterproof: IP 65 Protection |
Temperature: -40°F to +185°F |
Connector: MC4 |
Weight: 0.742KG |
Z Mounting Brackets
4 pieces of Z shape solar panel brackets |
8 pieces of stainless steel nuts and cap bolts |
