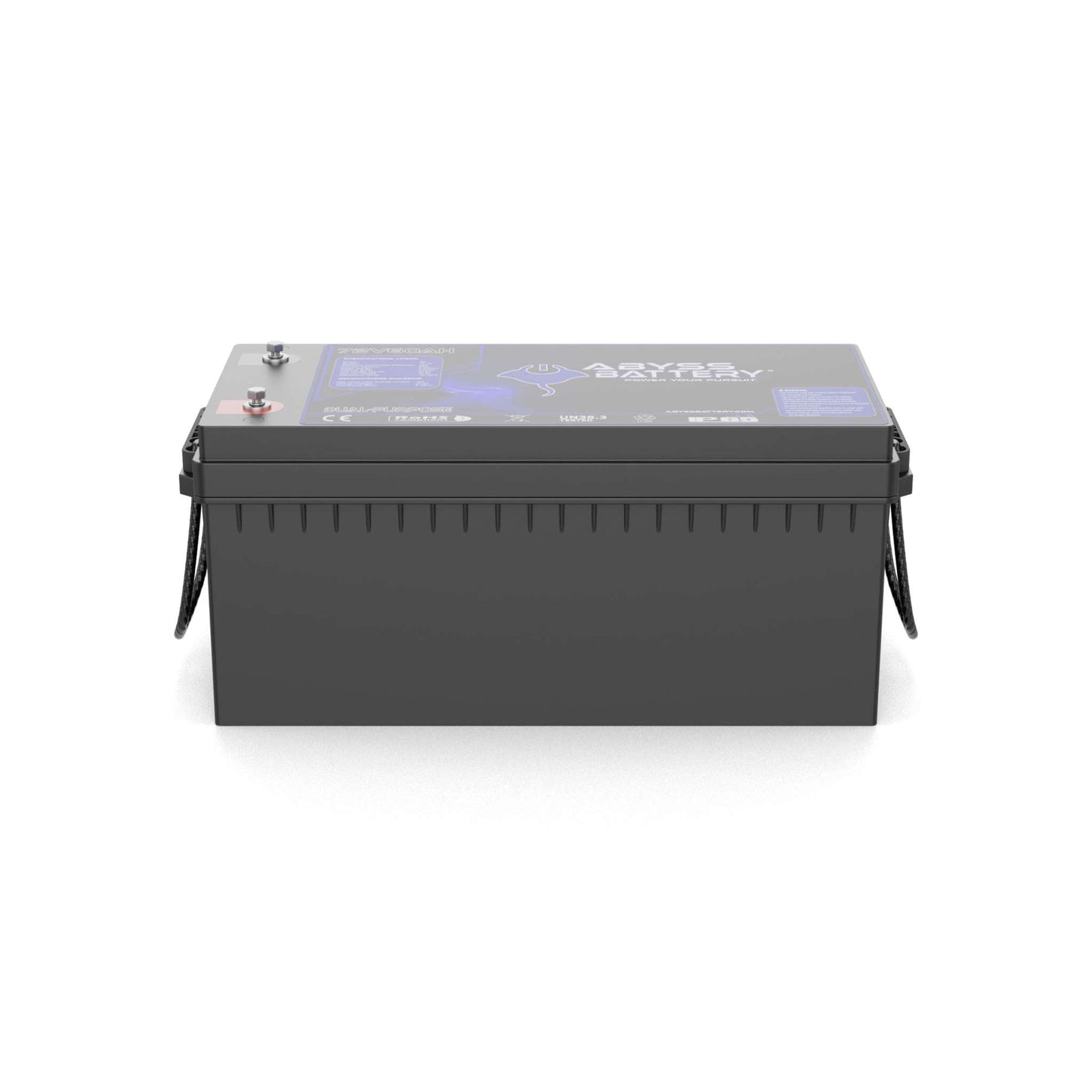

Abyss Battery 72V 60Ah Lithium Golf Cart Battery - AB-72V60

Abyss Battery 72V 60Ah Lithium Golf Cart Battery - AB-72V60

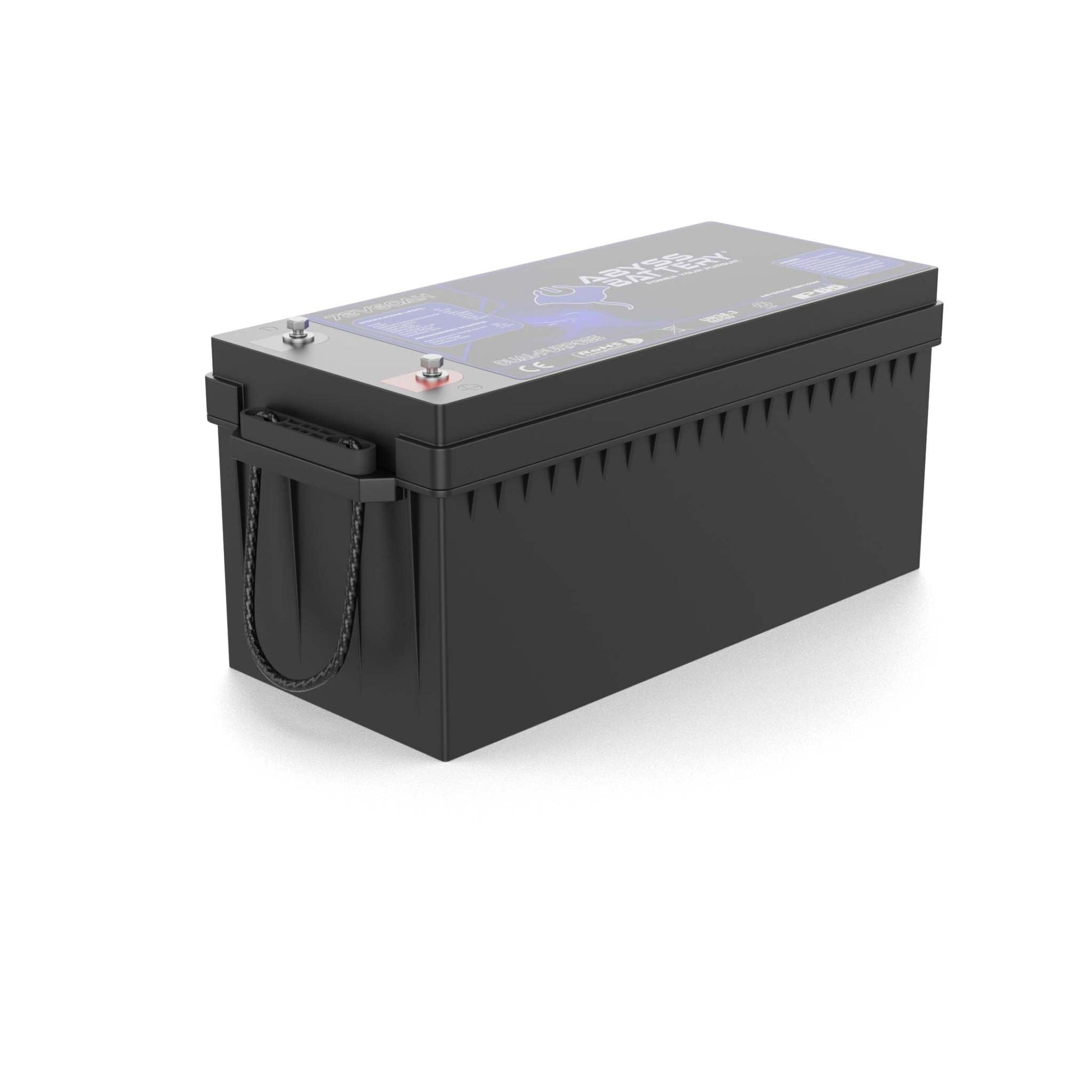

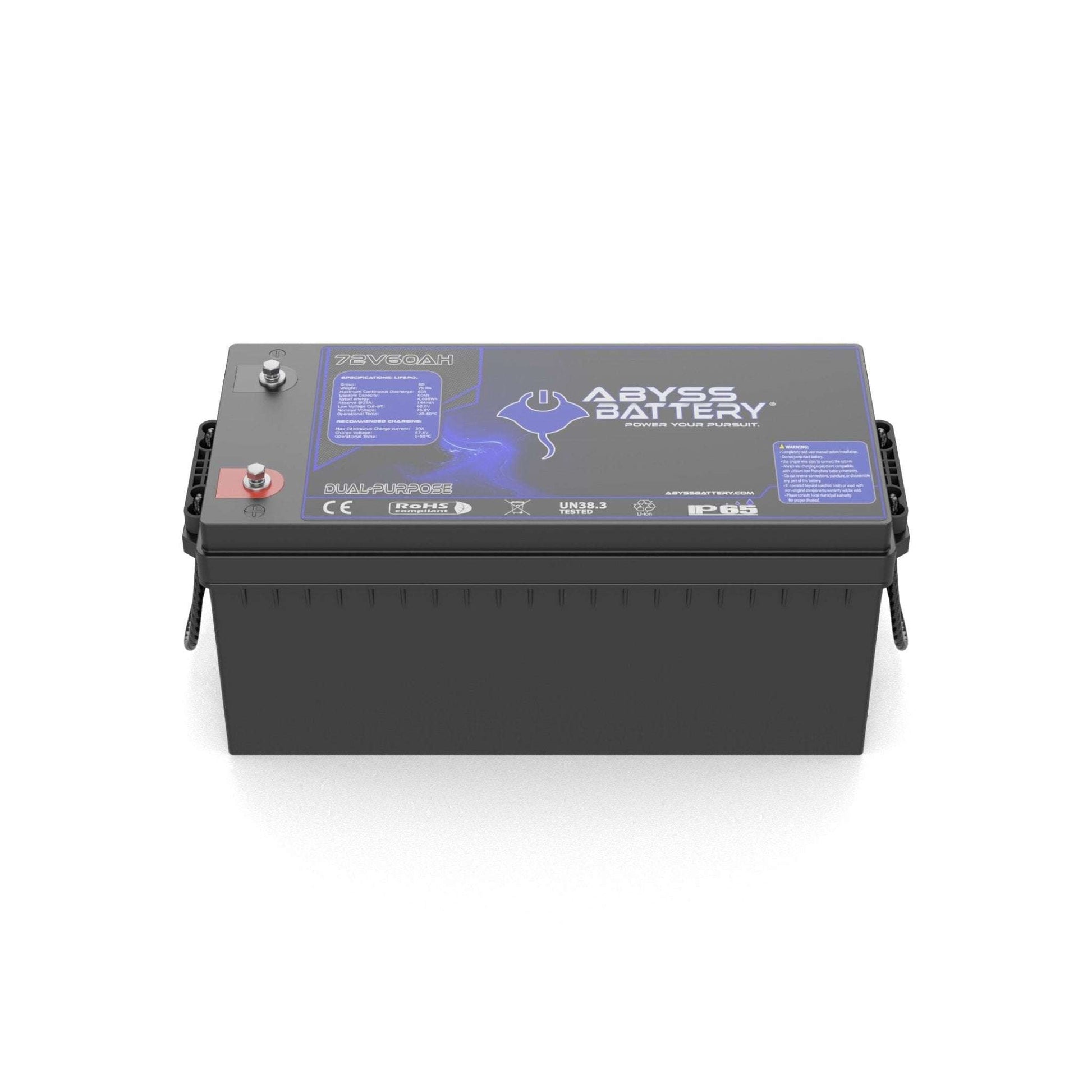

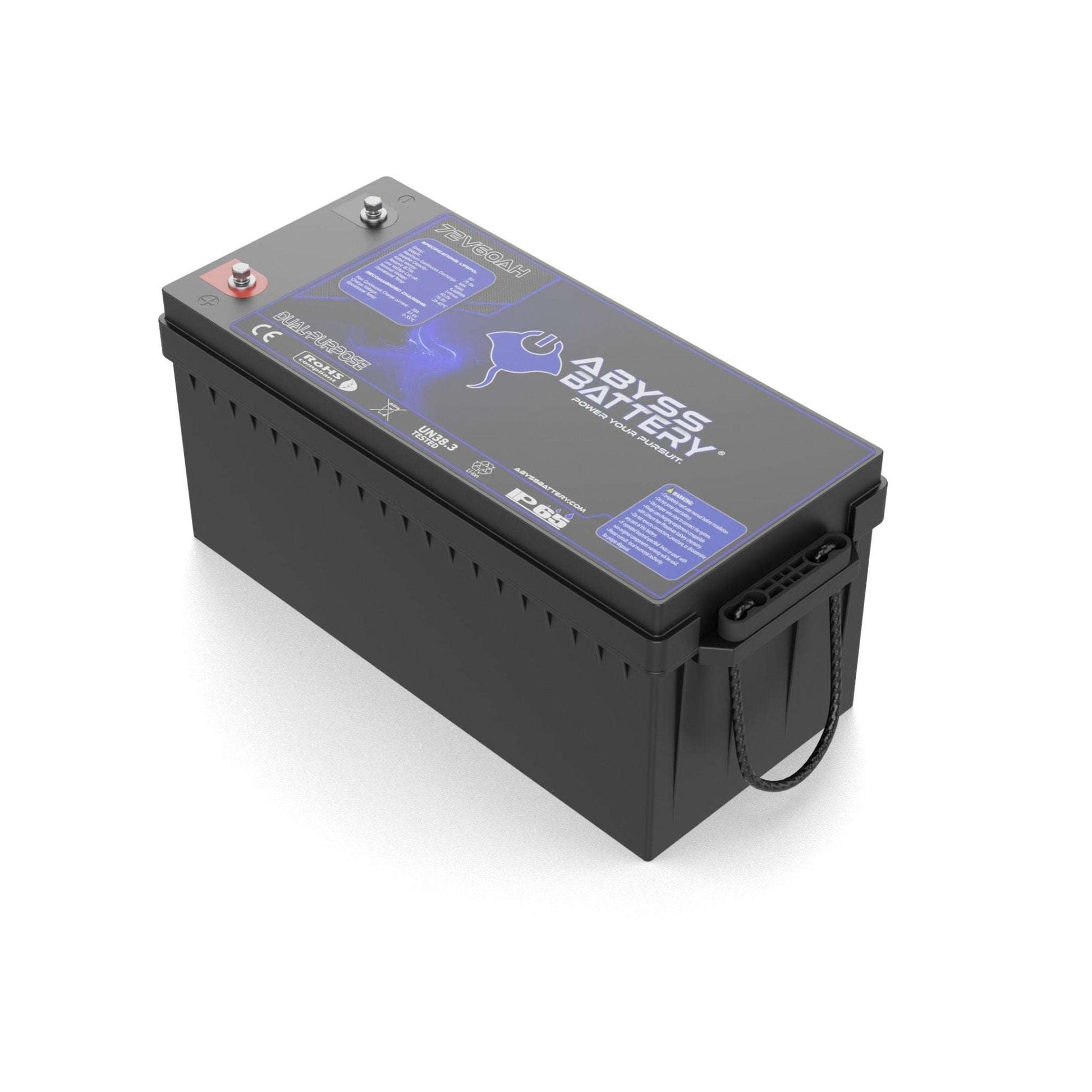

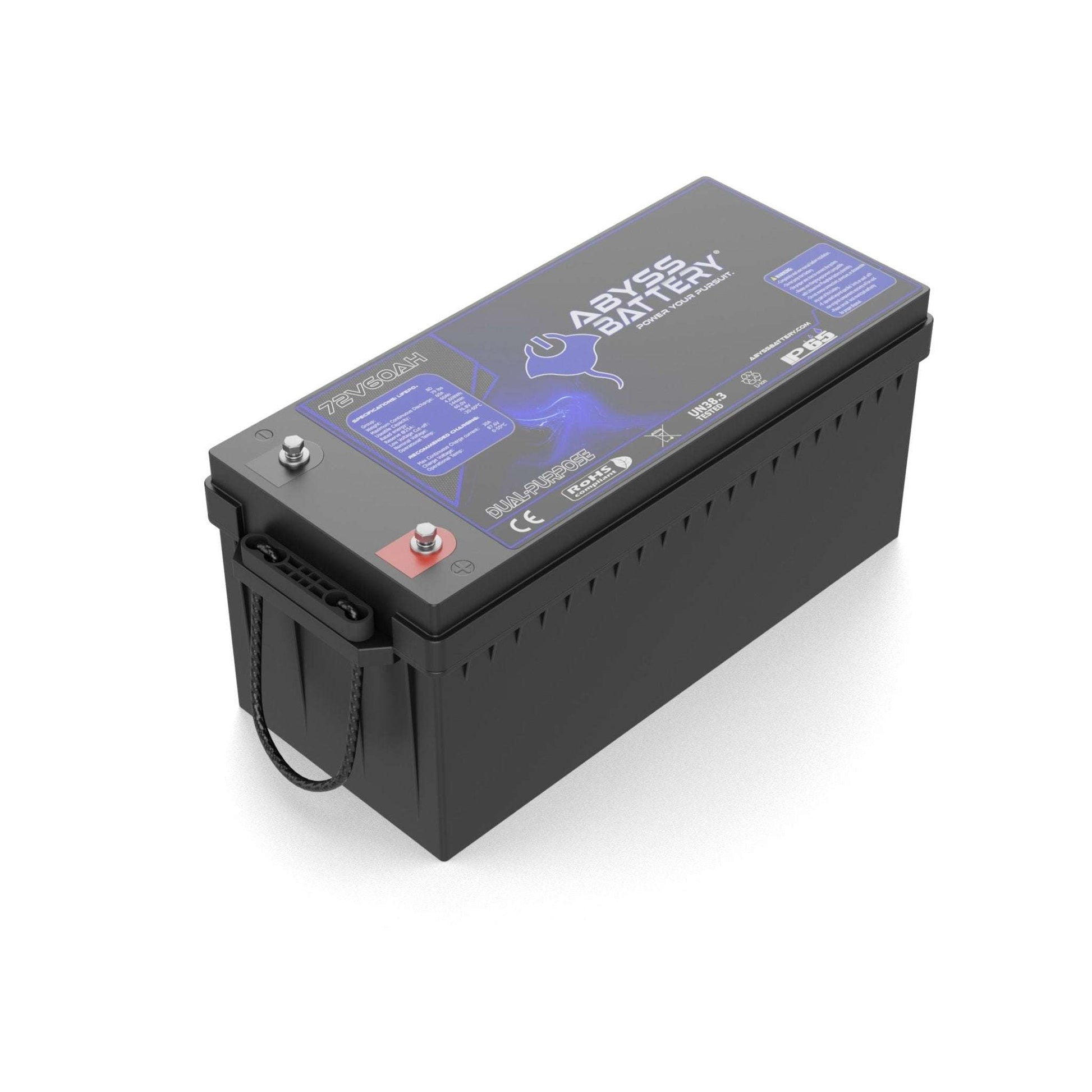

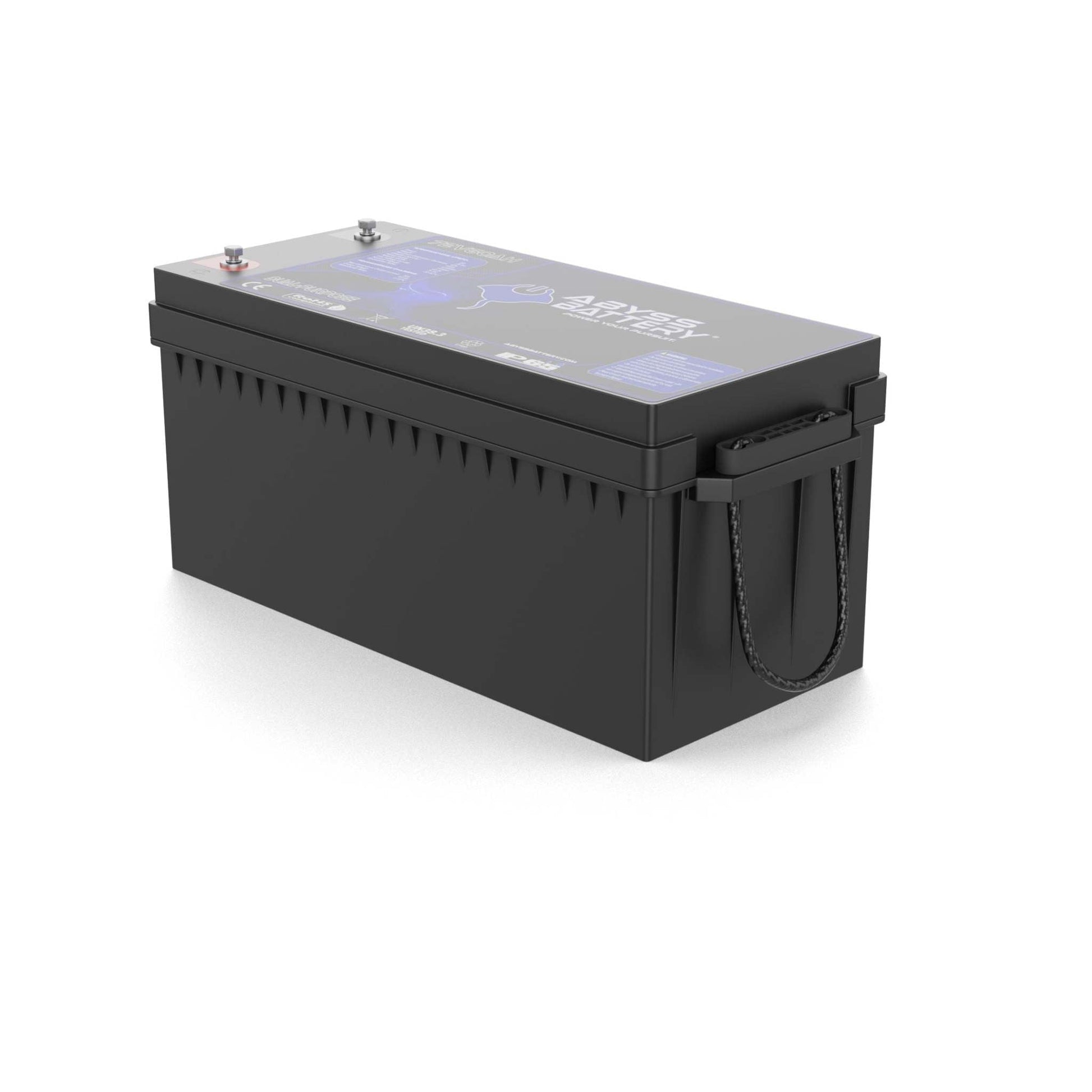

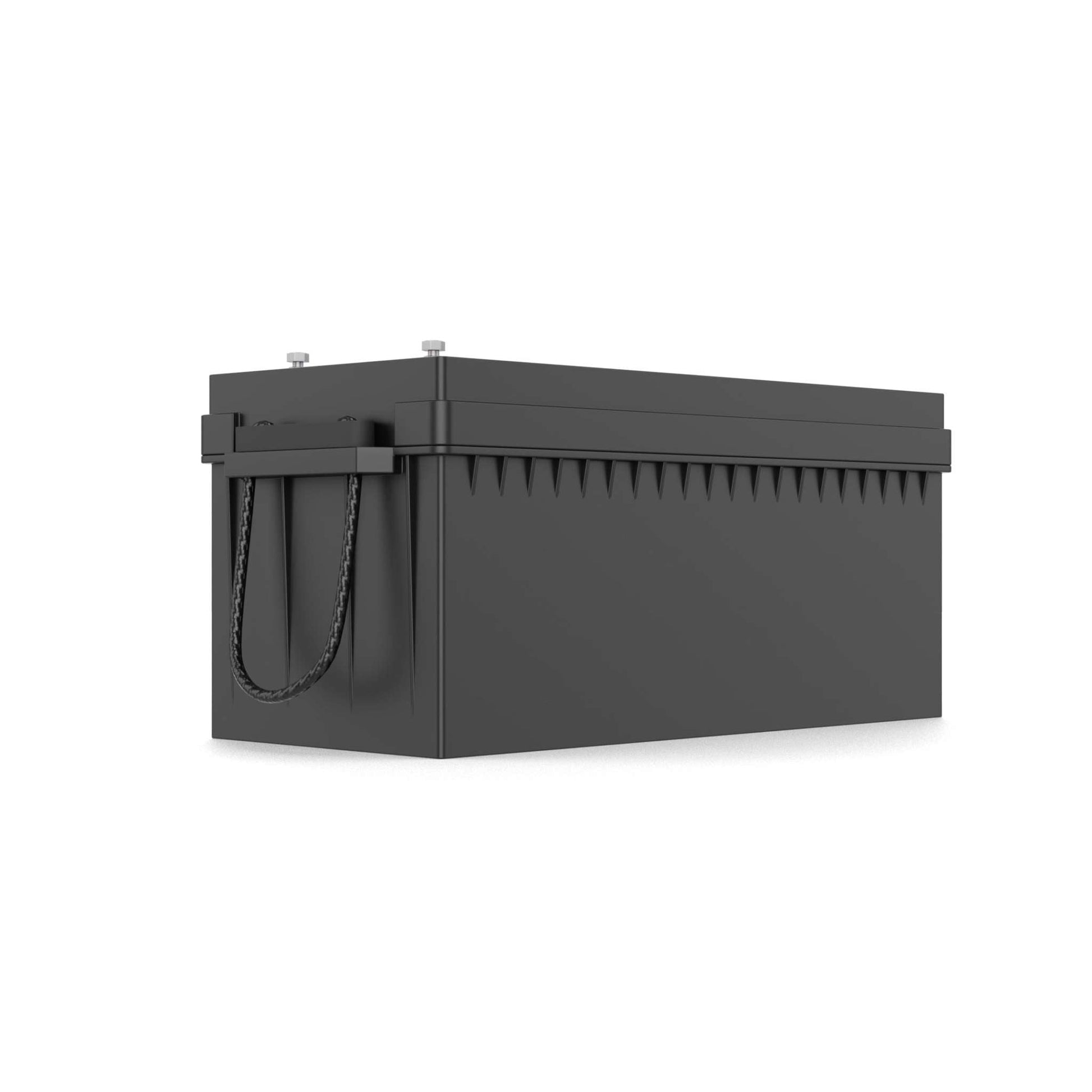

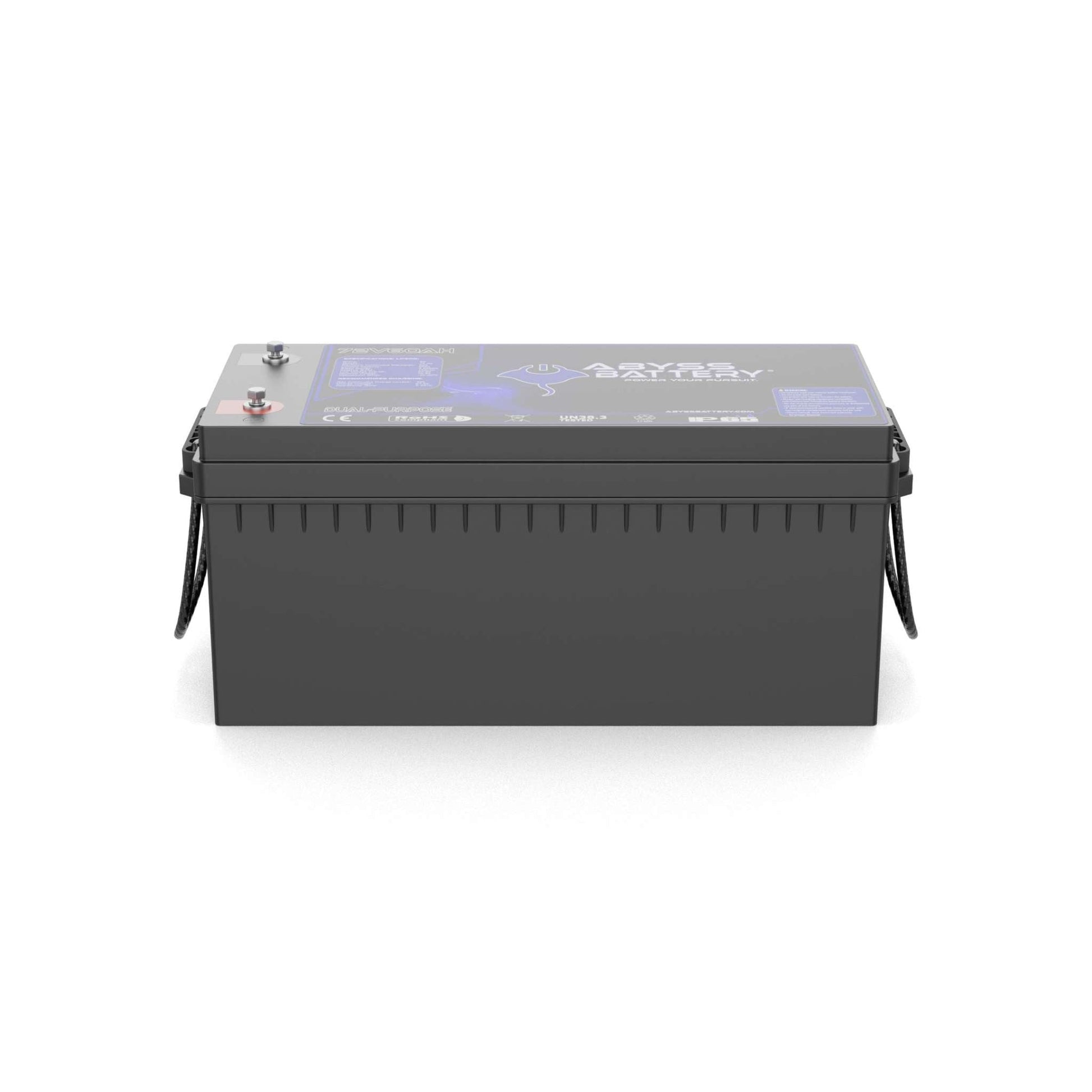

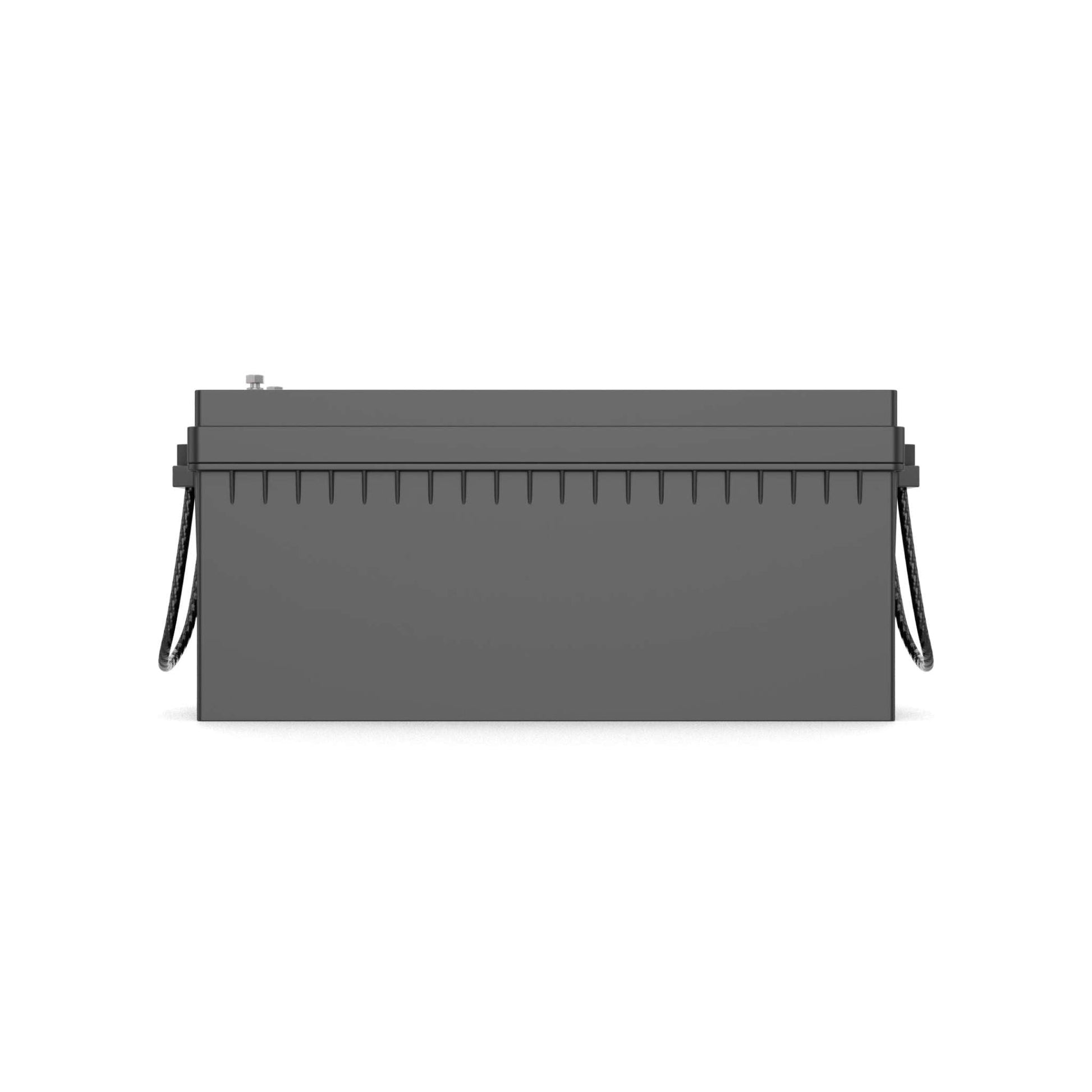

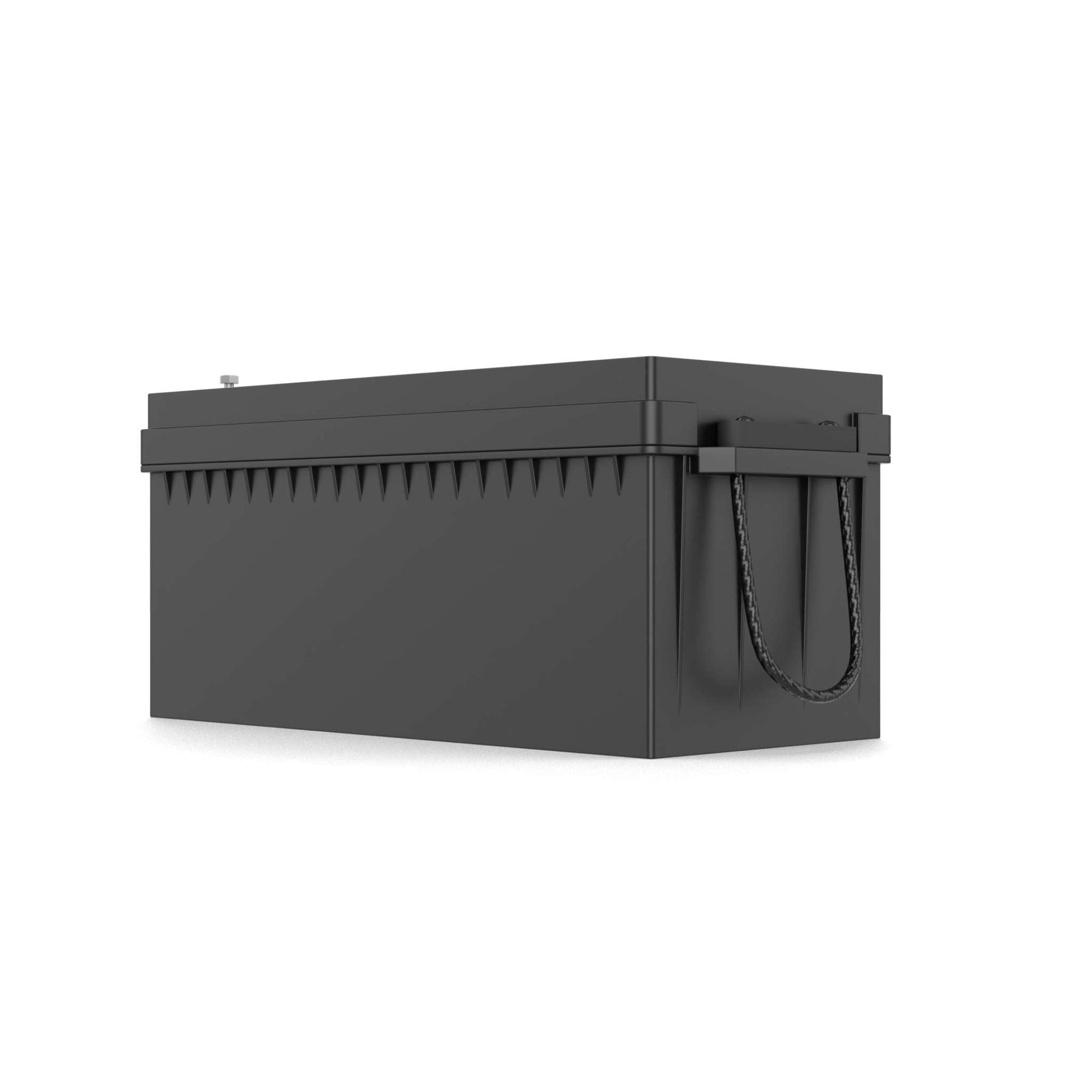

Introducing the ABYSS 72V 60Ah Lithium Golf Cart Battery, the perfect combination of efficiency and power. With improved runtime, range and battery life, you'll be able to zoom around the course without any worries. Our Group 8D 72V Lithium Iron Phosphate golf Cart Battery is a direct drop-in replacement for standard AGM and Lead Acid Batteries so installation is simple - no need for expensive modifications!

Plus the battery is exceptionally safe, eliminating the worry of acid leakage found in traditional batteries. Now you can go further with increased confidence about safety and security. Pair this battery with our  for everything you need to upgrade your ride and get back out on the course! With ABYSS, power and performance are guaranteed to make every hole an enjoyable one.

What our Experts Think

• High-voltage performance upgrade: The ABYSS® AB-72V60 delivers a 72V 60Ah lithium power system designed for high-performance golf carts requiring strong acceleration and efficient energy delivery.
• Optimized range efficiency: Provides reliable runtime for golf courses, resort fleets, and utility applications, balancing power and weight for practical daily use.
• Lightweight system advantage: Replaces heavy lead-acid 72V battery banks with a compact lithium solution, significantly reducing total cart weight and improving handling.
• Consistent power output: Maintains stable voltage under load for smooth speed control and strong hill-climbing performance.
• Advanced LiFePO₄ safety system: Integrated BMS protection prevents overcharge, over-discharge, overheating, and short-circuit events for safe operation.
• Fast charging capability: Supports efficient recharge cycles to reduce downtime between rounds or shifts.
• Long lifecycle value: Rated for 3000+ charge cycles, offering strong long-term cost savings over traditional AGM systems.
• Low-maintenance design: No watering, no corrosion issues, and minimal upkeep required—ideal for fleet reliability.
• Durable outdoor construction: Built to handle vibration, terrain impact, and continuous outdoor exposure.

Q&A

Q: What is the Abyss Battery AB-72V60 used for?
A: A high-capacity 72V (76.8V nominal) 60Ah LiFePO₄ golf cart battery designed to replace lead-acid packs, delivering longer range, higher efficiency, and maintenance-free power for 72V electric golf carts and utility vehicles.

Q: What are the key specifications of the AB-72V60?
A: It offers ~76.8V nominal voltage, 60Ah capacity (~4.6kWh energy), IP65-rated enclosure, and a built-in 24S 150A BMS with Bluetooth monitoring for real-time battery data.

Q: What performance does it deliver?
A: Up to 60A continuous discharge with 500A peak bursts (300ms), supporting strong hill climbing, acceleration, and consistent torque output in golf carts.

Q: What is its range benefit for golf carts?
A: It significantly extends driving range compared to lead-acid batteries due to higher usable capacity, flat voltage discharge curve, and ~98–100% discharge efficiency.

Q: Does it support fast charging?
A: Yes, it supports standard 12A charging and up to 30A fast charging with a recommended 86.4V charge voltage for lithium protection and cycle life preservation.

Q: What is the cycle life?
A: Around 3000 cycles at full depth of discharge and up to 6000 cycles at 80% depth of discharge, offering long-term durability compared to AGM or lead-acid systems.

Q: Is it suitable for harsh conditions?
A: Yes, it operates from -20°C to 60°C discharge range and is designed for outdoor use with vibration resistance and sealed construction.

Maintenance Tips

• Correct charging profile: Use only a LiFePO₄ charger set to 86.4V full charge. Never use lead-acid or “automatic 72V” chargers without lithium mode.
• Avoid deep discharge: Recharge before 20–30% SOC to preserve cycle life (≈3000 cycles at full depth).
• Respect discharge limits: Keep continuous load within 60A BMS rating—sustained hill climbs or overloading can trigger cutoff.
• Temperature-safe operation:
• Charge: 0°C to 55°C
• Discharge: −20°C to 60°C
• Bluetooth monitoring: Regularly check SOC, voltage sag, and temperature to catch weak connections or overdraw early.
• Storage best practice: Store at 50–70% charge, in a cool, dry place; avoid full charge storage in heat.
• Terminal care: Tighten M8 terminals periodically—high current draw makes connection resistance a major failure point.
• Water & dust protection: IP65-rated, but still avoid pressure washing or soaking connectors.
• Parallel expansion rule: Only parallel batteries at equal voltage and SOC to prevent imbalance stress on BMS.
• Load management tip: Smooth acceleration reduces peak current draw and improves real-world range significantly.
