Eco-Worthy 780W 12V (4x Bifacial 195W) Complete MPPT Off Grid Solar Kit

SKU GW-L02M195-MCMWZIUS2000L200-4
Save 27% Save 27%
Original price $2,599.99
Original price $1,359.99 - Original price $2,599.99
Original price $2,599.99
Current price $1,899.99
$999.99 - $1,899.99
Current price $1,899.99
  • CLEARANCE SALE.

  • ITEMS LEFT.

  • PEOPLE are also watching that product.


Eco-Worthy 780W 12V (4x Bifacial 195W) Complete MPPT Off Grid Solar Kit

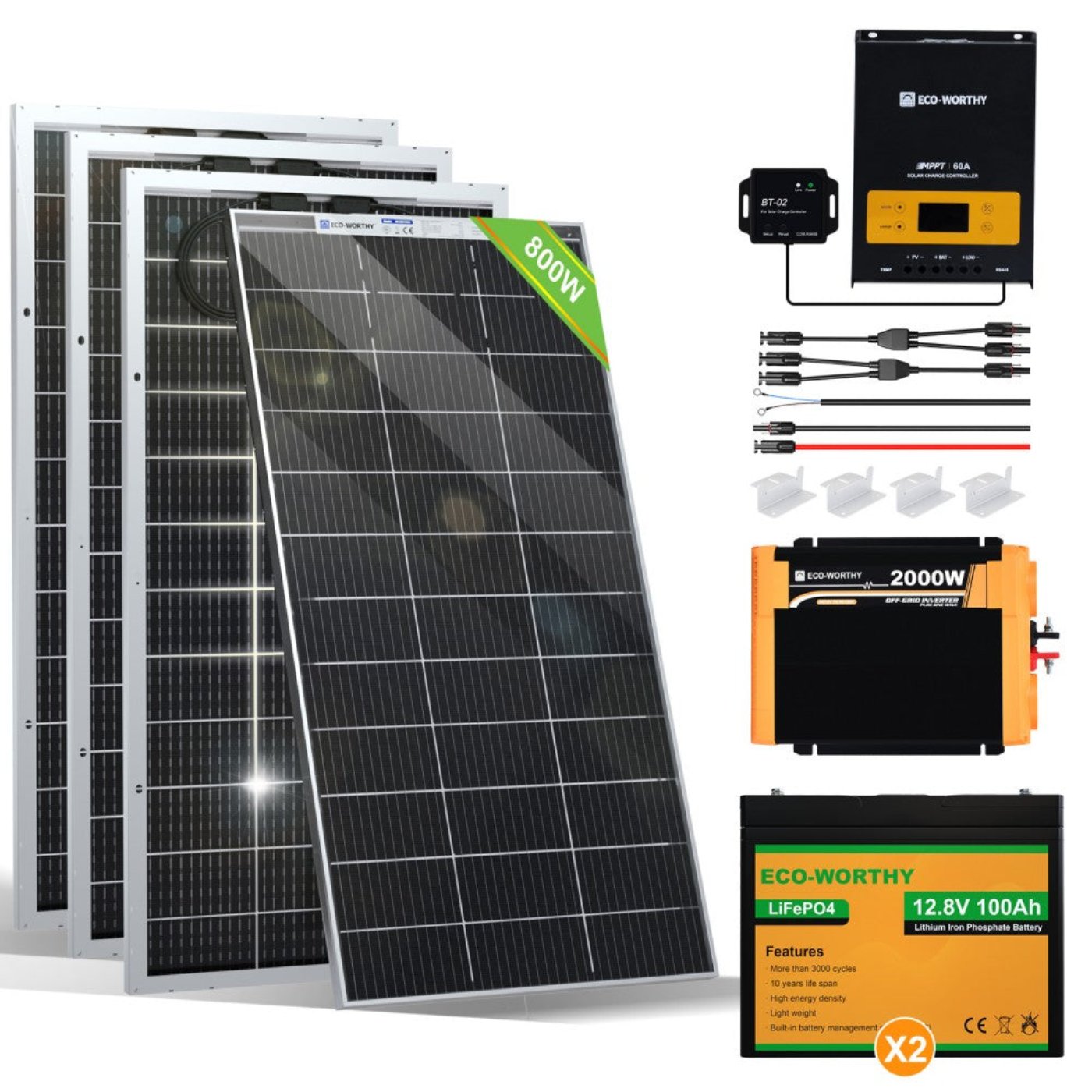

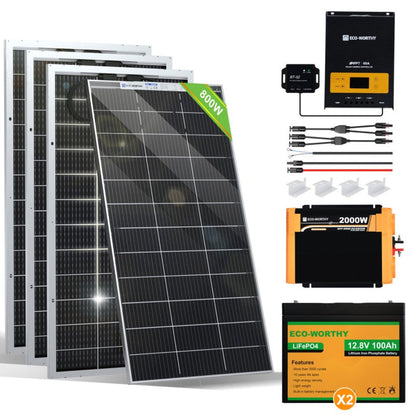

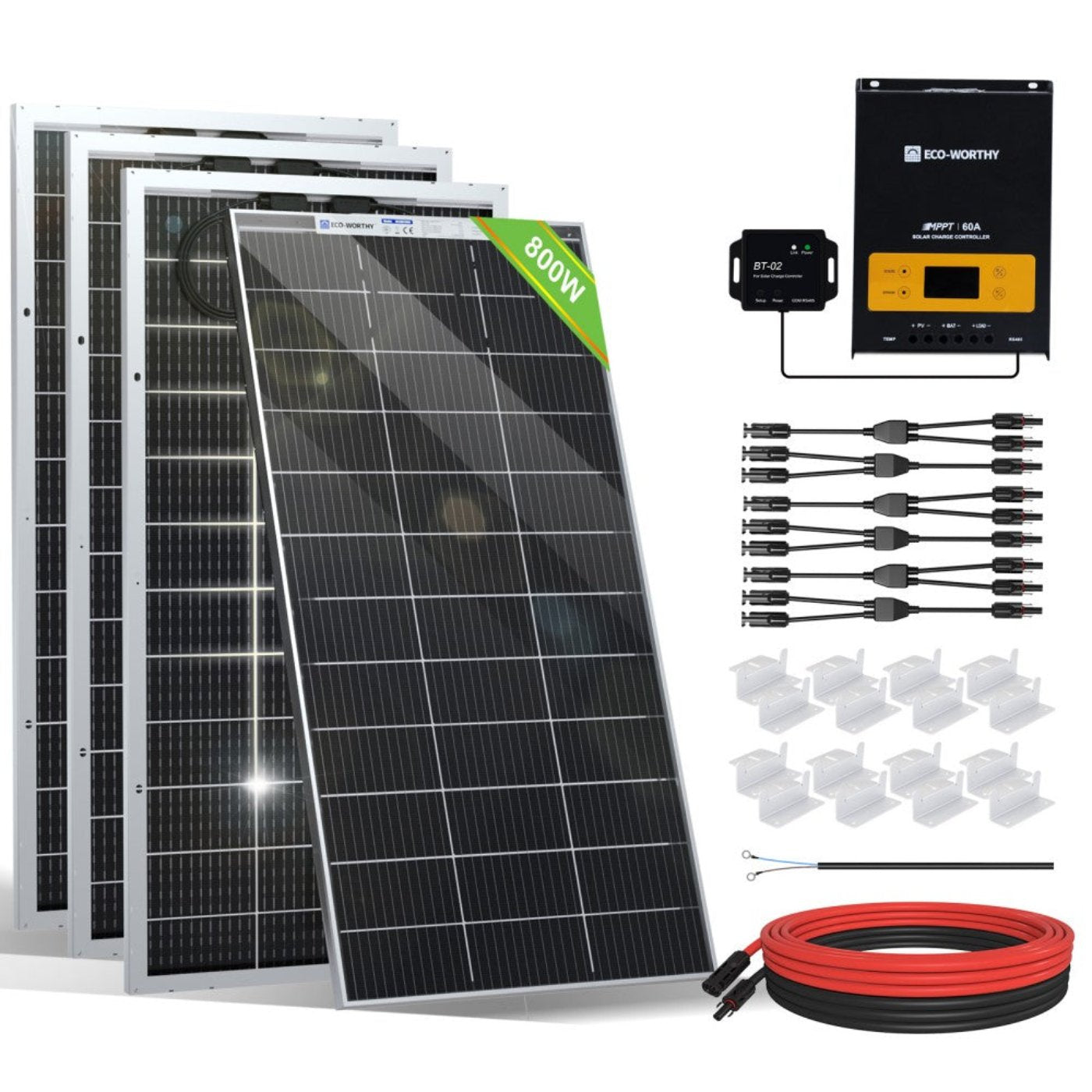

Package Includes
4x Bifacial 195W Mono Solar Panel
1x 60A MPPT Solar Controller
1x 5M 12AWG Extension Cable with MC4
4x Z Mounting Bracket
3x Y MC4 Connector
1x 1.5M Tray Cable
Inverter & Battery Bank Options-
Inverter & 2.4kWh Lithium Battery Bank (optional)

with
1x 2000W 24V-110V Pure Sine Wave Inverter
2x 100Ah 12V LiFePO4 Lithium Battery

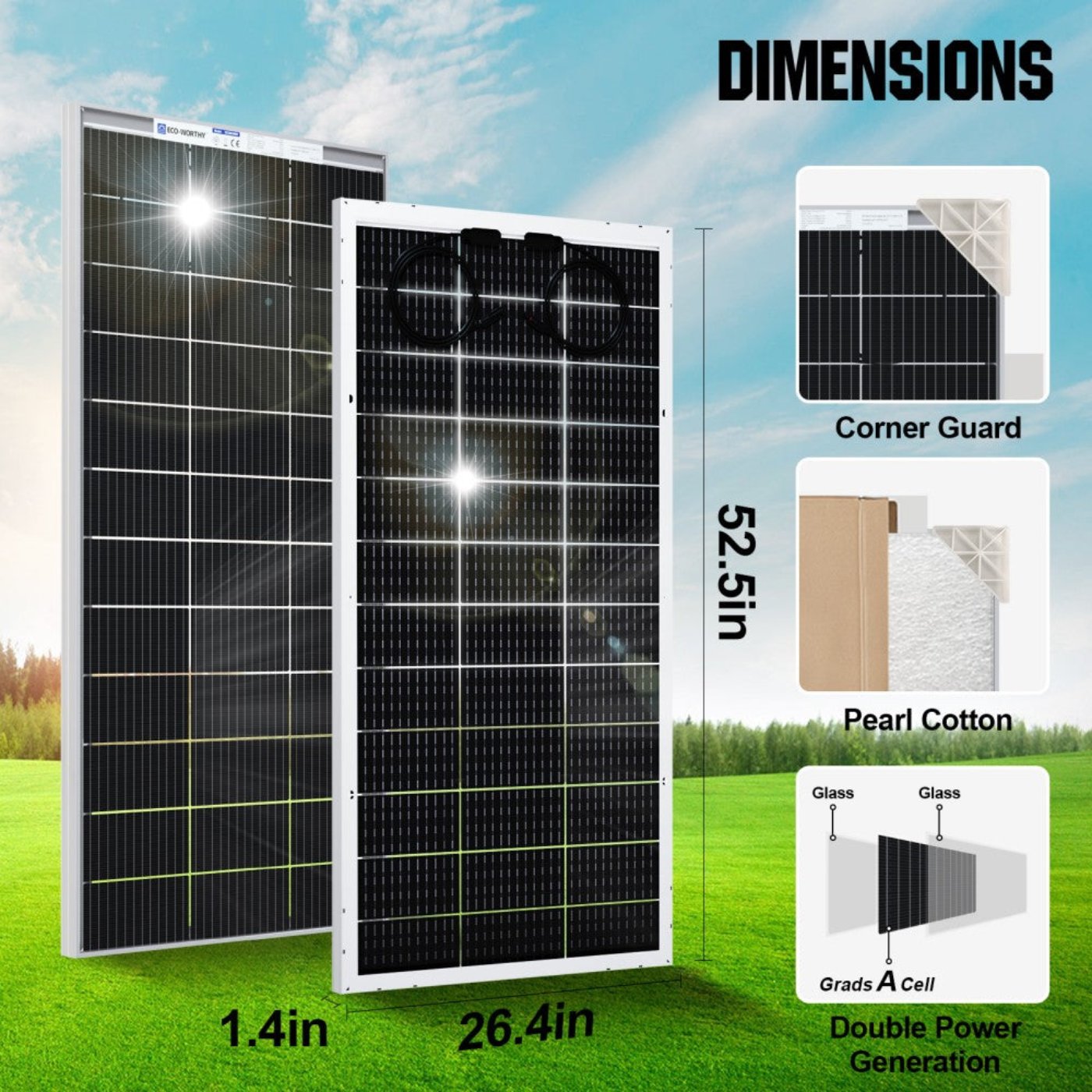

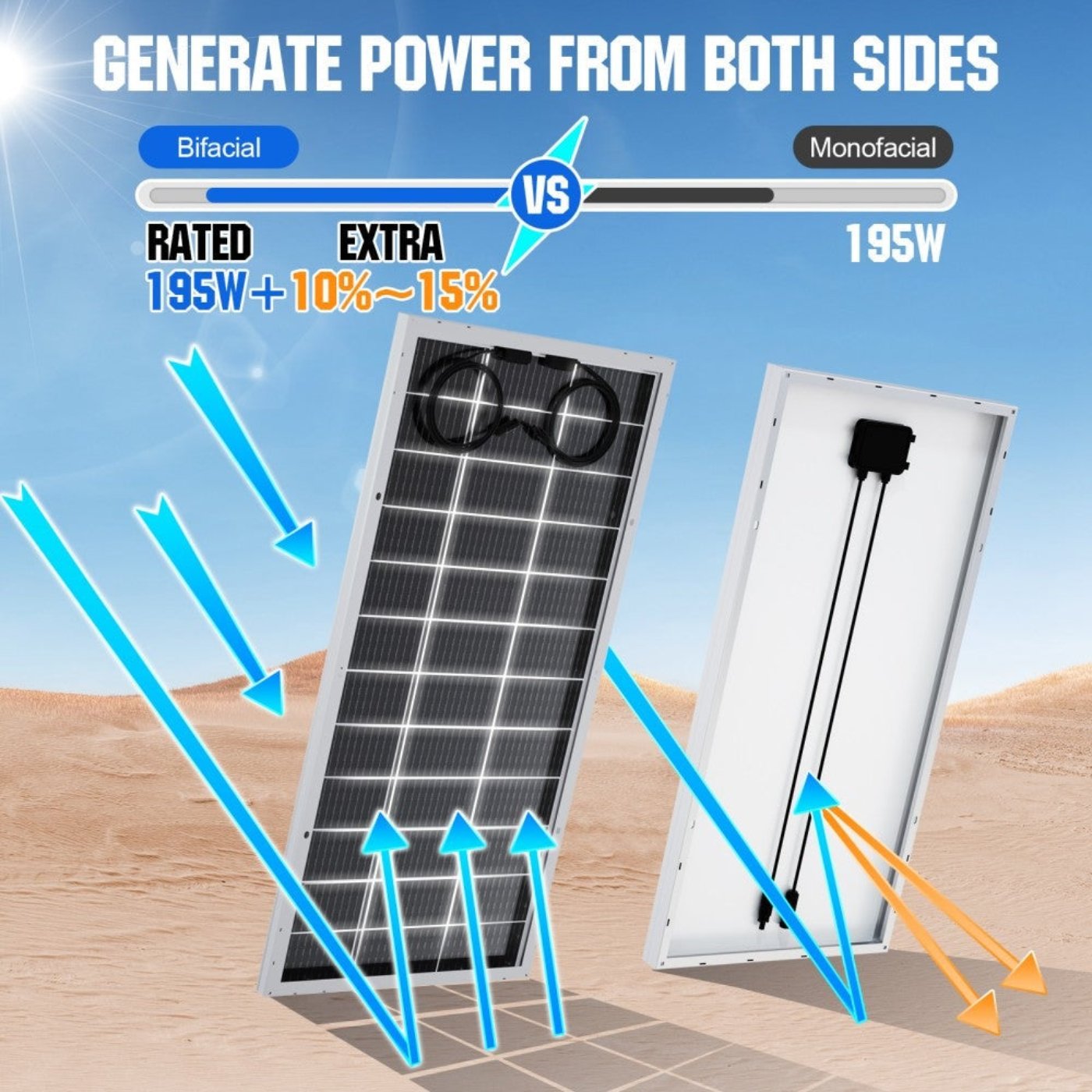

Bifacial 195W Monocrystalline Solar Panel

Rated Power: 195W Solar Cell: Monocrystalline
Maximum/Peak Voltage(Vmp): 19.8V Open Circuit Voltage(Voc): 23.7V
Short circuit current: 10.5A Maximum current: 9.85A
Output Tolerance: ±3% Temperate coefficient of Isc: (010+/-0.01)%/℃
Temperate coefficient of Voc: -(0.38+/-0.01)%/℃ Temperature range: -40℃~ +85℃
Frame: Aluminum alloy frame Weight: 20.48 lbs(9.29 kg)
Size: 52.6x26.38x1.38in (1335*670*35mm)

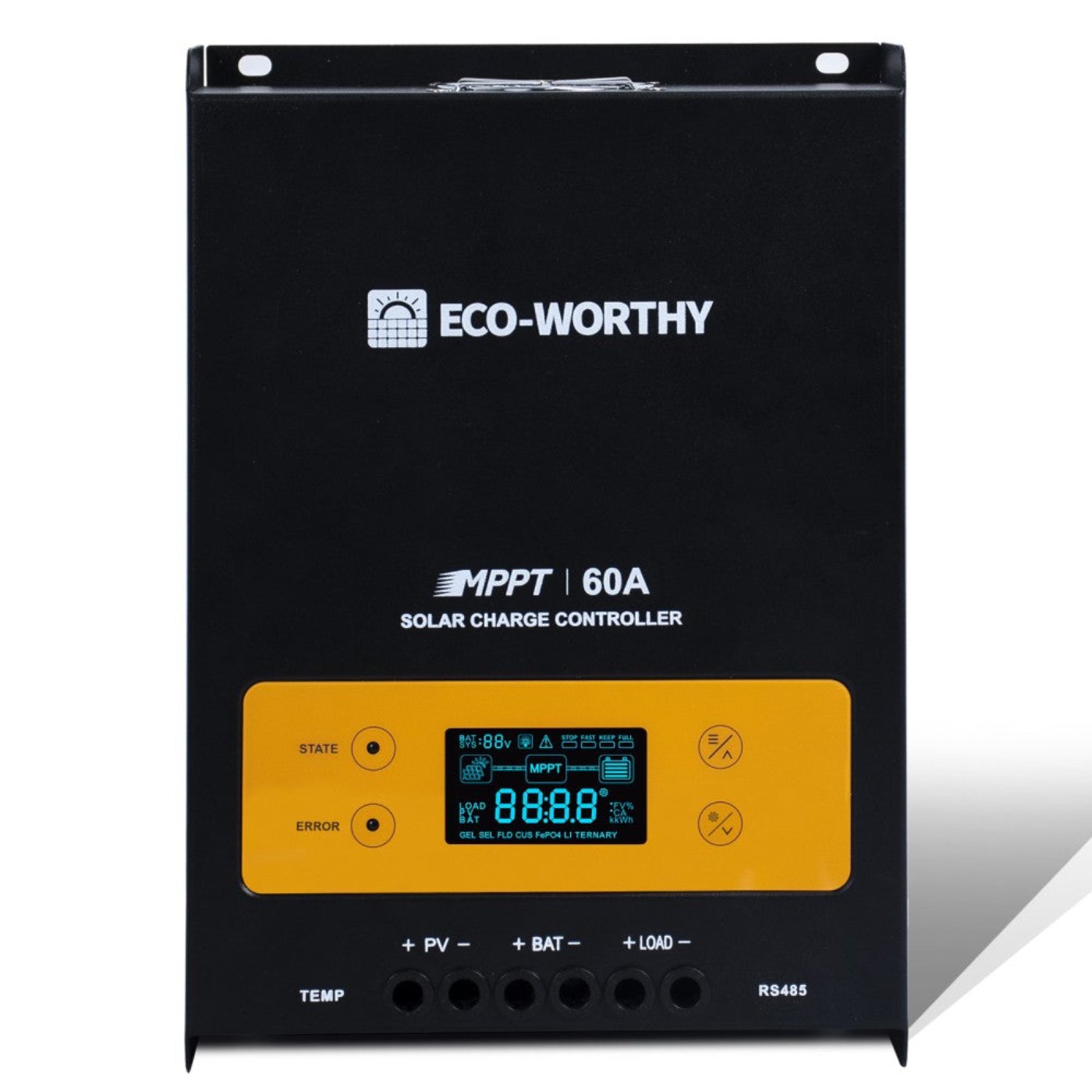

60A MPPT Solar Charge Controller

Battery voltage:12V/24V/36V/48V Max Solar Input Power:780W(12V)/1560W(24V)/2340W(36V)/3120W(48V)
Charging mode:MPPT Rated Load Current:30A
Charge Efficiency (Peak):97% Max Charge current:60A
Battey Type:LiFePO4,AGM,Sealed,Gel,Flooded No-load static loss: 0.5W-1.2W
Size:240*166*65mm Weight:1.96KG
Maximum wire size: 20mm2

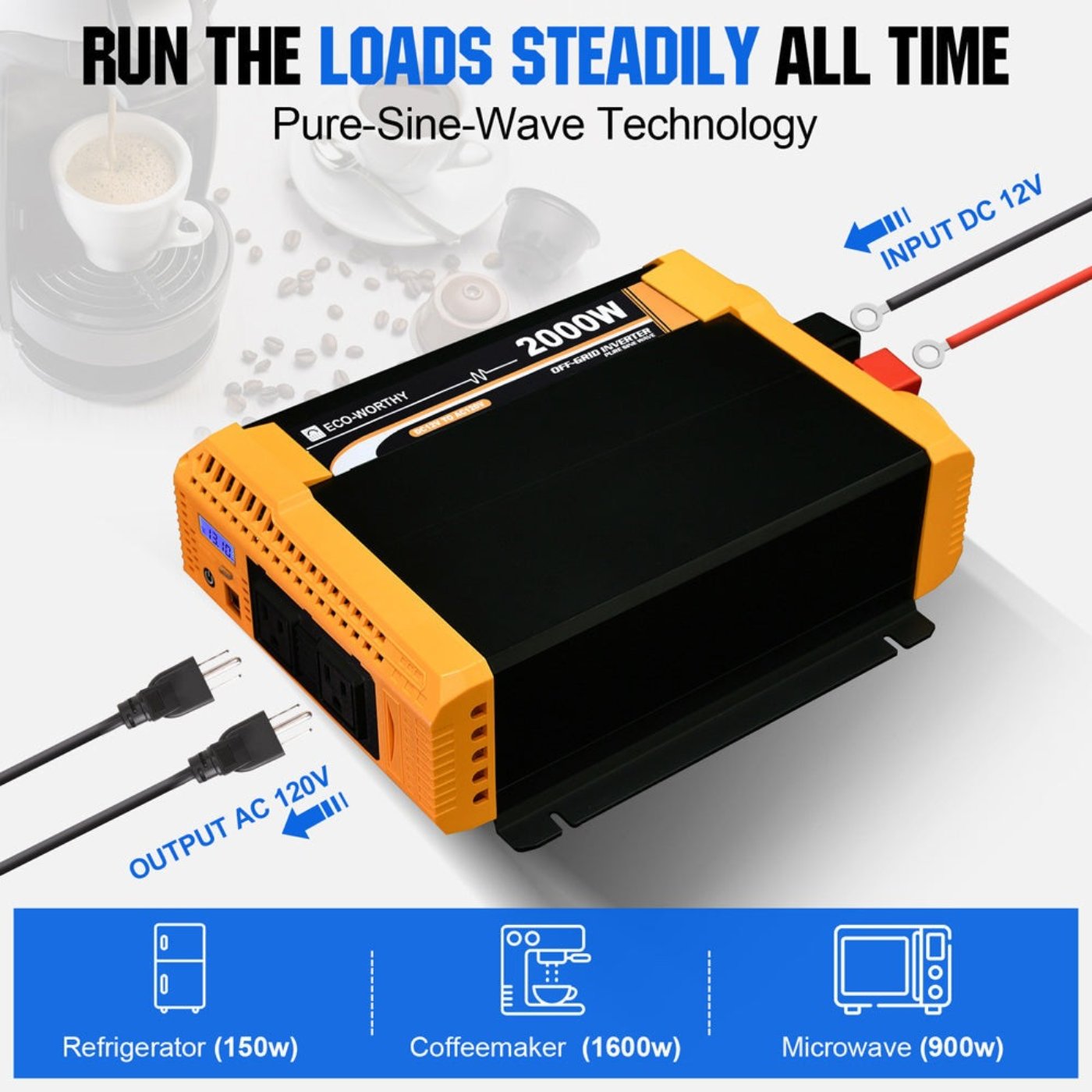

2000W 12V Off Grid Inverter

Output Continuous Watts(W): 2000W+18W USB Surge Capacity (PeakPower): 4000W
Rated Input DC (V,A): 12V Battery, 200A Input Voltage Range: 10.5-16Vdc±0.3V
Rated Frequency (Hz): 60Hz±1 Rated Output AC (V,A): 115Vac±10%, 18A
Rated Output USB (V,A): 2*QC3.0 USB Ports (5V/3A,9V/2A,18W max) No Load Current: <1.2A
Optimum Efficiency: 85% min Fuse (A): 40A*6
FuseType: Internal Blade Output Wave Form: Pure Sine Wave
Touch Temperature: 65℃(149℉)max Operating Temperature: -20℃~40℃ (4℉~104℉)
Operating/Storage Humidity RH: 5~95% Cooling System: Thermo Fan
THD: <4.5% Dimensions (L*W*H): 16.8*9.8*4.1 in
Assembled Weight (kg): 7.67 lbs

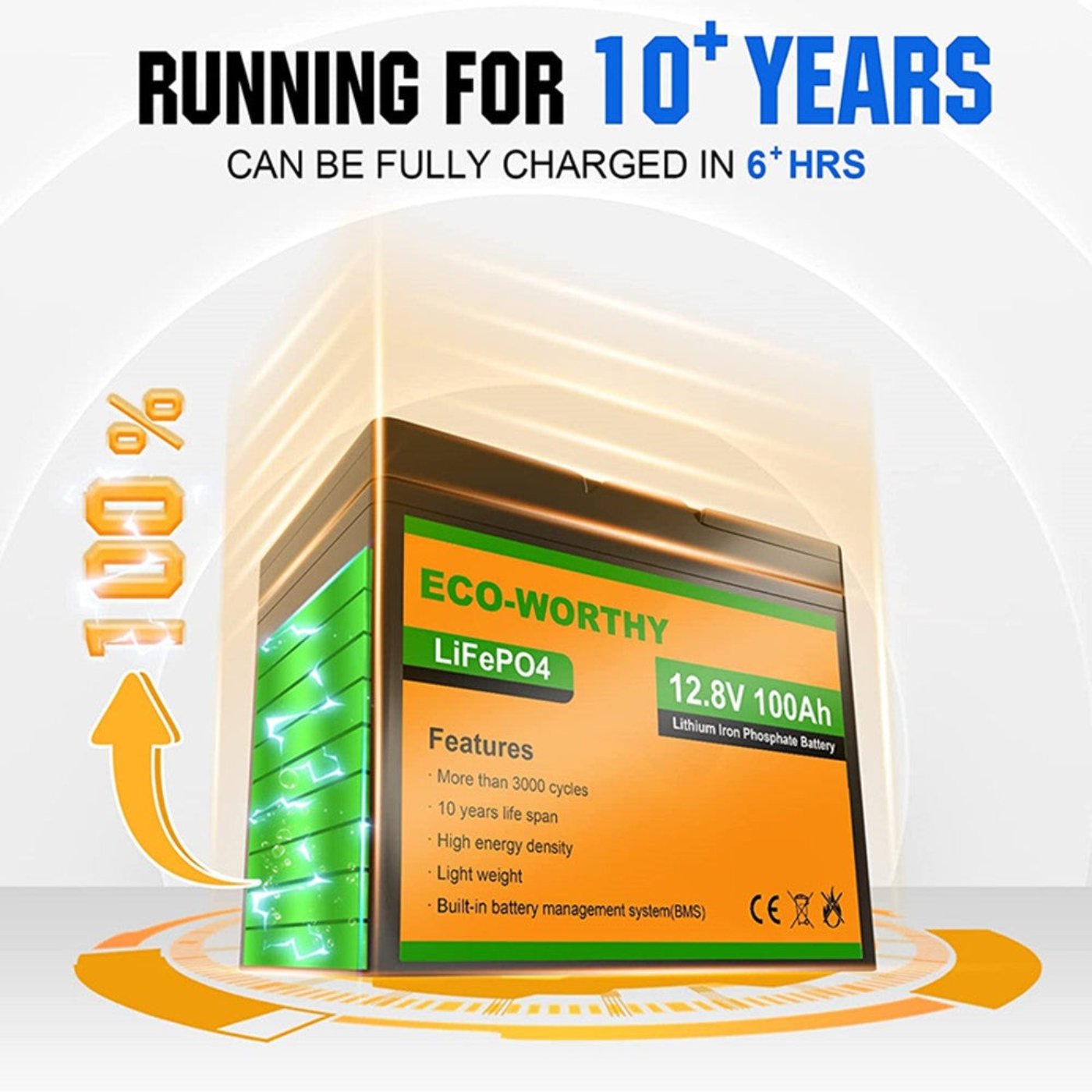

100Ah LiFePO4 Lithium Battery

Battery Capacity: 100Ah Battery Power: 1280Wh
Battery Voltage: 12.8V Maximum Charge/ Discharge Current: 50A/100A
Charge Temperature Range: 0-45℃ Disharge Temperature Range:﹣20-55℃
Maximum Charge Voltage: 14.6V Discharge Cut-Off Voltage: 10V
Screw size: M8 Battery Size: 260*168*209mm(10.2*6.6*8.2inch)
Battery Weight: 9.47kg

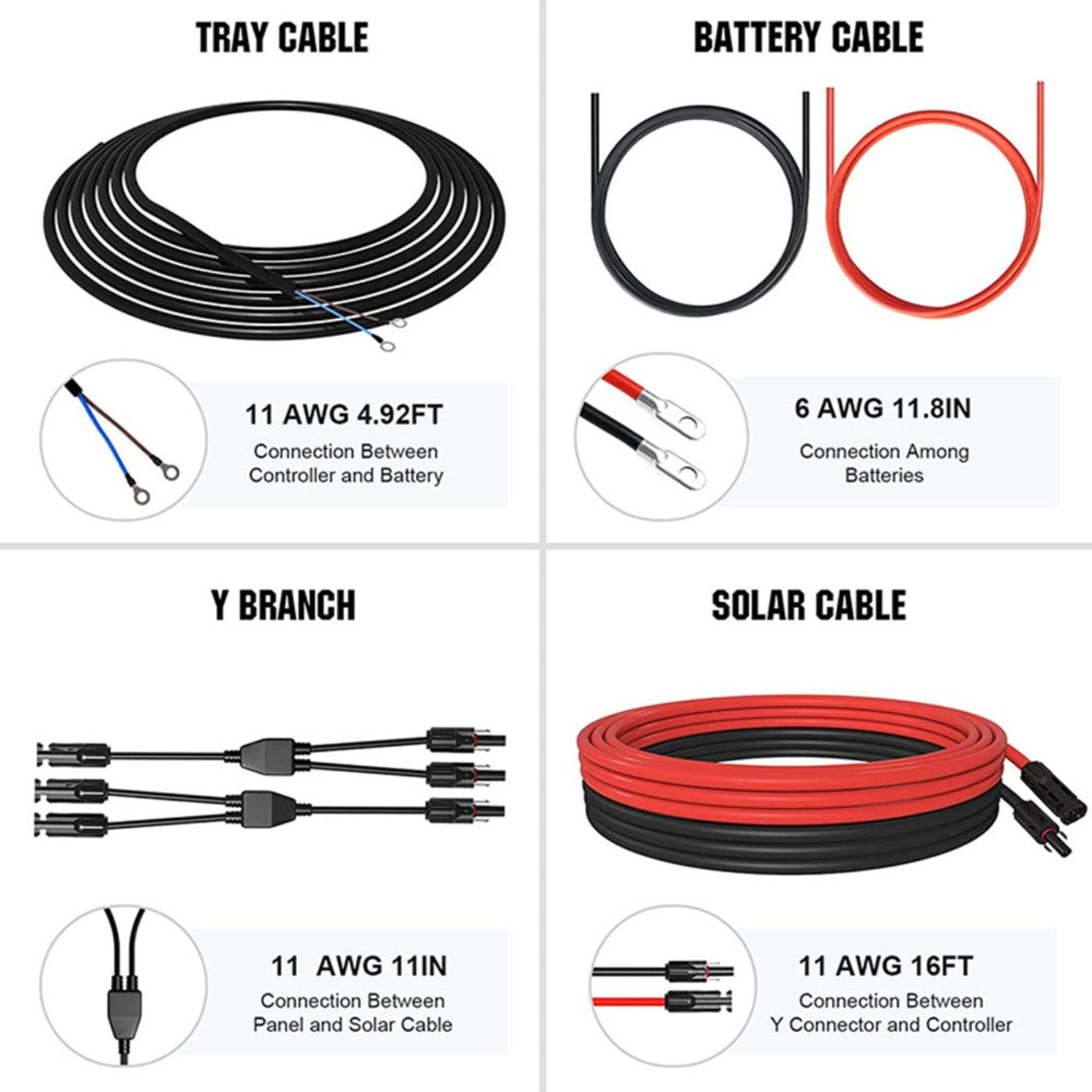

16.4 feet 12AWG Cables

Cable Type: Connecting Solar Panels to Charge Controller Rating Voltage: 600/1000V
Length: 5 meters(16 ft) Conductor: Tinned copper wire
AWG: 11 Normal Cross Sectional Area of the Conductor (mm2): 4
Waterproof: IP 65 Protection Temperature: -40°F to +185°F
Connector: MC4 Weight: 0.742KG

Z Mounting Brackets

4 pieces of Z shape solar panel brackets 8 pieces of stainless steel nuts and cap bolts

Y Branch Cable MC4 Connectors

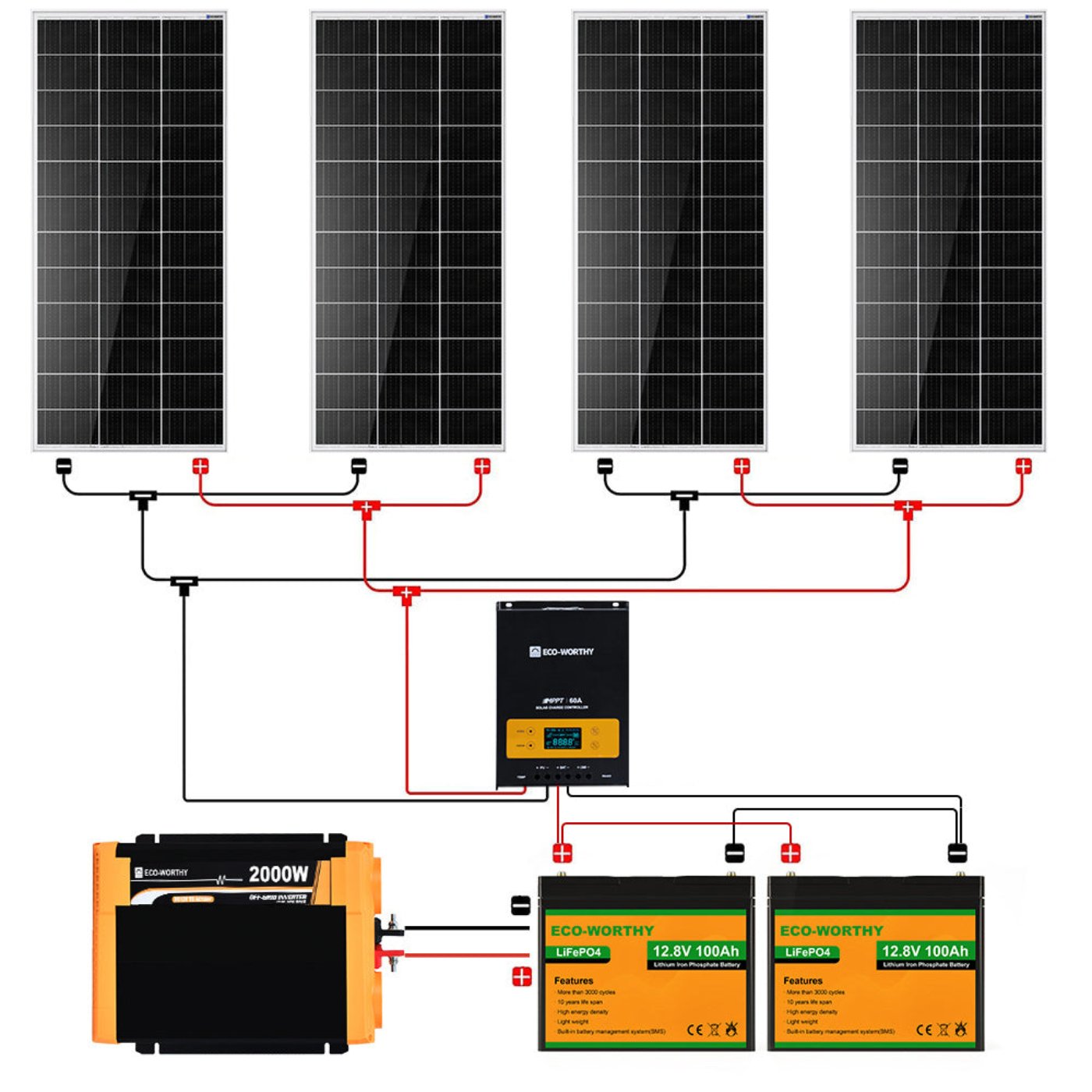

Compatible with MC4 solar connector. Easy installation for 2 solar panels connected in parallel.
