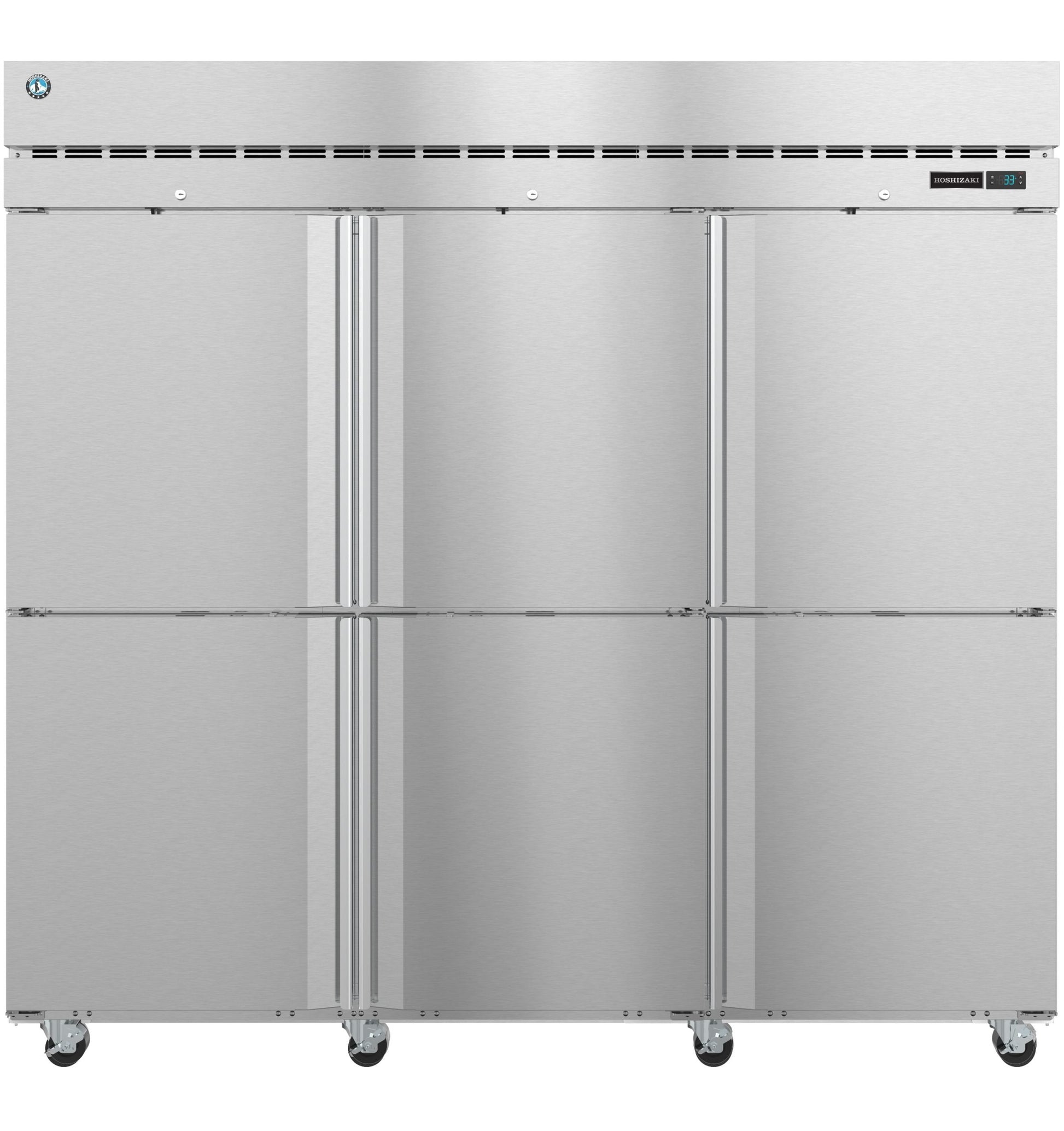

Hoshizaki | 83" Wide 6 Door Top Mount Reach-In Freezer - F3A-HS
The F3A-HS Steelheart Series Upright three section freezer with half stainless doors is a space saving workhorse. Solid state control system with temperature alarms and LED display (°F or °C). With a net capacity of 79.03 cubic feet this efficient upright freezer and front air flow design is perfect for hot/tight kitchens. The F3A-HS is constructed of stainless steel, which protects this unit from accidental damage and rust. Plus, it is easy to clean.
The F3A-HS also includes Interior LED light bar is mounted horizontally on the ceiling, (8) 4″ stem casters (4 with brakes) are standard, plus a field reversible, spring assisted self closing door with stay open feature (no kit req’d). Electrical consumption of kWh/day at 9 Amps, 10 ft long cord with a 5 – 20P NEMA plug. Optional kits: 6″ Legs, Epoxy or stainless steel shelves, Tray/pan slides, Foot pedal door opener, Additional air filter. The unit is ETL Safety (US & C) Listed, ETL Sanitation and includes a six years parts warranty, five years labor warranty, and seven years compressor warranty.
Features
- Dimensions: 82.5″ W x 33.5″ D x 79.5″ H
- Net capacity of 79.03 cubic feet
- Unique “ducted” air distribution system
- Epoxy electrocoated (E-Coat) evaporator coil to help fight corrosion for extended life
- Stainless steel exterior (front, sides, top) and a stainless steel interior
- Field reversible, spring assisted self closing door with stay open feature (no kit req’d)
- One piece, full door length, extruded aluminum flush mount door handle
- Lockable Half Stainless Doors
- Insulated with 2 3/8″ CFC free, foamed in place polyurethane
- Interior LED light bar is mounted horizontally on the ceiling
- Solid state control system with temperature alarms and LED display (°F or °C)
- R290 refrigerant
- (8) 4″ Stem Casters (4 with brakes) are standard
- Includes 9 epoxy coated wire coated wire shelves adjustable in 1″ increments on stainless steel supports
- Optional kits: 6″ Legs, Epoxy or stainless steel shelves, Tray/pan slides, Foot pedal door opener, Additional air filter
- Nominal Compres. of 3000 BTU/hr at 5/8 HP(left), BTU/hr at (right)
- 230v/60/1, 10 ft. cord and plug
- Shipping Crate: 86″ L x 37.875″ D x 81″ H at 845 lbs
- Top mounted energy efficient non-electric evaporation system
- Six Years parts warranty, Five Years labor warranty, Seven Years compressor warranty
What Our Experts Think
-
83" wide, 6-door design provides exceptional frozen storage capacity.
-
Top-mount refrigeration system enhances efficiency and reduces dust buildup.
-
Stainless steel inside and out ensures durability in demanding kitchens.
-
Designed for consistent freezing performance to protect food quality.
-
Perfect for restaurants, hotels, institutions, and high-volume kitchens.
Q&A
Q: How many sections does it have?
A: This freezer features three sections with six half doors for organized storage.
Q: Why choose a top-mount system?
A: It keeps the compressor away from floor heat and debris, improving performance and lifespan.
Q: Is it Energy Star certified?
A: Yes, it is built for energy efficiency without compromising power.
Maintenance Tips
-
Clean condenser coils monthly to prevent overheating.
-
Inspect and clean door gaskets to ensure a proper seal.
-
Defrost and sanitize interior surfaces regularly.
-
Avoid blocking airflow by keeping items organized on shelves.
-
Schedule professional service annually to extend equipment life.
