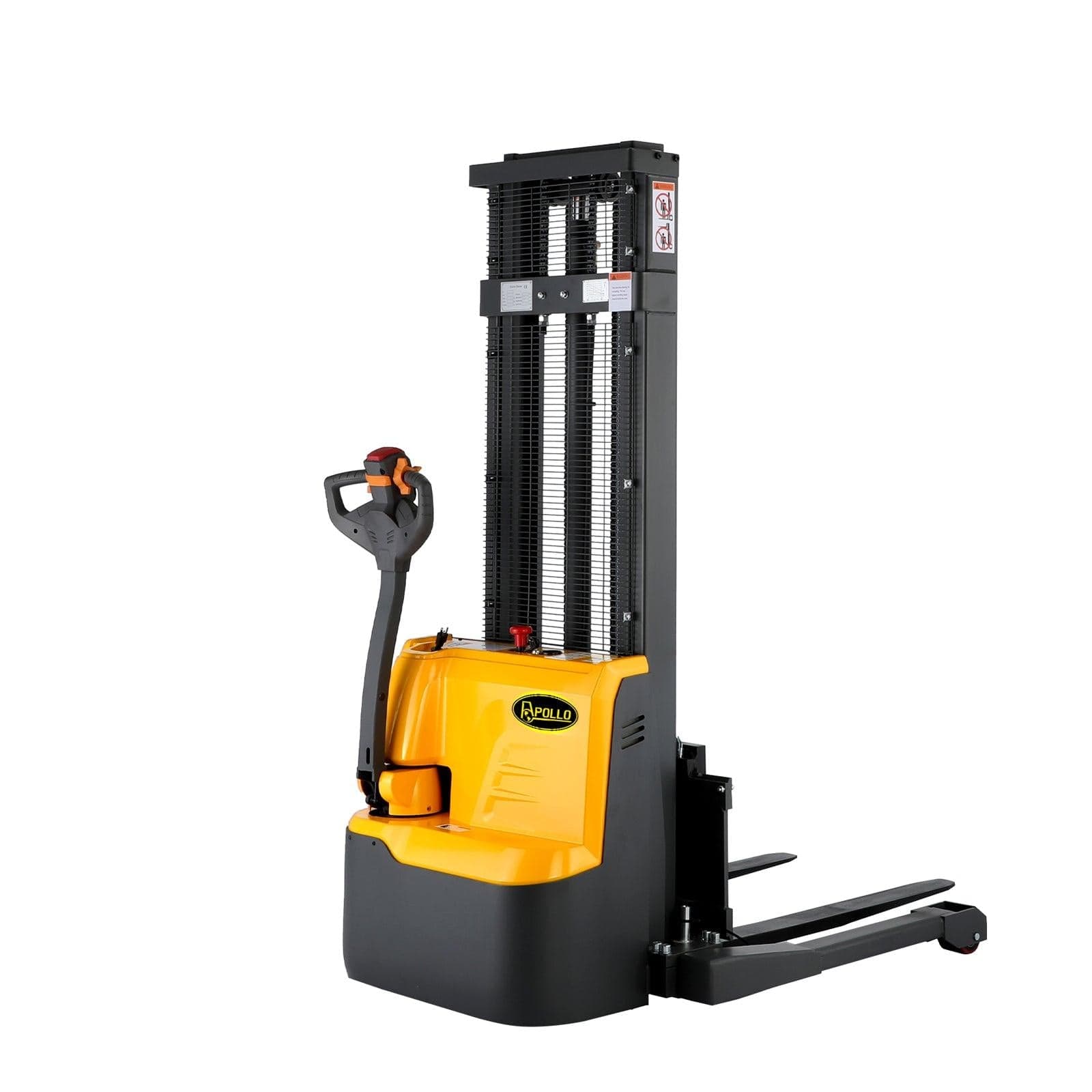

Apollolift Powered Forklift Full Electric Walkie Stacker 2640lbs Cap. Straddle Legs. 118" lifting A-3042

Apollolift Powered Forklift Full Electric Walkie Stacker 2640lbs Cap. Straddle Legs. 118" lifting A-3042

The Best Choice for Narrow Site

• Overall Length: 70"
• Recommended Aisle Width: 89.7"
• Turning Radius : 58.6"
• Mast Height Lowered: 84.4'
• Mast Height Raised : 141.7''
• Load center : 23.6"
• Ground Clearance: 1.38"

FORKS

• Fork height, Lowered : 3.15''
• Adjustable Forks: 7.8"-31.5"
• Thickness: 1.3"
• Width: 3.9"
• Length: 42"

STRADDLE LEGS

• Height: 4.7"
• Adjustable range: 44" - 60"

SPEED

• Travel speed(laden/unladen) : 2.8/3.1mph
• Lifting speed(laden/unladen) : 3.5/5.5inch/s
• Lowering speed(laden/unladen) : 4.7/3.9inch/s

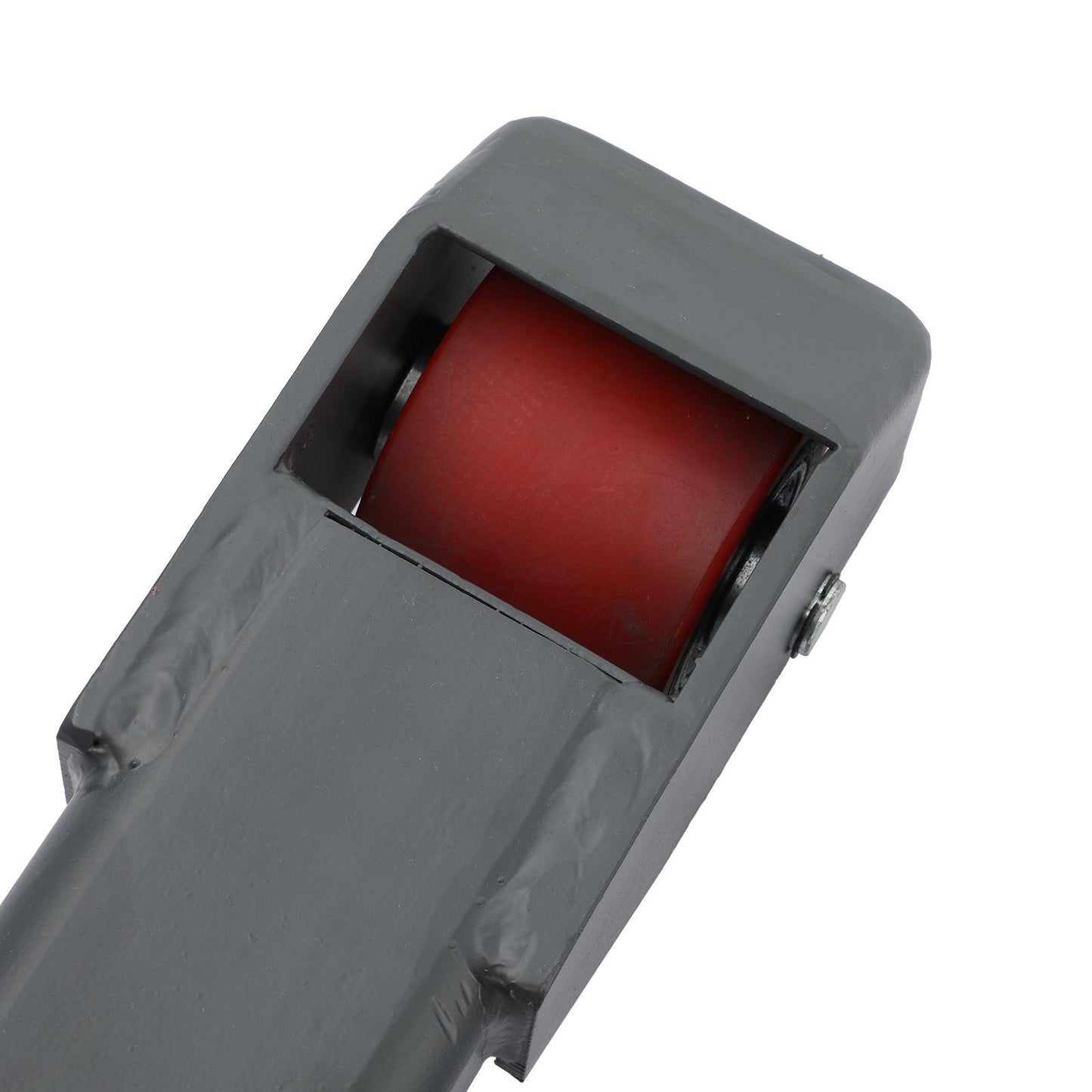

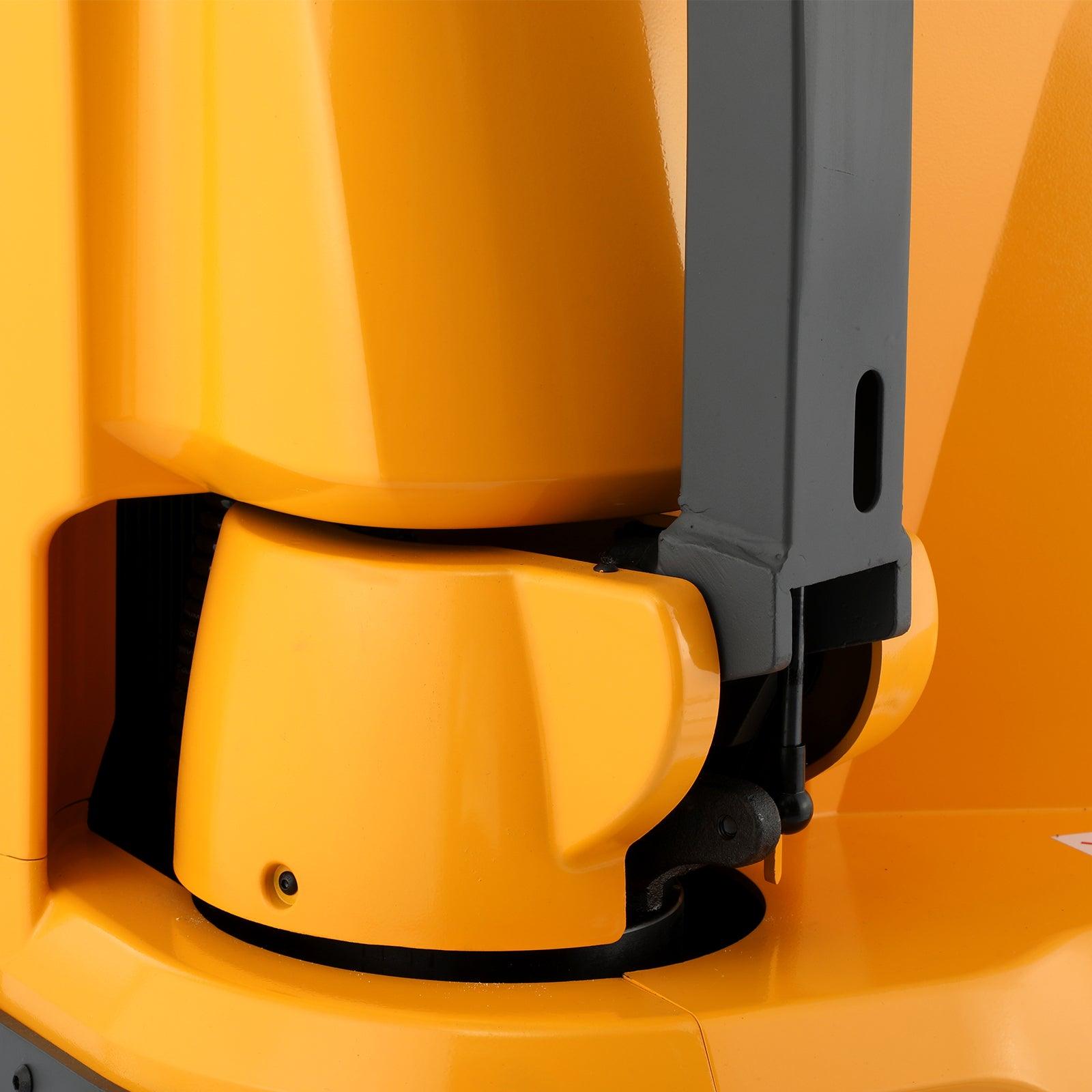

• Smooth rolling polyurethane wheels.180° steering arc.

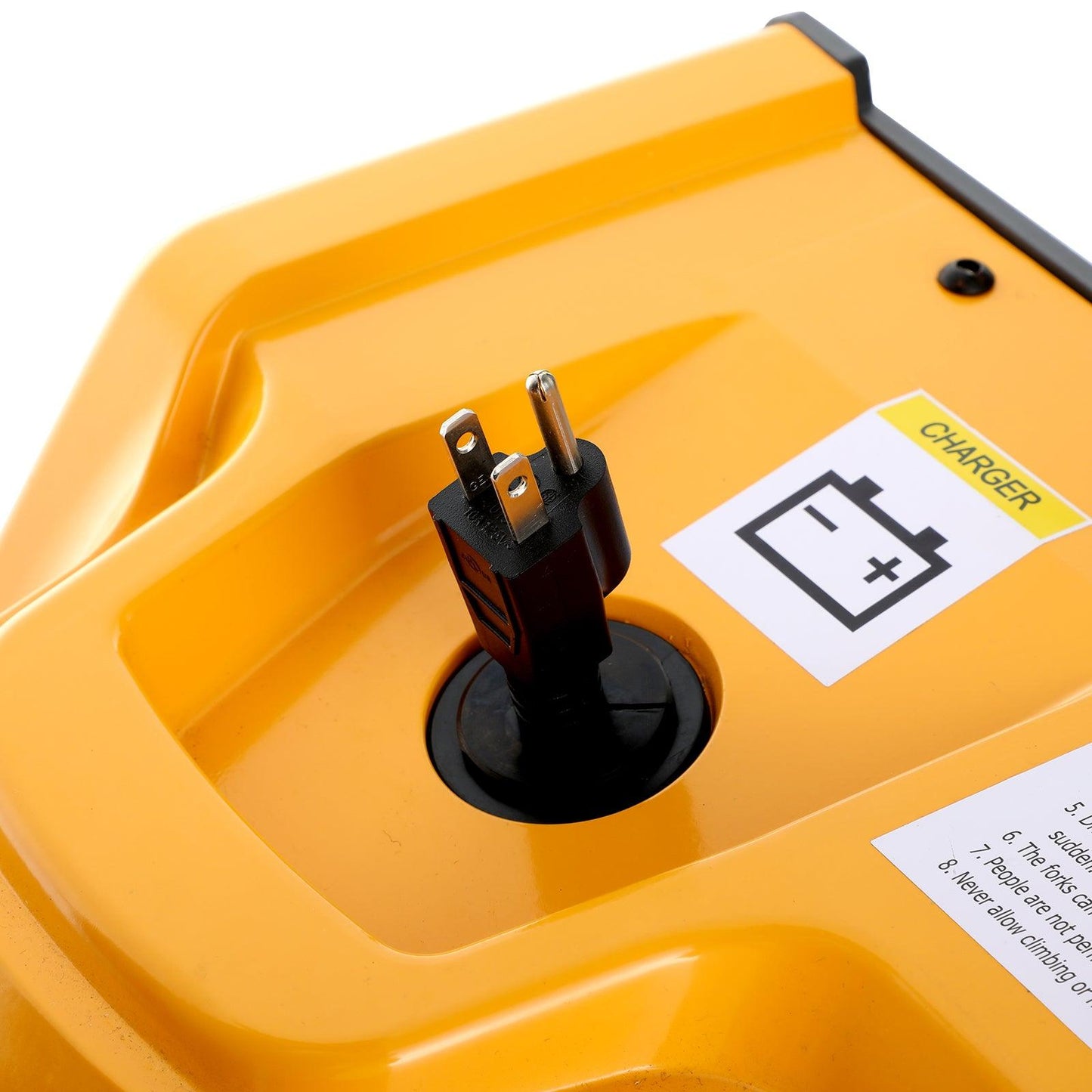

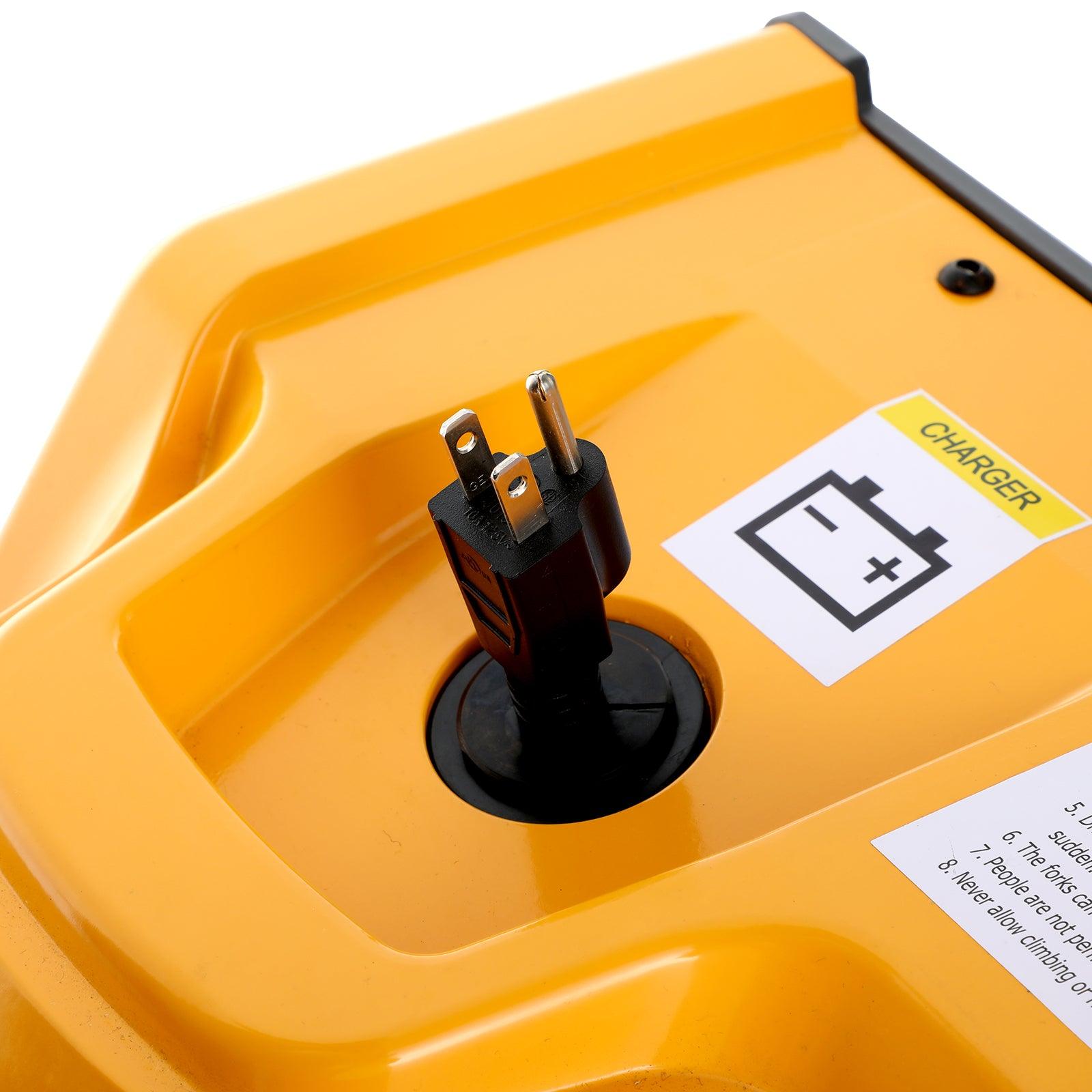

• 110V Built-in Charger.
• 6 hours service per charge: two 12-volt, 105 Ah rechargeable GEL batteries.

• Not explosion proof.
• This forklift is designed to be used on flat ground, avoiding uneven grounds with potholes or large ramp.
• Normal Ambient temperature shall not be higher than +104°F and no lower than -13°F.
• Fully charge battery before use to avoid damaging cells.
• Charger plugs into standard 110V-120V outlets.
• Charge the forklift once a month even it's not in use.

• A-3021  Detail Page

• Robust Capacity: The Apollolift Powered Forklift Full Electric Walkie Stacker supports up to 2,640 lbs, making it perfect for handling medium to heavy loads with ease.

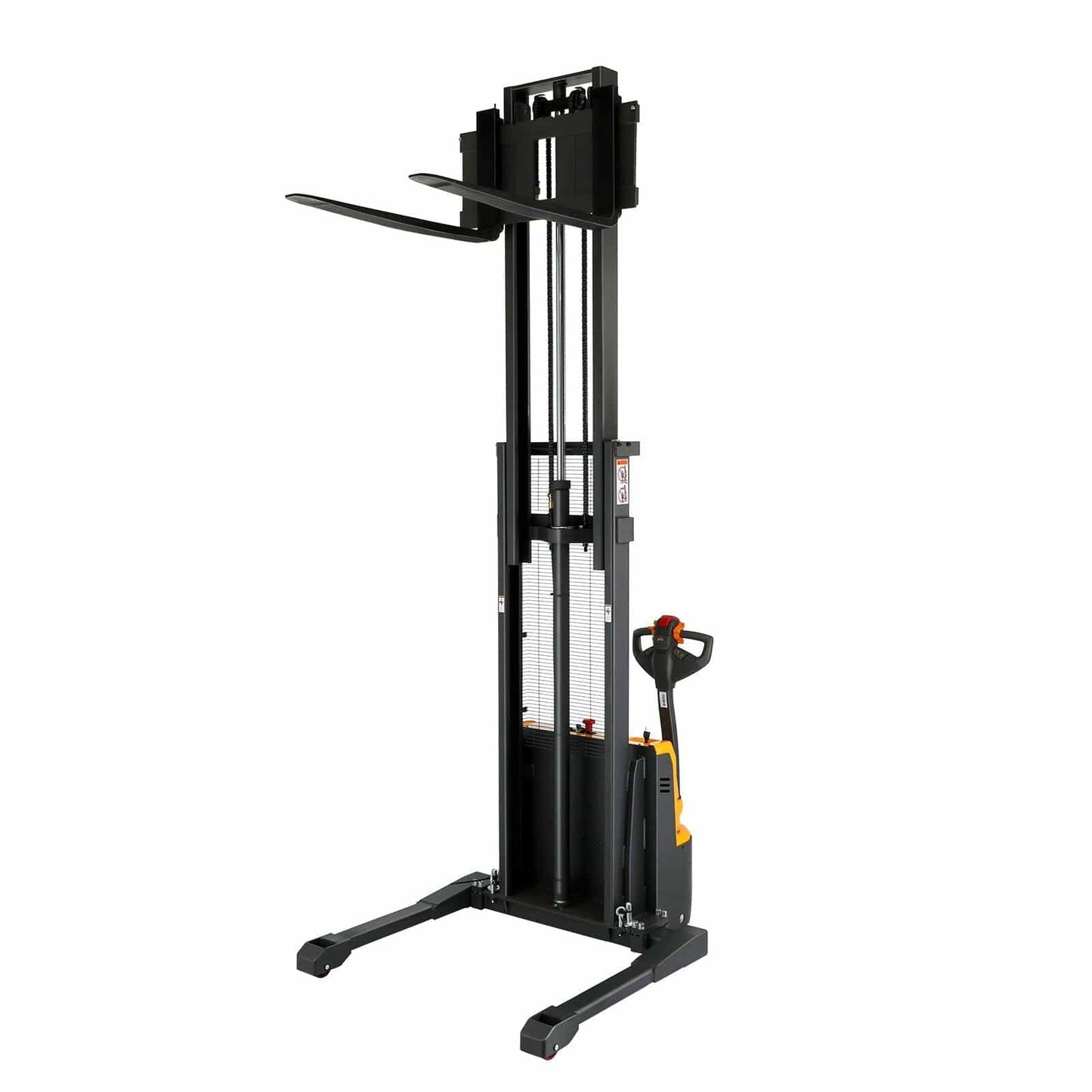

• High Lift Height: With an impressive 118" lift height, it’s ideal for vertical stacking, maximizing warehouse space and improving storage efficiency.
• Efficient Electric Operation: The fully electric design provides smooth and effortless lifting and lowering, reducing operator fatigue and improving overall productivity.
• Straddle Legs for Versatility: The straddle legs make it compatible with a wide range of pallet sizes, ensuring flexibility for different material handling tasks.
• Built to Last: Constructed with high-quality materials, this stacker is designed for long-lasting performance, even in the most demanding industrial environments.

Q: What is the Apollolift Powered Forklift Full Electric Walkie Stacker 2640 lbs Cap, 118" Lifting Height - A-3042?
A: It is a full electric walkie stacker with a 2,640 lbs capacity and a 118" maximum lifting height, designed for efficient material handling in tight spaces with straddle legs for extra stability.

Q: What is the weight capacity of this stacker?
A: The stacker can handle loads up to 2,640 lbs.

Q: What is the maximum lifting height?
A: The stacker reaches a lifting height of 118".

Q: How does the full electric feature benefit the user?
A: The electric motor provides smooth, efficient lifting and precise control, reducing operator effort and increasing productivity.

Q: Why are the straddle legs important?
A: The straddle legs enhance stability and allow the stacker to handle wider or double-stacked pallets in narrow aisles or confined spaces.

Q: Where is this stacker best used?

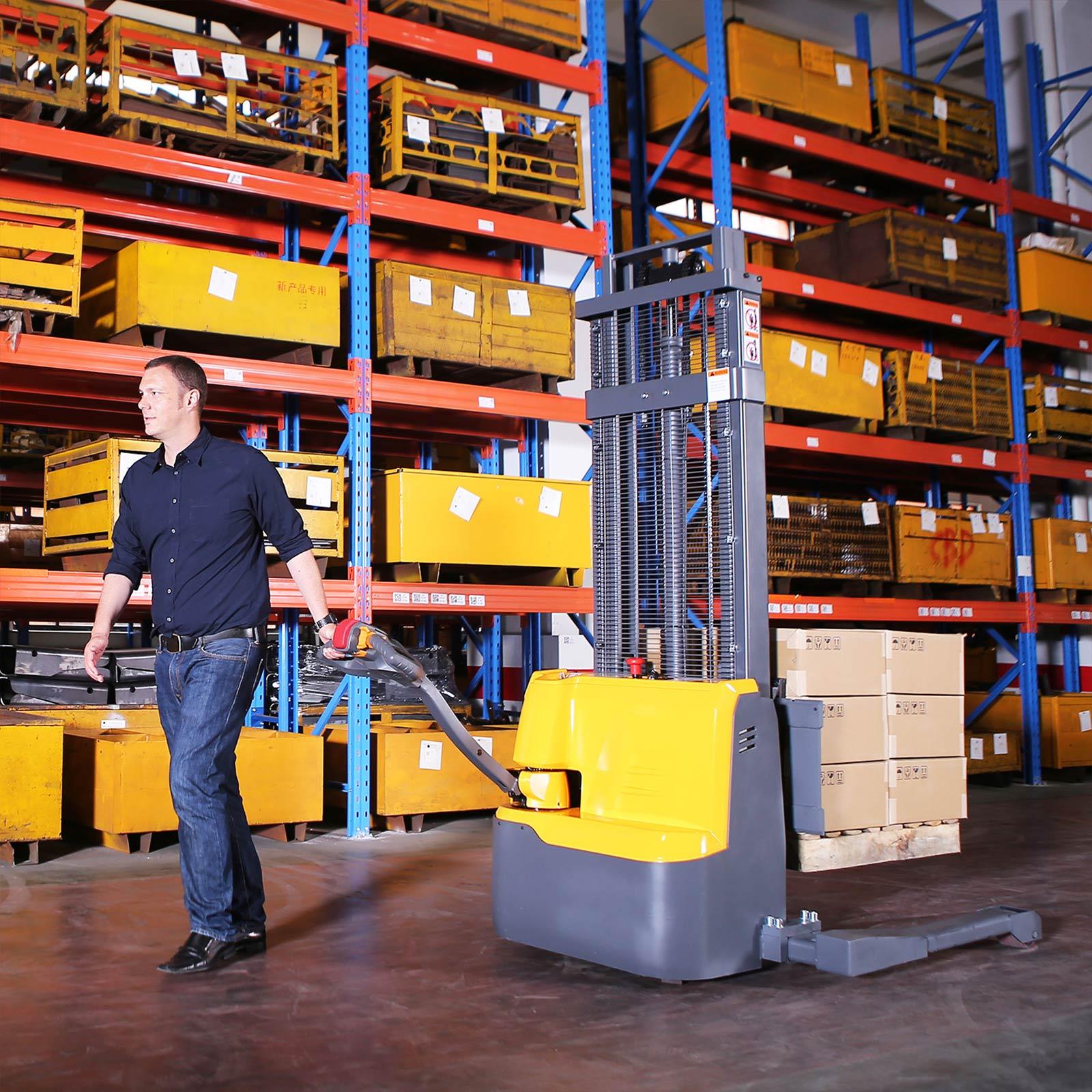

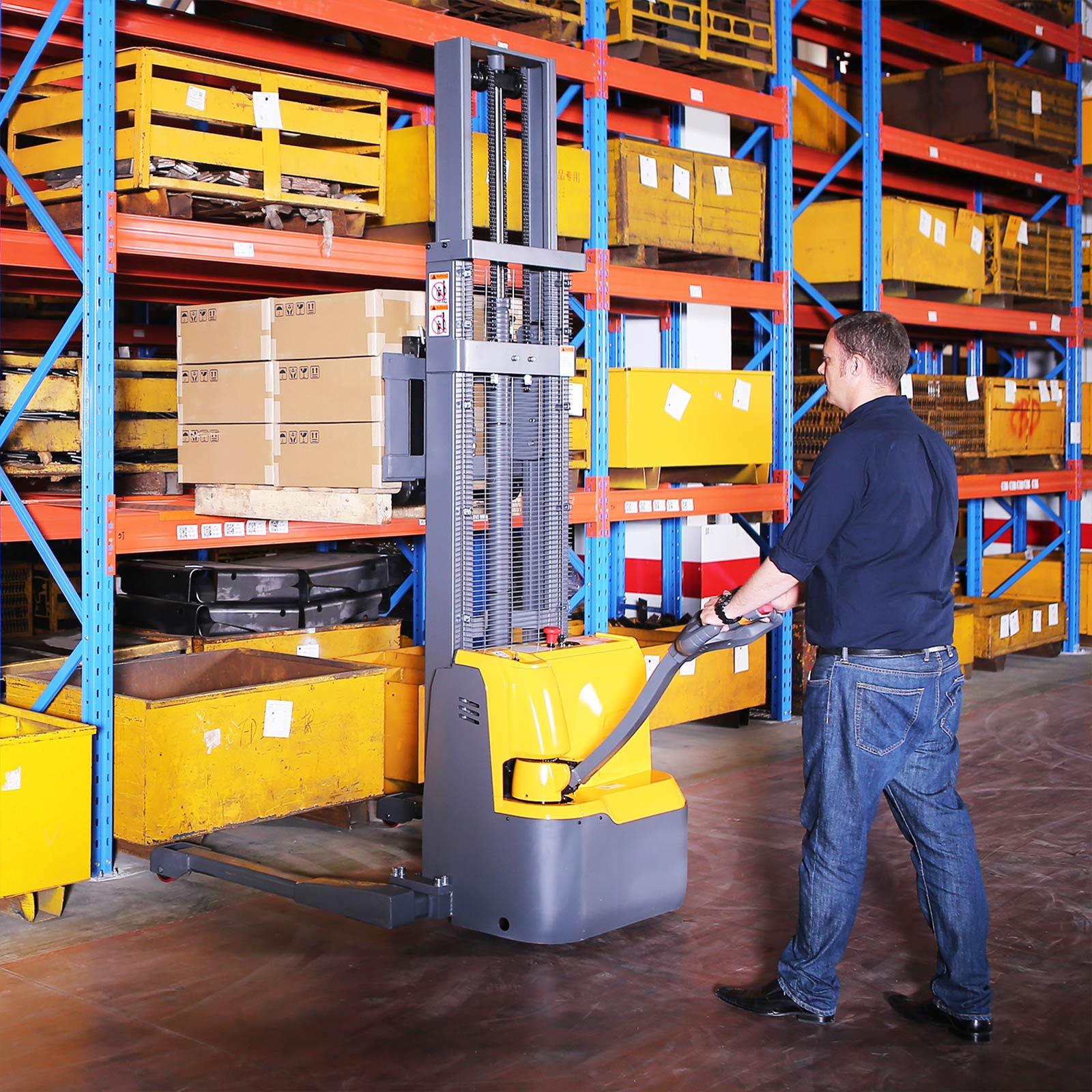

A: Perfect for use in warehouses, distribution centers, and manufacturing facilities where high-lift capabilities and maneuverability in tight spaces are required.

• Daily Inspection: Check for any visible damage, hydraulic leaks, or wear on the straddle legs, lifting mechanism, and forks.
• Battery Maintenance: Charge the battery fully after each use, and inspect terminals for corrosion. Ensure the battery is stored in a cool, dry place.
• Hydraulic Fluid: Regularly check hydraulic fluid levels and replace hydraulic oil every 6-12 months or when needed.
• Wheels and Casters: Inspect wheels for wear, clean regularly, and lubricate to ensure smooth operation.
• Lift Mechanism: Lubricate the scissor joints and other moving parts to avoid rust and ensure smooth lifting and lowering.
• Forks and Load Distribution: Regularly inspect forks for damage, debris, and proper alignment. Ensure loads are evenly distributed to prevent strain.
• Electrical System: Check wiring for wear and ensure the electrical components are functioning properly.
• Storage: Store the stacker in a dry, secure environment when not in use to protect against rust and electrical damage.
