Aardwolf Double Forklift Boom - DFB2-5000

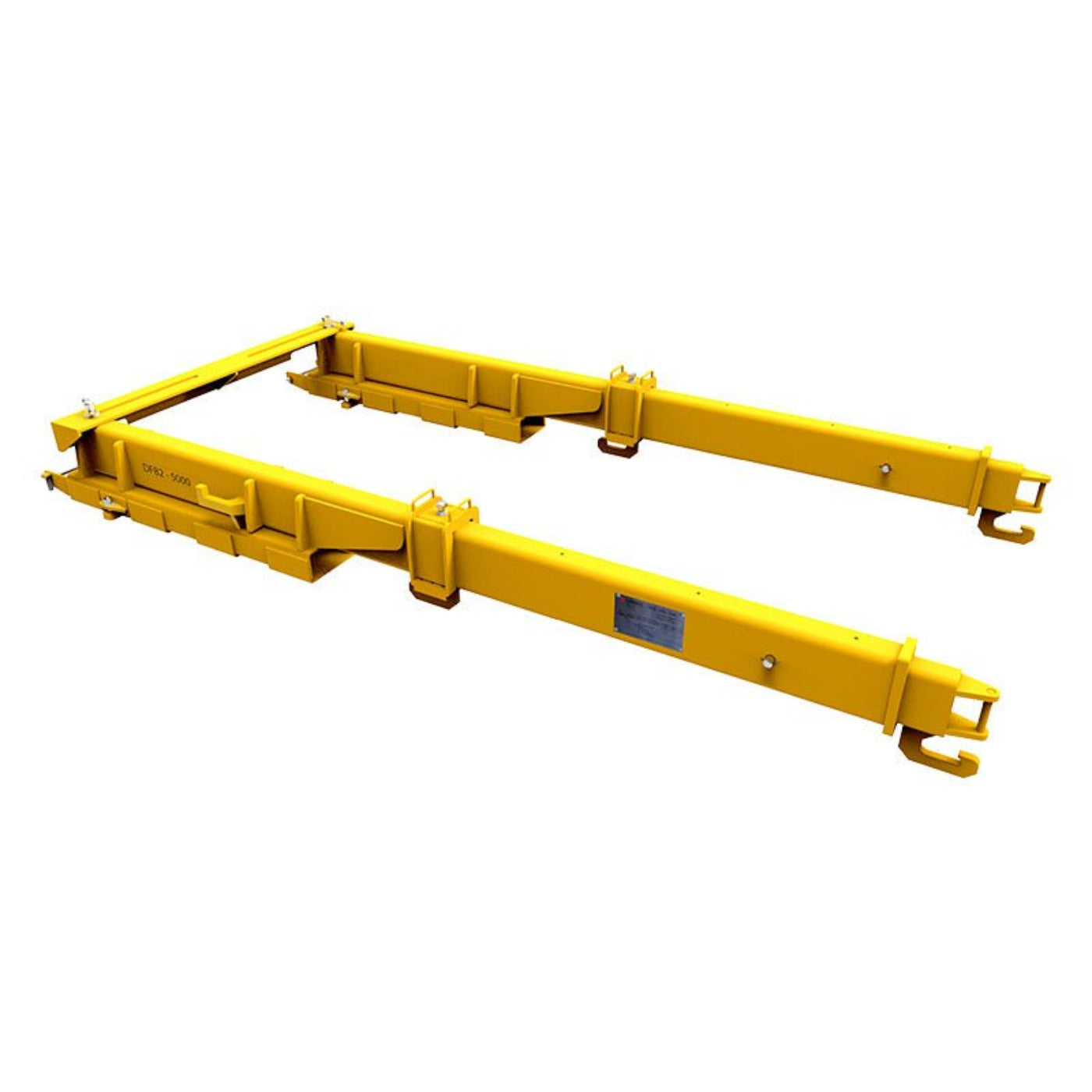

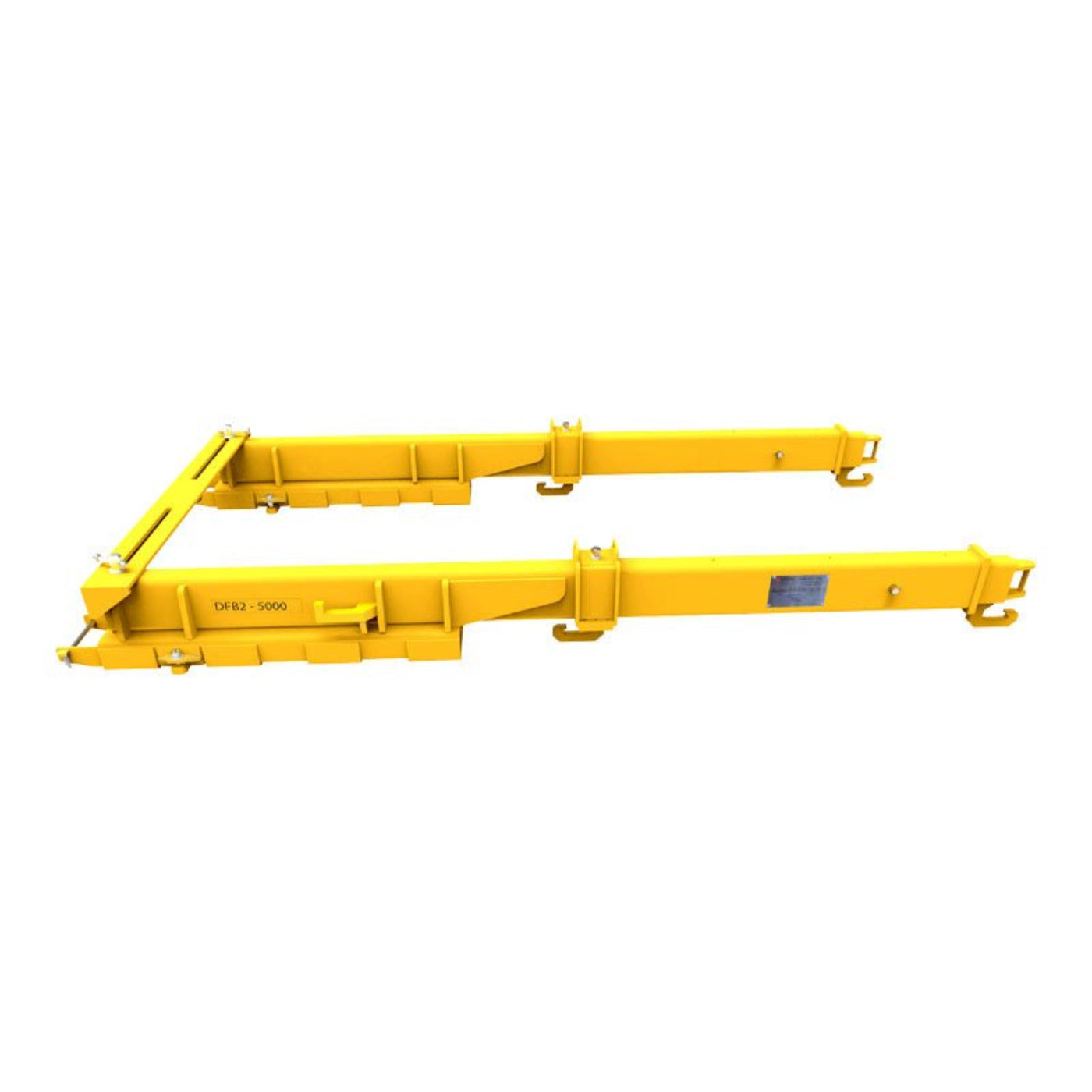

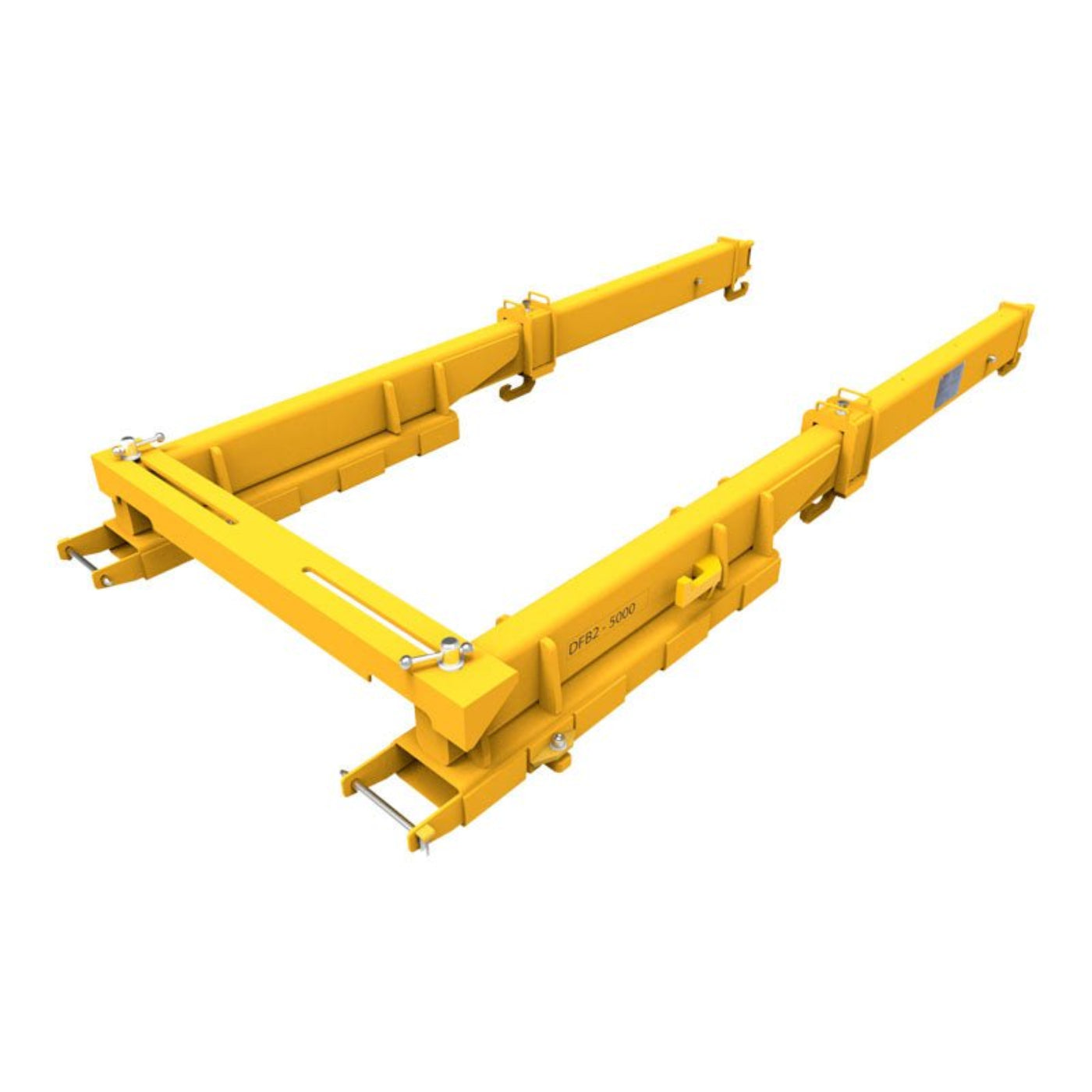

The Aardwolf Double Forklift Boom DFB2-5000 is a telescoping two-section rectangular tube steel boom designed for removing bundles of marble and granite slabs from closed-top containers.
Thanks to its design, without any impediments between the fork booms, the operator can insert the full length of the booms into the container and bring the load right back to the fork mask, allowing for greater load capacity and more stability. This attachment can support a load capacity of up to 5,000 kg. Installing it is very simple, thanks to its double-fork design. The Aardwolf Double Forklift Boom is powder-coated for extra durability and longevity, so the operator can use it for years to come.
Features
- Made for use on 8-tonne and larger forklift trucks.
- It offers versatility with maximum visibility for the driver.
- The boom extensions are designed so that they cannot be pulled all the way out.
- The open hooks are designed for the quick and easy hooking of flat web sling eyes.
- The inner sliding hook can be slid to all holes on the forks to adjust the distance quickly.
- A connection bar connecting the two booms allows the distance between the 2-fork to be adjusted to suit different slab bundle sizes.
- It optimizes work efficiency, reduces the labor force, and is safer.

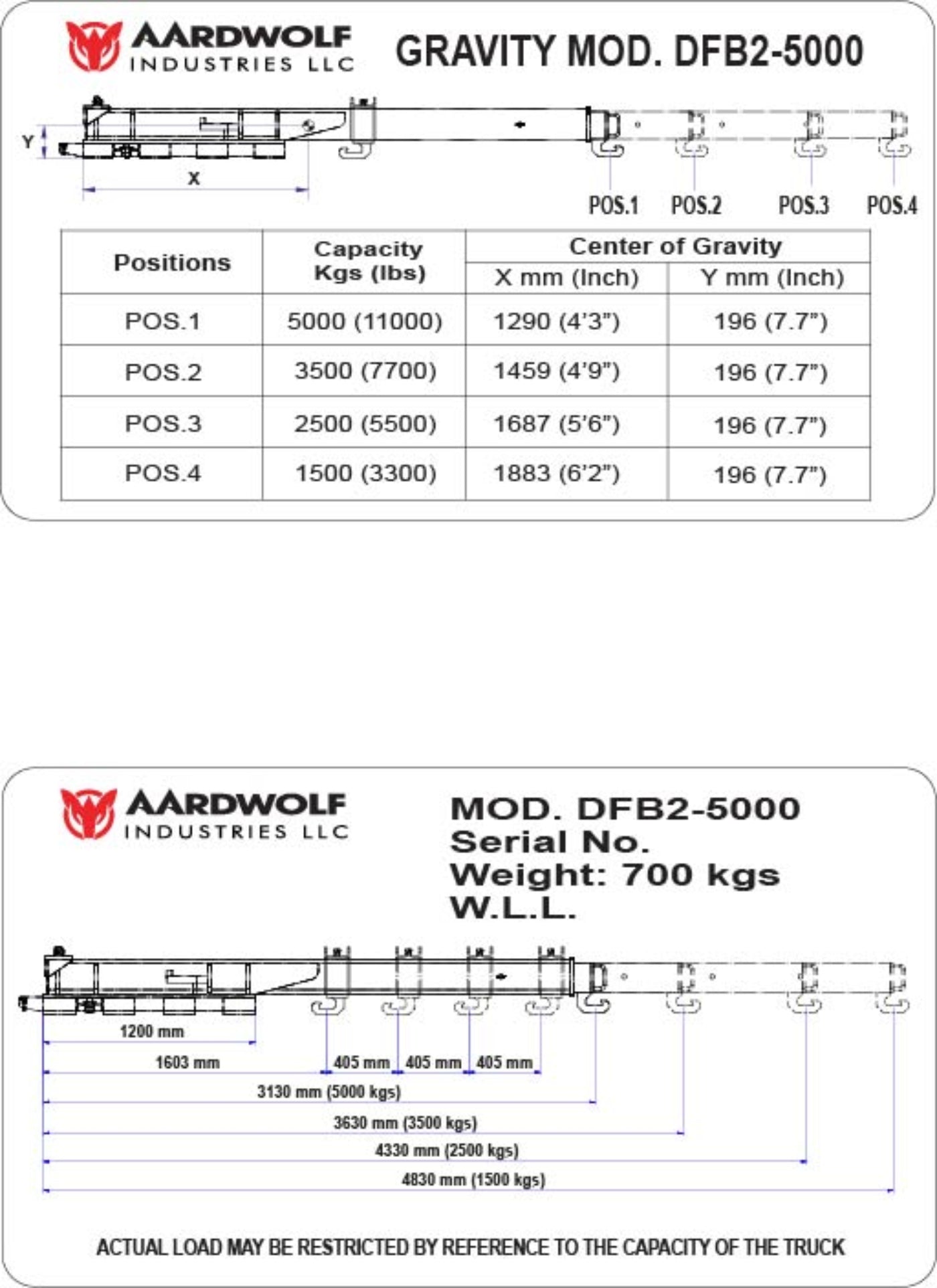

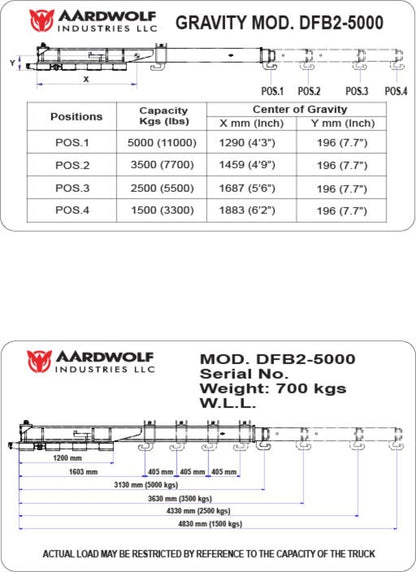

Specifications
| Adjustable Connection Bar Distance |
300 - 1300 mm |
11.8" - 51.2" |

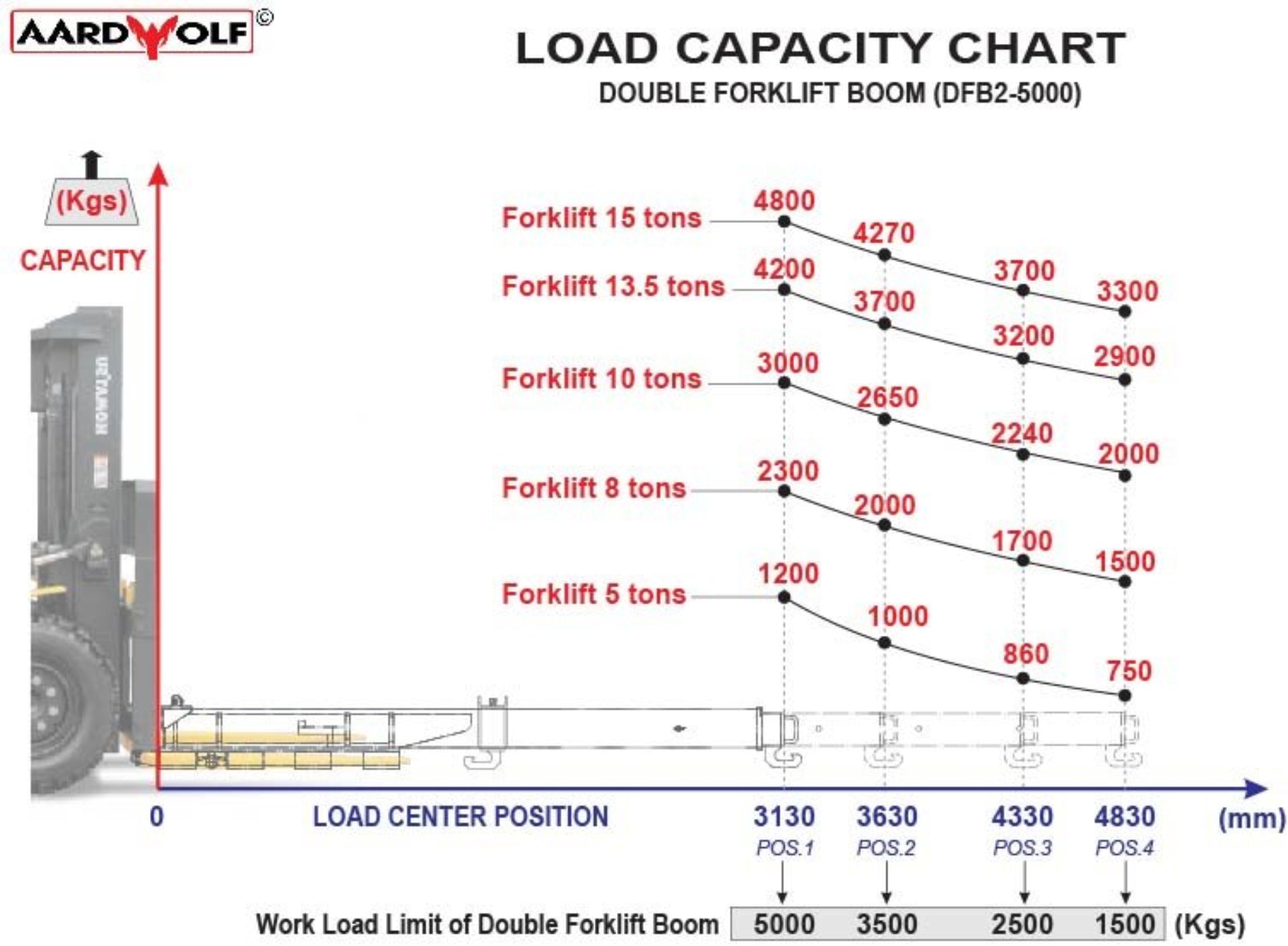

| Working Load Limit |
5000 kg |
11023 lbs |
| Net Weight |
657 kg |
1448 lbs |
| Gross Weight |
687 kg |
1514 lbs |
| Packaging Dimensions |
L.3400 x W.760 x H.515 mm |
L.133.9" x W.29.9" x H.20.3" |
What our Experts Think
-
Heavy-Duty Capacity: Designed to support up to 5,000 kg (11,023 lbs), making it ideal for lifting heavy bundles of marble and granite slabs.
-
Telescoping Design: Features a two-section rectangular tube steel boom that extends to accommodate various load sizes, enhancing versatility.
-
Unobstructed Fork Booms: The open design between the fork booms allows operators to fully insert the booms into containers, ensuring a secure grip and maximum load stability.
-
Compatibility: Optimized for use with 8-tonne and larger forklift trucks, providing reliable performance in demanding lifting tasks.
-
Durability: Constructed from high-quality rectangular tube steel with a powder-coated finish, ensuring long-lasting durability and resistance to wear.
-
Ease of Use: Equipped with easy-to-use hooks for attaching flat web sling eyes, facilitating quick and secure load handling.
-
Weight: Weighs approximately 700 kg (1,543 lbs), ensuring stability during operation.
Q&A
Q: What is the Aardwolf DFB2-5000 Double Forklift Boom used for?
A: The DFB2-5000 is designed for lifting and transporting heavy stone bundles, such as granite and marble slabs, from closed-top containers.
Q: What is its weight capacity?
A: It has a maximum load capacity of 5,000 kg (11,023 lbs), suitable for heavy-duty lifting tasks.
Q: What forklifts is it compatible with?
A: The boom is designed for use with 8-tonne and larger forklift trucks, providing versatility and stability.
Q: How does the telescoping design benefit its use?
A: The two-section rectangular tube steel boom allows for extended reach and enhanced lifting flexibility, making it ideal for handling large stone bundles.
Q: Is it easy to attach to the forklift?
A: Yes, the double-fork design facilitates quick and secure attachment to the forklift, streamlining the lifting process.
Q: What is the construction material?
A: The boom is made from high-quality rectangular tube steel with a powder-coated finish, ensuring durability and longevity.
Q: Does it offer good visibility for the operator?
A: Yes, the design provides maximum visibility, allowing the operator to maneuver the forklift with precision and safety.
Maintenance Tips
-
Inspect Regularly: Check the boom arms, hooks, and lifting chains for any signs of damage, wear, or misalignment.
-
Clean After Use: Remove dirt, debris, and moisture from the boom to prevent rust and ensure smooth operation.
-
Lubricate Moving Parts: Apply oil or grease to the pivot points and moving components to reduce friction and maintain functionality.
-
Test Lift Function: Before use, ensure that all lifting mechanisms are operating smoothly and securely.
-
Proper Storage: Store the boom in a dry, sheltered area to protect it from corrosion and environmental damage.
