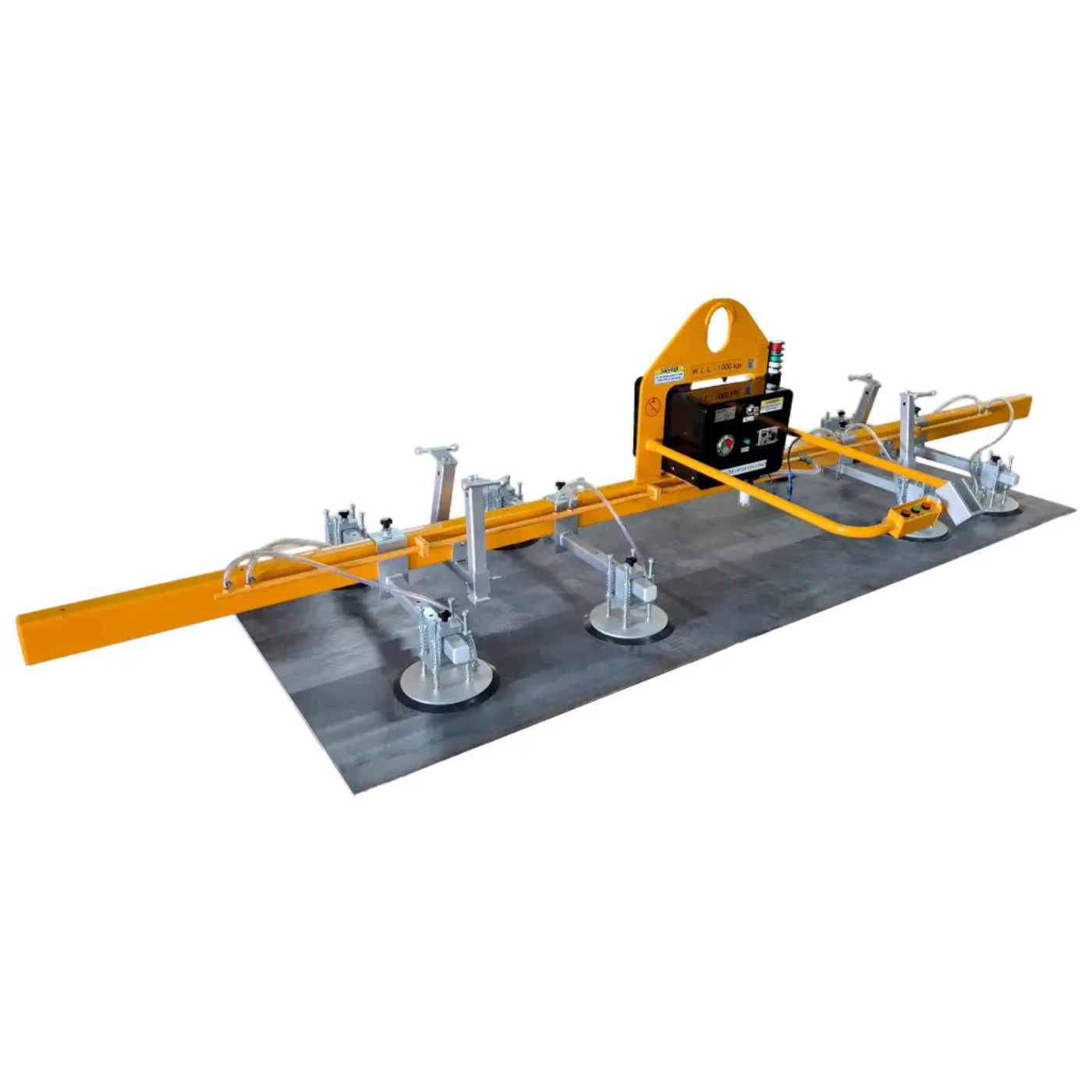

Aardwolf Electric Vacuum Lifters - AEVLP8-1000
It uses an electric vacuum pump and is available in configurations with 1, 4 or 8 pads. The main beam and vacuum pad positions are adjustable to accommodate different sheet sizes. Depending on the model, the system supports loads of up to 2000 kg and sheet dimensions up to 236.2″ × 70.9″.
Each unit is equipped with a pressure monitoring system, automatic vacuum pump reactivation in case of pressure loss, and audio-visual alerts for safe operation. It is suitable for use in workshops and industrial environments.
Features
Adjustable Beam and Pad Positions: Suitable for handling different sheet sizes.
Lifting Capacities: Available models support 500 kg, 1000 kg, or 2000 kg loads.
Safety Alerts: Audio-visual indicators notify the operator when pressure drops.
Automatic Pump Activation: The system automatically restarts the vacuum pump if pressure drops below the safe level.
Battery-Powered Alarm: Runs on a 3.7V LiPo battery, up to 7 hours continuous use and 720 hours standby.
Electric Motor: 3-phase 380V power input with vacuum flow rates up to 8.7 m³/h, depending on model.
What our Experts Think
-
High-capacity industrial lifting performance: Designed for heavy-duty handling of metal sheets and flat non-porous materials, the AEVLP8-1000 delivers a reliable working load capacity of up to 1000 kg, making it suitable for demanding workshop and factory environments.
-
Precision 8-pad vacuum system: Equipped with 8 large vacuum pads (≈300 mm diameter) for stable grip and balanced load distribution, reducing slippage risk during lifting and movement.
-
Advanced electric vacuum control: Uses an electric pump motor with automatic reactivation when pressure drops, ensuring continuous suction and safer operation under variable load conditions.
-
Built-in safety intelligence: Integrated audio-visual alarm system alerts operators to vacuum loss, helping prevent accidents and improving workplace safety compliance.
-
Flexible beam and pad configuration: Adjustable main beam and suction pad positions allow handling of different sheet sizes up to approximately 3000 × 1800 mm, improving versatility in production lines.
Q&A
Maintenance Tips
-
Inspect before every use: Check frame, lifting beam, and welds for cracks, deformation, or loose fittings.
-
Clean vacuum pads daily: Remove dust, oil, and debris to maintain strong, safe suction grip.
-
Check rubber seals & edges: Replace any cut, hardened, or damaged seals immediately to prevent vacuum loss.
-
Maintain air/vacuum filter: Keep filters clean to avoid airflow restriction and pump strain.
-
Test vacuum system regularly: Ensure pressure holds steady and auto-restart safety system works properly.
-
Watch for abnormal noise/vibration: Stop operation and inspect if anything unusual occurs during lifting.
-
Check electrical components: Ensure control box, alarms, and cables are intact and properly connected.
-
Store properly: Keep in a dry, covered area to prevent corrosion and moisture damage.
-
Replace worn parts only with originals: Prevent performance loss and maintain safety compliance.
