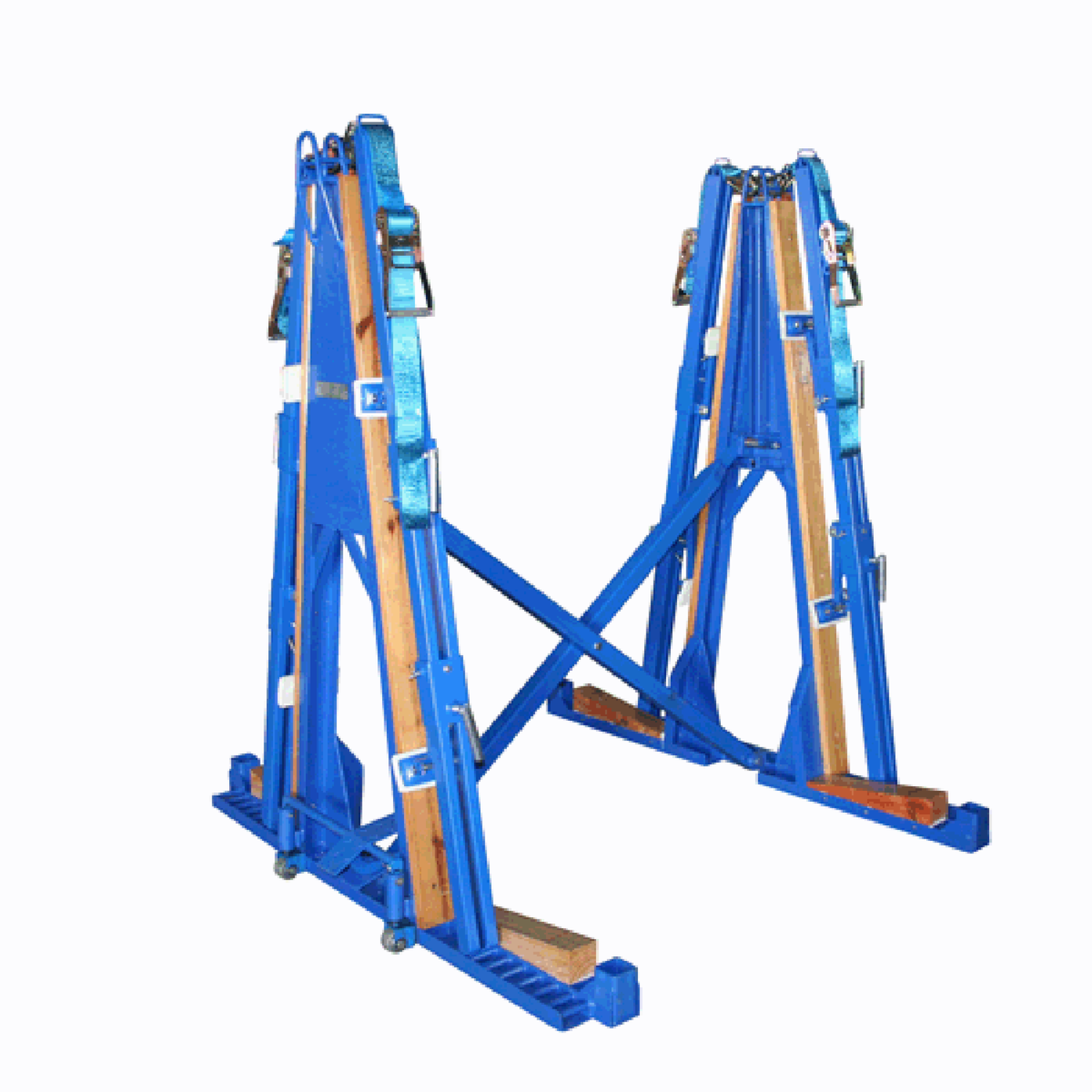

Aardwolf Folding A Frame - FAF2100

Aardwolf Folding A Frame - FAF2100

Hauling granite and marble isn't easy, and it certainly isn't safe if you don't have the right equipment. This well-made foldable a frame is needed for both the safety of the driver and other workers, as well as for the protection of the granite and marble.
The sturdy Aardwolf Folding 'A' Frame granite transporting frames with its unique integrated vertical locking bars and ratchet locking straps is designed so as to holds all material safely and securely, which eliminate risk to the operator and prevent damage to material. The load is secured independently on each side by two vertical locking bars, which are inserted into brackets at the base of the frame and held by ratchet locking straps at the top.
The unloaded frame can be folded up by the simple withdrawing of two spring loaded pins from the cross braces and the lowering of the three wheels at one end by means of a cam lever. The lowered wheels also allow the frame to be positioned on the tray of a truck or manually moved around the factory.

Features

Bolts holes in base of frame for optional securing of the Folding 'A' Frame to the vehicle.
Granite is secured by rubber pads mounted on cleats, which are in turn adjustable in height along the vertical locking bars.
Large hand-tightened wing nuts are used to tighten the cleats to the vertical locking bars.
Powered coat paint finish.

What our Experts Think

• Heavy-duty folding slab transport frame, the Aardwolf FAF2100 is designed for safe storage and transport of granite, marble, quartz, and other stone slabs in fabrication shops and on delivery trucks.
• Space-saving folding design allows the frame to collapse when empty, making it easier to store, reposition, or transport compared to fixed A-frames.
• High-capacity industrial construction, typically rated around 7,500 kg total working load limit, supporting demanding commercial slab handling operations.
• Independent dual-side slab support system uses vertical locking bars and ratchet straps to secure materials firmly and reduce movement during transport.
• Protective rubber pad system with adjustable cleats helps prevent surface damage while keeping slabs tightly aligned and stable.
• Designed for truck and workshop use, with mounting points and a stable steel base that improves safety during loading, transport, and unloading.
• Powder-coated heavy steel frame ensures long-term durability in harsh stone yard and construction environments.

Q&A

Q: What is the Aardwolf Folding A-Frame FAF2100 used for?
A: The FAF2100 is designed for safe storage and transport of large stone slabs such as granite, marble, quartz, and engineered stone in fabrication shops and on delivery trucks.

Q: What makes the FAF2100 different from standard A-frames?
A: It features a folding design that allows the frame to be collapsed when not in use, saving space in workshops or during return transport.

Q: What is the load capacity of the FAF2100?
A: It is rated for heavy-duty use with a total working load limit of up to 7,500 kg (16,534 lbs), depending on configuration and usage conditions.

Q: What slab size can the FAF2100 handle?
A: The frame is built to accommodate full-size countertop and slab materials, commonly up to around 2,100 mm (82.7") in width per side.

Q: How are slabs secured on the FAF2100?
A: Slabs are held using vertical locking bars, adjustable cleats, rubber pads, and ratchet straps to prevent movement and protect surfaces during transport.

Q: Can the FAF2100 be used on trucks?
A: Yes. It includes base mounting points and is commonly used for flatbed truck transport of stone materials between yards and job sites.

Q: How is the folding mechanism operated?
A: The frame folds by releasing locking pins and lowering the upper structure, allowing compact storage and easier repositioning.

Maintenance Tips

• Inspect frame, welds, and folding joints regularly for cracks, bending, or structural wear before use.
• Ensure locking pins, hinges, and safety stops engage fully and operate smoothly during folding/unfolding.
• Tighten all bolts, fasteners, and connection points periodically, especially after transport or heavy use.
• Keep contact points and support pads clean and free from stone dust, slurry, and debris.
• Lubricate hinge points and moving joints lightly to maintain smooth folding action and prevent corrosion.
• Check stability feet, base supports, and ground contact points for wear or uneven contact.
• Never exceed the rated load capacity (approx. 2100 kg model-dependent) and distribute slabs evenly.
• Inspect for frame misalignment or deformation before loading stone materials.
• Store in a dry, covered area when not in use to prevent rust and extend service life.
