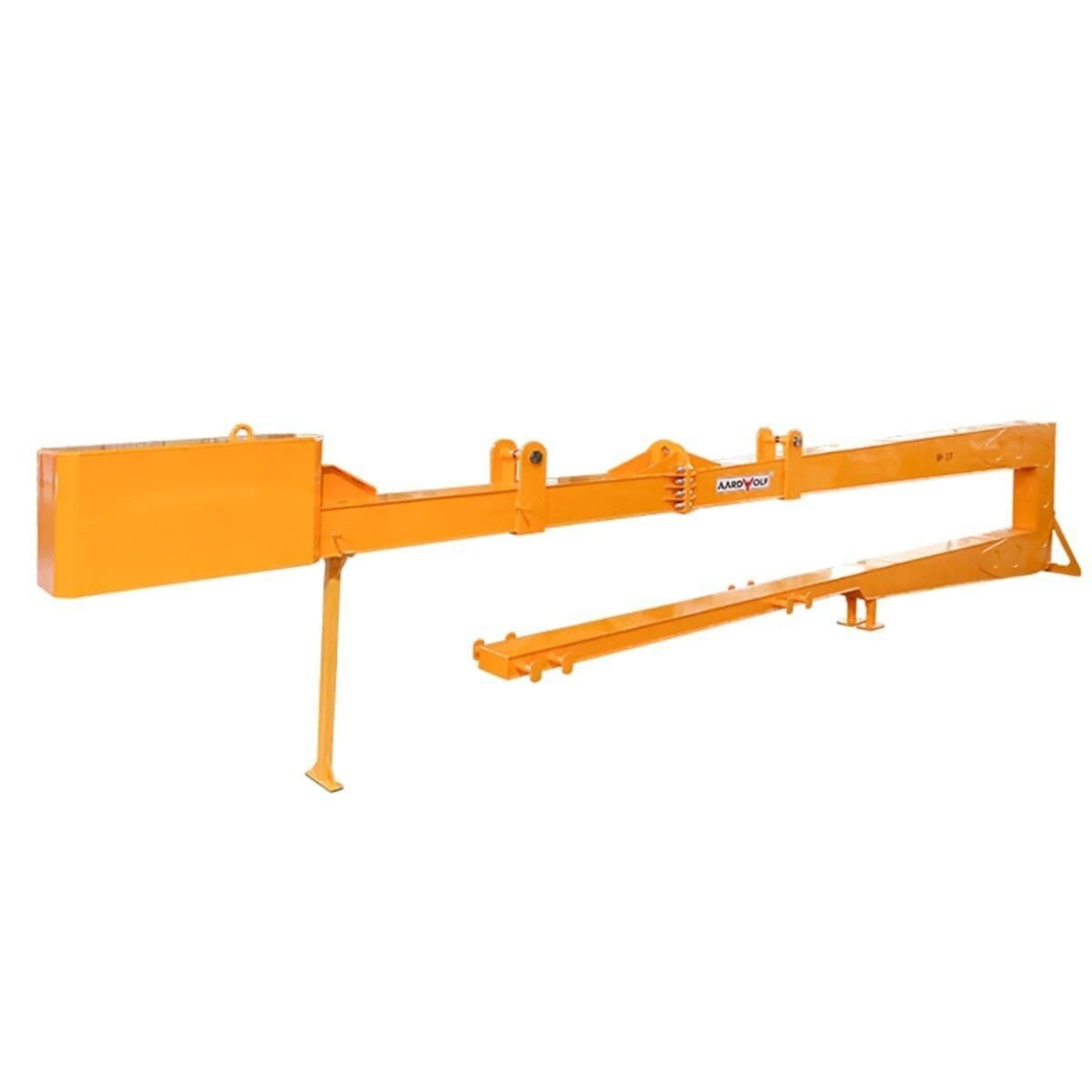

Aardwolf Glass Bundle Handler - GBH01

Aardwolf Glass Bundle Handler - GBH01

The Glass Bundle Handler is a crane attachment used for lifting bundles of glass from closed top containers. It is especially designed to lift and move glass bundles securely and to increase efficiency and worker safety with improved load handling. With the addition of a Glass Bundle Handler, your existing crane can be used to perform many of the functions generally associated with a forklift truck. It is used most efficiently on gantry cranes with a 5 ton capacity or greater. The Glass Bundle Handler can also be used on mobile cranes.

What our Experts Think

• Purpose-built for containerized glass bundle extraction, the Aardwolf GBH01 Glass Bundle Handler is designed to safely lift and transport bundled glass directly from closed-top shipping containers using existing crane systems.
• Transforms crane operations into a forklift alternative, allowing gantry and mobile cranes to perform many glass-handling tasks that would otherwise require specialized material-handling equipment.
• High working load limit of 2,500 kg (5,511 lbs) provides the capacity needed for handling large commercial glass bundles in manufacturing, distribution, and glazing operations.
• Designed to improve workplace safety and efficiency, minimizing manual intervention while maintaining secure load control during lifting and transport.
• Optimized for gantry cranes with 5-tonne capacity or greater, making it particularly valuable for high-volume glass processing facilities and logistics centers.
• Heavy-duty industrial construction (approximately 2,030 kg net weight) ensures structural rigidity and long-term reliability under demanding operational conditions.
• Ideal for float glass manufacturers, glass distributors, glazing contractors, and logistics operators seeking faster unloading and safer bundle handling from containers and storage areas.
• Engineered specifically for bundled glass loads, helping reduce handling damage while increasing throughput in busy material-handling environments.


Q&A

Q: What is the Aardwolf Glass Bundle Handler (GBH01) used for?
A: The GBH01 is a crane attachment designed for lifting and extracting bundled glass packs from closed-top shipping containers, improving safety and efficiency during glass handling operations.

Q: What is the load capacity of the GBH01?
A: The Glass Bundle Handler has a working load limit of 2,500 kg (5,511 lb) for heavy-duty glass bundle handling applications.

Q: What type of lifting equipment is required?
A: The GBH01 is designed for use with gantry cranes and overhead cranes, with optimal performance on cranes rated at 5 tonnes or greater. It can also be used with mobile cranes.

Q: How does the GBH01 improve workplace safety?
A: It enables secure lifting of glass bundles from enclosed containers, reducing manual handling risks and improving load stability during extraction and transport.

Q: Can the GBH01 replace certain forklift operations?
A: Yes. When attached to a crane, it allows operators to perform many material-handling tasks that would otherwise require a forklift, particularly when unloading glass bundles from containers.

Q: What industries commonly use the GBH01?
A: It is widely used in glass manufacturing, glass distribution, glazing, construction, and industrial material-handling operations where large glass bundles must be unloaded and transported safely.

Q: What are the key benefits of the GBH01?
A: The GBH01 increases unloading efficiency, enhances worker safety, reduces dependence on forklifts, and provides secure handling of heavy glass bundles in confined container environments.


Maintenance Tips

• Inspect the frame, lifting points, and support arms before each use for cracks, bending, or structural damage.
• Check rubber-lined contact surfaces and protective pads for wear, damage, or contamination; replace when necessary.
• Clean all contact points regularly to remove dust, glass particles, and debris that may affect load stability.
• Ensure clamps, restraints, and securing mechanisms operate smoothly and lock securely.
• Lubricate pivot points, hinges, and moving components periodically with light machine oil.
• Verify all bolts, pins, and fasteners are tight and properly secured before lifting operations.
• Never exceed the rated load capacity and ensure glass bundles are evenly balanced during handling.
• Inspect lifting eyes, fork pockets, and attachment points for wear, deformation, or corrosion.
• Store in a dry, covered area to prevent rust and preserve protective contact materials.
• Remove from service immediately if structural damage, clamp failure, or instability is detected.
