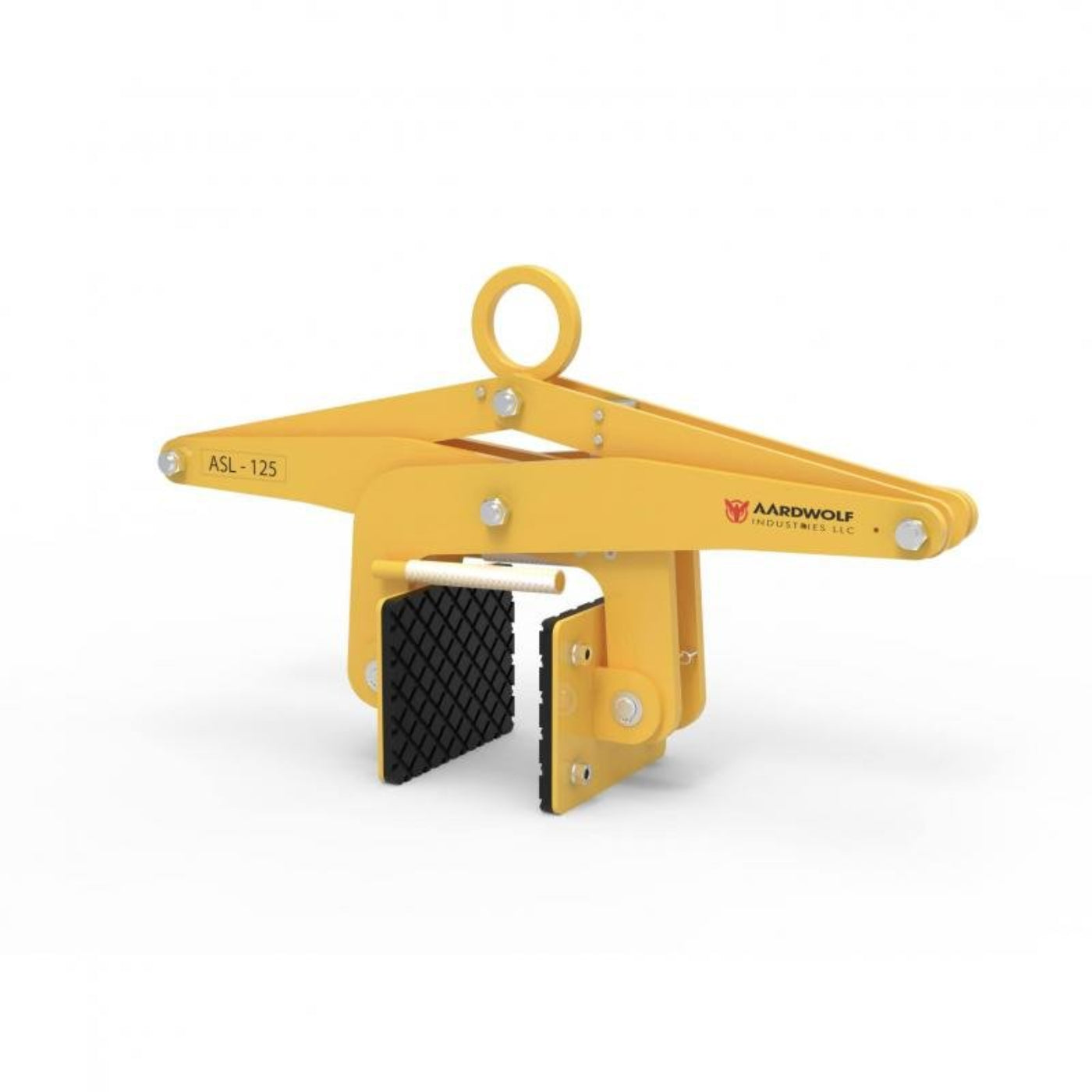

Aardwolf Scissor Lifter - ASL105

Aardwolf Scissor Lifter  - ASL105

The Aardwolf ASL-105 is a lifting clamp made to lift and move stone. It can move marble, granite, and most any type of material or stone. It is equipped with rubber contact pads, the Aardwolf Scissor Clamp Lifters ensure the safe handling of materials. The gravity controlled locking latch allow the clamps to automatically grip and release the load. Aardwolf ASL-105 Scissor Clamp Lifter is for for lifting marble and granite slabs, multi-slabs, tomb stones etc. W.L.L. 1653 LBS. Suitable for lifting marble and granite slabs, tomb stones, concrete barriers, curbs (kerbs) and median walls.

Features

• Auto locks and unlocks.
• Vulcanized rubber pads.
• Protective rubber lined bar prevents chipping of material

What our Experts Think

• Compact and highly efficient lifting solution, the Aardwolf ASL105 Scissor Lifter is designed for safe vertical handling of stone, concrete sleepers, slabs, kerbs, and similar heavy materials in construction and landscaping work.
• Gravity-controlled auto-lock system ensures the clamp automatically grips during lifting and releases when set down, reducing manual effort and improving on-site safety.
• Strong yet compact design, supporting a working load limit of up to 750 kg (≈1653 lbs), making it ideal for small to medium-duty lifting applications.
• Grip range up to 105 mm (0–4 1/8") allows handling of a wide variety of stone and concrete elements commonly used in fabrication and site installation.
• High-friction replaceable rubber pads deliver secure grip while helping protect finished edges from chipping, cracking, or surface damage.
• Integrated side rollers and central lifting point improve alignment accuracy and ensure stable load positioning during lifting operations.
• Durable steel construction with protective coating is built for harsh job-site environments and repeated daily use.

Q&A

Q: What is the Aardwolf Scissor Lifter ASL105 used for?
A: The ASL105 is designed for safe vertical lifting and handling of stone, concrete sleepers, kerbs, and similar solid materials in construction, landscaping, and fabrication work.

Q: How does the ASL105 gripping mechanism work?
A: It uses a gravity-controlled auto-locking scissor system that automatically grips the load during lifting and releases it when the material is set down, improving speed and safety.

Q: What is the load capacity of the ASL105?
A: The ASL105 has a working load limit of up to 750 kg (1653 lbs), depending on application conditions.

Q: What is the grip range of the ASL105?
A: It supports material thicknesses from 0 to 105 mm (0–4 inches).

Q: Does the ASL105 protect materials from damage?
A: Yes. It features high-friction replaceable rubber pads and protective contact components to reduce chipping and surface damage.

Q: What safety features does the ASL105 include?
A: It includes side rollers for load alignment, a central lifting hook for secure attachment, and a stable auto-locking mechanism for controlled lifting.

Q: What industries commonly use the ASL105?
A: It is widely used in stone fabrication, construction sites, and landscaping projects for handling heavy concrete and stone elements efficiently.

Maintenance Tips

• Inspect hydraulic cylinder, hoses, and fittings for leaks, cracks, or pressure loss before each use.
• Check scissor arms, pins, and welds for wear, bending, or structural damage.
• Keep the platform clean and free from stone dust, slurry, and debris to ensure smooth lifting and stability.
• Lubricate all pivot points, joints, and moving parts regularly to reduce friction and wear.
• Verify safety locking mechanisms and height controls are working correctly before operation.
• Never exceed the rated 105 kg load capacity and distribute weight evenly on the platform.
• Inspect wheels, brakes, and base frame for proper function and tightness.
• Lower the platform fully after use to relieve hydraulic pressure and improve system life.
• Store in a dry, covered area to prevent rust and hydraulic component degradation.
• Replace worn seals, damaged hoses, or faulty parts immediately to maintain safe operation.
