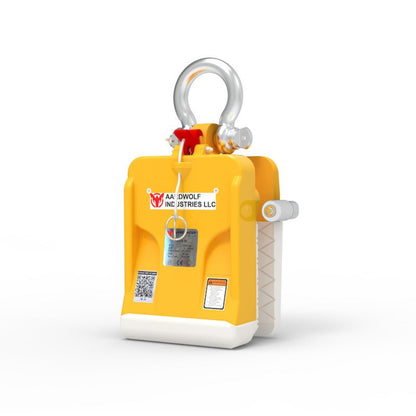

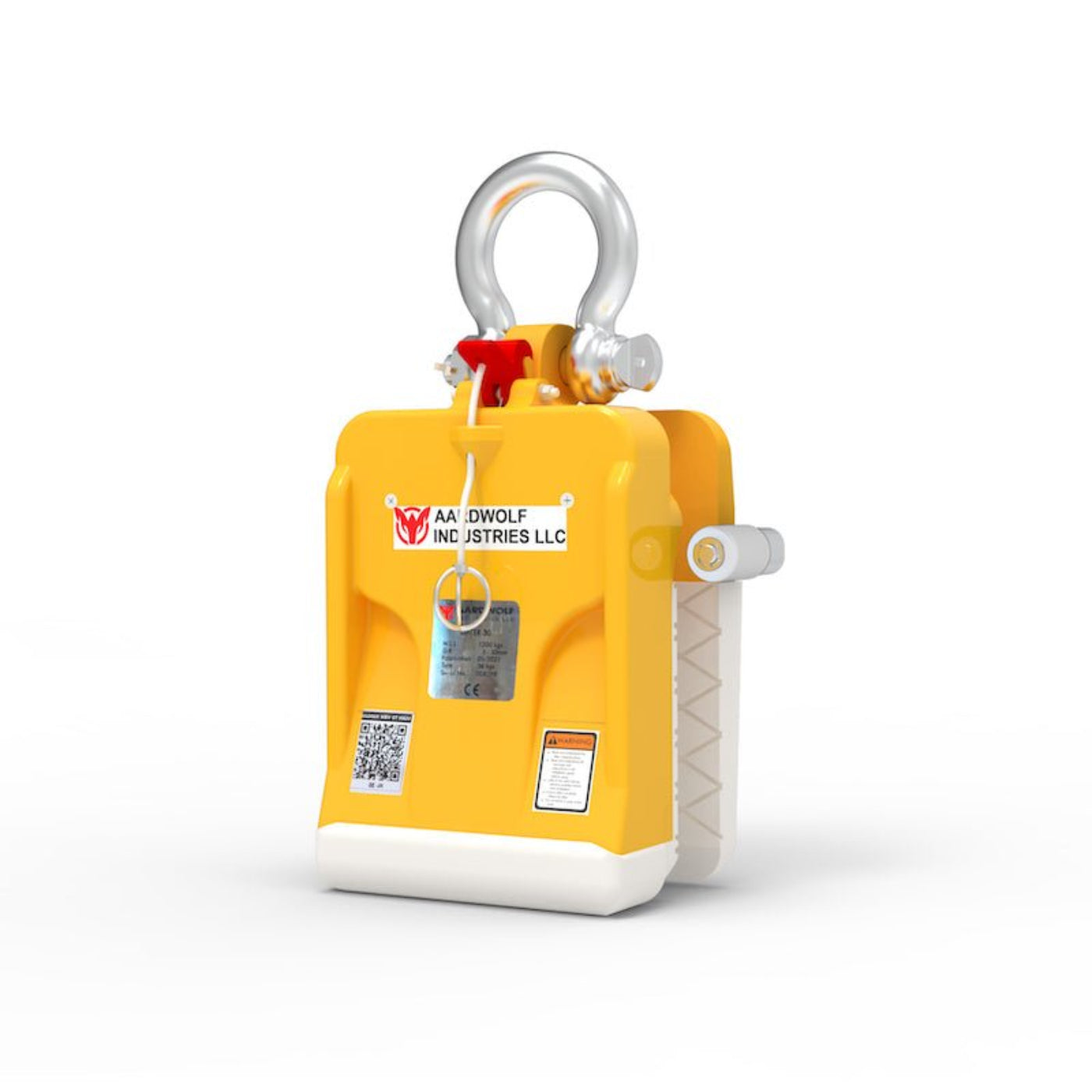

Aardwolf Slab Lifter 30 with Rollers - AL30R

Aardwolf Slab Lifter 30 with Rollers - AL30R

The patented Aardwolf Slab Lifter is an accessory for lifting and moving slab-form loads. The Aardwolf Slab Lifter incorporates a spring-loaded latch that automatically releases the lifter from the slab once the slab has been fully lowered to the ground. This makes the process of lifting and lowering of slabs a one-man operation.

Features

• Size: Being of a compact construction, the Aardwolf Slab Lifter 30 allows for close packed stone slabs to be lifted out of racks and containers. Lower height slabs placed along side of taller slabs offer no problem, as is the case with scissor clamps.
• Versatile: Ideal for construction work. Because the clamping mechanism is to the front of the slab, they allow panels to be placed close against walls.
• Safety: Requires only a small movement of the slab to engage and grip the slab, which is generally well below the over balance angle thus eliminating the danger to the operator.
• Secure: The Aardwolf clamps grip marble and granite slabs firmly. The Aardwolf Slab Lifter 30 has a force-multiplying factor of approximately 3 to 1.
• Designed to move one slab at a time

What our Experts Think

• Compact, high-efficiency slab handling attachment, the Aardwolf AL30R Slab Lifter is designed for safe lifting and transport of granite, marble, and engineered stone slabs from racks, containers, and workshop setups.
• Automatic spring-loaded latch system ensures one-man operation by gripping the slab during lift and releasing automatically once the load is fully lowered.
• Integrated roller support system protects the slab’s top edge while allowing smoother positioning and manual centering for improved alignment accuracy during lifting.
• High load capacity up to 1200 kg (≈2646 lbs) with a strong force-multiplying grip mechanism, making it suitable for demanding fabrication and installation workflows.
• Ultra-compact jaw design (0–30 mm / 0–1.2") grip range allows easy access to tightly packed slabs and narrow storage racks without repositioning surrounding materials.
• Front-mounted clamping geometry enables slabs to be placed closer to walls and work surfaces, improving handling efficiency in tight job-site environments.
• Rubber-coated contact surfaces + aluminum construction help prevent edge chipping while keeping the tool lightweight and durable for daily industrial use.

Q&A

Q: What is the Aardwolf Slab Lifter 30 with Rollers (AL30R) used for?
A: The AL30R is designed for lifting and transporting thin stone slabs such as granite, marble, and engineered stone in fabrication shops, warehouses, and construction sites.

Q: How does the AL30R work?
A: It uses a spring-loaded locking latch that automatically grips the slab during lifting and releases it once the slab is safely lowered, enabling efficient one-person operation.

Q: What is the grip range of the AL30R?
A: It handles slab thicknesses from 0–30 mm (0–1.2 inches), making it suitable for thin stone panels.

Q: What is the load capacity of the AL30R?
A: The working load limit is up to 1,200 kg (2,646 lbs), depending on configuration and operating conditions.

Q: What is the purpose of the rollers?
A: The integrated rollers protect slab edges and help center the lifter on the material, improving stability and reducing chipping risk during engagement.

Q: What are the key benefits of the AL30R?
A: It improves handling safety, reduces slab damage risk, and allows faster, more precise lifting in tight rack or container spaces thanks to its compact design.

Maintenance Tips

• Inspect roller wheels regularly for cracks, flat spots, wear, or debris buildup affecting smooth movement.
• Ensure rollers rotate freely and are properly aligned for stable slab handling.
• Clean rollers, jaws, and frame after each use to remove stone dust, slurry, and grit.
• Check gripping pads or contact surfaces for wear and replace when they lose traction.
• Lubricate pivot points and moving joints periodically with light machine oil (avoid rollers).
• Verify all pins, bolts, and locking mechanisms are tight and fully engaged before lifting.
• Never exceed the rated 30 mm slab thickness capacity (approx.) and WLL limits.
• Inspect lifting arms and frame for cracks, bending, or deformation before operation.
• Store in a dry, covered area to prevent corrosion and extend service life.
• Remove from service immediately if roller seizure, slippage, or structural damage is detected.
