Aardwolf Transport Frame Mod TF2440PC

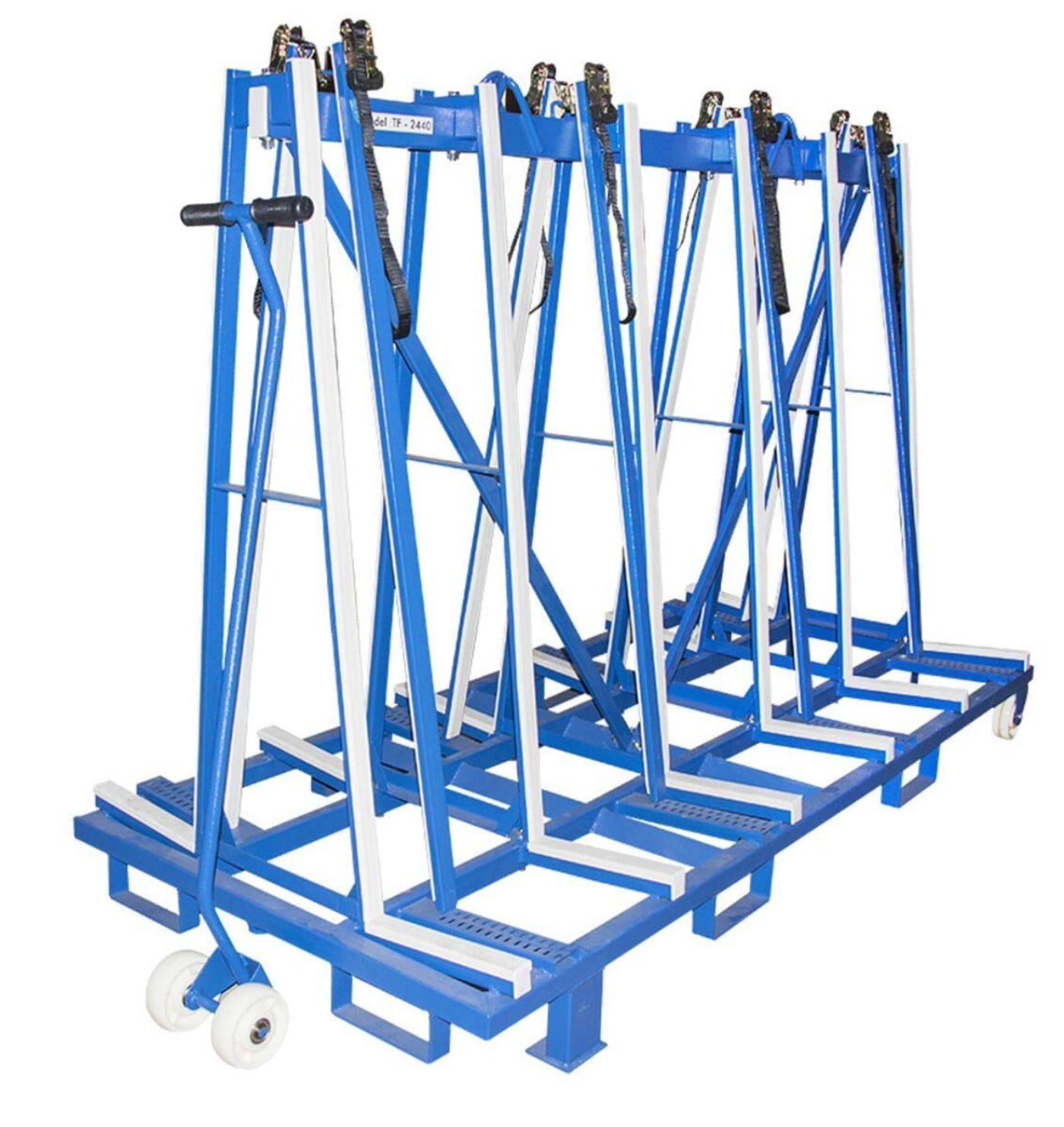

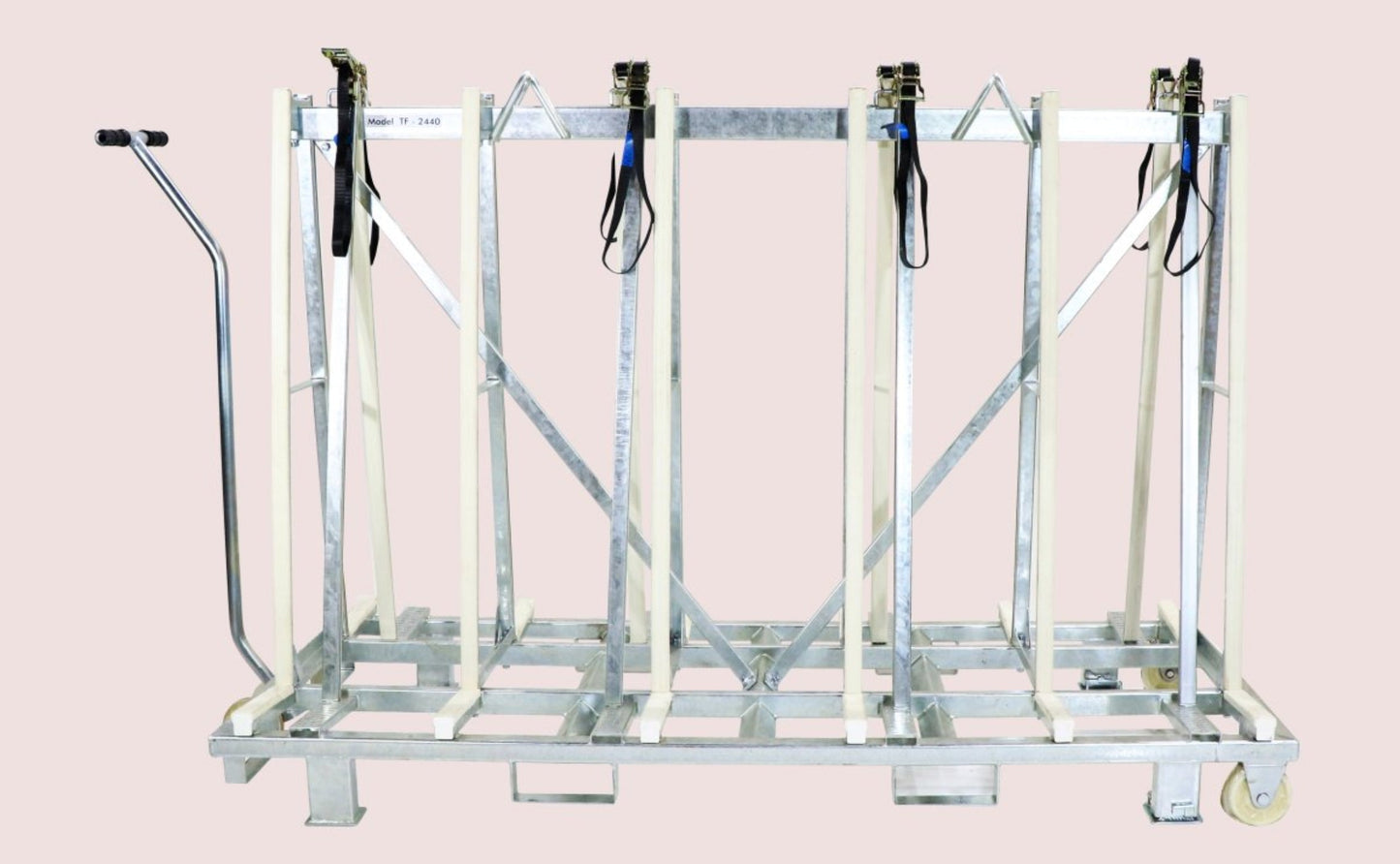

Flexibility, handiness and utility are outstanding features of the Transport Frame Mod TF2440PC. The storage, preservation and movement of slab materials in bulky sizes from site to site becomes easier than ever with the transport frame. In addition, the perfect combination of a forklift and a transport frame ensures that the transport process is done in the most secure manner.
Features
- Frames are delivered with bolts pre-installed.
- Frames are easily assembled by one man.
- Frames can be assembled in 5 minutes.
- Support legs for truck transportation can be lowered in seconds.
- Large counter lever with wheels make manual moving of loaded frame easy.
- Two diagonal stays create a very strong, ridged design.
- Sold with white rubber locking bars, together with ratch straps.
- Frame designed so that fork tynes reach right through to the far side of the frame.
- Fully loaded frames can load and unload from truck with forklift. (Very safe & convenient).
- Built-in forklift receivers on all sides for lifting by forklift.
- The base and uprights come with replaceable white rubber to prevent marking and scratches.

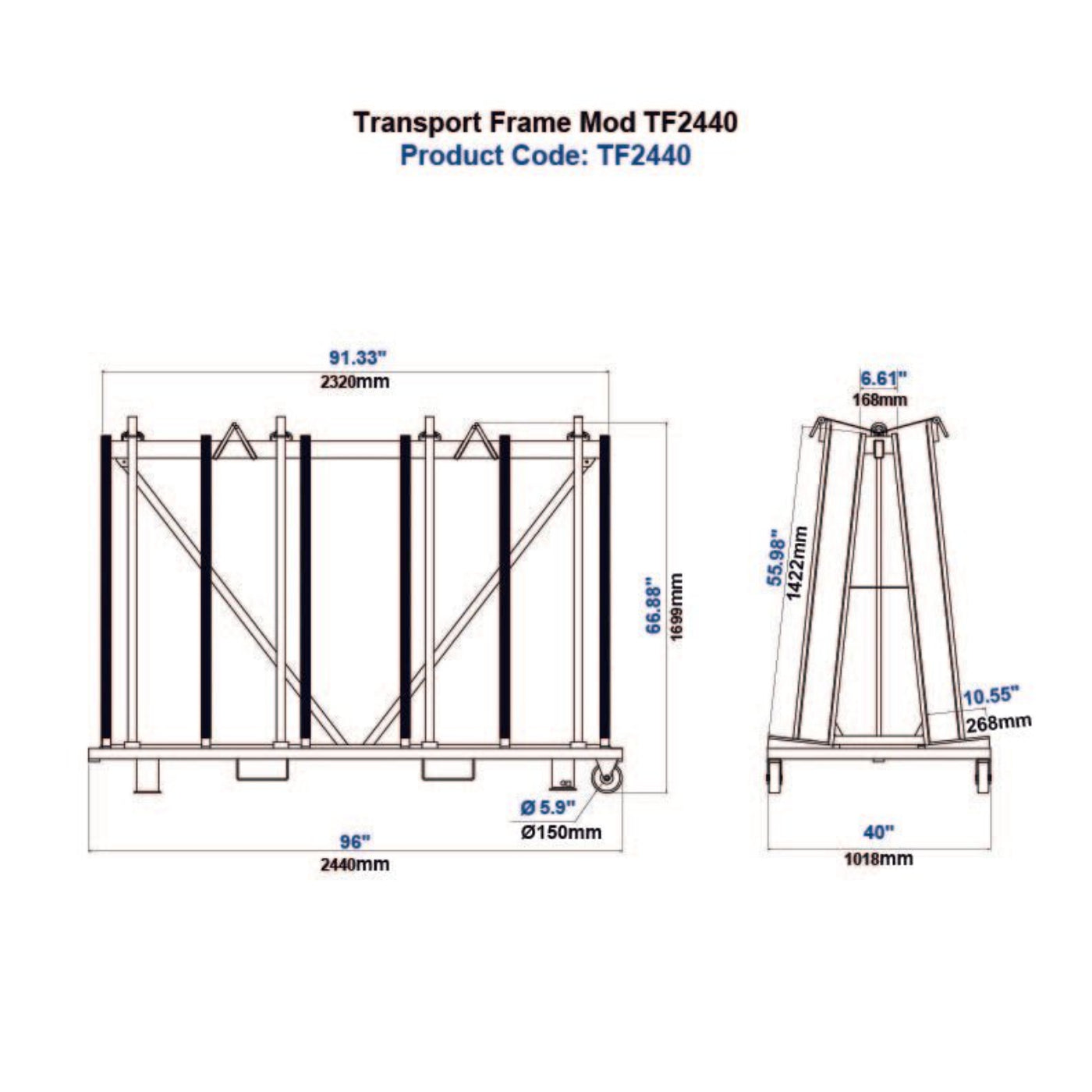

Specifications
| Number of Wheels |
4 |
- |
| Straps With Each Side |
4 |
- |
| Width of Slab Storage Base Area |
268 mm |
10.6″ |
| Length |
2440 mm |
96″ |
| Working Load Limit Per Side |
1250 kg |
2756 lb |
| Total Working Load Limit |
2500 kg |
5511 lb |
| Net Weight |
206 kg |
454 lb |
| Gross Weight |
212 kg |
467 lb |
| Packaging Dimensions |
2450 x 1020 x 420 mm |
96.5″ x 40.2″ x 16.5″ |
includes
What our Experts Think
-
Automatic Clamping Mechanism: Features an integrated auto-lock and unlock system (patent pending), allowing the clamp to automatically grip slabs upon pickup and release them upon set-down, enhancing operational efficiency.
-
Enhanced Stability with Rollers: Equipped with support rollers that safeguard the top edge of slabs during lifting, preventing damage and ensuring secure handling.
-
Compact and Robust Design: Weighs approximately 55 lbs (25 kg) with a grip range of 1.2" to 3" (30 mm to 75 mm), making it suitable for lifting slabs of various sizes and thicknesses.
-
Versatile Application: Ideal for lifting and moving stone slabs such as granite, marble, and concrete, facilitating safe and efficient handling in workshops and construction sites.
-
Safety and Ease of Use: Designed to reduce manual effort and enhance safety by automating the clamping process, allowing for easier and more secure lifting operations.
Q&A
Q: What is the Aardwolf Slab Lifter Automatic - AL75AR used for?
A: The AL75AR is designed for safely lifting and transporting heavy stone slabs, granite, and marble with automatic clamping for hands-free operation.
Q: What is the weight capacity?
A: The AL75AR has a high lifting capacity, able to handle slabs weighing up to 750kg, making it perfect for heavy-duty lifting.
Q: How does the automatic clamping work?
A: The lifter automatically adjusts its grip on the slab as it is lifted, ensuring secure handling without manual adjustments.
Q: Can it be used with cranes or forklifts?
A: Yes, the AL75AR is compatible with both forklifts and overhead cranes, providing versatility in various lifting scenarios.
Q: Is it safe for polished surfaces?
A: Yes, it features non-marking pads that protect the surface of stone slabs while providing a firm grip.
Q: What materials can the AL75AR handle?
A: Perfect for lifting granite, marble, quartz, and other stone slabs in both construction and fabrication environments.
Maintenance Tips
-
Inspect Daily: Check grip pads, lifting mechanism, and auto-lock system for wear or damage.
-
Clean Grip Surfaces: Remove dust, stone particles, and moisture after each use for maximum hold.
-
Lubricate Moving Parts: Apply light oil to pivot points regularly to ensure smooth operation.
-
Check Safety Lock: Test the auto-lock and release functions frequently for secure lifting.
-
Store Safely: Keep in a dry, upright position away from corrosive environments.
