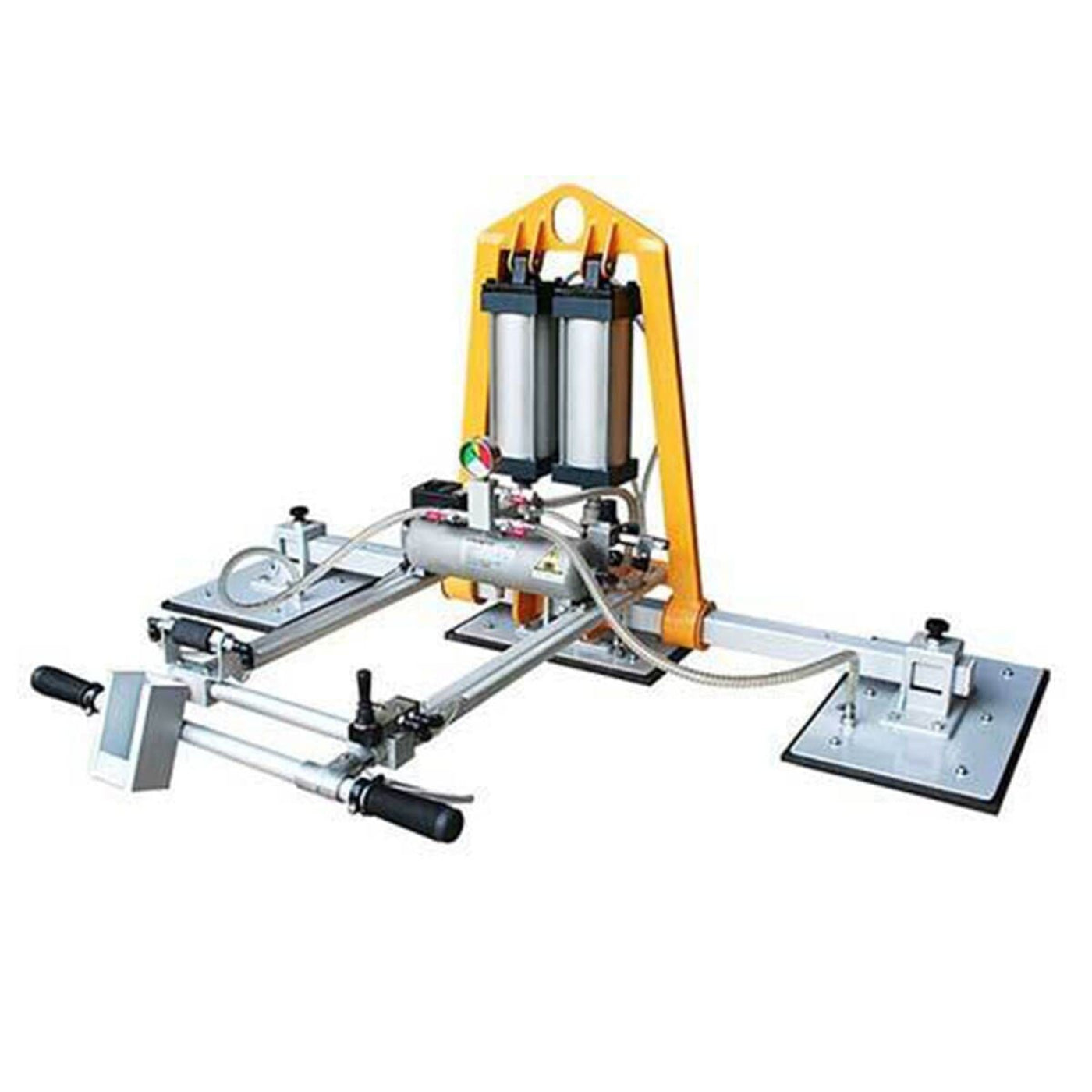

Aardwolf Vacuum Lifter - AVLP3-600kg

Aardwolf Vacuum Lifter -  AVLP3-600kg

This vacuum lifter is designed to lift smooth or rough marble and granite slabs. Featuring rugged construction with the ability to lift and tilt materials. Powered by compressed air.

Features

• Pneumatic vertical-horizontal tilting from 0 to 90° by a pneumatic piston
• Stainless steel vacuum tank ensuring safe pickup in the event of a sudden power break to the vacuum pump
• Acoustic and visual alarm system powered by a rechargeable 3.7V battery
• Slider valve with ON/OFF position for the attachment of material to vacuum pads and release of material from vacuum pads

What our Experts Think

• Engineered for safe lifting and positioning of marble, granite, quartz, and other stone slabs in fabrication shops and installation environments.
• Powerful vacuum system provides a 600 kg horizontal lifting capacity, making it ideal for handling large and heavy stone materials.
• Pneumatic tilting mechanism enables smooth 0°–90° vertical-to-horizontal rotation for easier material positioning and workflow efficiency.
• Designed to work on both smooth and slightly textured stone surfaces, offering greater versatility across different slab types.
• Integrated vacuum tank maintains suction during temporary power interruptions, helping improve operator safety and load security.
• Audio and visual alarm system alerts operators to low vacuum conditions for enhanced workplace safety.
• Three-pad configuration delivers stable load distribution and reliable grip when transporting large-format slabs.
• Compressed-air-powered operation ensures dependable performance in demanding industrial and stone fabrication environments


Q&A

Q: What is the Aardwolf Vacuum Lifter AVLP3-600kg used for?
A: The Aardwolf AVLP3-600kg is a pneumatic vacuum lifter designed for safely lifting, transporting, and positioning marble, granite, engineered stone, and other slab materials with smooth or rough surfaces.

Q: What is the lifting capacity of the AVLP3-600kg?
A: The AVLP3-600kg offers a maximum horizontal lifting capacity of 600 kg (1,322 lb) and a vertical lifting capacity of 300 kg (661 lb).

Q: Can the AVLP3-600kg tilt slabs during lifting?
A: Yes. It features pneumatic 0° to 90° vertical-to-horizontal tilting, allowing precise slab positioning and installation.

Q: Does the AVLP3-600kg require electricity?
A: No. The vacuum lifter is powered by compressed air, making it ideal for workshops, fabrication facilities, and construction sites.

Q: What safety features does the AVLP3-600kg include?
A: The unit includes a vacuum reserve tank, plus audio and visual warning alarms powered by a rechargeable battery to enhance operator safety.

Q: How many vacuum pads does the AVLP3-600kg have?
A: The lifter is equipped with three vacuum pads, providing strong and stable gripping performance for heavy stone slabs.

Q: Is the AVLP3-600kg suitable for granite and marble slabs?
A: Yes. It is specifically engineered for handling granite, marble, engineered stone, and similar heavy slab materials.

Q: What industries commonly use the AVLP3-600kg?
A: The AVLP3-600kg is widely used in stone fabrication shops, countertop manufacturing, warehouses, construction projects, and material handling operations.

Q: Why choose the Aardwolf AVLP3-600kg?
A: Its high lifting capacity, pneumatic tilting function, vacuum safety system, and reliable slab handling make it an efficient solution for professional stone processing and installation.


Maintenance Tips

• Inspect vacuum pads before each use for cracks, cuts, wear, or contamination that could reduce suction performance.
• Keep vacuum pads, sealing surfaces, and stone contact areas clean and free of dust, oil, and debris to maintain maximum grip.
• Check hoses, fittings, valves, and air lines regularly for leaks, damage, or loose connections.
• Verify proper operation of the audio and visual low-vacuum alarm system before lifting any load.
• Recharge and maintain the 12V battery according to manufacturer recommendations to ensure uninterrupted alarm protection.
• Inspect the pneumatic tilting mechanism and moving parts for wear, smooth operation, and secure fastening.
• Maintain the recommended compressed air supply pressure of 5 bar (72 psi) and ensure clean, dry air is used.
• Never exceed the rated lifting capacity of 600 kg horizontal or 300 kg vertical lifting.
• Inspect lifting eyes, suspension components, and safety devices regularly for wear, corrosion, or deformation.
• Store the vacuum lifter in a clean, dry environment and protect vacuum pads from direct sunlight, extreme temperatures, and sharp objects.
• Replace worn vacuum pads, seals, or damaged components immediately to maintain safe lifting performance.
