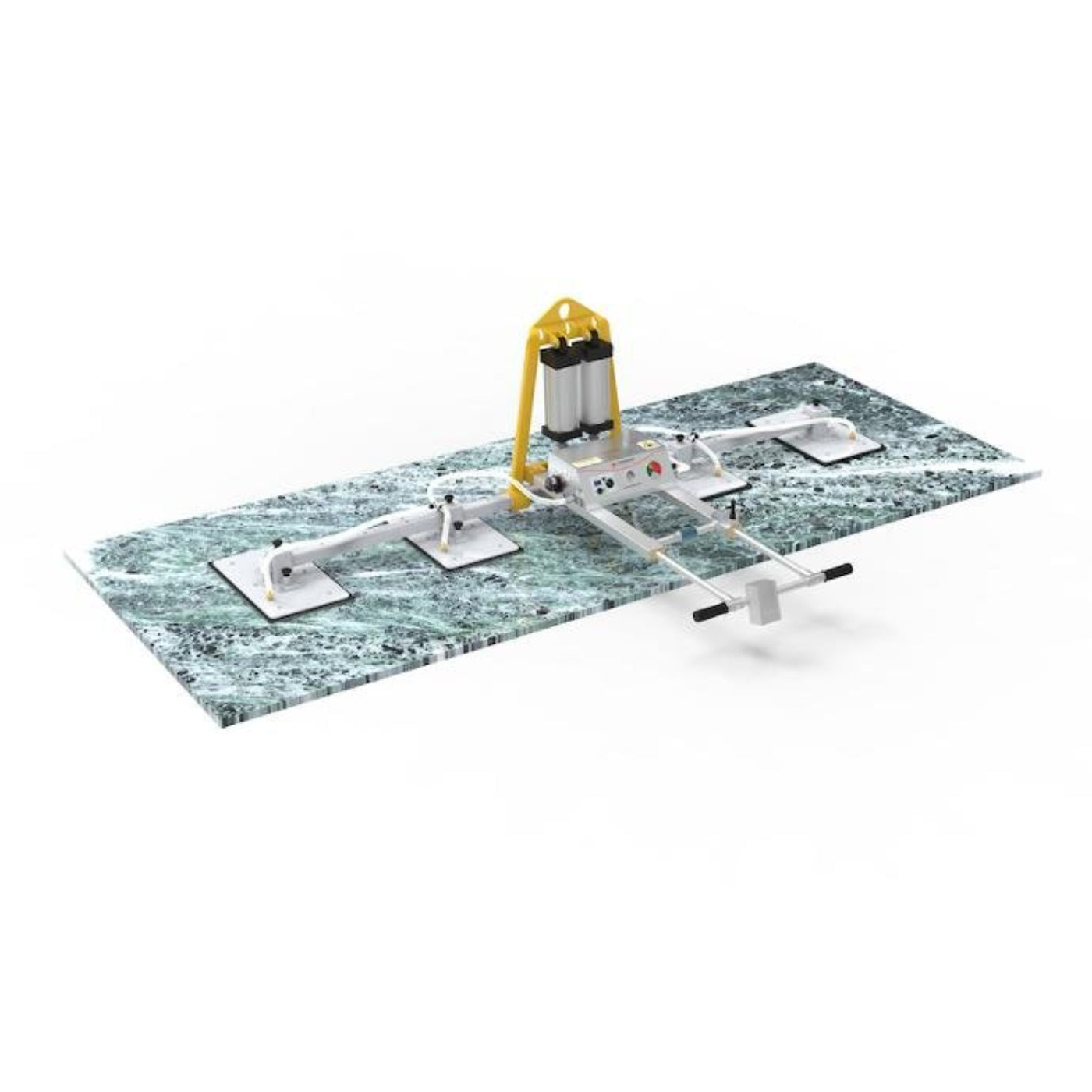

Aardwolf Vacuum Lifter - AVLP4PRO-500L

This vacuum lifter is designed to lift smooth or rough marble and granite slabs. Featuring rugged construction with the ability to lift and tilt materials. Powered by compressed air

What our Experts Think

• Professional-Grade Stone Handling: The Aardwolf AVLP4PRO-500L is engineered for safely lifting and positioning marble, granite, and other stone slabs, making it an essential tool for fabrication shops and installation teams.
• Powerful 500 kg Horizontal Lifting Capacity: With a 500 kg (1,102 lb) horizontal load capacity and 250 kg vertical capacity, it provides reliable performance for demanding material-handling applications.
• Advanced Vacuum Safety System: Equipped with a vacuum tank and audio-visual warning system, the lifter helps maintain secure material handling even in the event of vacuum pressure loss, enhancing workplace safety.
• Pneumatic 90° Tilt Function: The vertical-to-horizontal tilting capability allows operators to rotate slabs with precision, reducing manual effort and improving workflow efficiency.
• Four-Pad Design for Maximum Stability: Featuring four large vacuum pads, the AVLP4PRO-500L delivers balanced load distribution and secure gripping on both smooth and textured stone surfaces.
• Built for Continuous Industrial Use: Its rugged construction, compressed-air operation, and rechargeable battery-powered alarm system make it well-suited for busy fabrication environments

Q&A

Q: What is the Aardwolf Vacuum Lifter AVLP4PRO-500L?
A: The AVLP4PRO-500L is a pneumatic vacuum lifter designed for safely lifting, tilting, and transporting marble, granite, quartz, and other stone slabs with smooth or textured surfaces.

Q: What is its lifting capacity?
A: It offers a maximum working load limit of 500 kg (1,102 lb) horizontally and 250 kg (551 lb) vertically.

Q: How many vacuum pads does it have?
A: The AVLP4PRO-500L features four vacuum pads, each measuring 520 × 320 mm, providing secure grip and load stability.

Q: Can it rotate or tilt materials?
A: Yes. It includes pneumatic vertical-to-horizontal tilting from 0° to 90°, allowing precise positioning during fabrication and installation.

Q: What safety features are included?
A: Key safety features include a vacuum reserve tank, audio-visual warning system, vacuum monitoring, and a rechargeable 12V lithium-ion battery backup for alarms.

Q: What powers the vacuum lifter?
A: The unit operates using compressed air and requires 5 bar (72 psi) air pressure for reliable performance.

Q: Why choose the AVLP4PRO-500L?
A: It improves workplace safety, reduces manual handling, speeds up slab movement, and delivers reliable performance in stone fabrication shops, warehouses, and installation projects.

Q: Who is it ideal for?
A: The AVLP4PRO-500L is ideal for stone fabricators, countertop manufacturers, installers, distributors, and industrial material-handling operations.

Maintenance Tips

• Inspect vacuum pads before each use for cuts, cracks, wear, or contamination that could reduce holding performance.
• Keep suction pads clean and free from dust, slurry, oil, moisture, and stone debris to maintain maximum vacuum grip.
• Check hoses, fittings, valves, and seals regularly for air leaks, damage, or deterioration.
• Verify proper operation of the vacuum tank, pressure system, and audio-visual safety alarms before lifting.
• Inspect the compressed air supply system and maintain the recommended operating pressure.
• Monitor battery condition and keep the alarm-system battery fully charged for reliable safety alerts.
• Examine lifting eyes, tilting mechanisms, fasteners, and structural components for wear, corrosion, or damage.
• Never exceed the rated working load limit and ensure the material surface is suitable for vacuum lifting.
• Remove damaged vacuum pads or worn components from service immediately and replace them with approved parts.
• Store the lifter in a clean, dry environment and protect vacuum pads from direct sunlight, chemicals, and physical damage.
