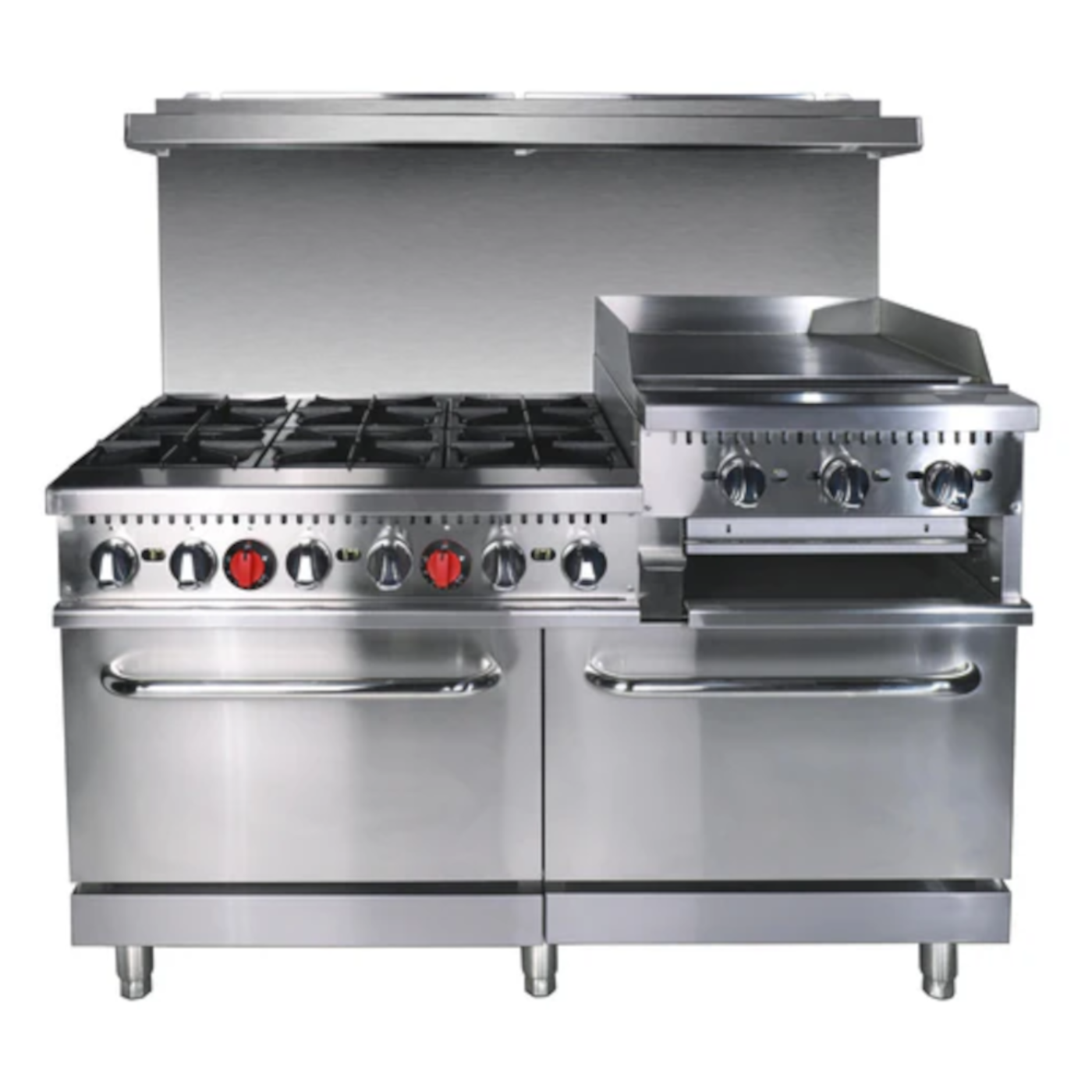

Adcraft BDGR-6024GB/NG Black Diamond Gas Range / Griddle Combo 60"W - ACBDGR6024GBNG
These gas range/griddle combos are constructed of stainless steel fronts with aluminized sides. These gas range/griddle combos provide the most optimum cooking performance. 12" x 12" heavy duty cast iron grates allow you to easily slide heavy pots from one section to another, while a unique anti-clogging pilot shield ensures that the open top burners deliver long-lasting performance. The unit's have a 3/4" thick griddle plate with a manual control and a 24" wide cooking area. With it's deep cooking area, and a 5" front ledge these ranges provides you with plenty of room to work. The standard sized oven(s) each have 30,000 BTUs of cooking power and a unique double-wall flame spreader with temperature diverters to ensure even heat distribution. The oven's interior has a porcelain bottom. 6" stainless steel legs and 24.75" high back riser. ¾" rear NPT gas connection. ETL Listed and ETL Sanitation.
Features
- Stainless steel front, backriser and shelf
- 30,000 BTU/hr top burners with lift-off heads
- 12” x 12” cast iron removable top grates
- Individual pilot light for each burner
- Spring loaded door with cool to touch s/s handle
- Removable crumb tray for easy cleaning
- 3/4” rear NPT gas connection
- LPG conversion kit included
- 6” adjustable stainless steel legs
- 30,000 BTU/hr total output
- Flame failure safety device
- Adjustable thermostat ranges from 250°F-550°F
- Steel liner on door and sides with a porcelain oven liner
- Includes 2 removable and adjustable oven racks per oven
- Cool to touch stainless steel oven door handle
- Cast iron burners each giving off 30,000 BTU/hr
- 12” x 12” cast iron top grates are removable for easy cleaning and maintenance
- Each burner has an individual standing pilot light and control knob
- Extra 2” ledge between the burners and backsplash provides more room for bigger pots and pans during use
- 3/4” thick polished steel griddle plate
- 24”W x 21”D cooking area
- Each burner has an individual standing pilot light and control knob
- Raised griddle/broiler on the BDGR-6024GB model has an 8.25” high opening and has a built-in broiler rack that slides in and out and has an adjustable height
- 3” high sides and backsplash are fully welded
- Includes removable crumb and drip trays for easy cleaning
Specifications
- Model: BDGR-6024GB/NG
- Configuration: 60” Gas Range w/2 ovens, 6 Burners, Raised 24” Griddle/Broiler NG
- Total BTU: 276,000 BTU
- Overall Dimensions (in): 60"W x 32.5”D x 60”H
- Oven Cavity Dimensions (in): 26.75”W x 26”D x 14”H (2 Ovens)
- Net Weight (lbs): 727 lbs
- Gross Weight (lbs): 860 lbs
- Crumb Tray: 2
- Fit Full Size Pan (18" x 26"): Yes
What Our Experts Think
-
Durable construction withstands rigorous kitchen environments
-
Cast iron grates allow easy movement of heavy pots
-
Anti-clogging pilot shields improve burner reliability
-
Combines range and griddle functionality for versatile cooking
Q&A
-
Q: Are the burners reliable?
A: Yes, the anti-clogging pilot shield ensures long-lasting performance.
-
Q: How durable are the grates?
A: Heavy-duty cast iron grates withstand heavy commercial use.
-
Q: Is this unit suitable for high-volume kitchens?
A: Absolutely, built for commercial cooking environments.
Maintenance Tips
-
Clean grates and burners after each use
-
Wipe stainless steel and aluminized surfaces with mild detergent
-
Inspect pilot lights and burners regularly
-
Avoid abrasive cleaners to protect surfaces
