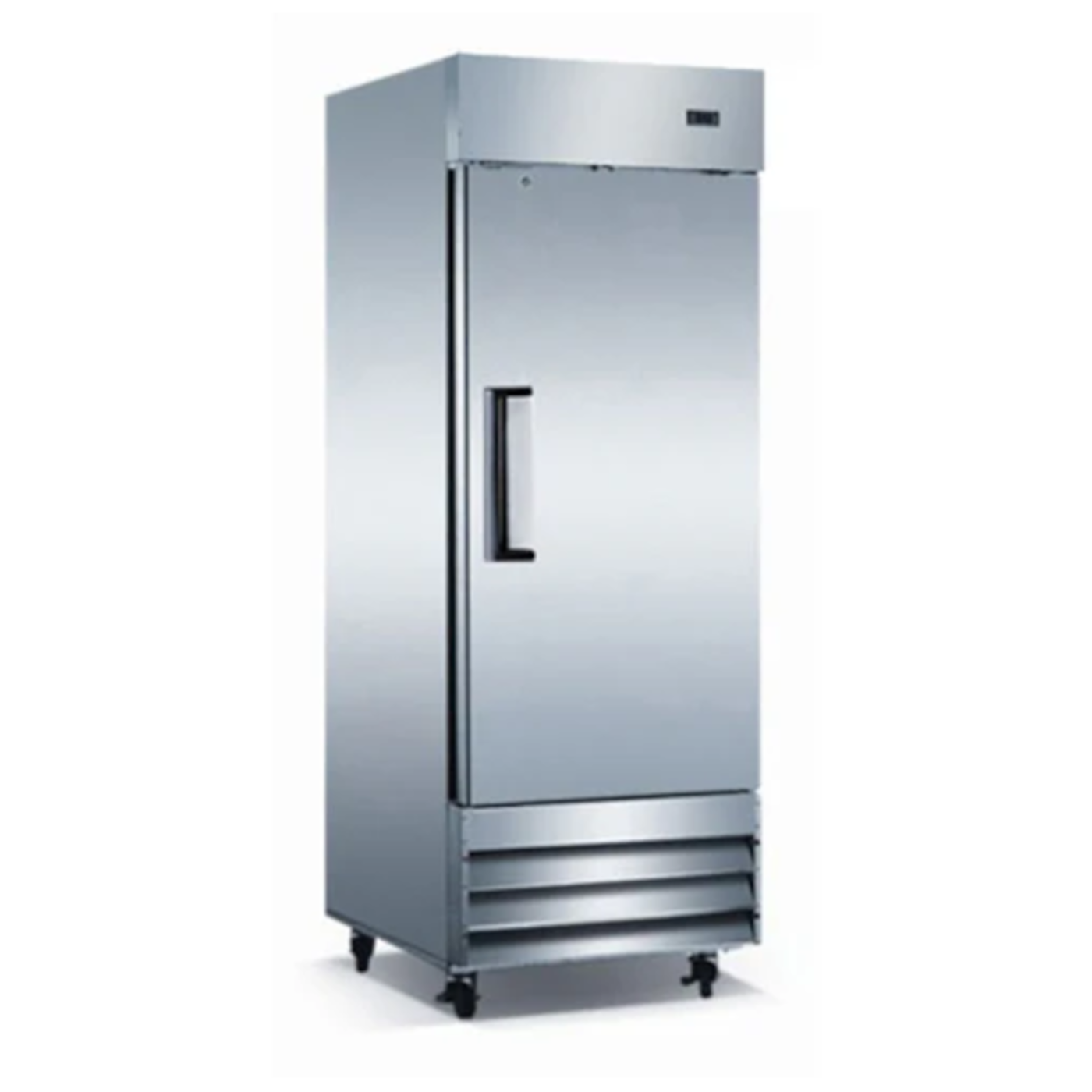

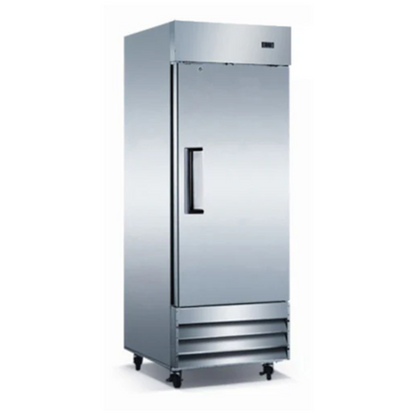

Adcraft USFZ-1D/19 U-Star Narrow Depth Single Door Reach-In Freezer - ACUSFZ1D19
U-Star's solid door economy reach-in refrigerators and freezers are constructed of heavy duty stainless steel making them strong and durable enough to survive any kitchen environment. Their narrower design is great for tight areas where space is limited. The cooling units are bottom mounted and slide out for easy maintenance and cleaning. All models come with 6" casters and plastic coated wire shelving that is easily removable to adjust the shelf height. The front digital controllers and LED readout makes it easy to adjust the interior temperature.
These models are ETL Listed and ETL Sanitation. They are backed with a 1 year warranty on parts and labor and a 5 year warranty on the compressor.
Features
- 430 series stainless steel exterior
- Painted aluminum interior
- Environmentally-friendly R290 refrigerant
- Self-closing doors
- Precise digital temperature controller with LED display
- Foamed-in-place polyurethane high density cell insulation throughout the entire cabinet
- Bottom mounted cooling unit that slides out
- Removable door gasket
- Recessed door handles
- (4) 6” casters (2 locking and 2 non-locking)
- Refrigeration units use environmentally friendly R290 refrigerant that maintain a temperature range of 32°F–41°F
- Freezer units use environmentally friendly R290 refrigerant and maintain a temperature range of -7°F–0°F
- Bottom-mounted cooling unit slides out for easy cleaning and maintenance and allows for storage area on top of the unit
- Rugged built axial evaporator fans run efficiently with low velocity and high volume air flow
- Electric LED temperature controller provides a digital display of cabinet temperatures and allows for easy temperature adjustments when necessary
- Temperature controller initiates automatic defrost schedule for worry free use
- 7 foot power cord with NEMA 5-15 plug
- Exterior is constructed of 430 stainless steel including the doors
- Interior is constructed of a painted aluminum liner
- The cabinet is insulated throughout with a foamed-in-place high density cell polyurethane insulation
- Stainless steel exterior with aluminum liner on the inside
- Positive self-closing doors with microswitch that shuts the evaporator fans off when the door is open
- Recessed handles are built into the door for easy opening and closing
- Locking door keep items inside secure after hours
- Stainless steel doors are field reversible
- Adjustable plastic coated steel shelves that have a load capacity of up to 90 lbs per shelf
- Incandescent interior lighting activated by door switch
- 6” casters come standard on all stainless steel models. Two locking and 2 non-locking brakes.
Specifications
- Model: USFZ-1D/19
- Doors: 1
- Shelves: 3
- Net Volume (Cu. Ft): 19 Cu. Ft.
- Overall Dimensions (in.): 29"W x 25"D x 82.5"H
- Interior Dimensions (in.): 24.5"W x 20"D x 53.5"H
- Refrigerant: R290
- Horsepower: 1/2
- Voltage/Hertz/Phase: 115V/60/1
- Amps: 8.28
- Net Weight (lbs): 236 lbs
- Gross Weight (lbs): 280 lbs
- Shipping Dimensions (in.): 30.25"W x 27"D x 83.5"H
What Our Experts Think
-
Space-Saving Design: The Adcraft USFZ-1D/19 U-Star is a narrow depth single-door reach-in freezer, ideal for kitchens with limited space.
-
Durable Construction: Heavy-duty stainless steel exterior and interior ensure long-lasting performance in commercial environments.
-
Efficient Cooling: Bottom-mounted sliding refrigeration unit allows easy maintenance and optimal cooling.
-
Organized Storage: Equipped with removable plastic-coated wire shelving to customize storage layout.
-
User-Friendly Controls: Front digital controller with LED readout allows precise temperature management.
-
Mobility: Comes with 6" casters for easy relocation and cleaning.
Q&A
Q: What is the freezer’s design purpose?
A: Narrow depth for tight spaces without sacrificing storage capacity.
Q: Are the shelves adjustable?
A: Yes, the plastic-coated wire shelves are removable and height-adjustable.
Q: How is temperature controlled?
A: Digital controller with LED readout provides easy and accurate adjustments.
Q: Is it easy to clean and maintain?
A: Yes, the bottom-mounted refrigeration unit slides out, and the stainless steel surfaces are easy to wipe down.
Maintenance Tips
-
Clean Interior Weekly: Wipe shelves, walls, and door gaskets with mild detergent.
-
Check Door Seals: Ensure proper sealing to maintain freezing efficiency.
-
Inspect Casters: Tighten or replace for stability and mobility.
-
Monitor Refrigeration Unit: Slide out periodically for cleaning and check for frost buildup.
-
Defrost if Needed: Ensure defrost cycles function properly to prevent ice accumulation.
