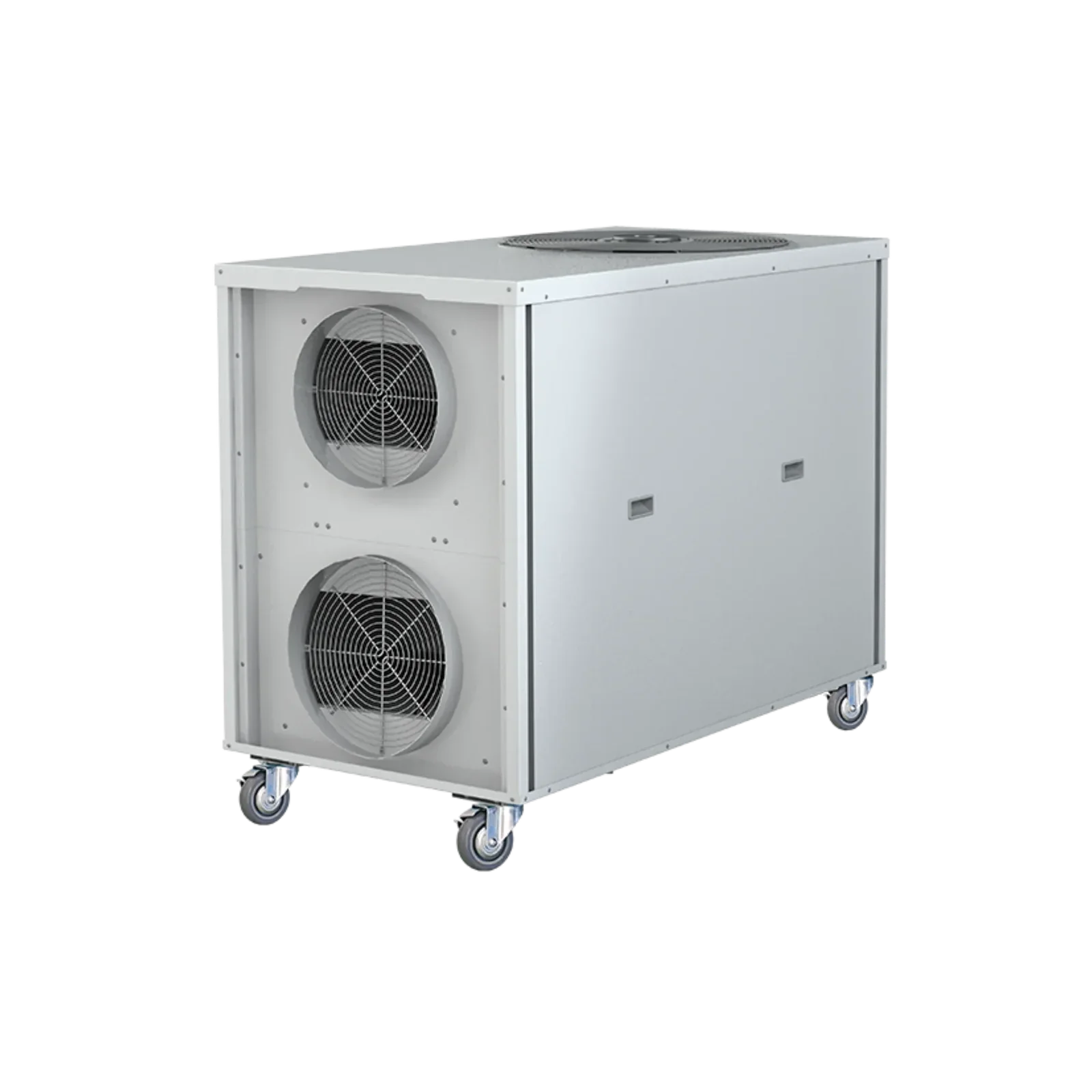

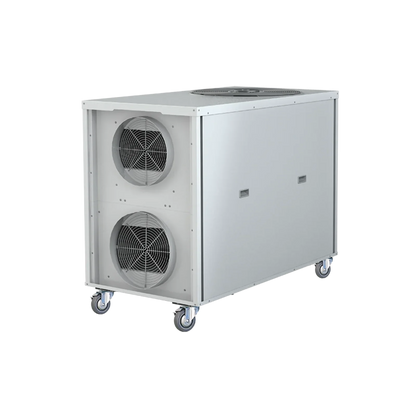

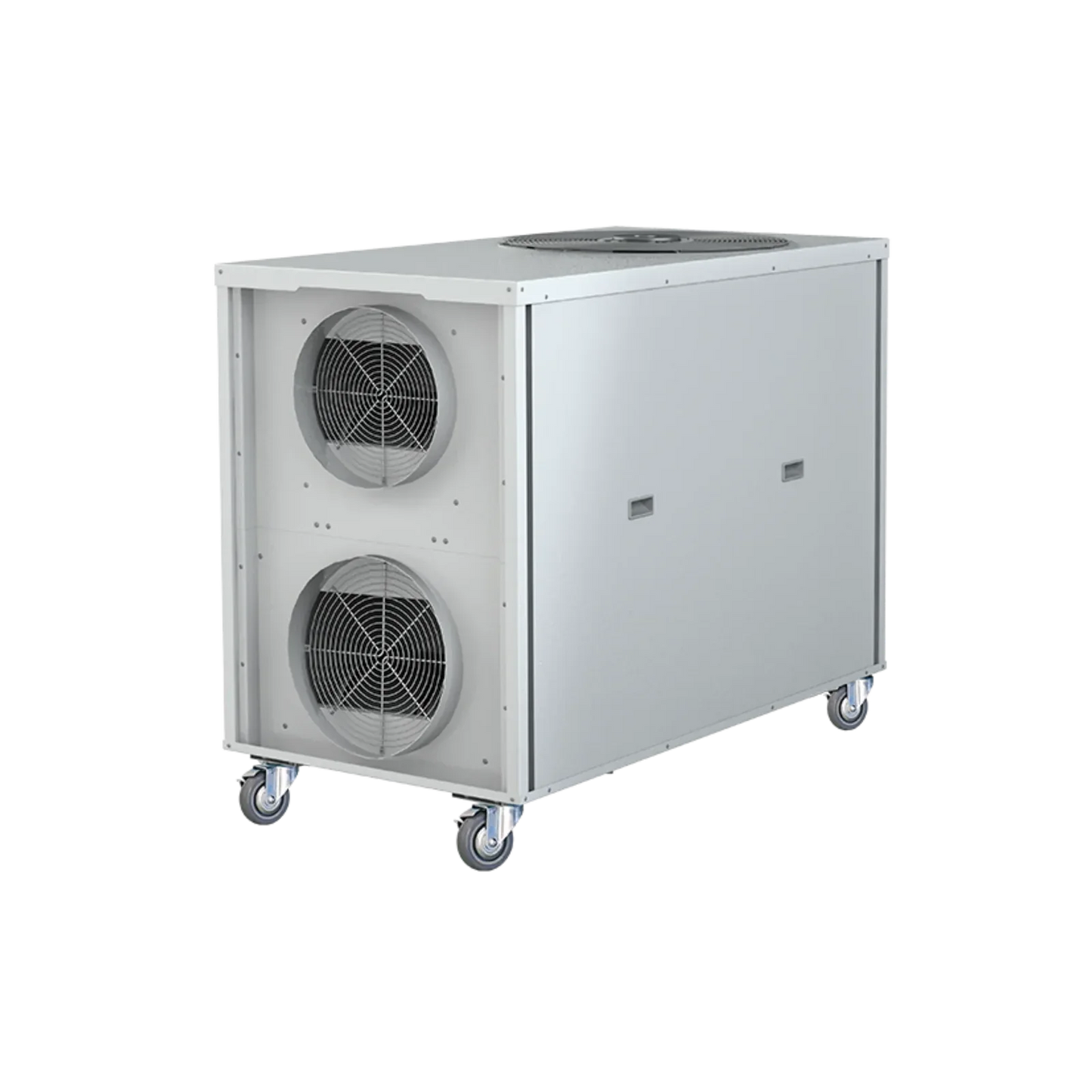

TEMP-AIR Airrex 60,000 BTU 5-Ton Heat Pump - AHSC-60

TEMP-AIR Airrex 60,000 BTU 5-Ton Heat Pump - AHSC-60

• Airrex AHSC-60 portable heat pump operates in air temperatures from 65°F to 113°F for cool mode and 50°F to 81°F for heat mode.
• This heat pump utilizes eco-friendly 410A refrigerant.
• Our heat pumps may require a fresh air supply for proper operation.
• Includes removable, washable air filters for easy maintenance.
• Thermostatically protected compressor includes high and low-pressure warnings and has a 42,000 BTU cooling feature and a 47,000 BTU heating feature.
• It has a 12" supply flange and a 16" return flange, along with a 26" diameter top exhaust.
• Optional condensate pump that plugs directly into a quick connect port inside the unit.
• Comes with a 1 Year Warranty and a 3 Year compressor warranty.
• Two electrical options are available: 220V 1 phase or 480V 3 phase.

480V

Product Sheet

220V

Product Sheet

480V

Manual

220V

Manual

Diagram of the unit

The TEMP-AIR Airrex 60,000 BTU 5-Ton Heat Pump - AHSC-60 is engineered for high-performance heating and cooling in larger spaces. Here's why it stands out:

• High Capacity: 60,000 BTU offers powerful heating and cooling for large areas up to 2,000 sq. ft., making it perfect for industrial and commercial settings.
• Year-Round Comfort: Functions as both a heat pump and air conditioner, providing reliable climate control throughout the year.
• Energy Efficient: Designed to deliver powerful performance while keeping energy consumption in check, reducing operating costs.
• Quiet and Efficient Operation: Operates with minimal noise, ensuring a comfortable environment without disruptions.

Q: What is the TEMP-AIR Airrex 60,000 BTU 5-Ton Heat Pump (Model: AHSC-60)?
A: It is a high-capacity heat pump offering 60,000 BTU of heating and cooling power, designed for large spaces that require reliable temperature control year-round.

Q: Who is this product for?
A: Ideal for large commercial, industrial, or residential spaces that need consistent and efficient heating and cooling in all seasons.

Q: Why should I choose this product?
A: Its 60,000 BTU capacity ensures powerful climate control, making it perfect for areas with high heating or cooling demands.

• Clean or Replace Filters: Clean or replace filters every 1-3 months to ensure proper airflow and energy efficiency.
• Inspect Coils: Clean the evaporator and condenser coils annually to prevent dirt buildup that can impair performance.
• Check Refrigerant Levels: Have a professional check and top up refrigerant as necessary for consistent heating and cooling.
• Inspect Drain Lines: Clear the condensate drain regularly to prevent clogs and water damage.
• Check Ductwork and Insulation: Ensure ducts are sealed and insulation is intact to maintain heating and cooling efficiency.
• Examine Wiring and Connections: Regularly inspect electrical components and connections for signs of wear or damage.
