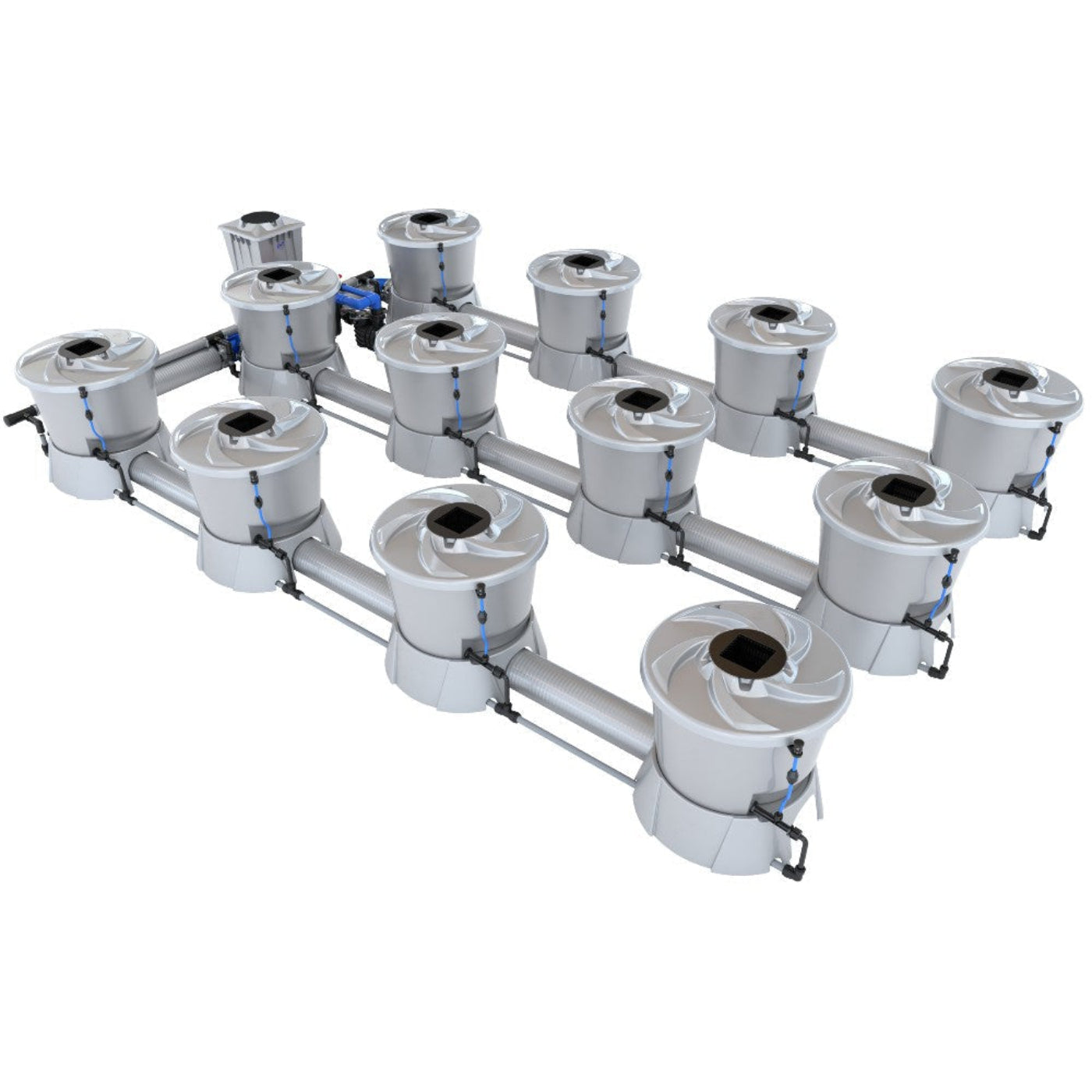

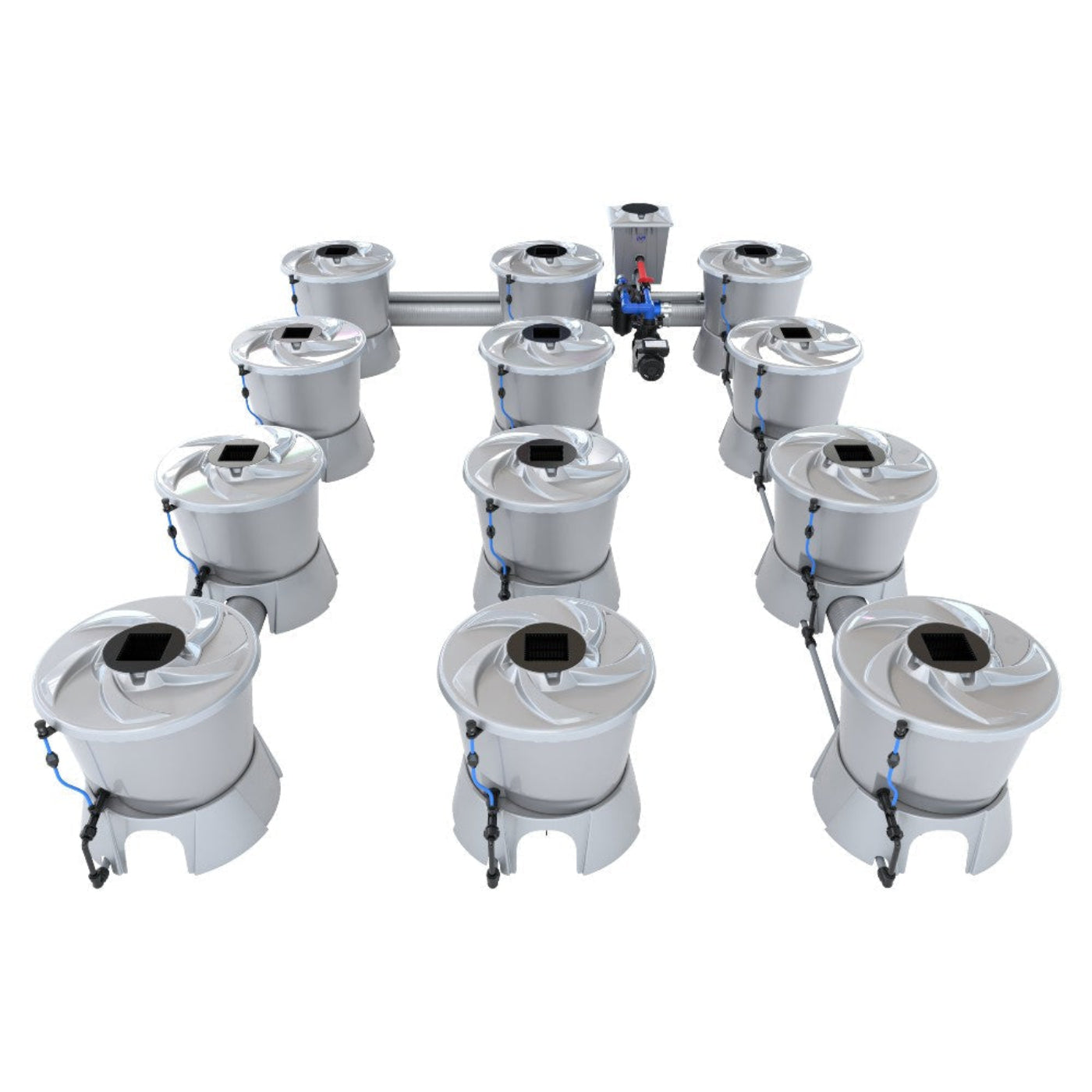

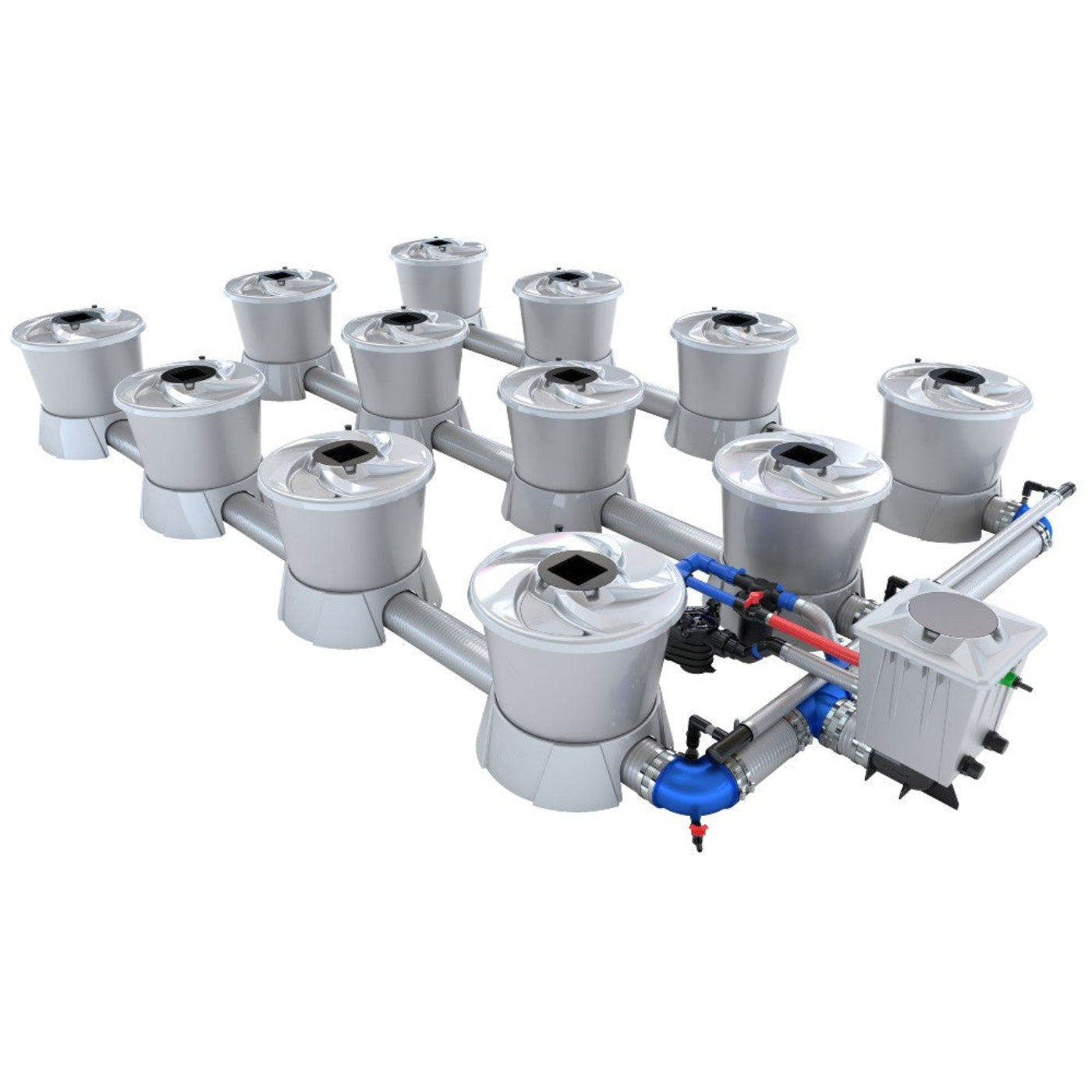

Alien Hydroponics 12 Pot (3 Row) V-System RDWC - BD100-0312

Alien Hydroponics 12 Pot (3 Row) V-System RDWC - BD100-0312

(Recirculating Deep Water System)

Welcome to the future of hydroponics. The powerful V-SYSTEM has been designed to help you grow trees with brand-new technology never seen before in the industry. Years have been spent developing this highly oxygenated RDWC system that will give you the healthiest root zones and massive yields.

In an industry first, the V-SYSTEM doesn’t use an air pump to oxygenate the nutrient solution. Instead, using precision design, the water flow creates a whirlpool that oxygenates the fluid content of the entire pot, rather than just the area around the air source. No matter where your roots are growing in the pot, they will receive the highest oxygen levels to grow exceptional crops.

The nutrient solution is further oxygenated using venturi valve technology to draw air into the pot. Simple yet effective.

The massive 15 Gallon / 58ltr V-SYSTEM pots can hold giant root zones allowing for huge plants and the highest yields. Expertly designed, the sloped shape of the pot also enables you to drain the entire system so you’ll only grow in the freshest water.

Unlike other hydroponics systems, the V-SYSTEM’s JET-STREAM Vortex water pump is located outside the header pot, so less heat is transferred to the fluid. Cooler water temps mean less chance of root rot and other pathogens affecting your crop.

Ultra-wide, customizable length, 5” tubing and the Vortex pump create a free-flowing system that simultaneously injects each pot with nutrient solution. Whether you have a 4, or a 20 pot system, the nutrients supplied to your plants will be equal in every pot, giving you a consistent crop.

Now is the time to be part of the new wave of hydroponics systems that will make it easier for you to grow bigger and better than ever before. Order yours now.

Innovative in design and ready for the future

• Direct nutrient distribution

• Maximum oxygen saturation

• No air pump needed

• No heat transferred

• Vortex fluid motion

• Naturally aspirated

• Supports large plants

• Pots and system completely drain

• Prevents root clogging

• Made in Britain

Features

• 15 gallon (58L) V-POT

• Water fill line

• Total-drainage bases

• Venturi injectors

• Inspection Covers

• 5" spiral tubing

• 5" Dual-Flow™ fittings

• Integrated filtration

• T304 Stainless clamps

• Heavy-duty components

• Push-fit feed connections

• JET-STREAM Vortex pump

 Included

• 1 x V-SYSTEM Vortex Water Pump 750W 120V 15000 l/h

• V-Pot 58L12x V-Pot 58L

• V-Pot Base12x V-Pot Base

• V-Pot Lid12x V-Pot Lid

• V-Pot Lid Inspection Cover12x V-Pot Lid Inspection Cover

• Square Net Pot12x Square Net Pot

• V-Pot Clip12x V-Pot Clip

• Air Filter for V-SYSTEM Venturi, 6mm12x Air Filter for V-SYSTEM Venturi, 6mm

• Silencer for Venturi12x Silencer for Venturi

• Venturi - V-SYSTEM 3/4"12x Venturi - V-SYSTEM 3/4"

• Nut 5"13x Nut 5"

• Washer 5" Green Silicone13x Washer 5" Green Silicone

• 5" Stainless Steel Clamp30x 5" Stainless Steel Clamp

• Distribution Tee 40mm1x Distribution Tee 40mm

• DM Push-Fit Elbow 22-15mm V-SYSTEM2x DM Push-Fit Elbow 22-15mm V-SYSTEM

• DM Push-Fit Elbow 22mm V-SYSTEM2x DM Push-Fit Elbow 22mm V-SYSTEM

• DM Push-Fit Tee 22-15mm V-SYSTEM10x DM Push-Fit Tee 22-15mm V-SYSTEM

• Drain Cap 1/2"1x Drain Cap 1/2"

• Drain Tap 1/2"-16mm Barb1x Drain Tap 1/2"-16mm Barb

• Elbow 5" Barbed with Drain Point2x Elbow 5" Barbed with Drain Point

• Elbow 5" Threaded Dual-Flow3x Elbow 5" Threaded Dual-Flow

• Filter Manifold, Complete1x Filter Manifold, Complete

• Float Valve1x Float Valve

• Header Pot 20L Silver (With Chiller & Float Holes)1x Header Pot 20L Silver (With Chiller & Float Holes)

• Silver Lid1x Silver Lid

• Header Pot Blank1x Header Pot Blank

• Hosetail 16mm-3/4" Female Green1x Hosetail 16mm-3/4" Female Green

• Inlet Tube12x Inlet Tube

• Nut 3/4" - for Venturi12x Nut 3/4" - for Venturi

• Pipe 22mm Rigid 1 Meter - Venturi Feed12x Pipe 22mm Rigid 1 Meter - Venturi Feed

• Pipe 32mm Red 1 Meter Spiral1x Pipe 32mm Red 1 Meter Spiral

• Pipe 40mm Silver 1 Meter Spiral3x Pipe 40mm Silver 1 Meter Spiral

• Pipe 5" Spiral 80cm13x Pipe 5" Spiral 80cm

• Pipe 6mm Blue 1 Meter6x Pipe 6mm Blue 1 Meter

• Tee 5" Barbed1x Tee 5" Barbed

• Tee Threaded 5" Dual-Flow10x Tee Threaded 5" Dual-Flow

• Threaded Tank Connector 1"2x Threaded Tank Connector 1"

• V-SYSTEM Water Chiller Elbow - 25mm Barb - 1" Female Thread2x V-SYSTEM Water Chiller Elbow - 25mm Barb - 1" Female Thread

• Vortex Pump Inlet Manifold Size 21x Vortex Pump Inlet Manifold Size 2

• Washer 12 X 19mm1x Washer 12 X 19mm

• Washer 15 X 24mm12x Washer 15 X 24mm

• Wing Nut 3/4"12x Wing Nut 3/4"

• 1" Cap for Chiller Connections2x 1" Cap for Chiller Connections

• Drain Cap 1/2"1x Drain Cap 1/2"

• T/Connector Straight 32mm1x T/Connector Straight 32mm

• T/Connector Straight 40mm1x T/Connector Straight 40mm

• Terminal Manifold Left1x Terminal Manifold Left

• Terminal Manifold Right1x Terminal Manifold Right

• 22mm Insert for 22mm Barrier Pipe28x 22mm Insert for 22mm Barrier Pipe

• Clamp Size 22x Clamp Size 2

• Clamp Size 38x Clamp Size 3

• 8mm Screwdriver for 5" Clamp1x 8mm Screwdriver for 5" Clamp

• Wrench 5"1x Wrench 5"

• Wrench for Float Valve1x Wrench for Float Valve

• 8mm Socket for 5" Clamp1x 8mm Socket for 5" Clamp

• Pipe Cutter 50mm1x Pipe Cutter 50mm

What our Experts Think

• Optimal Growth Design: RDWC V-System promotes faster, healthier plant growth by delivering oxygen-rich nutrient solution directly to roots.

• Modular & Scalable: 15-pot (3-row) layout ideal for medium-sized grows; easily expandable with additional reservoirs or systems.

• Superior Oxygenation: Built-in air stones and pump support ensure consistent dissolved oxygen levels — critical for vigorous root development.

• High-Quality Materials: Durable, food-grade plastics resist algae and contamination while being easy to clean and maintain.

• Improved Yields: Continuous flow environment reduces plant stress and boosts overall production compared to traditional soil or static hydroponics.

• User-Friendly Setup: Straightforward assembly with clear labeling — great for beginners and experienced growers alike.

• Efficient Water Use: Recirculating design minimizes waste and enhances nutrient uptake efficiency.

• Low Maintenance: Stable system with fewer clogs and easier monitoring than drip or ebb-and-flow setups.

Q&A

Q: What is the Alien Hydroponics 12 Pot (3 Row) V-System RDWC?
A: A high-performance recirculating deep water culture hydroponic system that supports up to 12 plants in a 3-row configuration with superior oxygen and nutrient delivery.

Q: How does this V-System oxygenate and circulate nutrients?
A: It uses precision vortex fluid motion and Venturi technology to naturally draw in air and circulate oxygenated nutrients to each pot without needing a separate air pump.

Q: What are the main benefits of this system?
A: Uniform nutrient distribution, maximum oxygen levels, total drainage, reduced heat transfer, minimized root clogging, and scalable configuration options.

Q: What size pots and components are included?
A: The system includes 12 large 58 L (15-gallon) V-pots with drainage bases, venturi injectors, 5″ Dual-Flow™ tubing/fittings, integrated filtration, heavy-duty stainless clamps, and a powerful JET-STREAM® vortex water pump.

Q: Who should use this hydroponic system?
A: Advanced home growers and commercial cultivators who want high-yield, oxygen-rich RDWC growing and configurable layouts for tents or rooms.

Q: What makes this different from traditional RDWC kits?
A: Unlike traditional RDWC that rely on air stones, the V-System’s wide tubing and vortex pump ensure even nutrient and oxygen delivery throughout the entire system for consistent plant growth.

Maintenance Tips

1. pH & EC Balance – Check and adjust pH to ~5.5–6.5 and EC regularly to ensure plants can uptake nutrients. Optimal pH keeps nutrient availability stable.

2. Temperature Control – Keep nutrient solution cool (~18–20 °C / 64–68 °F) to maximize dissolved oxygen and prevent root stress.

3. Regular Solution Refresh – Change the nutrient reservoir every 7–10 days to prevent imbalances, buildup, and stagnation.

4. Circulation & Oxygenation – Ensure the V-System vortex pump and venturi injectors run continuously and hoses are clear to maintain even nutrient distribution and oxygenation.

5. Clean & Inspect – Rinse pots, lines, and filters when refilling; inspect fittings and seals to prevent leaks and root rot.

6. Top-Off Routine – Top up with fresh water between full changes to maintain water level and nutrient concentration.
