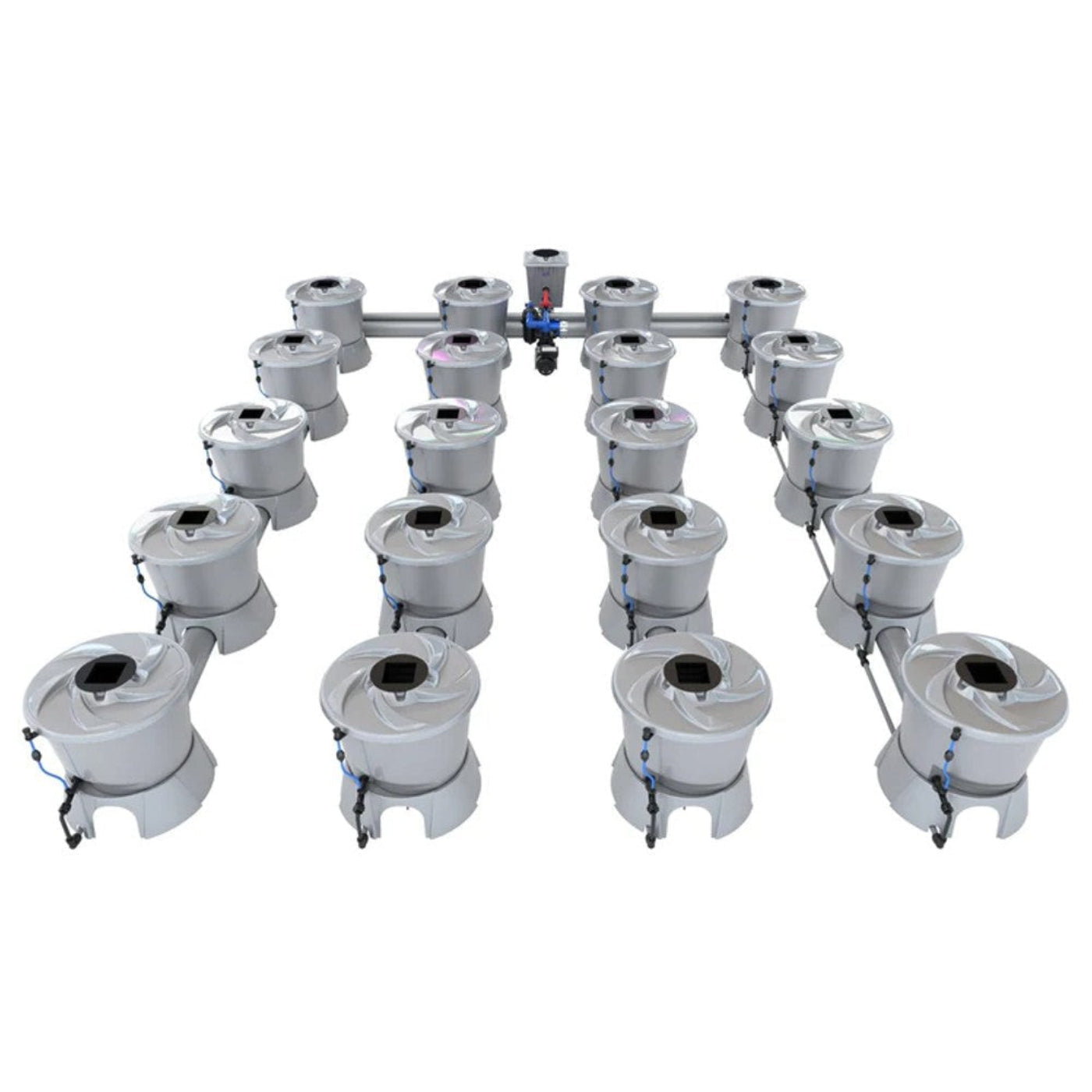

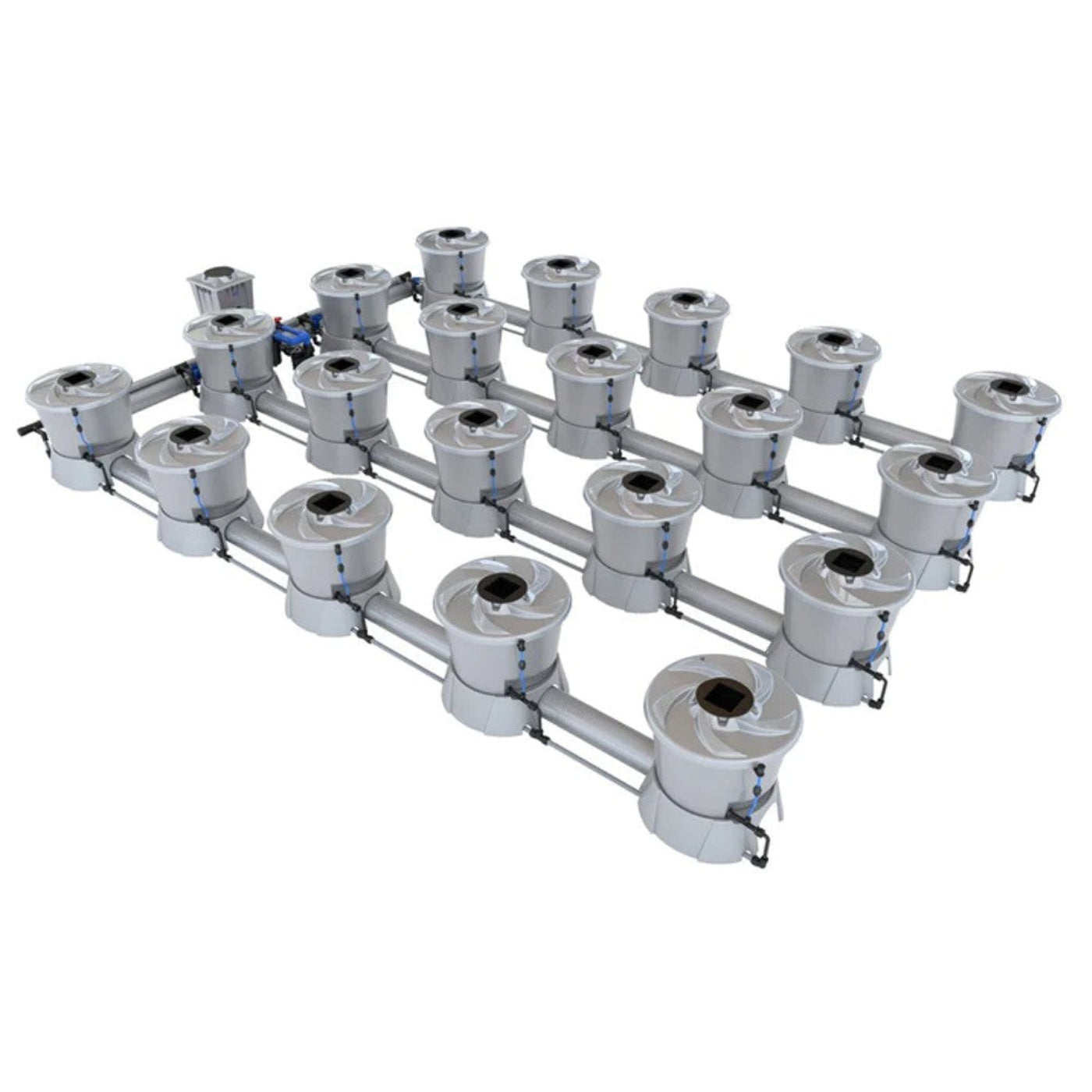

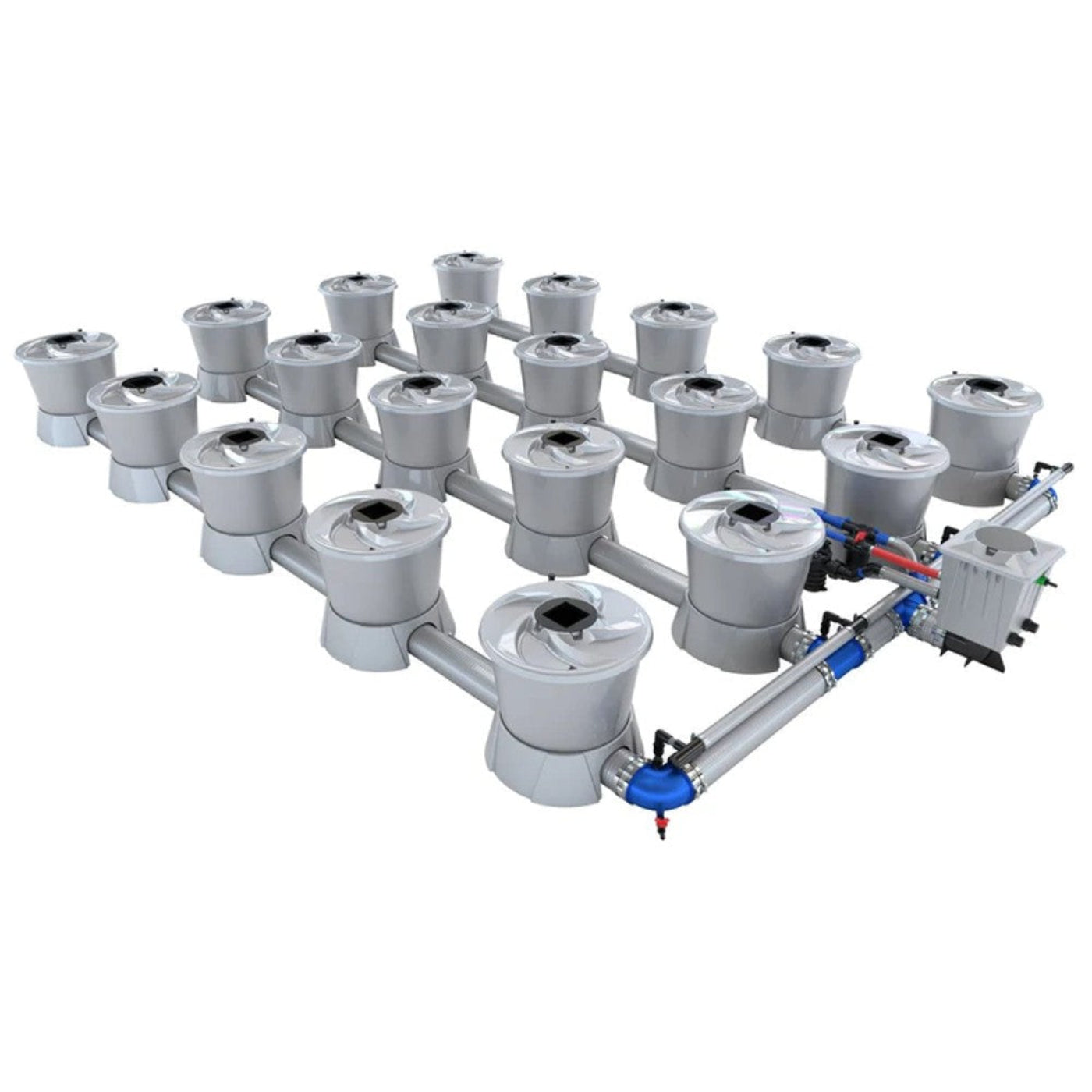

Alien Hydroponics 20 Pot (4 Row) V-System RDWC - BD100-0420

Alien Hydroponics 20 Pot (4 Row) V-System RDWC - BD100-0420

(Recirculating Deep Water System)

Welcome to the future of hydroponics. The powerful V-SYSTEM has been designed to help you grow trees with brand-new technology never seen before in the industry. Years have been spent developing this highly oxygenated RDWC system that will give you the healthiest root zones and massive yields.

In an industry first, the V-SYSTEM doesn’t use an air pump to oxygenate the nutrient solution. Instead, using precision design, the water flow creates a whirlpool that oxygenates the fluid content of the entire pot, rather than just the area around the air source. No matter where your roots are growing in the pot, they will receive the highest oxygen levels to grow exceptional crops.

The nutrient solution is further oxygenated using venturi valve technology to draw air into the pot. Simple yet effective.

The massive 15 Gallon / 58ltr V-SYSTEM pots can hold giant root zones allowing for huge plants and the highest yields. Expertly designed, the sloped shape of the pot also enables you to drain the entire system so you’ll only grow in the freshest water.

Unlike other hydroponics systems, the V-SYSTEM’s JET-STREAM Vortex water pump is located outside the header pot, so less heat is transferred to the fluid. Cooler water temps mean less chance of root rot and other pathogens affecting your crop.

Ultra-wide, customizable length, 5” tubing and the Vortex pump create a free-flowing system that simultaneously injects each pot with nutrient solution. Whether you have a 4, or a 20 pot system, the nutrients supplied to your plants will be equal in every pot, giving you a consistent crop.

Now is the time to be part of the new wave of hydroponics systems that will make it easier for you to grow bigger and better than ever before. Order yours now.

Innovative in design and ready for the future

• Direct nutrient distribution

• Maximum oxygen saturation

• No air pump needed

• No heat transferred

• Vortex fluid motion

• Naturally aspirated

• Supports large plants

• Pots and system completely drain

• Prevents root clogging

• Made in Britain

Features

• 15 gallon (58L) V-POT

• Water fill line

• Total-drainage bases

• Venturi injectors

• Inspection Covers

• 5" spiral tubing

• 5" Dual-Flow™ fittings

• Integrated filtration

• T304 Stainless clamps

• Heavy-duty components

• Push-fit feed connections

• JET-STREAM Vortex pump

 Included

• 1 x V-SYSTEM Vortex Water Pump 750W 120V 15000 l/h

• V-Pot 58L12x V-Pot 58L

• V-Pot Base12x V-Pot Base

• V-Pot Lid12x V-Pot Lid

• V-Pot Lid Inspection Cover12x V-Pot Lid Inspection Cover

• Square Net Pot12x Square Net Pot

• V-Pot Clip12x V-Pot Clip

• Air Filter for V-SYSTEM Venturi, 6mm12x Air Filter for V-SYSTEM Venturi, 6mm

• Silencer for Venturi12x Silencer for Venturi

• Venturi - V-SYSTEM 3/4"12x Venturi - V-SYSTEM 3/4"

• Nut 5"13x Nut 5"

• Washer 5" Green Silicone13x Washer 5" Green Silicone

• 5" Stainless Steel Clamp30x 5" Stainless Steel Clamp

• Distribution Tee 40mm1x Distribution Tee 40mm

• DM Push-Fit Elbow 22-15mm V-SYSTEM2x DM Push-Fit Elbow 22-15mm V-SYSTEM

• DM Push-Fit Elbow 22mm V-SYSTEM2x DM Push-Fit Elbow 22mm V-SYSTEM

• DM Push-Fit Tee 22-15mm V-SYSTEM10x DM Push-Fit Tee 22-15mm V-SYSTEM

• Drain Cap 1/2"1x Drain Cap 1/2"

• Drain Tap 1/2"-16mm Barb1x Drain Tap 1/2"-16mm Barb

• Elbow 5" Barbed with Drain Point2x Elbow 5" Barbed with Drain Point

• Elbow 5" Threaded Dual-Flow3x Elbow 5" Threaded Dual-Flow

• Filter Manifold, Complete1x Filter Manifold, Complete

• Float Valve1x Float Valve

• Header Pot 20L Silver (With Chiller & Float Holes)1x Header Pot 20L Silver (With Chiller & Float Holes)

• Silver Lid1x Silver Lid

• Header Pot Blank1x Header Pot Blank

• Hosetail 16mm-3/4" Female Green1x Hosetail 16mm-3/4" Female Green

• Inlet Tube12x Inlet Tube

• Nut 3/4" - for Venturi12x Nut 3/4" - for Venturi

• Pipe 22mm Rigid 1 Meter - Venturi Feed12x Pipe 22mm Rigid 1 Meter - Venturi Feed

• Pipe 32mm Red 1 Meter Spiral1x Pipe 32mm Red 1 Meter Spiral

• Pipe 40mm Silver 1 Meter Spiral3x Pipe 40mm Silver 1 Meter Spiral

• Pipe 5" Spiral 80cm13x Pipe 5" Spiral 80cm

• Pipe 6mm Blue 1 Meter6x Pipe 6mm Blue 1 Meter

• Tee 5" Barbed1x Tee 5" Barbed

• Tee Threaded 5" Dual-Flow10x Tee Threaded 5" Dual-Flow

• Threaded Tank Connector 1"2x Threaded Tank Connector 1"

• V-SYSTEM Water Chiller Elbow - 25mm Barb - 1" Female Thread2x V-SYSTEM Water Chiller Elbow - 25mm Barb - 1" Female Thread

• Vortex Pump Inlet Manifold Size 21x Vortex Pump Inlet Manifold Size 2

• Washer 12 X 19mm1x Washer 12 X 19mm

• Washer 15 X 24mm12x Washer 15 X 24mm

• Wing Nut 3/4"12x Wing Nut 3/4"

• 1" Cap for Chiller Connections2x 1" Cap for Chiller Connections

• Drain Cap 1/2"1x Drain Cap 1/2"

• T/Connector Straight 32mm1x T/Connector Straight 32mm

• T/Connector Straight 40mm1x T/Connector Straight 40mm

• Terminal Manifold Left1x Terminal Manifold Left

• Terminal Manifold Right1x Terminal Manifold Right

• 22mm Insert for 22mm Barrier Pipe28x 22mm Insert for 22mm Barrier Pipe

• Clamp Size 22x Clamp Size 2

• Clamp Size 38x Clamp Size 3

• 8mm Screwdriver for 5" Clamp1x 8mm Screwdriver for 5" Clamp

• Wrench 5"1x Wrench 5"

• Wrench for Float Valve1x Wrench for Float Valve

• 8mm Socket for 5" Clamp1x 8mm Socket for 5" Clamp

• Pipe Cutter 50mm1x Pipe Cutter 50mm

What our Experts Think

• High‑Capacity 4‑Row RDWC Layout — 20 pots provide maximum planting density while maintaining proper spacing and airflow.

• Consistent Deep Water Culture Feeding — Stable pH/EC and uniform nutrient delivery drive predictable, vigorous growth across all plants.

• Optimized Root Oxygenation — Continuous circulation and superior aeration enhance root health and boost overall yields.

• Scalable & Space‑Efficient — Ideal for larger tents, expansion builds, or commercial setups without crowding your grow space.

• Durable, Leak‑Resistant Construction — Quality components and secure fittings ensure long‑term reliability with minimal maintenance.

• Perfect for Serious Growers — A top pick for growers aiming for consistent performance, strong yields, and professional‑level results.

• SEO & Merchant‑Optimized Phrases: 20 pot RDWC system, 4 row hydroponic setup, V‑System hydroponics, large RDWC kit.

Q&A

Q: What is the Alien Hydroponics 20 Pot 4 Row V‑System RDWC?
A: A professional‑grade recirculating deep water culture (RDWC) hydroponic system that supports 20 plants in four rows with advanced nutrient flow, high oxygenation, and superior root health.

Q: How does the V‑System deliver oxygen without an air pump?
A: The V‑System uses Venturi valve technology and vortex fluid motion to naturally aspirate air into the nutrient stream — eliminating the need for separate air pumps and airstones.

Q: What are the key benefits for plant growth?
A: Even nutrient distribution, maximum oxygen saturation, total‑system drainage, no heat transfer from the pump into the solution, and clog‑free flow for large, healthy root zones and higher yields.

Q: What important features are included?
A: 15 gal (58 L) V‑pots with water fill lines and drainage bases, Venturi injectors, 5″ spiral return tubing, Dual‑Flow™ fittings, integrated filtration, heavy‑duty components, push‑fit connections, stainless clamps, and a JET‑STREAM® Vortex™ pump.

Q: Is this system configurable for different grow spaces?
A: Yes — the kit allows flexible header and pump placement with multiple layout options to fit tents or grow rooms and can be configured with aisles for full plant access.

Q: Who is this system best suited for?
A: Serious hobbyists, advanced growers, and commercial setups seeking a high‑performance RDWC solution with large capacity, fast nutrient stabilization, and consistent crop performance.

Q: Where is it manufactured?
A: Engineered and built in Britain with professional‑grade components and precision design

Maintenance Tips

• Daily pH & EC Monitoring: Keep nutrient solution pH around 5.8–6.0 and stable EC to maximize nutrient uptake and balanced growth.

• Maintain Ideal Temp: Aim for water temperatures 18–20 °C (65–68 °F) to minimize pathogen risk and boost oxygenation.

• Regular Nutrient Change‑Outs: Fully or partially replace the nutrient solution every 7–10 days to avoid nutrient imbalance.

• Sanitize Between Cycles: Clean reservoirs, pumps, and fittings between grows to reduce algae and pathogens.

• Inspect Flow & Oxygenation: Ensure pumps and venturi/return fittings are secure and flowing to deliver oxygen‑rich nutrients evenly to all pots.

• Check Reservoir Levels: Use built‑in fill lines or float valves to keep proper solution levels across all 20 pots.

• Block Light to Water: Cover reservoirs and lines to inhibit algae growth and keep solution clean.
