Alto-Shaam QC3-100 QuickChiller™ Blast ChillerRoll-in, self-contained blast chiller/freezer with 40-pan capacity
The Alto-Shaam QC3-100 QuickChiller™ is built to improve food safety and production efficiency by rapidly chilling or freezing hot foods to proper holding temperatures within HACCP/FDA guidelines. This roll-in model combines high-capacity performance with an intuitive 7" touchscreen, 20 preset menu options, three detachable product probes, and holding capability for both chilled and frozen foods.
Designed for fast, controlled chilling and freezing
- Operates in Quick Freeze, Soft Chill, Hard Chill, Holding, and Automatic Defrost modes
- Soft Chill is ideal for less dense foods such as individual portions
- Hard Chill is designed for products with greater density
- Automatic hot-gas defrost provides efficient evaporator coil defrosting
- Chilled foods can be stored for up to 5 days, including the day of preparation and the day of service
- Roll-in cart workflow supports production, chilling, rethermalization, staging, and service
Smart control and HACCP support
- Large 7" touchscreen control is fully operable and easy to navigate
- Includes 20 preset menu choices for consistent results
- Three detachable internal product temperature probes help monitor food temperatures accurately
- HACCP data access records chill modes, times, and temperatures used during the previous 30 days
- Data downloads to a USB device, and recipe/software updates can be uploaded through the built-in USB port
Included with this unit

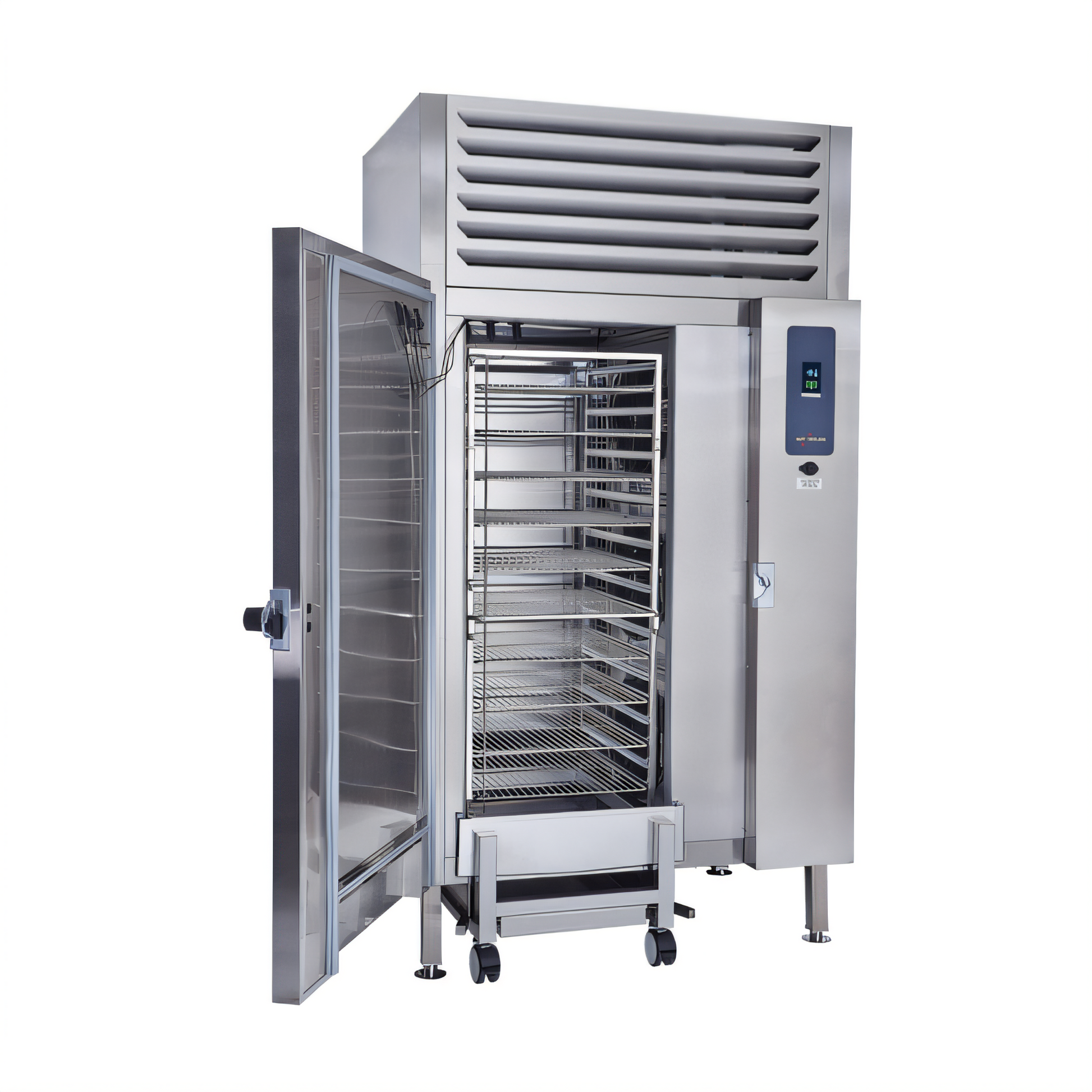

- One roll-in pan cart
- 20 non-tilt pan support rails
- 22-13/16" horizontal width between rails
- 2-9/16" vertical spacing between rails
- 10 stainless steel shelves
- One removable drip tray
- One cart handle
- Four adjustable legs
Adjustable legs are shipped loose and are not installed at the factory.
Durable stainless steel construction
- #4 finish stainless steel front, door, and sides
- Stainless steel interior, including stainless steel air plenums
- Top is insulated with non-CFC foamed-in-place polyurethane
- Rear and bottom are galvanized metal
- ABS thermal break around the door opening helps prevent sweating
- Door features a stainless steel liner, self-adjusting rotary latch, and press-fit magnetic gasket for a positive seal
- Left-hand hinged door is standard
Operating ranges
| Quick Freeze |
-10°F to 10°F (-23°C to -12°C) |
| Soft Chill |
24°F to 36°F (-4°C to 2°C) |
| Hard Chill |
11°F to 23°F (-11°C to -5°C) |
| Holding |
-5°F to 40°F (-21°C to 4°C) |
Capacity and specifications
| Pan capacity |
40 full-size pans (20" x 12" x 2-1/2") |
| Maximum product weight |
480 lb (218 kg) |
| Maximum product volume |
300 qt (380 L) |
| Maximum chilling capacity |
240 lb (109 kg) / 150 qt (190 L) |
| Exterior dimensions |
95-7/8" H x 51" W x 42" D |
| Interior dimensions |
59-1/2" H x 46" W x 31-1/2" D |
| Refrigerant |
R-404A |
| Air circulation |
3,750 cfm |
| Approx. weight |
1,000 lb net; 1,100 lb ship |
| Certifications |
cULus, NSF |
Add 2" to overall height when legs are fully extended.
Installation note: Unit must be installed level. A 1" NPS floor drain is required, legs must be attached during installation, and clearance requirements are 1" at the rear, 0" at the top, and 1" on the left and right sides, with a minimum of 18" from heat-producing equipment.
Manufacturer warranty coverage includes 1-year parts and labor for the original purchaser, plus a 5-year refrigeration compressor warranty. See Alto-Shaam warranty documentation for full terms, conditions, and exclusions.
