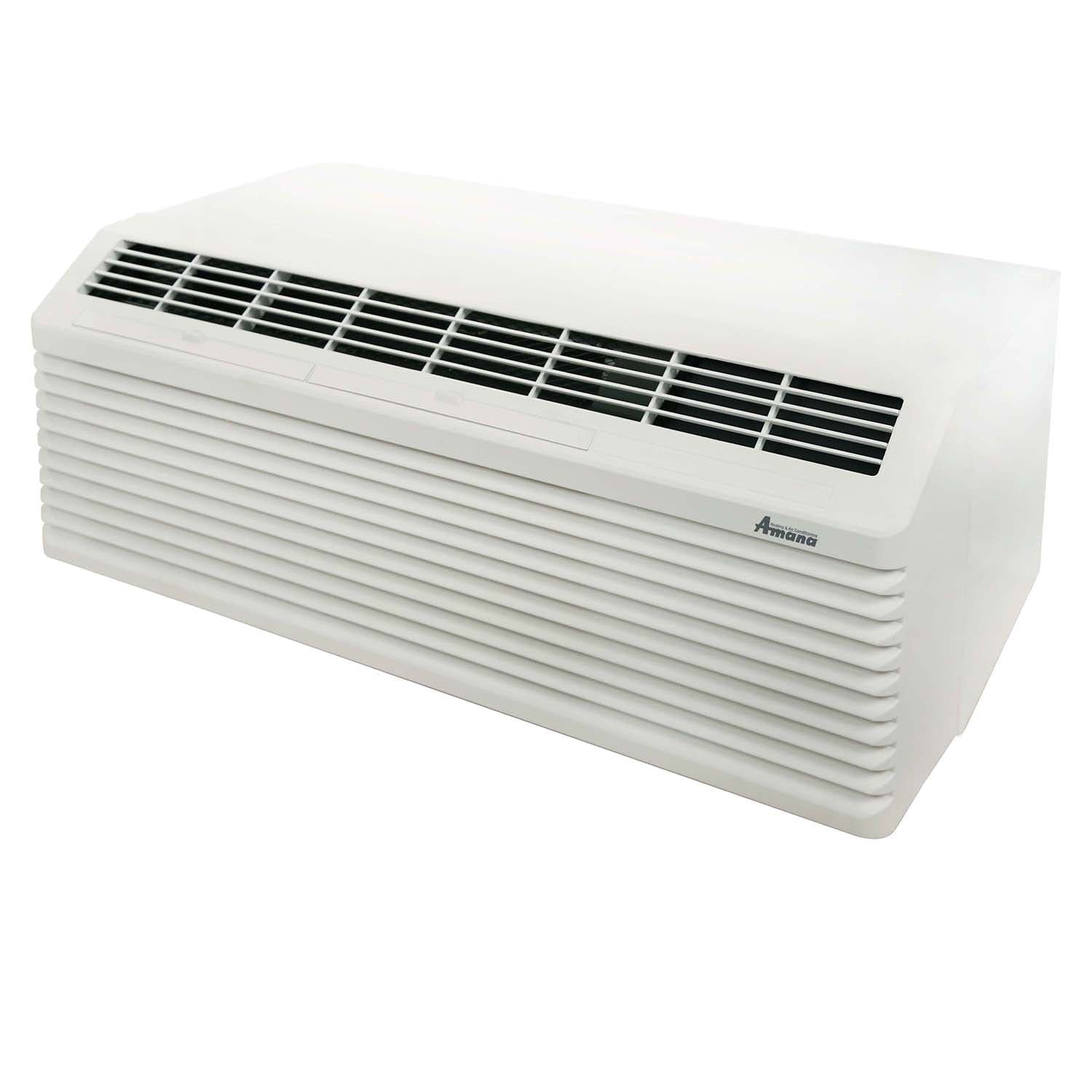

AMANA PTAC 15,000 BTU Air Conditioner Heat Pump PTH153J50AXXX with 5 kW Heater 30 Amp plug R32 - APTH15J50036

AMANA PTAC 15,000 BTU Air Conditioner Heat Pump PTH153J50AXXX with 5 kW Heater 30 Amp plug R32 - APTH15J50036

From day one, every Amana brand product has been made with the same core philosophy: to provide customers with high-quality products that are reliable, meet their needs and last longer than the rest. And we keep that philosophy firmly in mind when we build our Amana brand Packaged Terminal Air Conditioners (PTACs). Whether you are in the hotel/hospitality industry or provide assisted living services, Amana brand PTACs are designed to provide your business with plain-and-simple product durability and advanced energy management features, while helping you to create the best indoor comfort possible.

Unrivaled product customization options including Make-up Air, Smart vent and Economizer, Lighting Control, Seacoast, Hydronic and more:

Energy Efficiencies: With EERs up to 10.4 and COPs up to 3.9, our unit's high efficiencies may qualify you for many of the rebates offered by electrical power companies.

Quiet Operation: Our PTAC has been redesigned to be the quietest PTAC we have ever built. The unit's state-of-the-art design and construction provide a quiet environment, allowing guests to enjoy peaceful, sleep-filled nights.

Features

• Indoor tangential fan for quiet operation and optimal air distribution
• Reliable design with R-32 refrigerant filter drier and high-pressure switch
• Compatible with the Eden Wireless.

• Two fan motors (indoor/outdoor)
• Indoor tangential fan for quiet operation
• STC of 29

INCLUDED

• 15,000 BTU Amana Unit
• 5KW Electric Heater
• Power Cord: 6-30P (30 AMP PLUG)
• Installation Manual
• User’s Manual

What our Experts Think

• High-capacity PTAC for demanding spaces
  Delivers approximately 14,600–15,000 BTU cooling power, making it ideal for larger rooms (~500–750 sq ft) such as hotel suites, apartments, and offices that need consistent year-round climate control.
• Powerful dual heating system (efficiency + backup heat)
  Combines a heat pump for efficient heating with a strong 5 kW electric heater for cold conditions, ensuring reliable comfort even in extreme temperatures.
• Modern R-32 refrigerant platform
  Uses R-32 refrigerant, improving energy efficiency and reducing environmental impact compared to older PTAC systems while maintaining strong cooling output.
• Strong energy performance for its class
  Rated around EER ~10.4–10.6, balancing high output with controlled operating costs, suitable for continuous-use commercial environments.
• Built for commercial durability
  Engineered for hotels, rentals, and multi-unit properties, with components designed for continuous operation, long service life, and reduced maintenance downtime.
• Quiet, modern operation design
  Features upgraded internal airflow and dual-fan architecture for lower noise levels (comfort-focused for sleeping and guest environments).

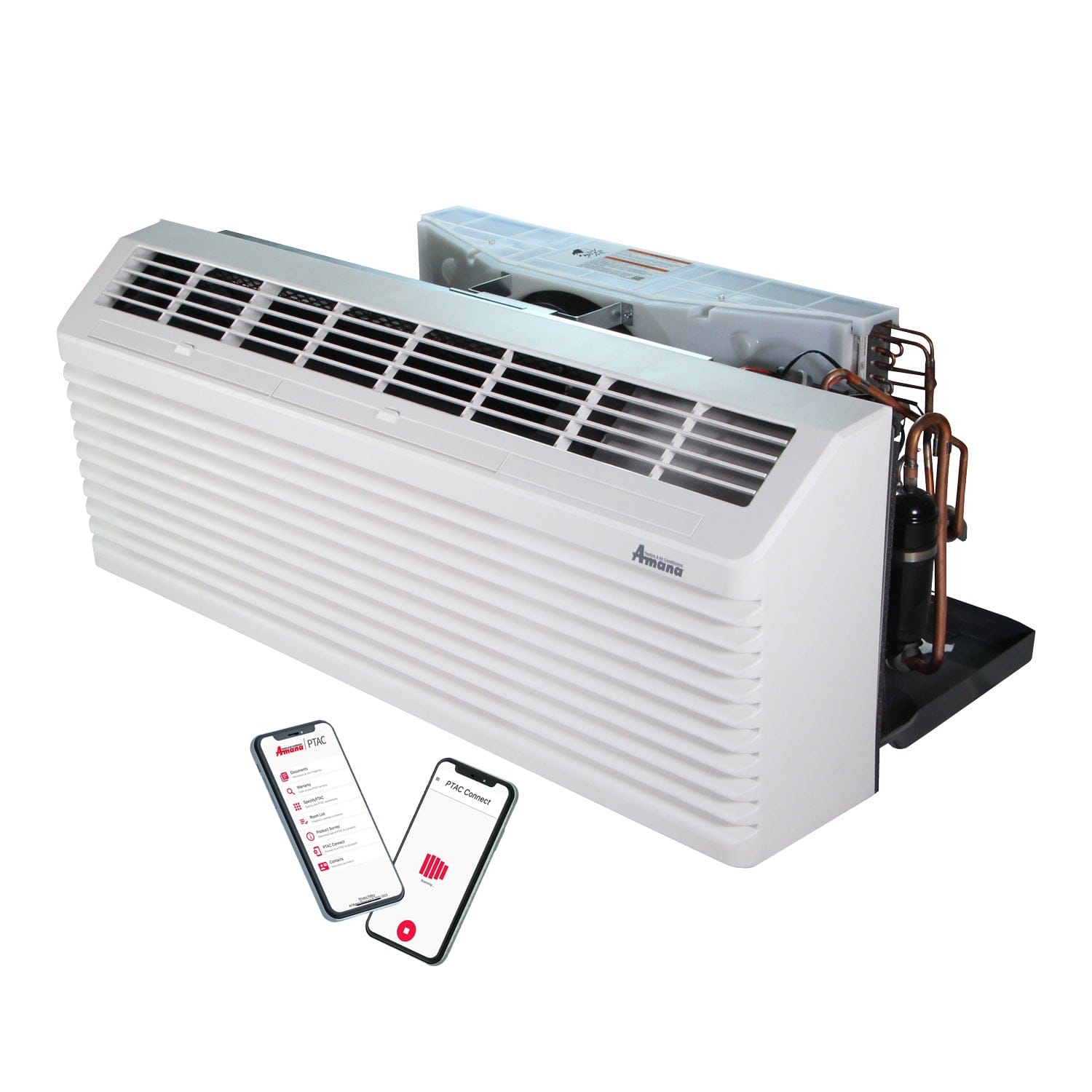

• Smart control & connectivity ready
  Supports external thermostat integration and modern connectivity options (Bluetooth/RF depending on configuration) for improved energy management and diagnostics.
• Expert verdict
  A top-tier, high-output PTAC system designed for large rooms and professional environments, offering strong cooling, powerful electric heating, and modern efficiency upgrades—best for users who need maximum performance and reliability over basic residential comfort units.

Q&A

Q: What is the cooling capacity of this PTAC unit?
A: It delivers about 15,000 BTU cooling, suitable for medium-to-large rooms like hotel suites, apartments, offices, or rentals (~450–700 sq. ft. depending on insulation).

Q: Does it include heating, and how strong is it?
A: Yes. It includes a heat pump plus a 5 kW electric heater, providing strong winter backup heat and reliable year-round comfort.

Q: What electrical setup does it require?
A: It runs on 208/230V with a 30-amp circuit (NEMA 6-30 plug), designed for standard PTAC wall sleeves used in commercial and residential installations.

Q: Does it use modern refrigerant?
A: Yes, it uses R-32 refrigerant, which is more efficient and has lower environmental impact than older refrigerants.

Q: Is it energy efficient?
A: It has an EER around 10.4–10.6, offering solid efficiency for a high-capacity PTAC system.

Q: What size space is it best for?
A: It is best suited for medium to large single rooms (~450–700 sq. ft.), depending on heat load and insulation.

Q: Does it support modern controls?
A: Yes, it supports external thermostats and modern connectivity features (Bluetooth/RF in newer J-series designs) for improved control and energy management.

Q: Is it noisy during operation?
A: No, it is engineered for quiet operation (around STC 29 rating), making it suitable for guest rooms and residential use.

Maintenance Tips

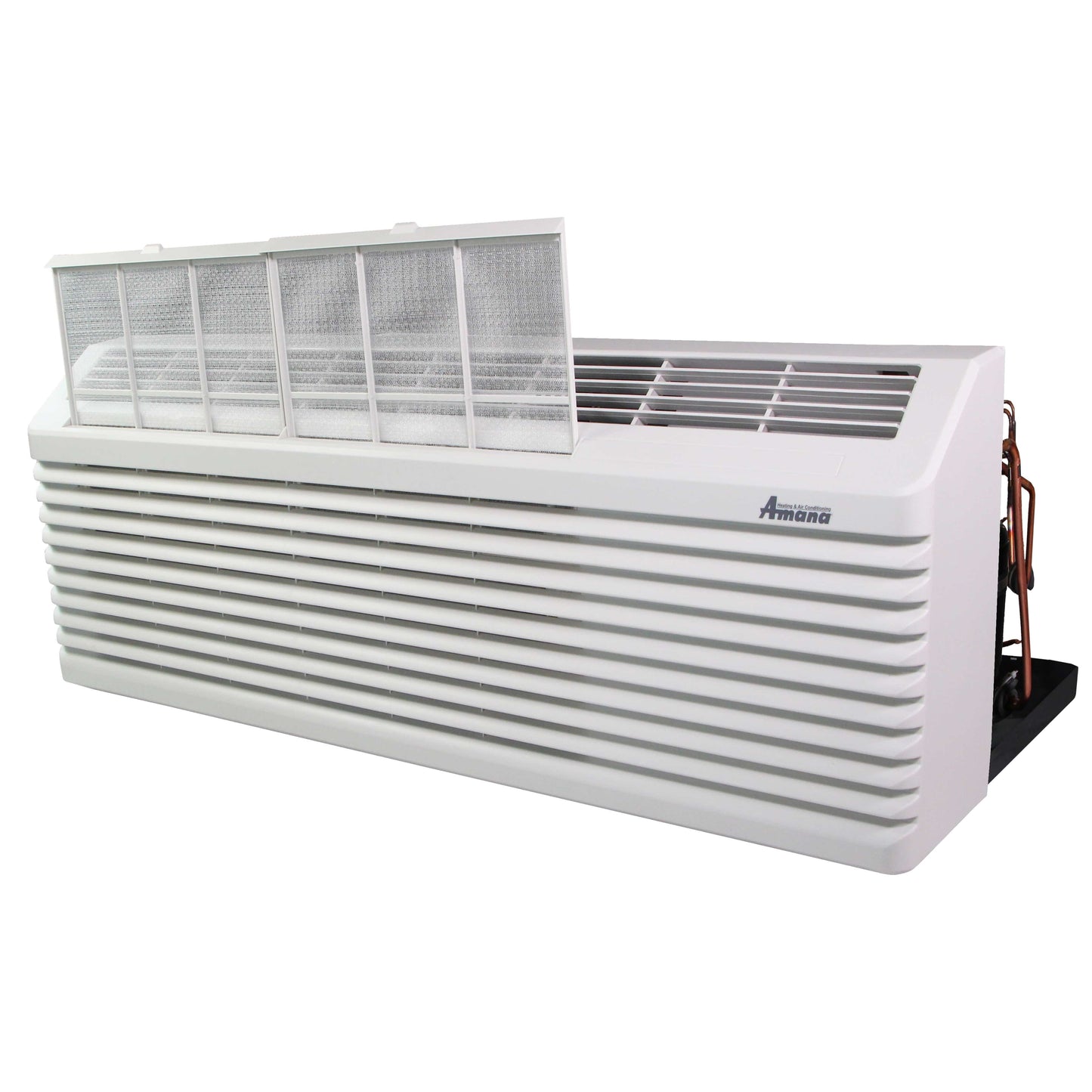

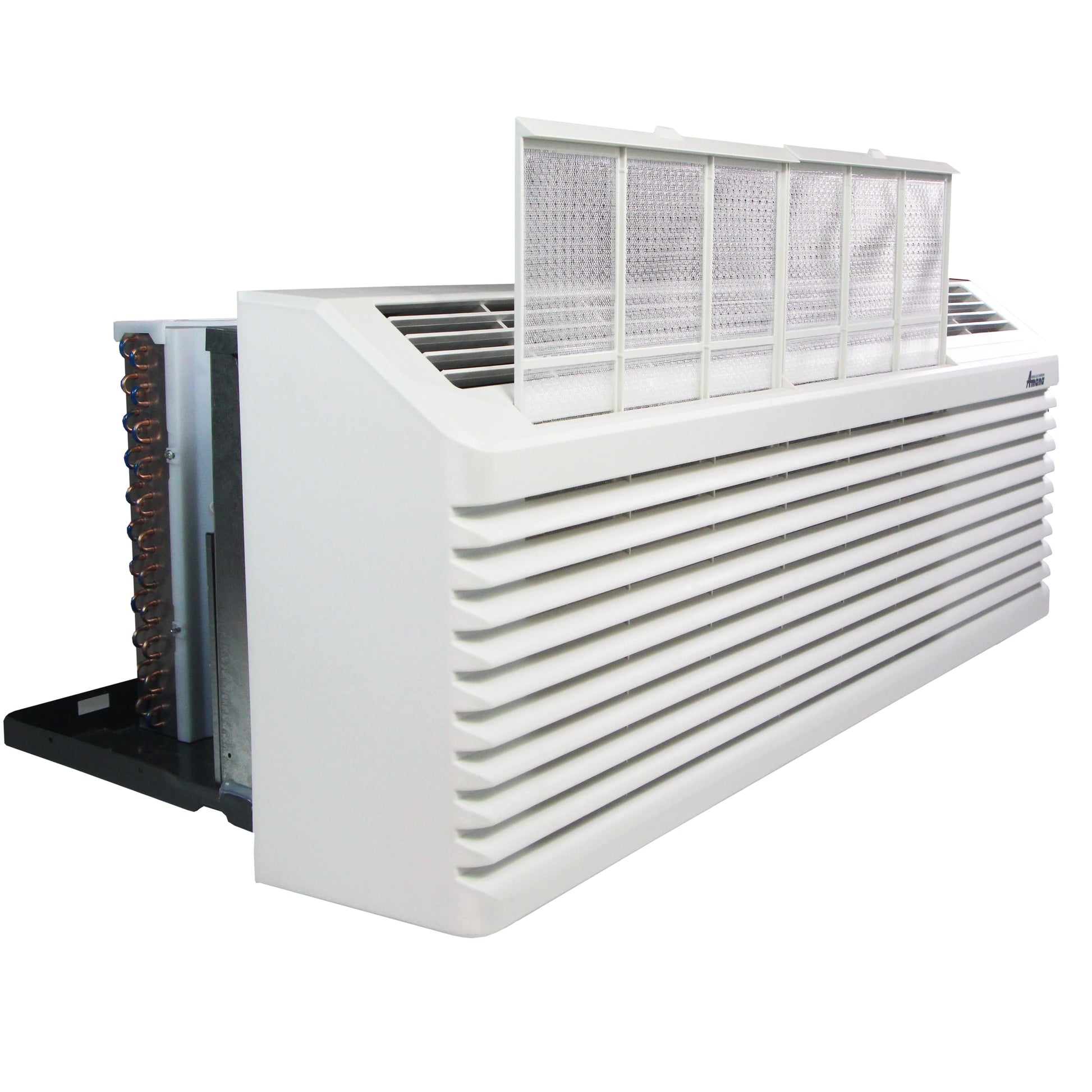

• Clean air filter every 2–4 weeks: Maintains strong airflow, improves efficiency, and prevents coil icing or overheating.

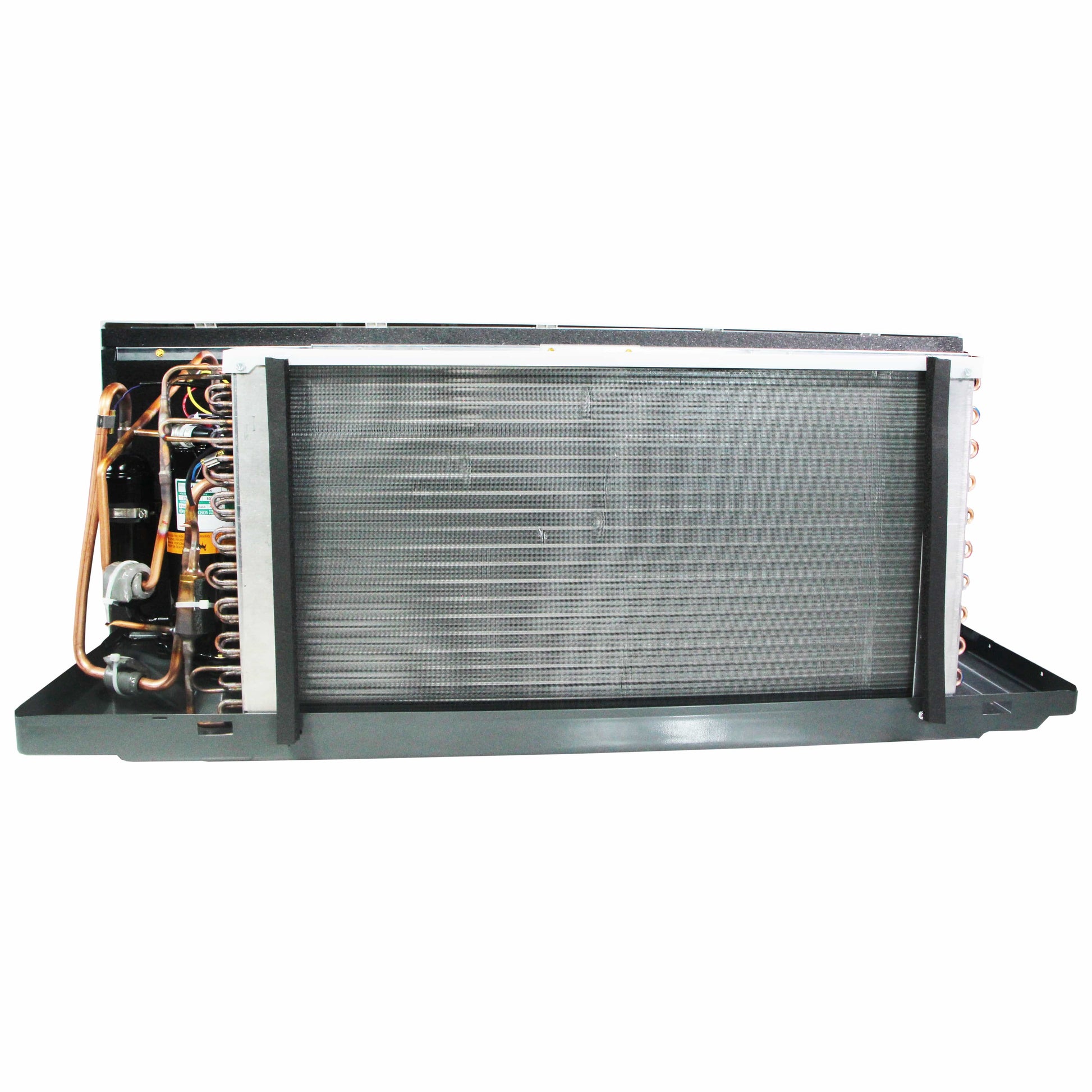

• Wash evaporator & condenser coils: Dust buildup reduces cooling/heating performance and increases energy use.
• Keep airflow clear: Maintain at least 18–24 inches clearance in front of the unit for proper air exchange.
• Inspect drain system: Ensure condensate drains freely to avoid leaks, rust, and internal water damage.
• Check 30A plug & wiring: Make sure the NEMA 6-30P connection is secure and not overheating or loosening.
• Clean front grille monthly: Prevents lint and dust buildup that restricts airflow and strains the blower motor.
• Run unit regularly: Keeps compressor and seals lubricated, especially during off-season periods.
• Test heat pump + 5 kW heater before winter: Confirms both efficient heat pump operation and backup electric heat.
• Monitor unusual noise/vibration: Early detection of fan or compressor issues prevents costly repairs.
• Schedule seasonal deep cleaning: Once or twice a year, perform full internal cleaning or professional HVAC servicing.
