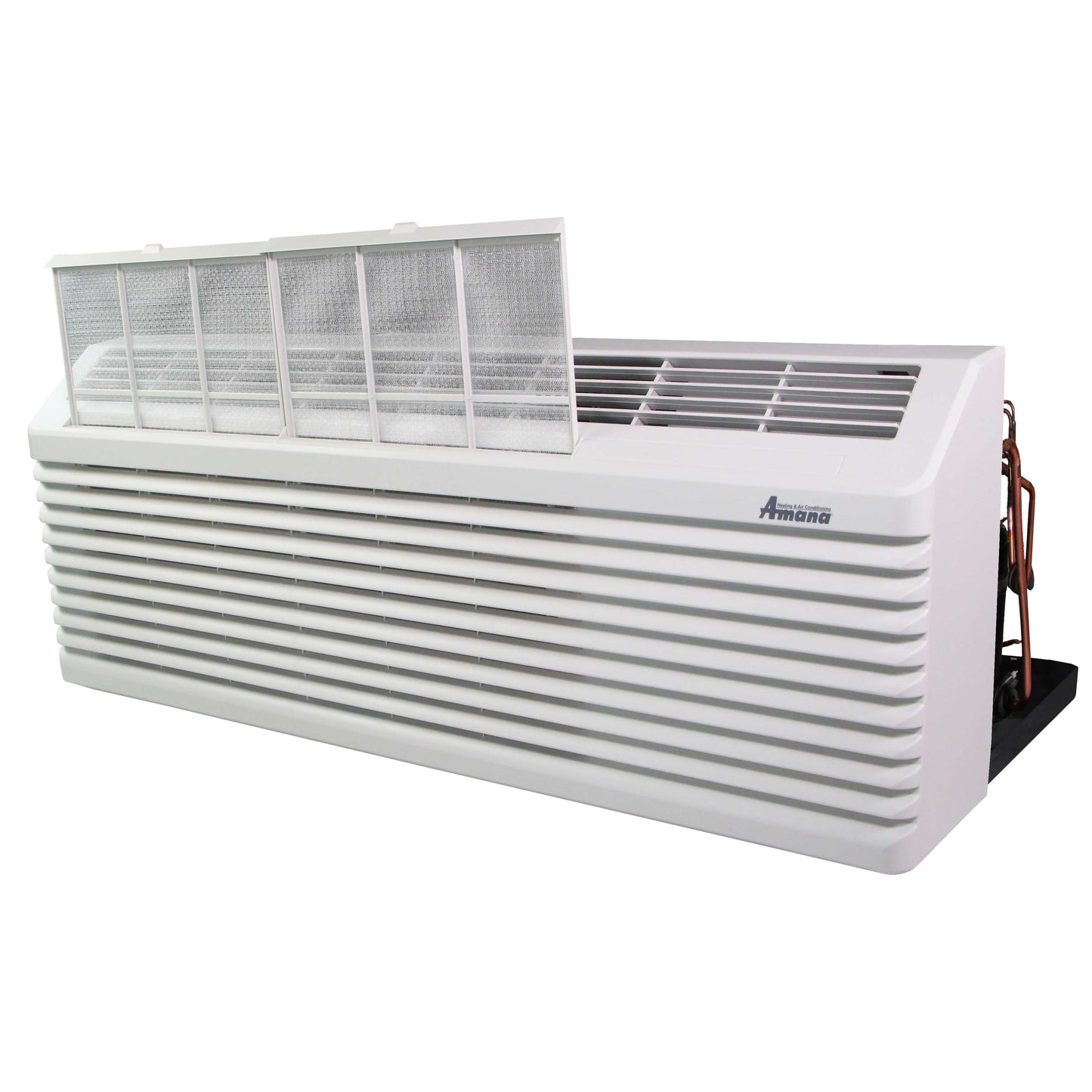

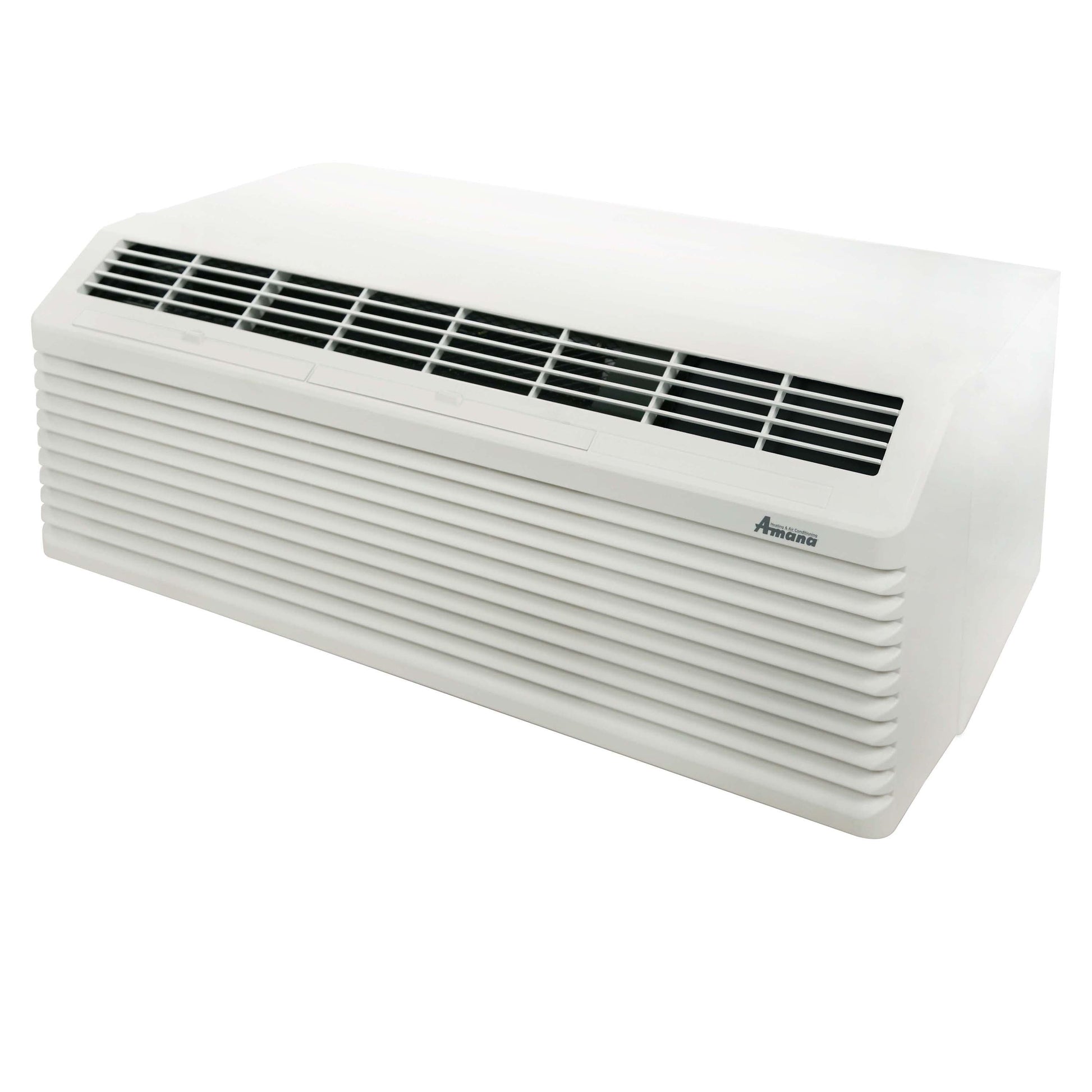

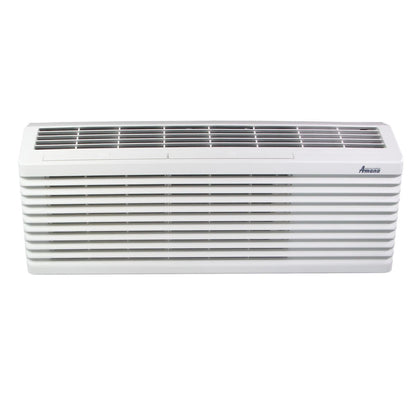

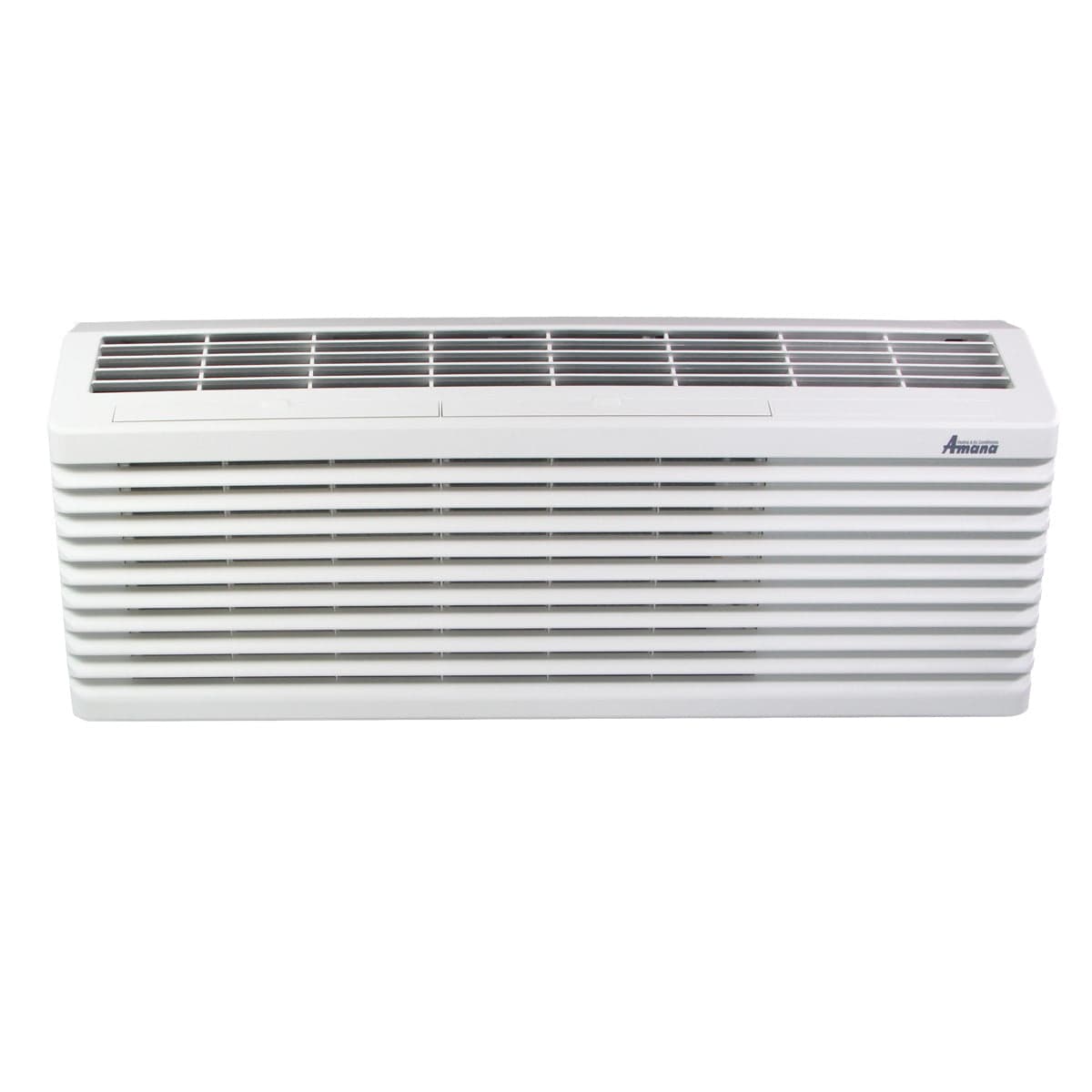

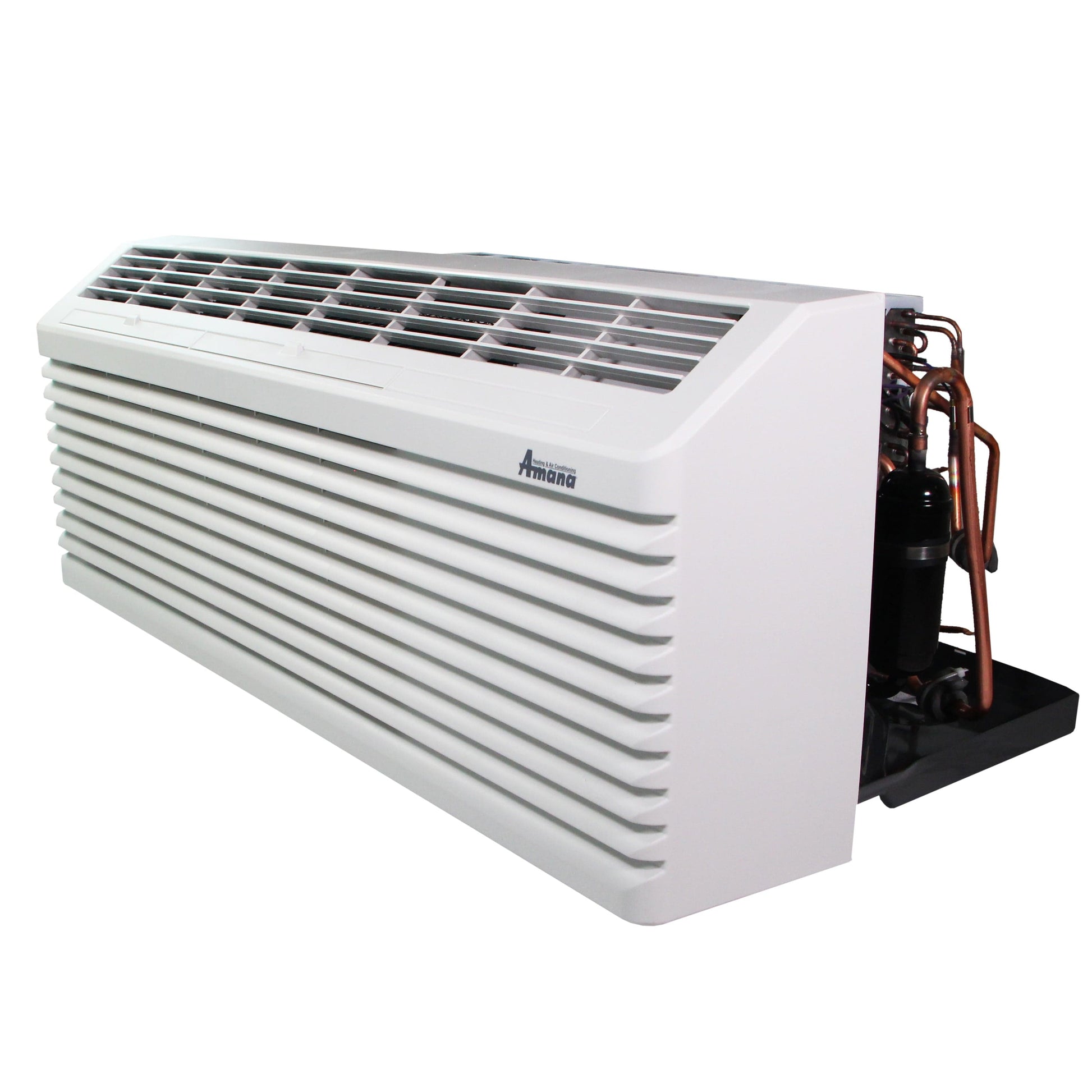

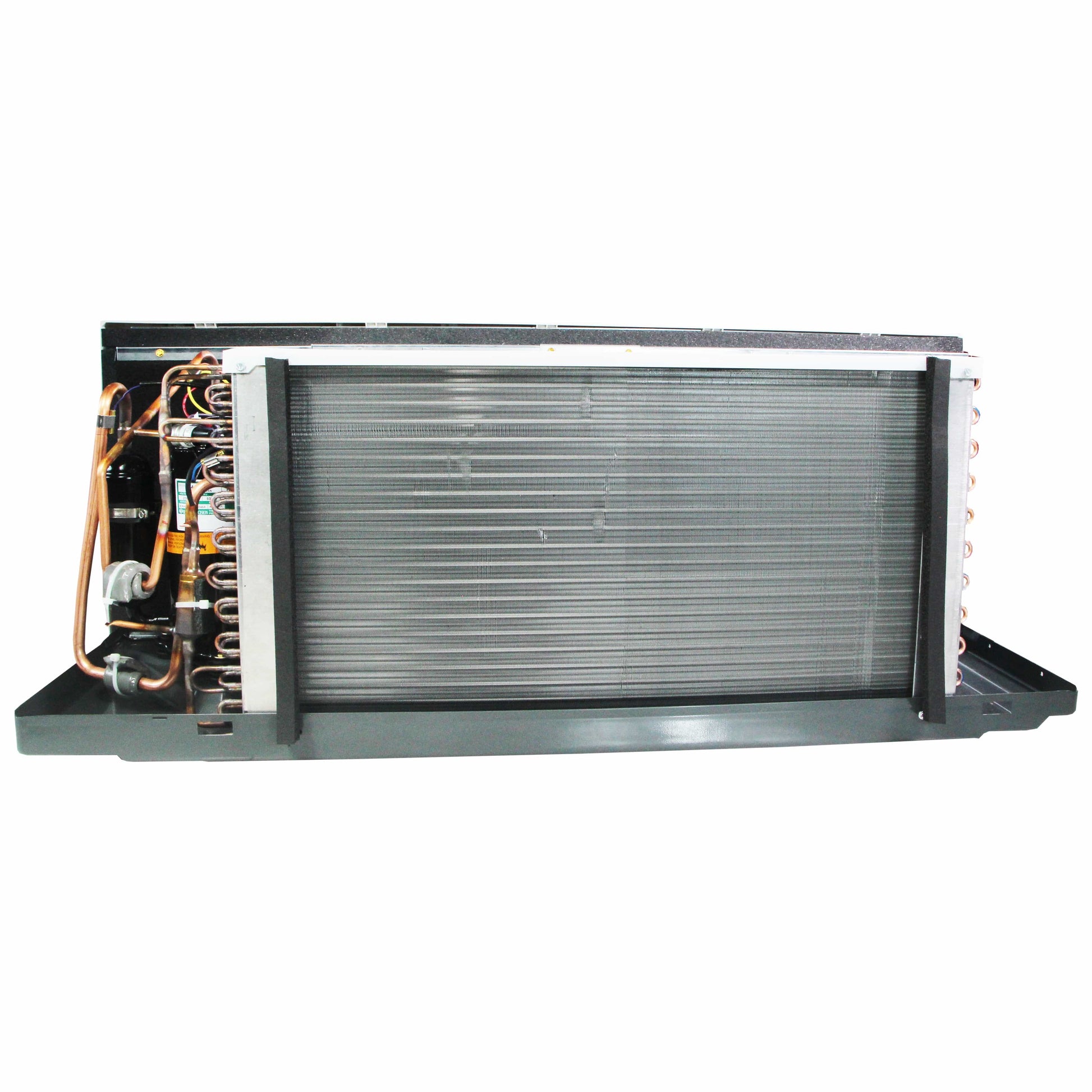

AMANA PTAC 14,800 BTU Air Conditioner PTC153J35AXXX with 3.5 kW Heater 20 Amp plug R32 - APTC15J30047

AMANA PTAC 14,800 BTU Air Conditioner PTC153J35AXXX with 3.5 kW Heater 20 Amp plug R32 - APTC15J30047

From day one, every Amana brand product has been made with the same core philosophy: to provide customers with high-quality products that are reliable, meet their needs and last longer than the rest. And we keep that philosophy firmly in mind when we build our Amana brand Packaged Terminal Air Conditioners (PTACs). Whether you are in the hotel/hospitality industry or provide assisted living services, Amana brand PTACs are designed to provide your business with plain-and-simple product durability and advanced energy management features, while helping you to create the best indoor comfort possible.

Unrivaled product customization options including Make-up Air, Smart vent and Economizer, Lighting Control, Seacoast, Hydronic and more:

Energy Efficiencies: With EERs up to 10.4 and COPs up to 3.9, our unit's high efficiencies may qualify you for many of the rebates offered by electrical power companies.

Quiet Operation: Our PTAC has been redesigned to be the quietest PTAC we have ever built. The unit's state-of-the-art design and construction provide a quiet environment, allowing guests to enjoy peaceful, sleep-filled nights.

Features

• Indoor tangential fan for quiet operation and optimal air distribution
• Reliable design with R-32 refrigerant filter drier and high-pressure switch
• Compatible with the Eden Wireless.
• Two fan motors (indoor/outdoor)
• Indoor tangential fan for quiet operation
• STC of 29

INCLUDED

• 15,000 BTU Amana Unit
• 3.5KW Electric Heater
• Power Cord: 6-20P (20 AMP PLUG)
• Installation Manual
• User’s Manual

What our Experts Think

• Strong mid-capacity PTAC performance
  The Amana PTC153J35AXXX delivers around 14,800 BTU cooling, making it well-suited for hotel rooms, rental units, offices, and small apartments (~450–575 sq. ft.) with consistent climate control.
• Powerful built-in heating (3.5 kW electric heat)
  Integrated 3.5 kW heater provides reliable winter backup heating, ensuring year-round use without needing a separate system.
• Modern, efficient R32 refrigerant system
  Uses R-32 refrigerant, offering improved efficiency and lower environmental impact compared to older refrigerants.
• Commercial-grade durability & reliability
  Designed for continuous-duty environments like hospitality and rentals, with a rugged build and long service life expectations.
• 20 Amp, 208/230V power requirement
  Built for high-demand electrical setups, ensuring stable performance under heavy daily use in commercial applications.
• Quiet operation for guest comfort
  Engineered with improved sound insulation and low-noise operation (STC ~29) to reduce in-room disturbance.
• Smart-ready connectivity (new generation feature)
  Supports Bluetooth/RF controls and external thermostat integration, making diagnostics and energy management easier in managed properties.

Q&A

Q: What is the AMANA PTC153J35AXXX (APTC15J30047) used for?
A: It is a 14,800 BTU packaged terminal air conditioner (PTAC) designed for cooling and electric heating in hotels, apartments, guest rooms, and commercial spaces.

Q: What is its cooling capacity?
A: It provides about 14,800–14,900 BTU cooling, suitable for rooms roughly 450–575 sq. ft.

Q: Does it include heating?
A: Yes, it has a built-in 3.5 kW electric resistance heater for strong supplemental heat in cold weather.

Q: What refrigerant does it use?
A: It uses R-32 refrigerant, which is more efficient and has lower environmental impact than older refrigerants.

Q: What electrical requirements does it have?
A: It runs on 208/230V power with a 20-amp (6-20P) plug type, designed for commercial PTAC installation.

Q: Is it energy efficient?
A: Yes, it has an EER around 10.3–10.4, offering solid efficiency for its class.

Q: Does it support smart controls?
A: Yes, it includes Bluetooth/RF connectivity and requires a wall thermostat for operation and control flexibility.

Q: What spaces is it best for?
A: Ideal for hotels, rentals, offices, and residential additions needing independent room-by-room temperature control.

Maintenance Tips

• Clean air filter monthly: Remove and rinse or vacuum to maintain strong airflow and prevent coil clogging. Dirty filters can cut efficiency by up to ~30%.
• Keep evaporator & condenser coils clean: Inspect seasonally; dust buildup reduces cooling/heating performance and increases energy use.
• Check and clear drain pan: Ensure condensate drains freely to avoid water leaks, mold, and internal corrosion.
• Inspect airflow path: Do not block front grille or return air—restricted airflow strains compressor and reduces BTU output.
• Clean R32 system gently (no harsh chemicals): Protect refrigerant system components and maintain efficiency.
• Test 3.5 kW heater before winter: Confirm proper heating output and no tripped safety switches.
• Verify 20A plug & wiring annually: Look for heat damage or loose connections to avoid electrical faults.
• Check unit leveling & sleeve seal: Proper installation prevents water leakage and improves efficiency.
• Schedule yearly professional service: Ensures refrigerant performance, fan motor health, and long-term reliability.
