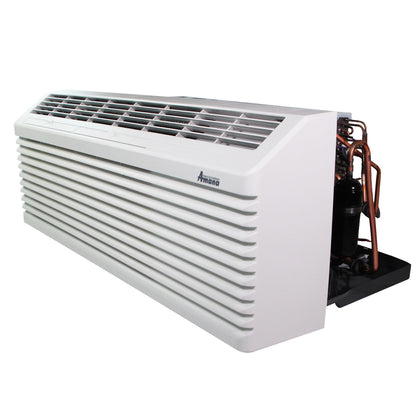

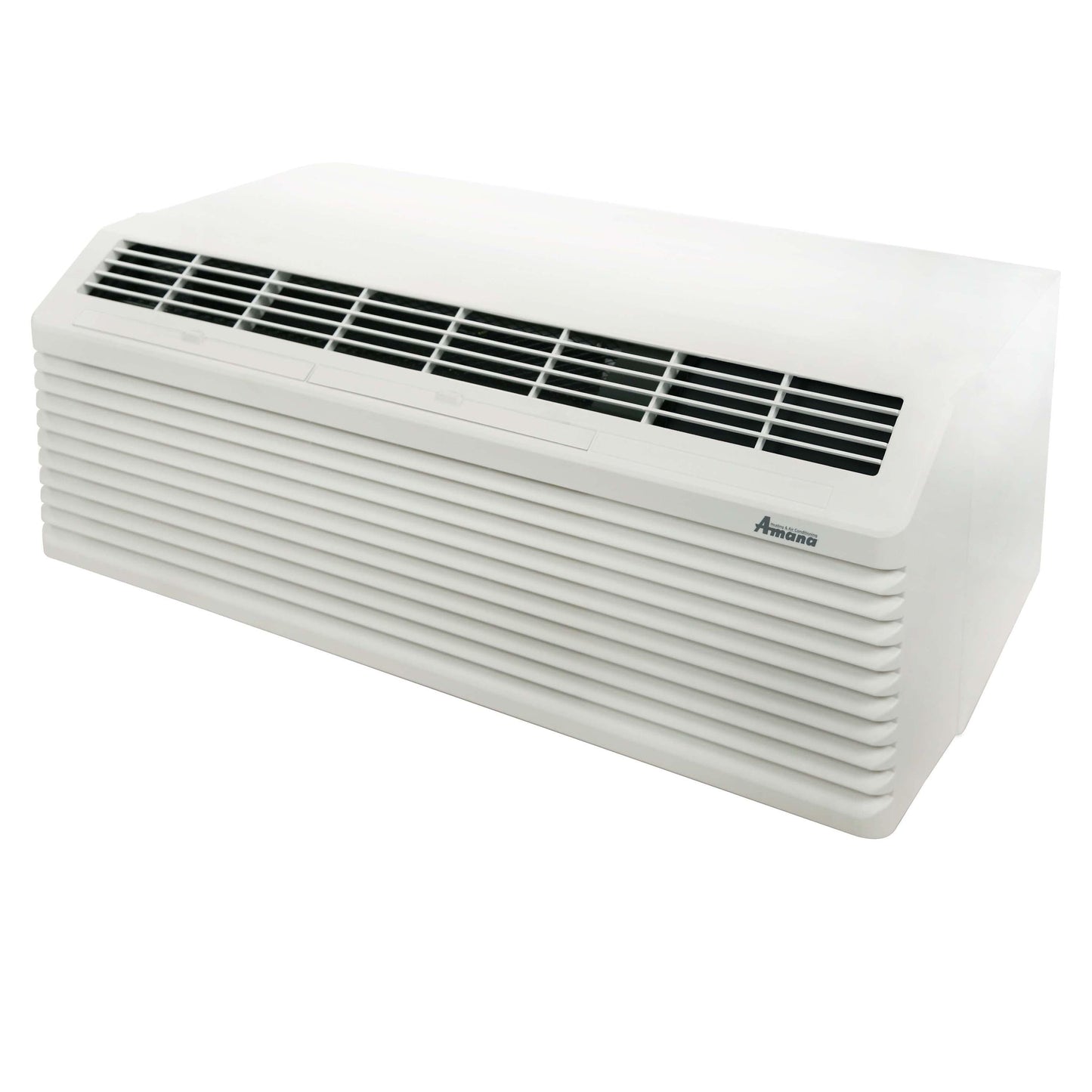

AMANA PTAC 14,800 BTU Air Conditioner PTC153K35AXXX with 3.5 kW Heater 20 Amp Plug - APTC1530010

AMANA PTAC 14,800 BTU Air Conditioner PTC153K35AXXX with 3.5 kW Heater 20 Amp Plug - APTC1530010

• The NEW more efficient Amana “K” Series PTAC is redesigned as a replacement for the model (PTC153K35AXXX) introducing integrated Bluetooth and RF connectivity along with the new Amana brand mobile app.
• The Bluetooth and RF connectivity reduces unit setting and configuration time. You’re able to access advanced unit features including personal settings, troubleshooting, diagnostics, and easy access to warranty coverage using the Amana brand mobile app.
• Fits in a standard PTAC Sleeve Size (WxHxD): 42" x 16 1/16" x 14 1/8".
• Designed and assembled in the U.S.A. The new Amana PTAC can now achieve an EER value of up to 10.
• The new Quiet White color series eliminates the user-operated control pad for a modern and streamlined appearance and operation. Improved design and materials to reduce the operating noise and reduction of exterior and operating sounds from entering the room.
• It is recommended to use the unit with a new or existing PTAC thermostat.

INCLUDED

YOUR AMANA PTAC FROM HEAT & COOL COMES WITH:

• 15000 BTU Amana Unit
• 3.5KW Electric Heater
• Power Cord – 6-20P (20 AMP PLUG)
• Installation Manual
• User’s Manual

What our Experts Think

• Higher-capacity PTAC for larger rooms
  With approximately 14,800 BTU cooling power, this Amana unit is built to handle bigger hotel rooms, rentals, or residential spaces (~500–750 sq ft) with stable and consistent temperature control.
• Strong electric heating performance
  The integrated 3.5 kW electric heater provides fast supplemental heat, making it a reliable year-round heating + cooling solution in one compact wall unit.
• Commercial-grade reliability (hotel-focused design)
  Designed for continuous-duty use in hospitality environments, it prioritizes durability, service life, and predictable performance under frequent cycling.
• Energy efficiency for its class
  Rated around EER ~10, it delivers solid efficiency for a PTAC system, helping balance powerful output with manageable operating costs.
• Modern R-32/R-410A platform (model dependent)
  Built on updated refrigerant technology depending on configuration, improving thermal performance and environmental compliance versus older units.
• Low-noise, guest-focused engineering
  Designed with sound reduction features and improved airflow architecture, making it suitable for bedrooms, suites, and quiet commercial settings.
• Smart-ready connectivity (on K-series variants)
  Supports Bluetooth/RF connectivity and external thermostat integration, enabling easier diagnostics and building energy management control.

Q&A

Q: What is the cooling capacity of this PTAC unit?
A: It delivers about 14,800 BTU (cooling), suitable for medium rooms up to roughly 700–750 sq. ft. depending on insulation and climate.

Q: What heating power does it provide?
A: It includes a 3.5 kW electric resistance heater, which provides strong supplemental heating for cold seasons and can output around 9,900–12,000 BTU of heat equivalent depending on voltage.

Q: What electrical setup is required?
A: It runs on 208/230V power with a 20-amp circuit (NEMA 6-20 plug), designed for PTAC sleeves commonly used in hotels and apartments.

Q: Is it energy efficient?
A: Yes, it typically has an EER around 10–10.3, which is standard for efficient PTAC systems in its class.

Q: What refrigerant does it use?
A: It uses R-410A refrigerant, known for reliable cooling performance and widespread HVAC compatibility.

Q: What size space is it best for?
A: Ideal for hotel rooms, small apartments, offices, and rental units (~300–750 sq. ft.), depending on heat load.

Q: Does it support modern controls?
A: Yes, it features wired/wireless thermostat compatibility and optional smart connectivity (Bluetooth/RF in newer K-series designs) for easier control and diagnostics.

Q: Is it noisy during operation?
A: It is designed with improved sound insulation and an STC rating around 29, helping reduce indoor noise levels compared to older PTAC units.

Q: Who is this unit best for?
A: It’s best for commercial-style installations (hotels, guest rooms, rentals) or residential spaces needing independent heating and cooling control.

Maintenance Tips

• Clean filter every 2–4 weeks: Dirty filters restrict airflow and reduce both cooling and heating performance.
• Wash coils regularly: Gently clean evaporator and condenser coils to prevent dust buildup and overheating issues.
• Maintain clear airflow: Keep at least 18–24 inches clearance in front of the unit for proper air circulation.
• Inspect drain system: Ensure condensate water flows freely to prevent leaks, rust, or internal water damage.
• Check electrical connection: Verify the 20A 208/230V plug is secure and not overheating or loosening.
• Clean front grille monthly: Remove lint and dust to maintain strong airflow and reduce strain on the blower motor.
• Test heating before winter: Ensure the 3.5 kW heater activates properly for reliable cold-weather backup heat.
• Watch for unusual noise or vibration: Early signs of fan, compressor, or mounting issues should be addressed quickly.
• Seasonal deep clean: Once or twice a year, shut down power and clean internal components thoroughly or schedule HVAC service.

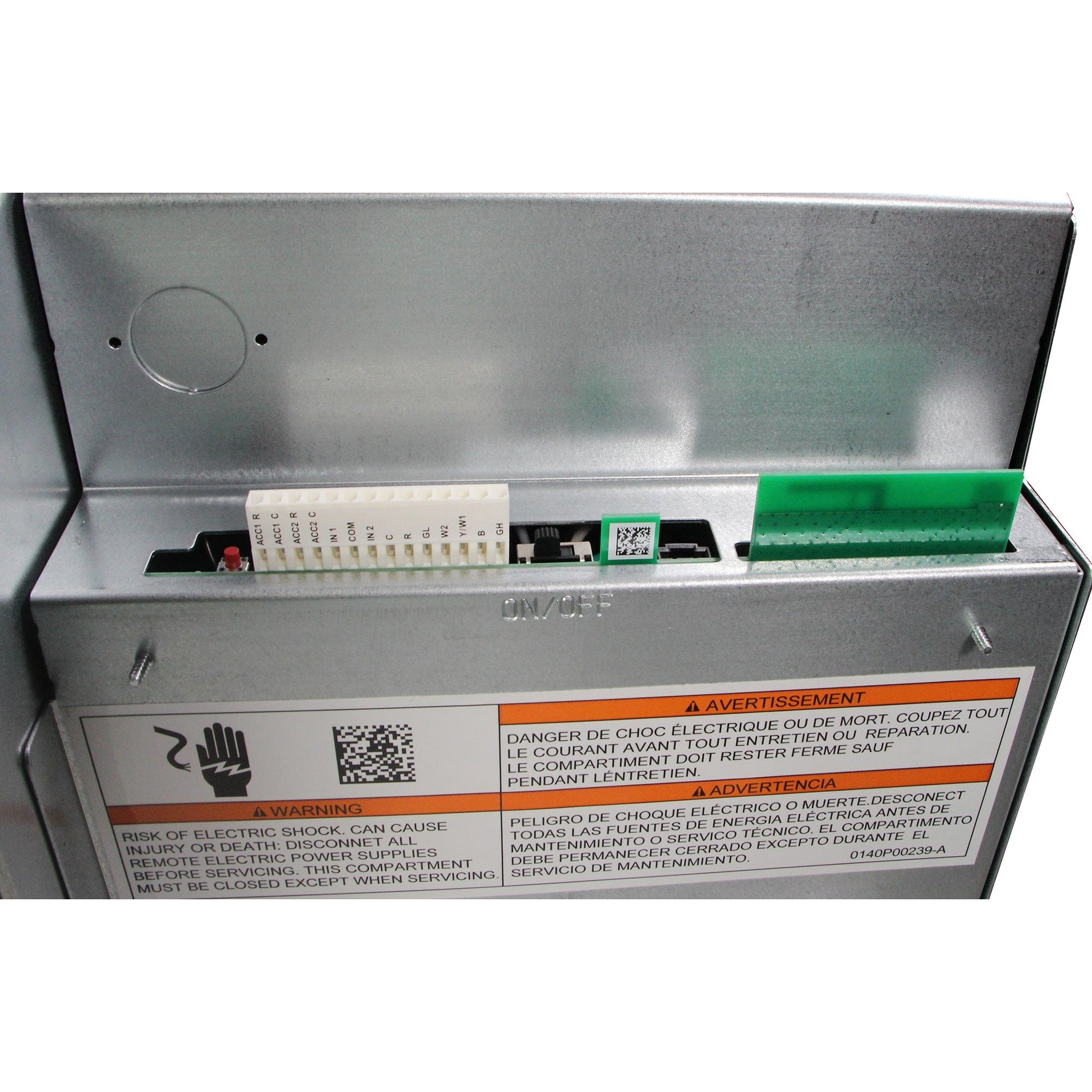

• Keep thermostat responsive: Since this model uses external controls, ensure thermostat wiring is stable and accurate.
