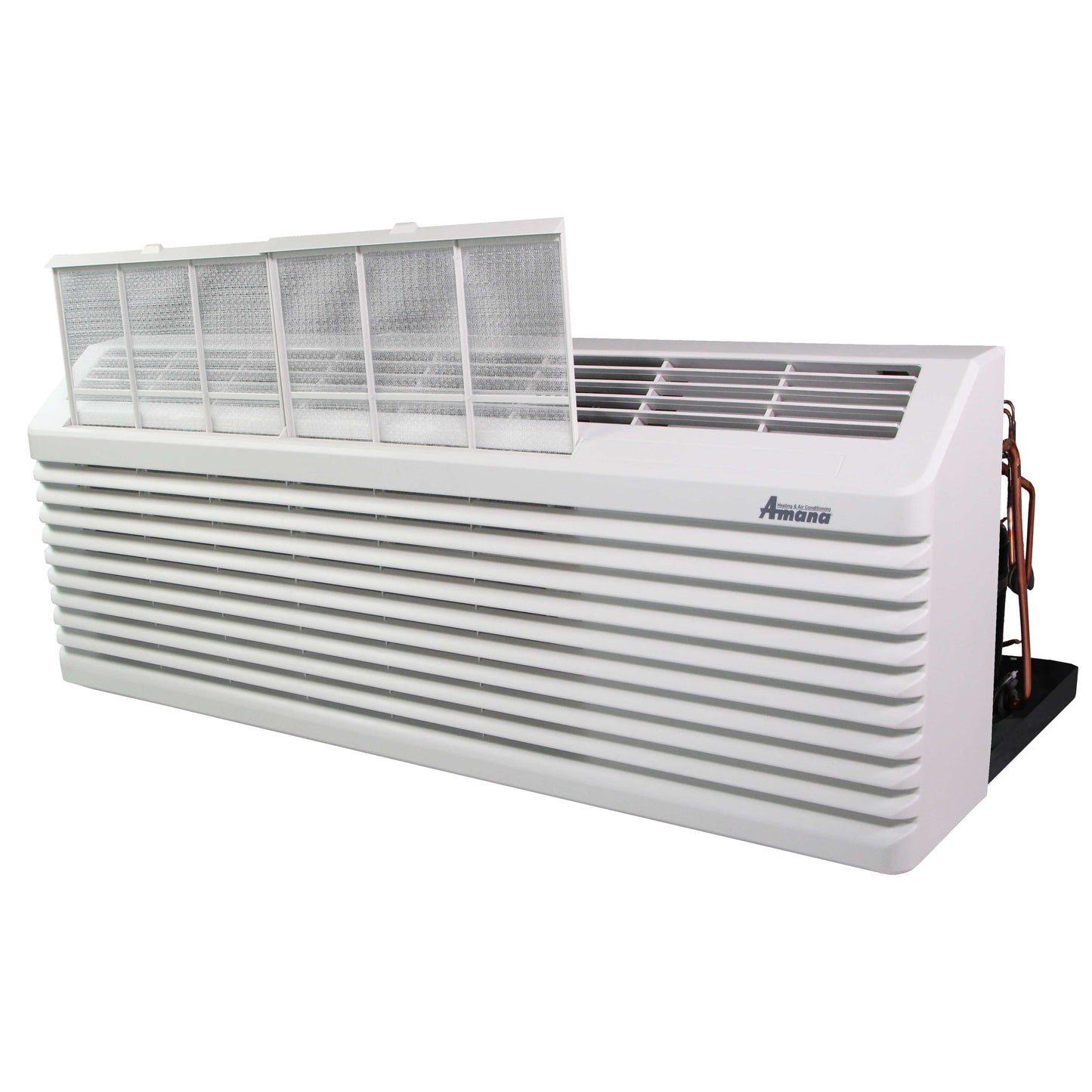

AMANA PTAC 17,000 BTU Air Conditioner PTC173J35AXXX with 3.5 kW Heater 20 Amp Plug R32 - APTC17J30028

AMANA PTAC 17,000 BTU Air Conditioner PTC173J35AXXX with 3.5 kW Heater 20 Amp Plug R32 - APTC17J30028

From day one, every Amana brand product has been made with the same core philosophy: to provide customers with high-quality products that are reliable, meet their needs and last longer than the rest. And we keep that philosophy firmly in mind when we build our Amana brand Packaged Terminal Air Conditioners (PTACs). Whether you are in the hotel/hospitality industry or provide assisted living services, Amana brand PTACs are designed to provide your business with plain-and-simple product durability and advanced energy management features, while helping you to create the best indoor comfort possible.

Unrivaled product customization options including Make-up Air, Smart vent and Economizer, Lighting Control, Seacoast, Hydronic and more:

Energy Efficiencies: With EERs up to 10.6 and COPs up to 3.9, our unit's high efficiencies may qualify you for many of the rebates offered by electrical power companies.

Quiet Operation: Our PTAC has been redesigned to be the quietest PTAC we have ever built. The unit's state-of-the-art design and construction provide a quiet environment, allowing guests to enjoy peaceful, sleep-filled nights.

Features

• Indoor tangential fan for quiet operation and optimal air distribution
• Reliable design with R-32 refrigerant filter drier and high-pressure switch
• Compatible with the Eden Wireless.

• Two fan motors (indoor/outdoor)
• Indoor tangential fan for quiet operation
• STC of 29

INCLUDED

• 17,000 BTU Amana Unit
• 3.5KW Electric Heater
• Power Cord: 6-20P (20 AMP PLUG)
• Installation Manual
• User’s Manual

What our Experts Think

• Balanced high-performance PTAC for larger rooms
  The Amana PTC173J35AXXX delivers about 16,700–17,000 BTU cooling capacity, making it a strong fit for hotel rooms, rentals, offices, and medium-to-large single spaces (~450–575 sq. ft.).
• Efficient year-round comfort system
  Includes a 3.5 kW electric heater, providing dependable supplemental heating so the unit can handle both summer cooling and winter heating without separate equipment.
• Simplified electrical setup (20 Amp plug)
  Runs on a 208/230V, 20A configuration (NEMA 6-20P), offering easier installation compared to higher-amperage PTAC variants while still maintaining strong output.
• Modern R-32 refrigerant efficiency
  Uses R-32 refrigerant, which improves energy efficiency and reduces environmental impact compared to older refrigerants like R-410A.
• Stable performance with commercial durability
  Designed for continuous-duty environments like hotels and rentals, with compressor protection features that reduce wear from short cycling and extend lifespan.
• Comfort-focused, quieter operation
  Built for hospitality use with reduced noise levels (STC ~29 class design) to improve guest comfort in occupied rooms.
• Smart-ready and service-friendly design
  Supports external thermostats and modern diagnostics/connectivity features, making it easier for property managers to monitor and maintain multiple units.

Q&A

Q: What is the AMANA PTAC PTC173J35AXXX (APTC17J30028) used for?
A: It is a 17,000 BTU packaged terminal air conditioner (PTAC) designed for cooling and heating individual rooms in hotels, apartments, rentals, and commercial spaces.

Q: What is its cooling capacity?
A: It delivers about 16,700–17,000 BTU cooling, suitable for rooms around 450–575 sq. ft.

Q: Does it include heating?
A: Yes, it includes a 3.5 kW electric heater for strong supplemental heating during colder seasons.

Q: What refrigerant does it use?
A: It uses R-32 refrigerant, which improves efficiency and reduces environmental impact compared to older refrigerants.

Q: What electrical requirements does it have?
A: It runs on 208/230V power with a 20-amp (NEMA 6-20P) plug, designed for standard PTAC wall installations.

Q: Is it energy efficient?
A: Yes, it offers an EER up to around 10.6, balancing strong cooling performance with efficient power use.

Q: What are its key benefits?
A: It provides independent room climate control, quiet operation, and modern connectivity features (Bluetooth/RF compatibility) for easier management.

Q: Who is it best for?
A: Ideal for hotels, motels, rental units, and commercial rooms needing reliable year-round cooling and heating in a single self-contained system.

Maintenance Tips

• Clean air filter every 2–4 weeks: Keeps strong airflow, prevents coil freezing, and maintains full 17,000 BTU efficiency.
• Wash coils seasonally: Evaporator and condenser coils should be kept dust-free to avoid reduced cooling/heating performance and higher power use.
• Maintain clear airflow path: Do not block intake or discharge grille—restricted airflow can cause overheating and poor temperature control.
• Check condensate drain regularly: Ensure proper drainage to prevent water leaks, mold growth, and internal corrosion.
• Inspect R-32 system components carefully: Clean gently using mild detergent only; avoid harsh chemicals that can damage fins and refrigerant parts.
• Test 3.5 kW heater before winter: Confirm steady heat output and verify safety cutoff functions are working properly.
• Verify 20A electrical connection annually: Look for loose plug fit, overheating marks, or wiring wear to avoid electrical failure.
• Keep wall sleeve & exterior grille sealed: Prevents air leaks that reduce efficiency and increase running costs.
• Schedule yearly professional servicing: Helps maintain compressor health, refrigerant efficiency, and long-term reliability.
