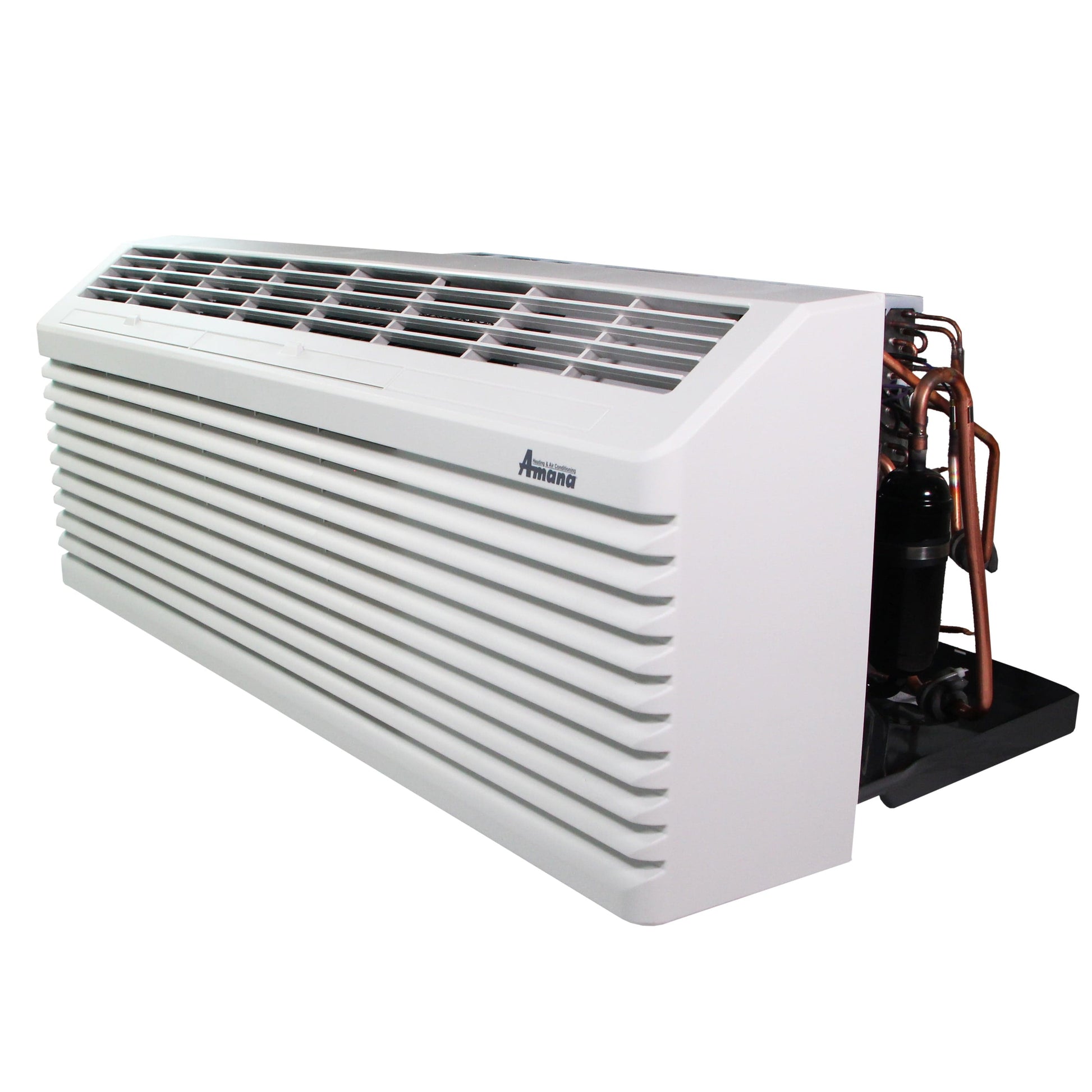

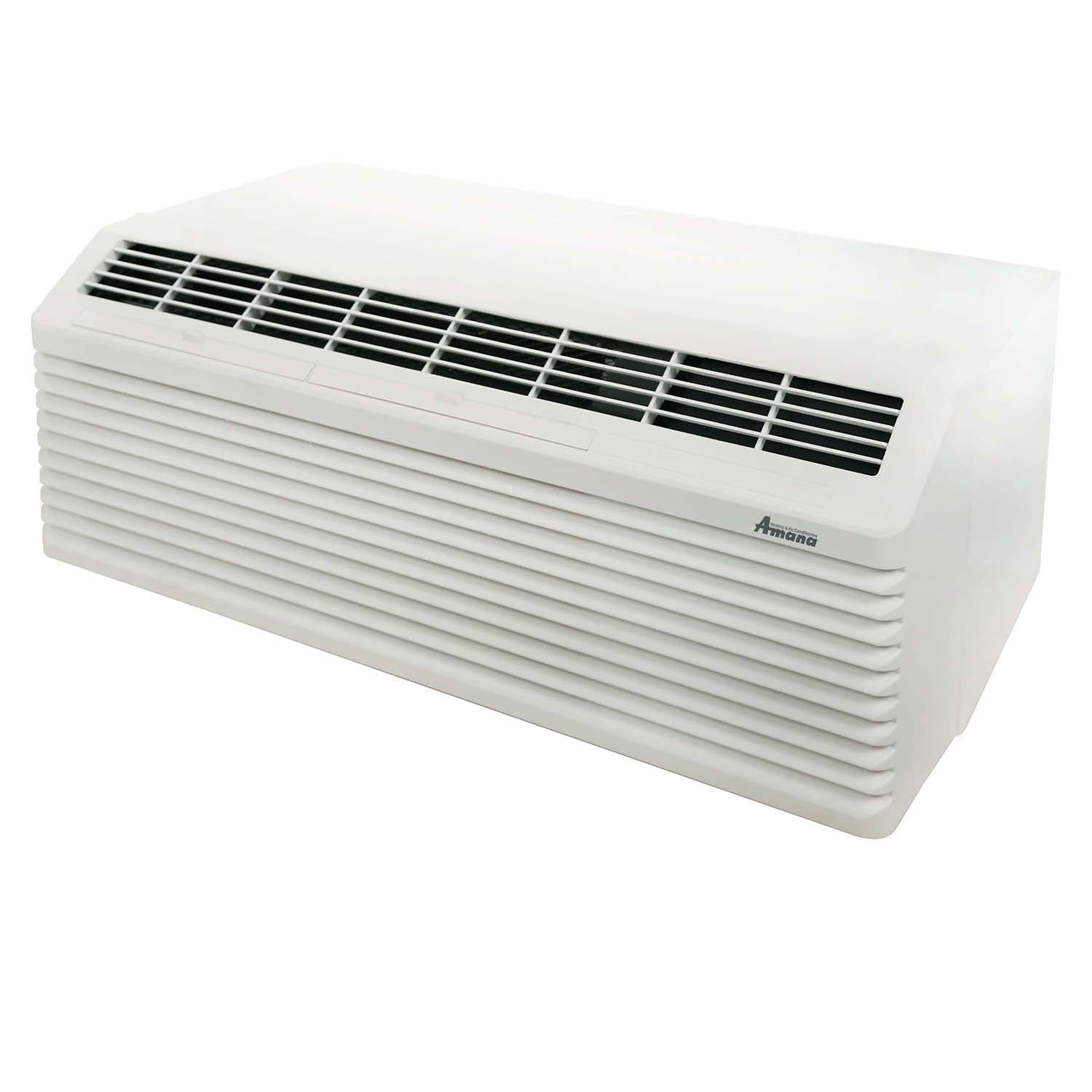

AMANA PTAC 17,000 BTU Air Conditioner PTC173J50AXXX with 5 kW Heater 30 Amp Plug R32 - APTC17J50029

AMANA PTAC 17,000 BTU Air Conditioner PTC173J50AXXX with 5 kW Heater 30 Amp Plug R32 - APTC17J50029

From day one, every Amana brand product has been made with the same core philosophy: to provide customers with high-quality products that are reliable, meet their needs and last longer than the rest. And we keep that philosophy firmly in mind when we build our Amana brand Packaged Terminal Air Conditioners (PTACs). Whether you are in the hotel/hospitality industry or provide assisted living services, Amana brand PTACs are designed to provide your business with plain-and-simple product durability and advanced energy management features, while helping you to create the best indoor comfort possible.

Unrivaled product customization options including Make-up Air, Smart vent and Economizer, Lighting Control, Seacoast, Hydronic and more:

Energy Efficiencies: With EERs up to 10.6 and COPs up to 3.9, our unit's high efficiencies may qualify you for many of the rebates offered by electrical power companies.

Quiet Operation: Our PTAC has been redesigned to be the quietest PTAC we have ever built. The unit's state-of-the-art design and construction provide a quiet environment, allowing guests to enjoy peaceful, sleep-filled nights.

Features

• Indoor tangential fan for quiet operation and optimal air distribution
• Reliable design with R-32 refrigerant filter drier and high-pressure switch
• Compatible with the Eden Wireless.

• Two fan motors (indoor/outdoor)
• Indoor tangential fan for quiet operation
• STC of 29

INCLUDED

• 17,000 BTU Amana Unit
• 5KW Electric Heater
• Power Cord: 6-30P (30 AMP PLUG)
• Installation Manual
• User’s Manual

What our Experts Think

• Top-tier PTAC heating & cooling power
  The Amana PTC173J50AXXX delivers around 16,700–17,000 BTU cooling capacity, making it ideal for larger hotel rooms, rentals, offices, and high-demand single spaces (~450–575 sq. ft.).
• High-output electric heat (5 kW system)
  The integrated 5.0 kW heater provides strong winter performance, delivering fast, reliable warmth without needing a separate HVAC system.
• Heavy-duty 30 Amp commercial operation
  Designed for 208/230V, 30A dedicated circuits, ensuring stable performance under continuous, commercial-grade use.
• Modern R-32 refrigerant efficiency
  Uses R-32 refrigerant, improving energy efficiency and reducing environmental impact compared to older refrigerants.
• Strong efficiency for its class
  Delivers an EER around 10–10.6, balancing power and energy use for hospitality and rental environments.
• Low-noise guest comfort design
  Engineered for quieter operation (STC ~29), helping reduce sound transfer for better sleep and comfort in occupied rooms.

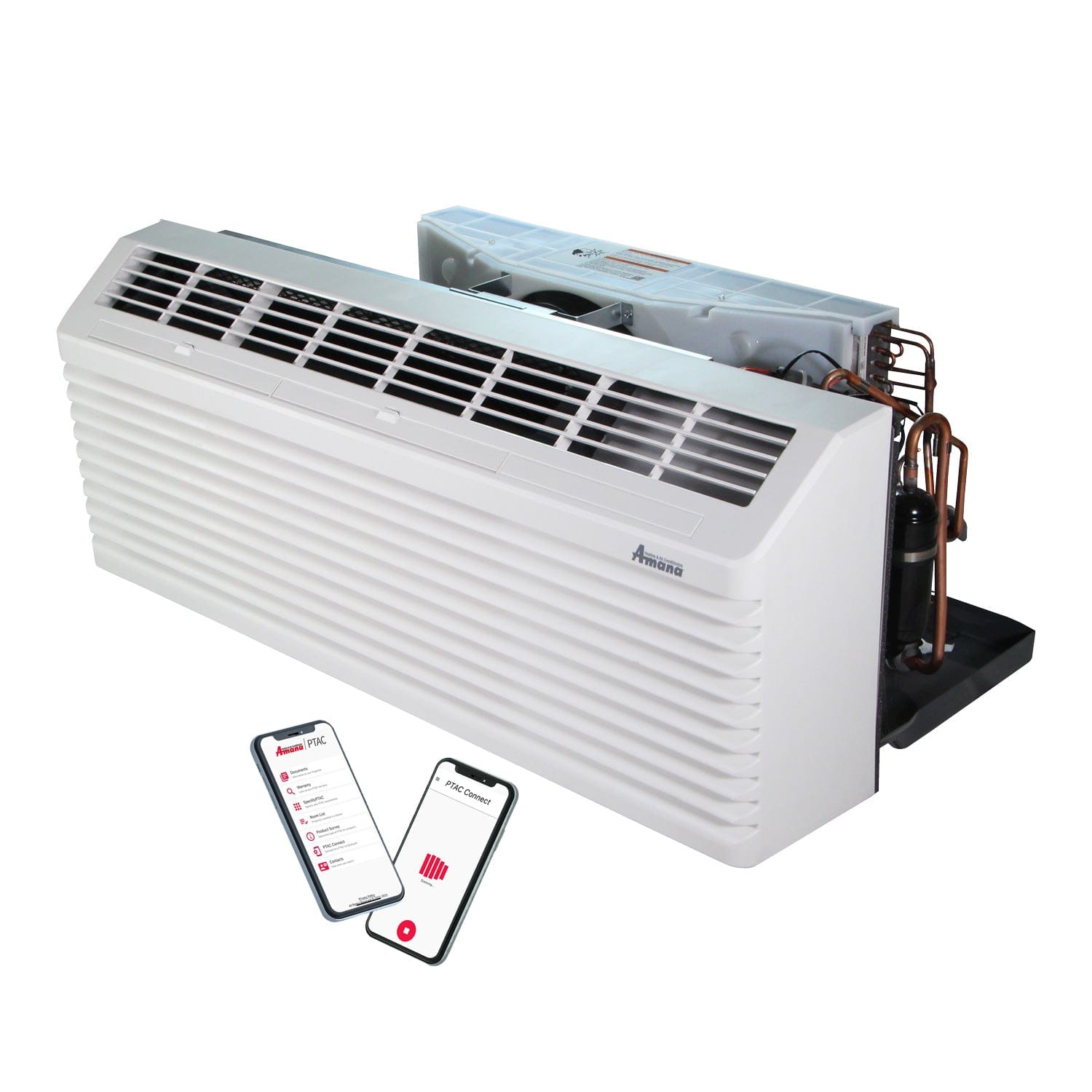

• Smart-ready & modern controls
  Supports external thermostat integration, Bluetooth/RF connectivity, and app-based diagnostics for easier property management.

Q&A

Q: What is the AMANA PTAC PTC173J50AXXX (APTC17J50029) used for?
A: It is a 17,000 BTU packaged terminal air conditioner (PTAC) designed for cooling and heating hotel rooms, apartments, and commercial spaces with independent room control.

Q: What is its cooling capacity?
A: It delivers approximately 16,700–17,000 BTU cooling, suitable for rooms around 450–575 sq. ft.

Q: Does it include heating?
A: Yes, it includes a 5.0 kW electric resistance heater, providing strong supplemental heating (up to ~17,100 BTU equivalent depending on voltage).

Q: What refrigerant does it use?
A: It uses R-32 refrigerant, which improves energy efficiency and reduces environmental impact compared to older refrigerants.

Q: What electrical requirements does it have?
A: It operates on 208/230V power with a 30-amp (NEMA 6-30P) plug, designed for heavy-duty PTAC installations.

Q: Is it energy efficient?
A: Yes, it offers an EER around 10.4–10.6, balancing strong performance with controlled energy use.

Q: Does it have smart or modern controls?
A: Yes, it supports Bluetooth/RF connectivity, app-based diagnostics, and integration with energy management systems.

Q: Is it quiet during operation?
A: Yes, it is designed with improved airflow and insulation for reduced noise, suitable for hospitality environments.

Maintenance Tips

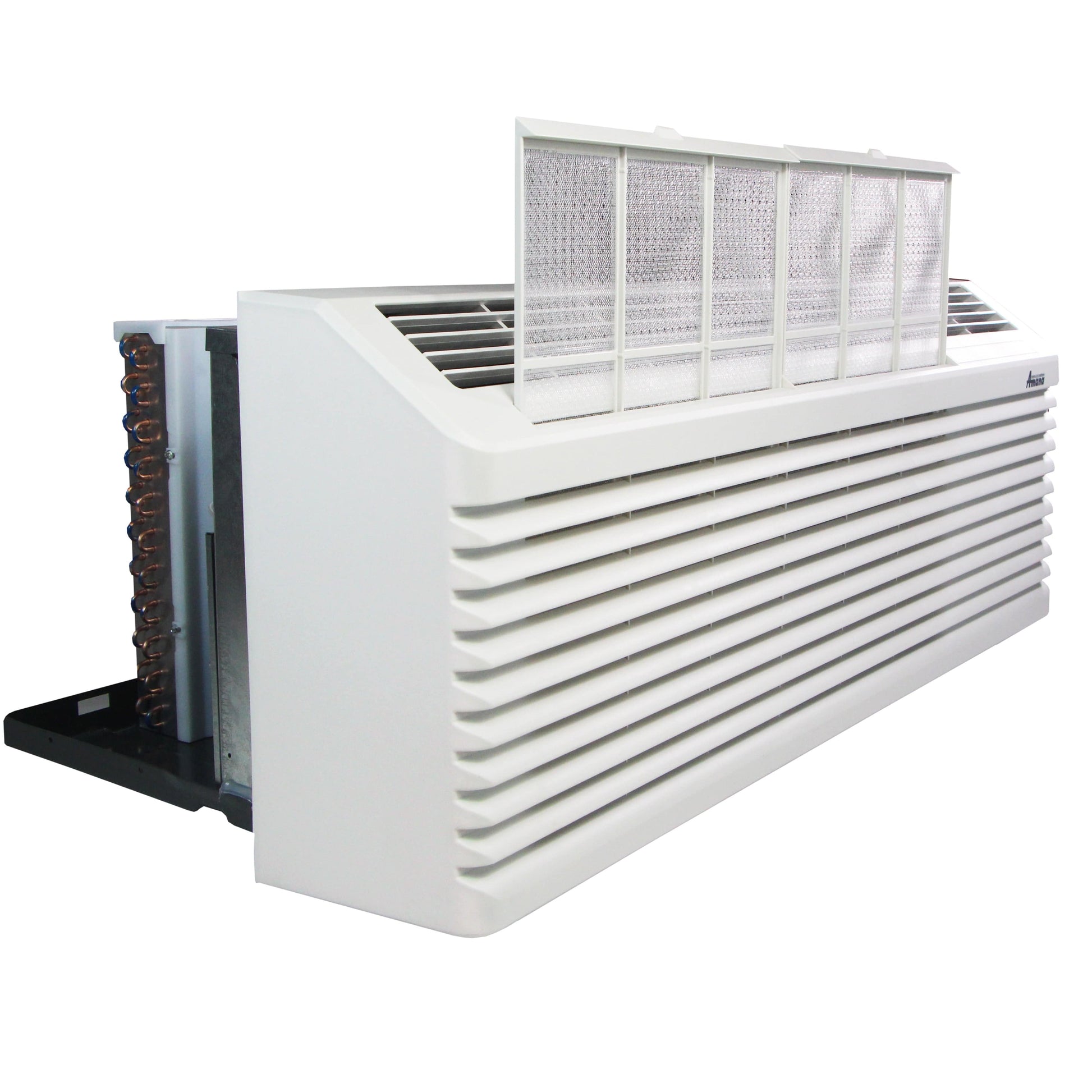

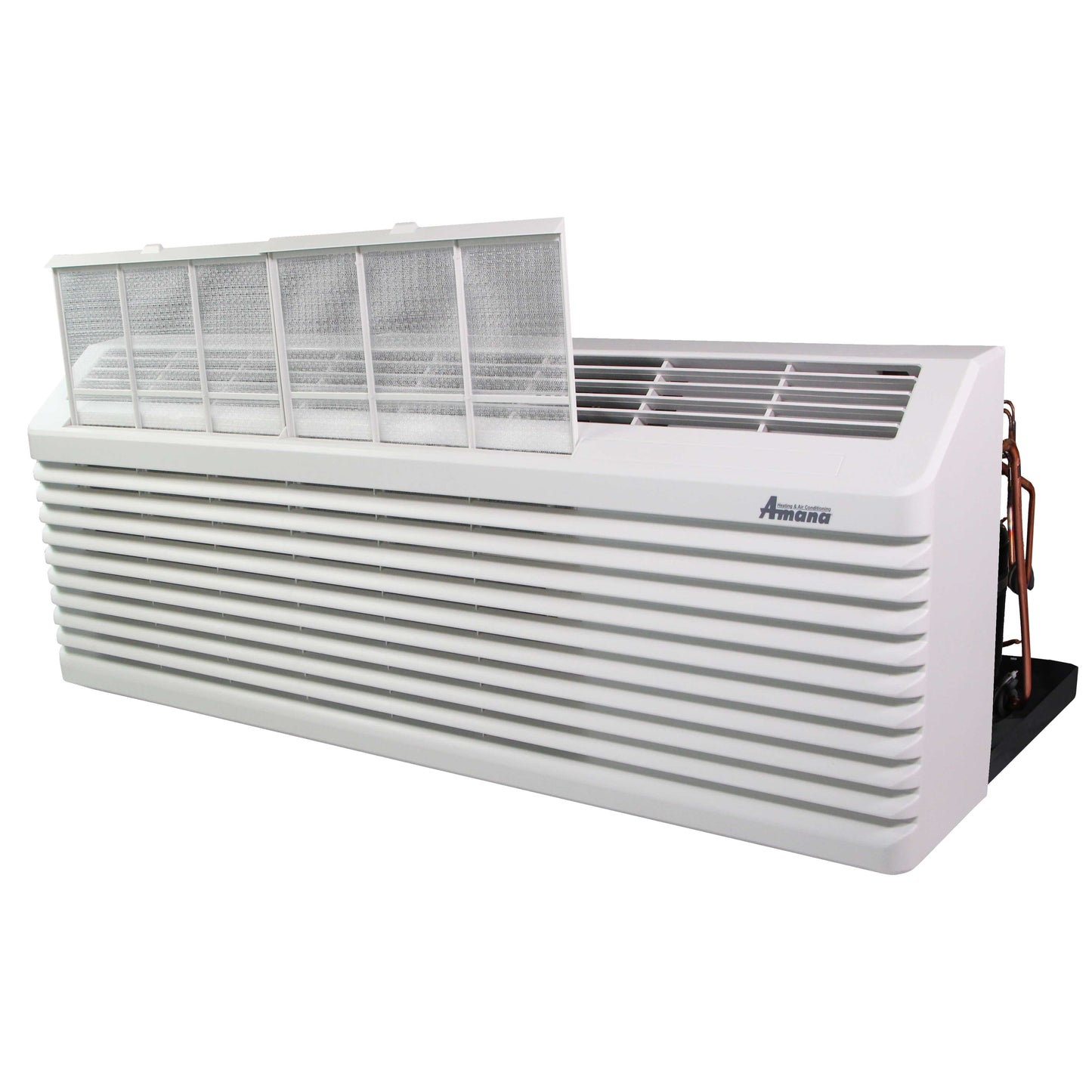

• Clean air filter every 2–4 weeks: Keeps airflow strong and prevents compressor overload, especially important for high-capacity 17,000 BTU operation.

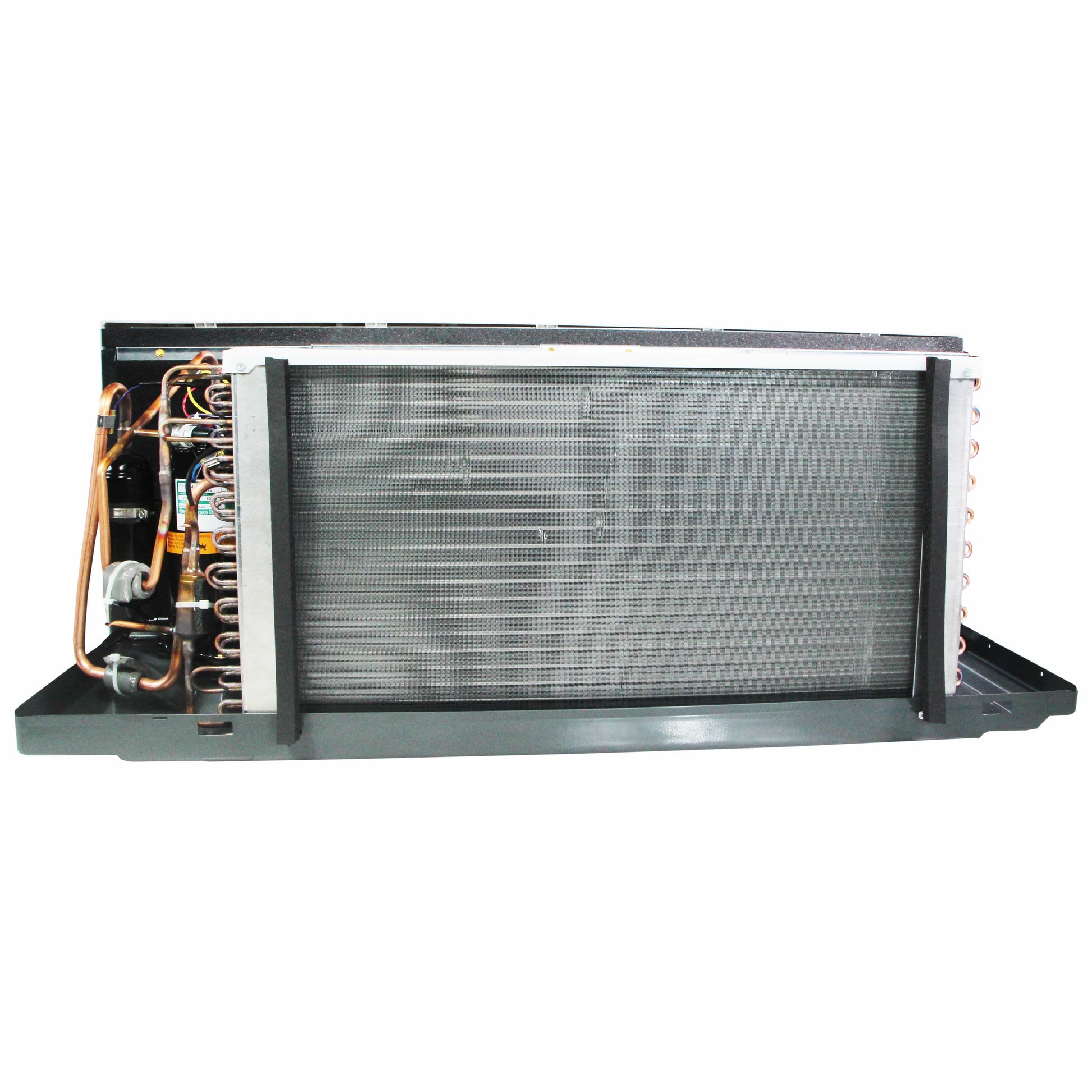

• Wash evaporator & condenser coils seasonally: Dust buildup reduces cooling/heating efficiency and increases energy consumption.
• Keep airflow completely unobstructed: Do not block intake or discharge grille—restricted airflow lowers performance and can trigger overheating shutdowns.
• Check and clear condensate drain regularly: Prevents water leakage, odor, and internal corrosion inside the unit.
• Inspect R-32 system components: Clean gently with mild detergent only—avoid harsh chemicals that damage aluminum fins and refrigerant parts.
• Test 5 kW heater before winter use: Ensure proper heating output and confirm safety cutoff functions are working.
• Verify 30A plug and wiring annually: Look for heat marks, looseness, or wear to prevent electrical issues.
• Maintain sleeve and wall sealing: Proper sealing improves efficiency and reduces outside air infiltration.
• Schedule yearly professional servicing: Helps maintain refrigerant efficiency, fan motor health, and long-term reliability.
