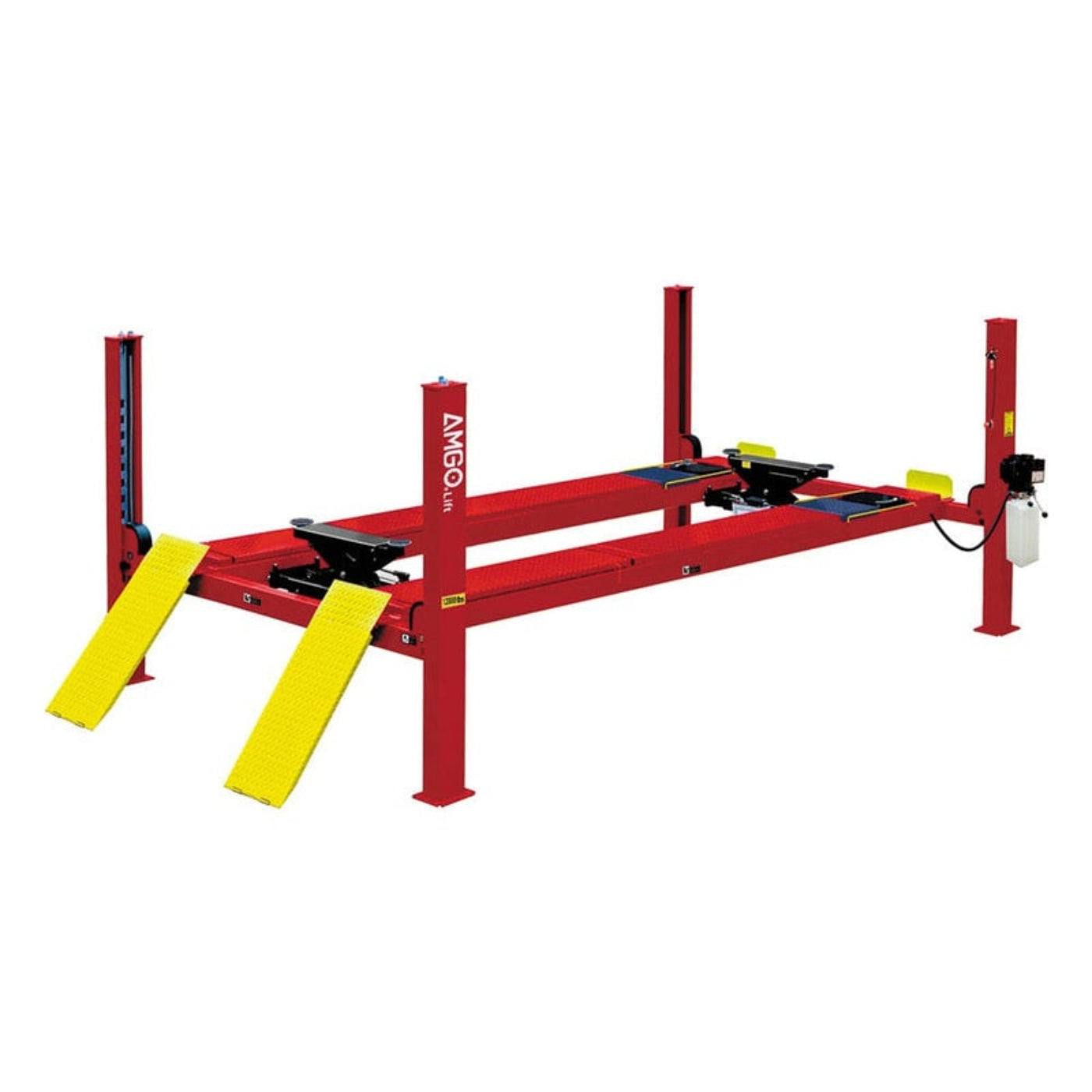

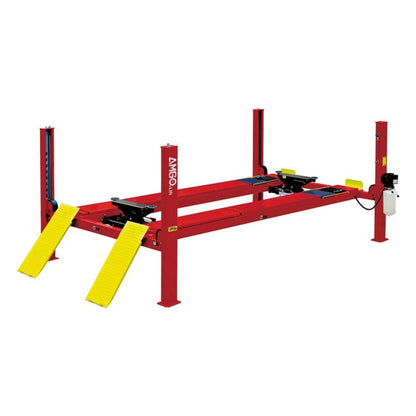

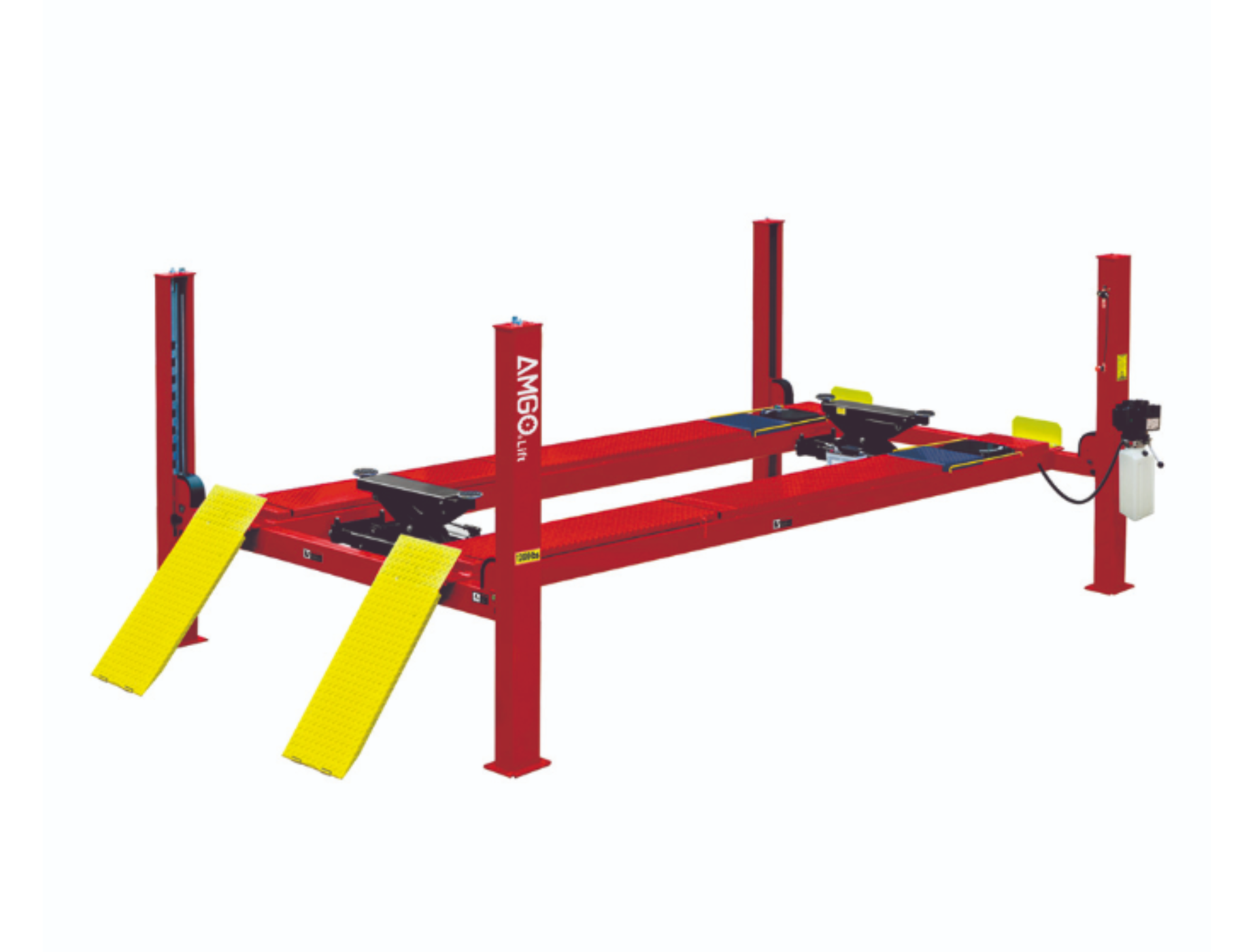

AMGO PRO-12A 12,000 lbs 4 Post Lift - PRO-12A

AMGO PRO-12A 12,000 lbs 4 Post Lift - PRO-12A

The AMGO PRO-12A retains all the features of the Pro-12 while enhancing its capabilities with integrated slip plates and adjustable turnplate pockets, making it ideal for wheel service and expanding your business offerings. With a lifting capacity of up to 12,000 lbs, the PRO-12A stands out as the perfect solution for efficiently handling your demanding daily service tasks.

Features

• 12,000 lbs lifting capacity.
• Air-released safety lock for convenient operation and reliability
• Mechanical self-lock and cable-breaking protection
• 1/2" Aircraft at Quality Cable
• Hydraulic cylinders are designed and made to high quality standards
• Skid proof diamond platform
• Adjustable lifting platform: Off-side platform can be adjusts the mounting position left or right as required. The standard distance between two platforms is 43 1/4(1100mm) and maximum distance is 51 1/8(1300mm).
• Five-year Warranty on Steel Components, Three-year Warranty on Hydraulic Parts and Two years on Electrical Components

• Meets or exceeds the standards prescribed by European Standard EN-1493

What our Experts Think

• A professional-grade alignment-focused 4-post lift. The AMGO PRO-12A is built for high-volume shops that need both heavy-duty lifting (12,000 lbs capacity) and precision wheel alignment capability in a single system.
• Designed for alignment and service versatility. Integrated slip plates and adjustable turnplate pockets allow accurate wheel alignment work while still supporting general repair, inspection, and storage tasks.
• Strong structural platform for daily shop use. Heavy-duty steel runways, aircraft-grade cables, and multi-point safety locks deliver stable performance under frequent lifting cycles.
• Efficient workflow for busy service bays. Fast lifting times (around 60–63 seconds) help reduce downtime and keep vehicles moving through alignment and repair stations.
• Flexible platform adjustments. Stepless width adjustment and configurable runway spacing allow the lift to accommodate a wide range of wheelbases and vehicle types.
• Built-in safety and reliability systems. Mechanical self-locking mechanisms with air-release controls and cable-slack protection enhance operational safety and long-term durability.
• Shop-ready upgrade path. Compatible with rolling jacks and optional alignment accessories, making it adaptable for expanding service capabilities over time.

Q&A

Q: What is the AMGO PRO-12A 4-Post Lift?
A: The AMGO PRO-12A is a 12,000 lb capacity four-post alignment lift designed for professional wheel alignment, general service, and high-volume automotive repair shops.

Q: What vehicles can the PRO-12A lift?
A: It supports most passenger cars, SUVs, pickup trucks, and light commercial vehicles up to 12,000 lbs, making it suitable for both service and alignment bays.

Q: What makes the AMGO PRO-12A different from the PRO-12?
A: The PRO-12A adds integrated slip plates and adjustable turnplate pockets for precision wheel alignment, expanding its capability beyond standard service lifting.

Q: What is the maximum lifting height of the PRO-12A?
A: It reaches approximately 76 inches of lifting height with strong runway clearance for comfortable under-vehicle access and alignment work.

Q: What safety features does the PRO-12A include?
A: It includes multiple mechanical safety locks, air-released lock mechanisms, cable-slack protection, and aircraft-grade hydraulic and cable systems for secure operation.

Q: Why choose the AMGO PRO-12A?
A: It combines heavy-duty 12,000 lb capacity, alignment-ready features, and durable commercial-grade construction, making it ideal for busy workshops that need both service and precision alignment capability.
