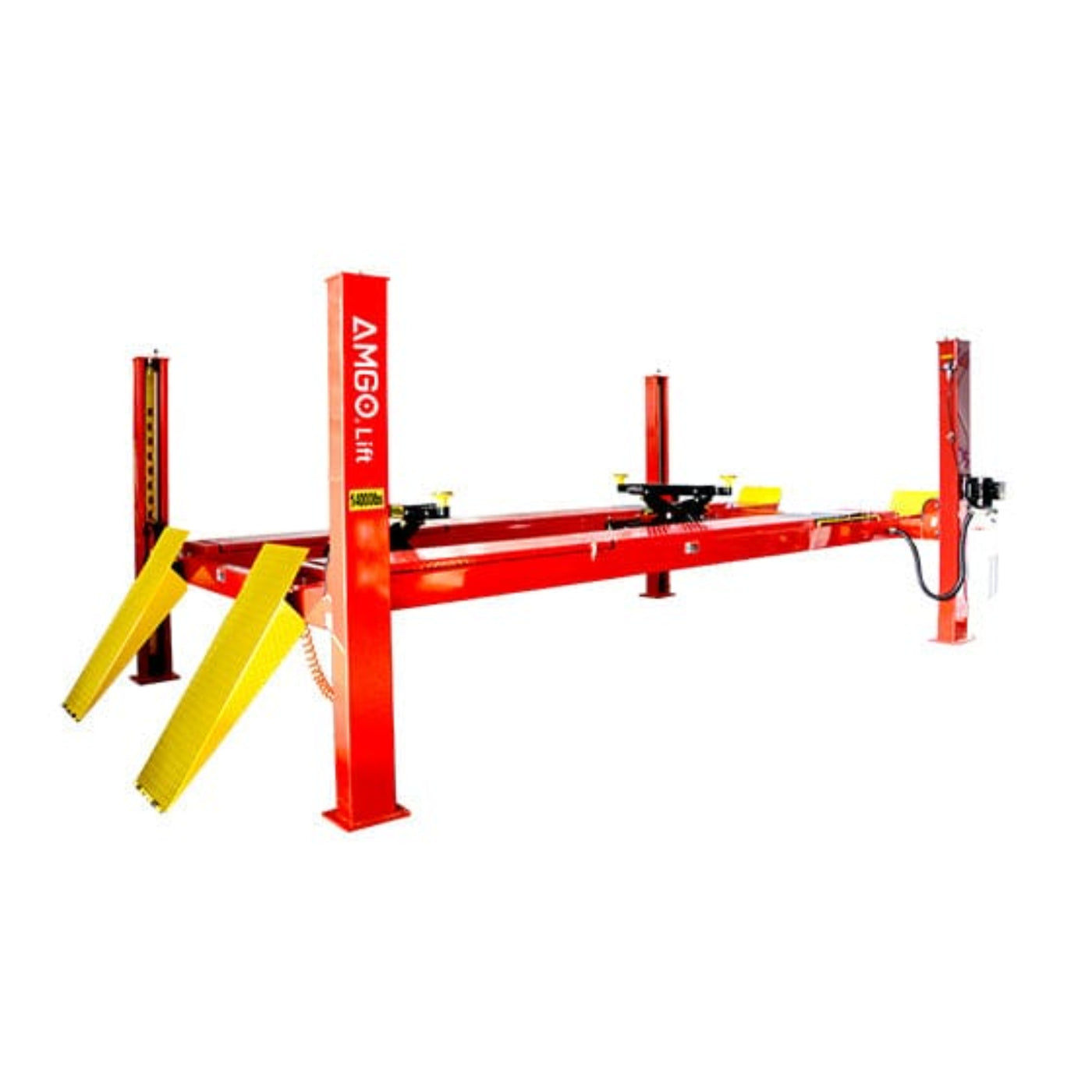

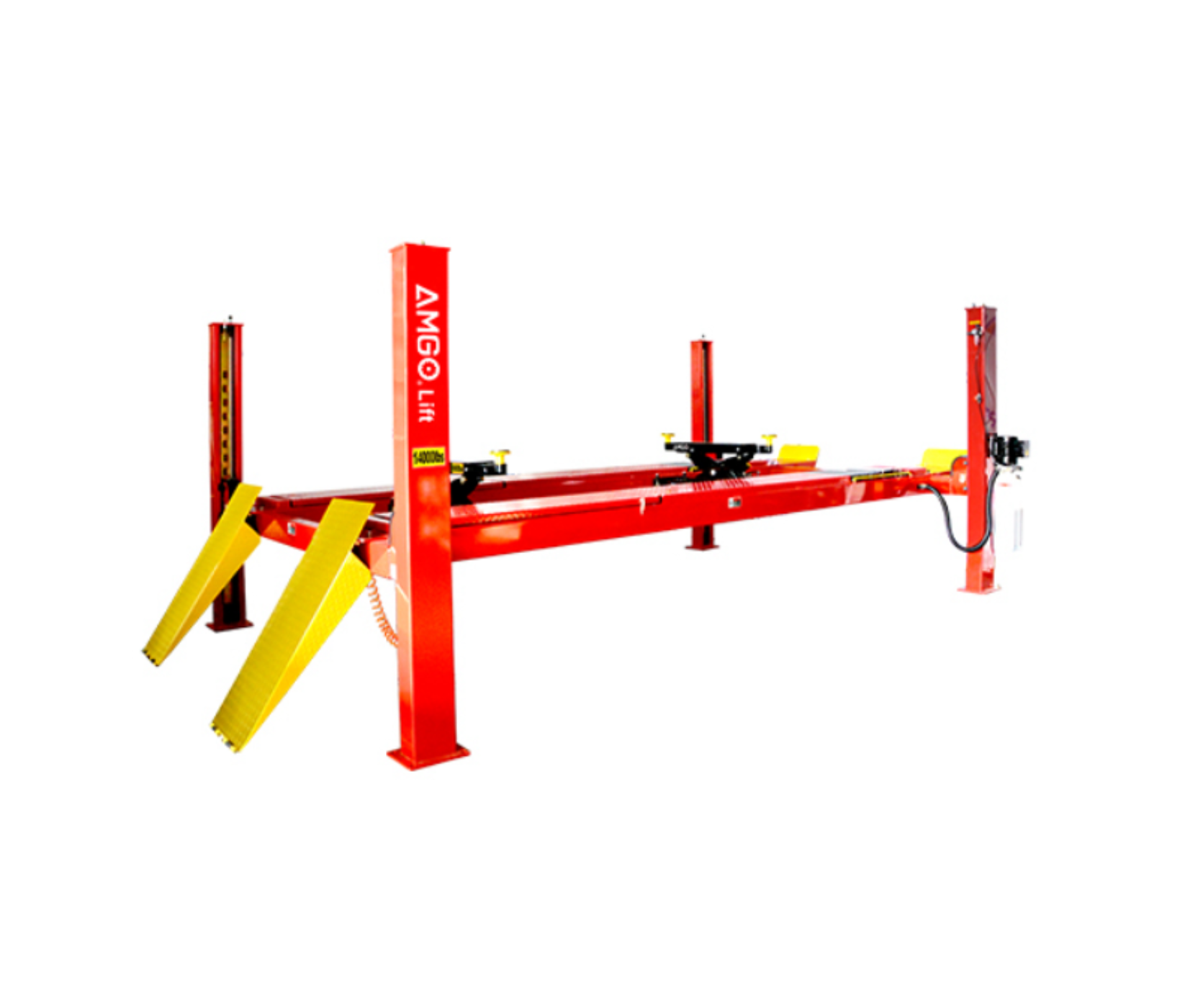

AMGO PRO-14A 14,000 lbs 4 Post Alignment Lift - PRO-14A

AMGO PRO-14A 14,000 lbs 4 Post Alignment Lift - PRO-14A

The PRO-14A retains all the functionalities of the PRO-14 but includes added features such as slip plates and turnplate pockets, making it ideal for wheel alignment services. This commercial-grade lift is equipped with extended runways and a stepless adjustable width, ensuring compatibility with a variety of wheelbases and wheel tracks. Let me know if you need further adjustments!

 Features

• 14,000 lbs capacity
• Air-released safety lock for convenient operation and reliability
• Mechanical self-lock and cable-breaking protection
• 1/2" Aircraft at Quality Cable
• Hydraulic cylinders are designed and made to high quality standards
• Skid proof diamond platform
• Adjustable lifting platform: Off-side platform can be adjusts the mounting position left or right as required. The standard distance between two platforms is 47(1194mm) and maximum distance is 54 1/2(1385mm).
• Five-year Warranty on Steel Components, Three-year Warranty on Hydraulic Parts and Two years on Electrical Components


Specifications

Images

Download

AMGO PRO-14A 14,000 lbs 4 Post Alignment Lift Manual

What our Experts Think

• 7,000 lbs Capacity
  Perfect for servicing cars, SUVs, and light trucks.

• Compact Design
  Saves space, making it ideal for smaller garages or areas with limited room.

• Portable
  Easy to move with a built-in pallet jack-style base.

• Adjustable Lifting Arms
  Accommodates different vehicle sizes for greater flexibility.

• Dual Safety Locks
  Provides secure lifting with both mechanical and hydraulic locks.

• Heavy-Duty Capacity: Lifts up to 14,000 lbs, perfect for a wide range of vehicles including trucks, SUVs, and commercial vehicles.

• Alignment Ready: Designed with slip plates and turnplate pockets, ideal for performing wheel alignment services.

• Adjustable Width: Features stepless adjustable width to accommodate various wheelbases and wheel tracks.

Q&A

Q: What is the lifting capacity of the AMGO PRO-14A?
A: The AMGO PRO-14A has a lifting capacity of 14,000 lbs, making it suitable for a wide range of vehicles, including cars, trucks, and SUVs.

Q: What are the overall dimensions of the AMGO PRO-14A?
A: The overall length is 257 inches (including ramps) and 216-1/2 inches (without ramps). The overall width is 130-7/8 inches, and the width between columns is 116 inches.

Q: What is the lifting height of the AMGO PRO-14A?
A: The maximum lifting height is 77-3/16 inches, with a minimum height of 9-7/8 inches.

Q: What type of safety does the AMGO PRO-14A include?
A: The AMGO PRO-14A is equipped with a mechanical self-locking safety device and an air-driven lock release for convenient operation.

Q: What is the power requirement for the AMGO PRO-14A?
A: The AMGO PRO-14A operates with a 2.0 HP motor on a 220V, 60Hz, single-phase power supply.

Q: What are the runway dimensions of the AMGO PRO-14A?
A: The runway width is 20 inches, and the drive-thru clearance is 102-1/8 inches.

Q: Is the AMGO PRO-14A suitable for alignment services?
A: Yes, the AMGO PRO-14A is designed for alignment services, featuring slip plates and turnplate pockets for wheel alignment tasks.

Maintenance Tips

• Re-torque Anchor Bolts: Tighten to 150 N·m to ensure secure installation.

• Inspect Components: Check all connectors, bolts, and pins for proper mounting.

• Lubricate Cables: Apply appropriate lubricant to cables for smooth operation.

• Check Hydraulic System: Inspect hydraulic hoses and lines for wear or leakage.

• Test Safety Devices: Ensure all safety mechanisms are functioning correctly.

• Lubricate Rollers and Pins: Use 90-weight gear oil or equivalent.
