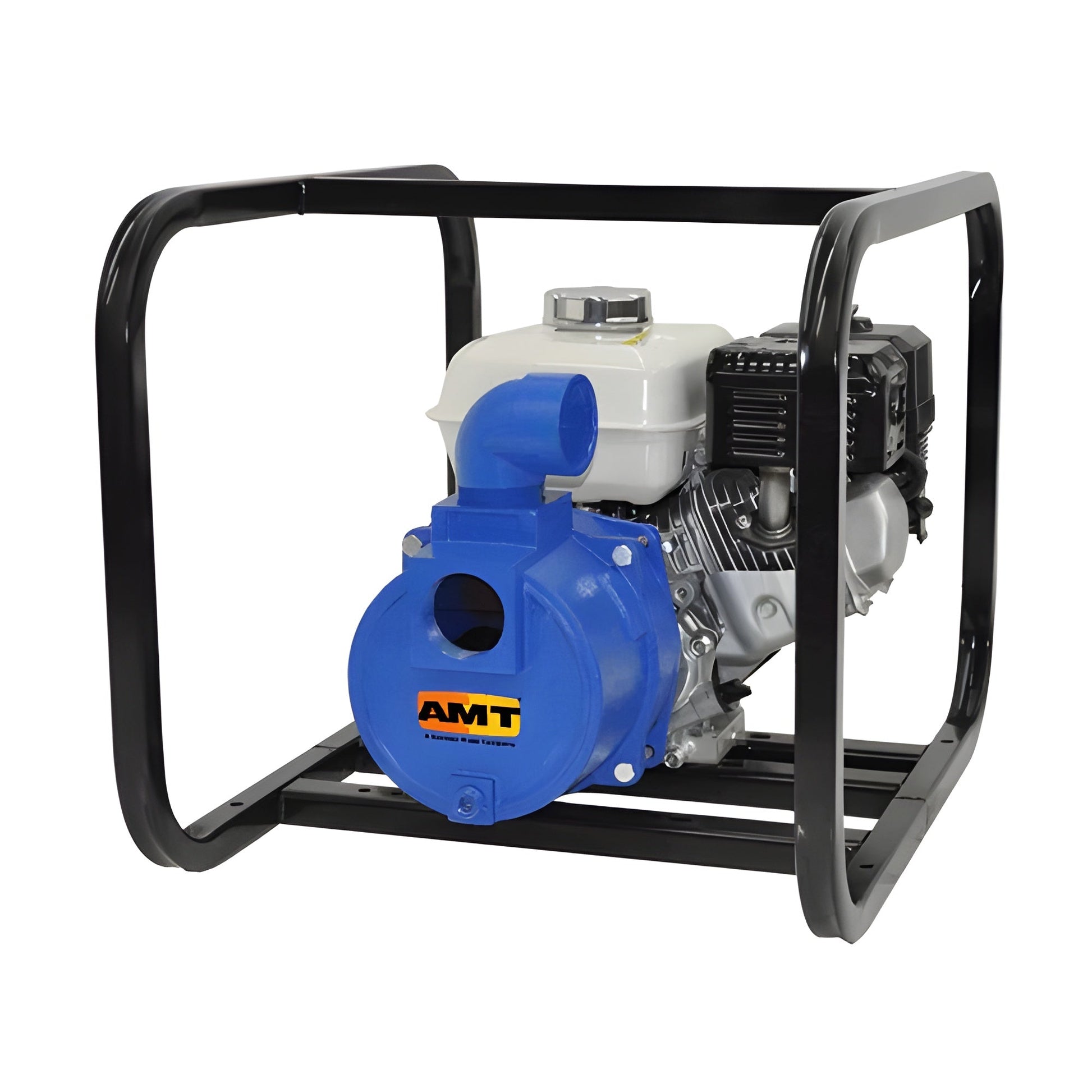

AMT 2" NPT Dredging Pump, 173 GPM, 5HP Honda GX160, 75 PSI, Viton S/C Seal - 316F-95
The AMT 2" NPT Dredging Pump 316F-95 is an engine driven pump able to move sea water and fresh water containing up to 25% sand, debris and other abrasive particles. Constructed from high chromium stainless steel internal components.
- High chromium stainless steel internal components
- Resists wear from sea water mixed with abrasive sand
- Move liquids containing up to 25% solids
- Silicon carbide mechanical seal extends seal life
- Heavy Duty Cast Iron Casing and Adapter
- Honda gasoline engine
- Self-primes to 10 ft in 1 minute with maximum suction lift of 20 ft
Specifications
SKU
|
316F-95
|
| MFR. MODEL NUMBER |
316F-95 |
| PUMPING CAPACITY |
173 GPM |
| MAX GPH |
10380 |
| MAX TDH |
101 Ft |
| SELF-PRIMING |
10' in 1 minute with max suction lift of 20' |
| ENGINE TYPE |
Honda GX160 |
| FUEL |
Gas |
| HP |
5 |
| PUMP TYPE |
Sea Water-Sand-Slurry-Water-Dredging |
| CONSTRUCTION |
Cast Iron Casing /Stainless Steel Internals |
| DISCHARGE |
2” NPT |
| SUCTION |
2" NPT |
| FLUID MIX |
Up to 25% solids |
| MAX SOLIDS |
1/2" |
| SHAFT SEAL MATERIAL |
Viton /Silicon Carbide |
| WEIGHT |
90 lbs |
| LENGTH |
25" |
| WIDTH |
19.2" |
| HEIGHT |
18.6" |
| MAXIMUM DISCHARGE PRESSURE |
44 PSI |
| MAXIMUM WORKING PRESSURE |
75 PSI |
| WARRANTY |
12 Months |
| SPECS SHEET |
316F-95 Specs Sheet
|
| OWNER'S MANUAL & PARTS SHEET |
316F-95 Owner's Manual & Parts Sheet |
What Our Experts Think
-
High-Performance Dredging Pump – Designed for demanding applications requiring high flow and pressure.
-
Powerful 5HP Honda GX160 Engine – Reliable, fuel-efficient, and built for long-lasting operation.
-
Impressive 173 GPM Flow Rate – Moves large volumes of water efficiently for dredging, dewatering, and slurry transfer.
-
75 PSI Maximum Pressure – Delivers strong performance for high-pressure applications.
-
Durable Viton S/C Seal – Provides superior chemical and heat resistance for extended service life.
-
2" NPT Suction & Discharge Ports – Standard connections for easy setup and compatibility with various hoses.
-
Heavy-Duty Construction – Corrosion-resistant materials ensure durability in tough environments.
-
Ideal for Dredging, Slurry Transfer & Industrial Use – Perfect for mining, construction, and wastewater management.
Q&A
Q: What is the AMT 2" NPT Dredging Pump 316F-95?
A: A high-performance 2" NPT dredging pump designed for moving water and sediment, powered by a 5HP Honda GX160 engine.
Q: What is the maximum flow rate?
A: It delivers up to 173 gallons per minute (GPM).
Q: What is the maximum pressure?
A: It operates at up to 75 PSI.
Q: What type of seal does it use?
A: It features a Viton S/C (silicon carbide) seal for superior chemical and wear resistance.
Q: What is this pump used for?
A: Ideal for dredging, dewatering, and handling abrasive materials in construction, mining, and industrial applications.
Q: Is it portable?
A: Yes, it is compact and gas-powered, making it easy to transport and operate in remote locations.
Q: Does it come with a suction hose?
A: Typically, hoses are sold separately—check with the manufacturer or retailer for included accessories.
Q: What fuel does the engine use?
A: It runs on gasoline, powered by a reliable 5HP Honda GX160 engine.
Q: Is there a warranty?
A: Yes, AMT and Honda typically provide limited warranties—refer to the manufacturer for details.
Maintenance Tips
-
Flush After Use: Run clean water through the pump to remove debris and prevent clogs.
-
Inspect Hoses and Fittings: Check for leaks, cracks, or loose connections before and after each use.
-
Check Oil Levels: Maintain proper engine oil levels and change oil as recommended by the manufacturer.
-
Clean the Strainer: Remove debris from the intake strainer to maintain optimal flow.
-
Inspect Seals and Gaskets: Ensure seals are intact to prevent leaks and maintain efficiency.
-
Store Properly: Keep the pump in a dry, ventilated area when not in use to prevent rust and corrosion.
