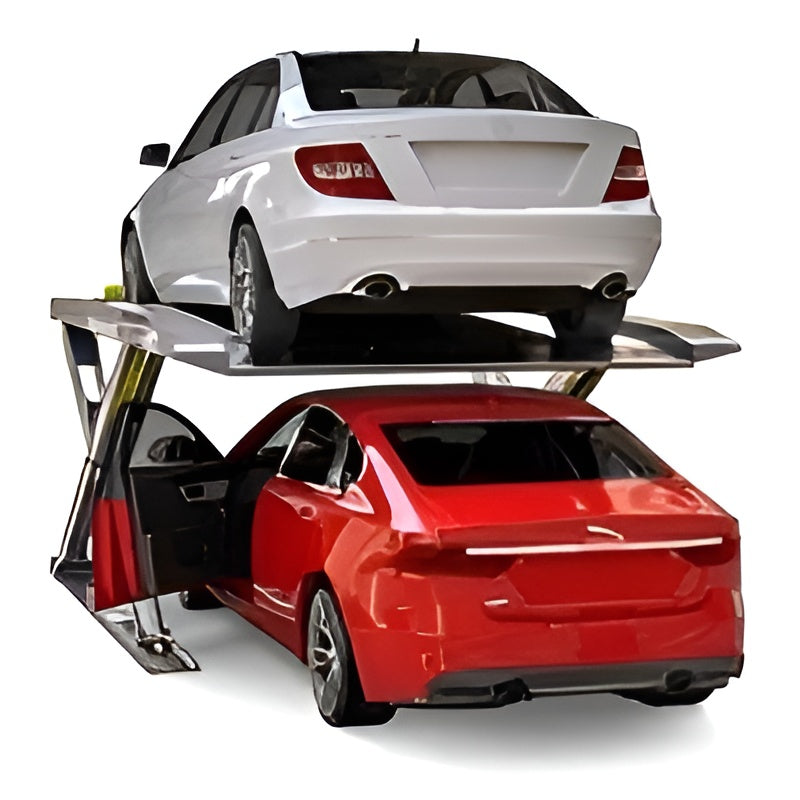

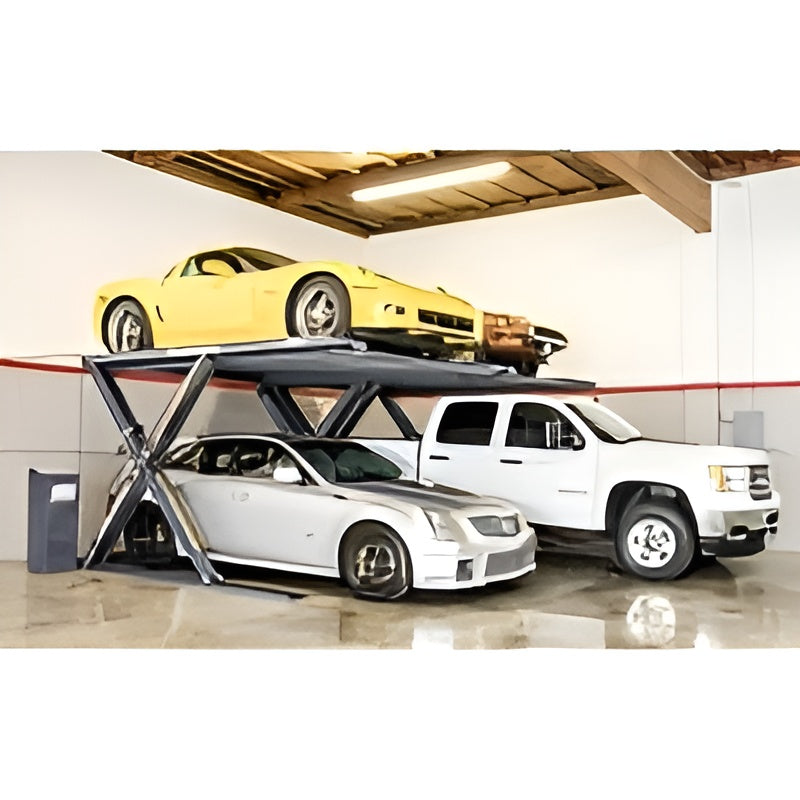

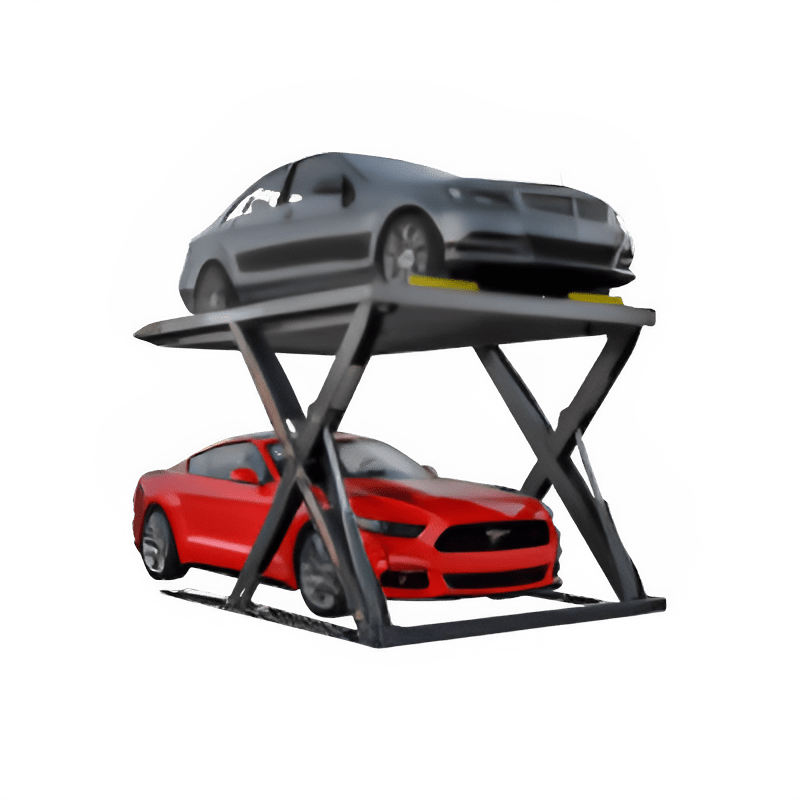

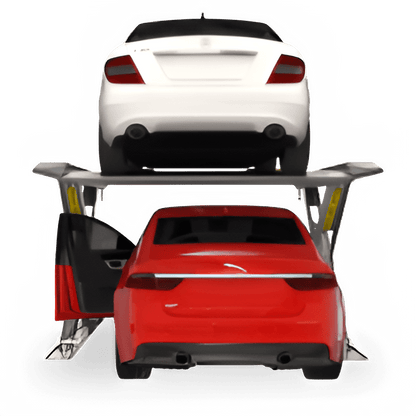

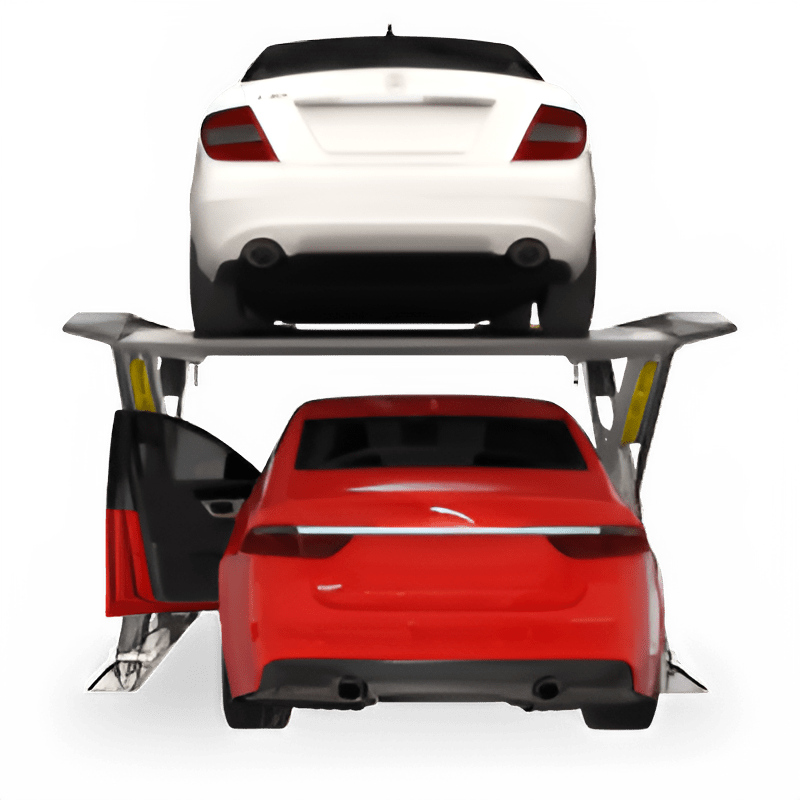

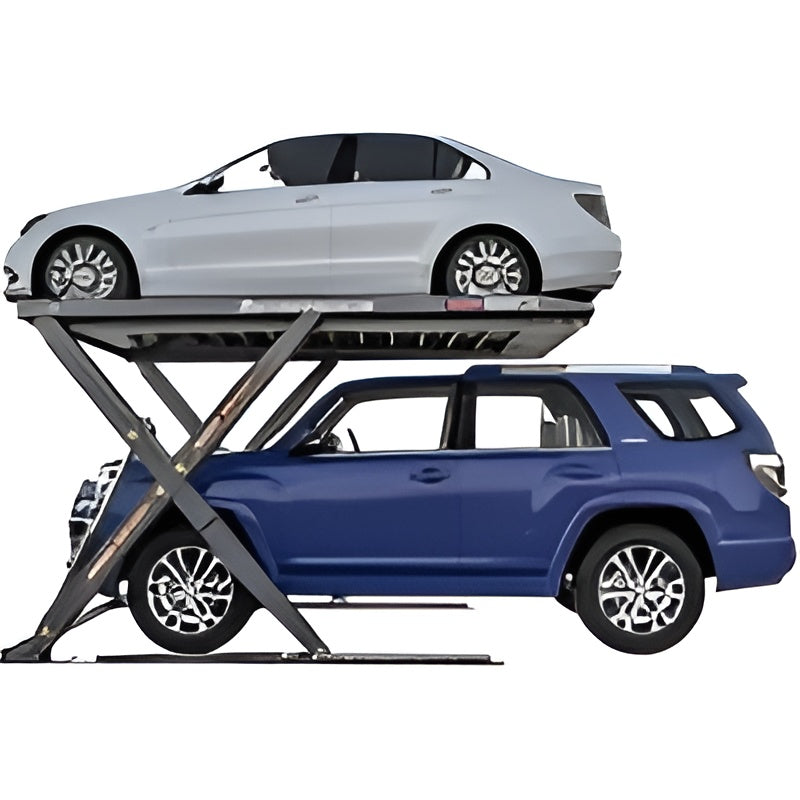

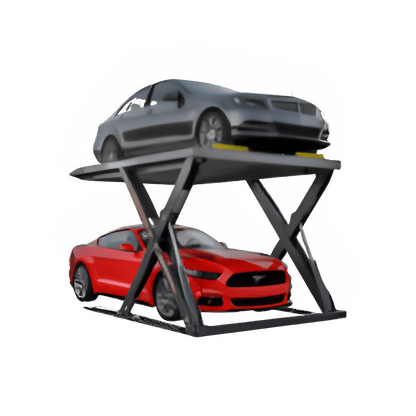

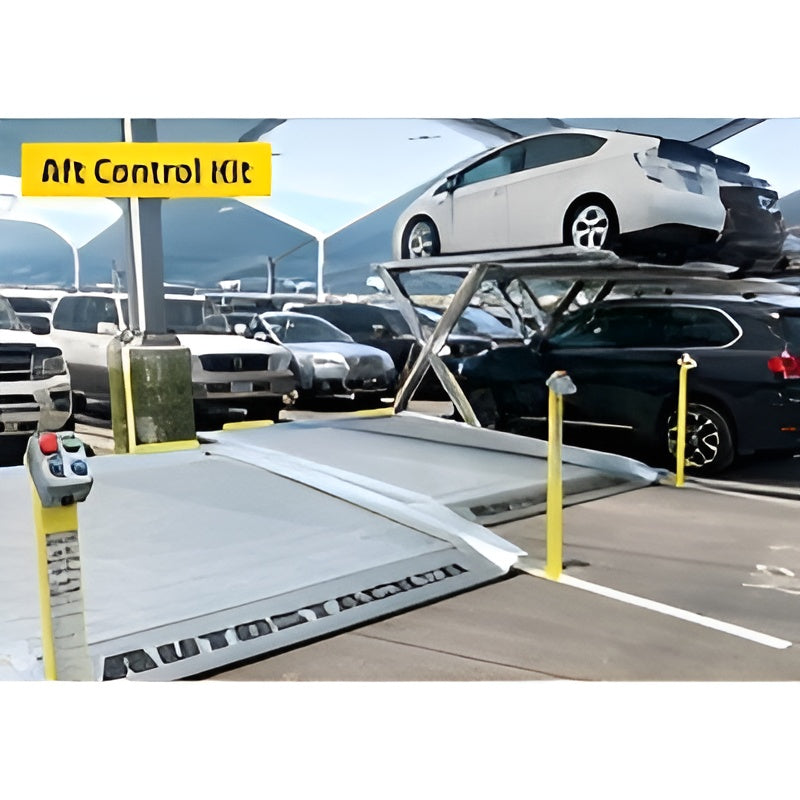

Autostacker A6W-OPT2-G 6,000 Lbs Fore Control Kit, WIDE Parking Lift (Galvanized) - 5175286

Features

• 6,000‐lb. lifting capacity

• Extra-wide construction for increased door clearance

• Key‐switch disconnect fully disables operation for enhanced security

• Audible alarm and warning buzzer alerts operator and bystanders when the lift is in operation

• Accommodates cars, light trucks and SUVs

• Rugged, welded‐steel construction is strong and durable

• 100% hot‐dipped, galvanized steel platform

• Attractive slate gray, baked‐on powder coat finish provides added toughness

• Front wheel dish acts as a wheel chock to prevent vehicles from rolling forward or backward

• Extra-wide, gradual sloping platform reduces entry ramp height

• Automatic safety locks engage at five different parking heights

• Simple push‐button controls

• Dual, direct‐drive hydraulic lifting cylinders

• Dependable hydraulic circuit that provides precise, equalized lifting

• Variable height parking accommodates a wide range of vehicle and ceiling heights

• Contoured scissor legs provide rigidity, decreased deflection and a low collapsed height

• Full‐width, straight‐through axles increase overall stability and tracking through the vertical travel range

• Full‐width pivot pins promote straighter tracking of the scissor legs throughout travel—vital for eccentric loads

• Extra‐wide, heavy‐duty steel scissor arms with cross member bracing enhance stability

• Unique clevis‐design scissor ends lower stress and increase rigidity by distributing loads symmetrically over the pins

• Patented asymmetric scissor arms provide greater underside door clearance

• Patented Door‐sentry car door protectors are made from energy‐absorbing rubber to protect against accidental scratches or door dings

• Space‐saving design is perfect for commercial or residential applications

• Hydraulic safety valves (velocity fuses) prevent sudden, unexpected platform collapse in the unlikely event of hydraulic system failure

• UL Listed electrical components meet National Electrical Code (NEC) requirements

Specifications

Autostacker Locking Heights

Automatic locks are essential to safety. This goes for any car lift type, but new challenges are presented by Autostacker’s fully collapsible frame. We devised five lock stops, placed along the base of each side of the lift. As the scissor arms rise, a lock mechanism glides over the stops. Simply descend the lift until both traveling locks (one on each arm) simultaneously engage the desired lock stop.

• 1st Locking Position: 51.75" (1,314 mm)
• 2nd Locking Position: 59.75" (1,518 mm)
• 3rd Locking Position: 65.5" (1,673 mm)
• 4th Locking Position: 71.25" (1,809 mm)
• 5th Locking Position: 76.25" (1,936 mm)
• 6th Locking Position: 76.25" (2,057 mm)

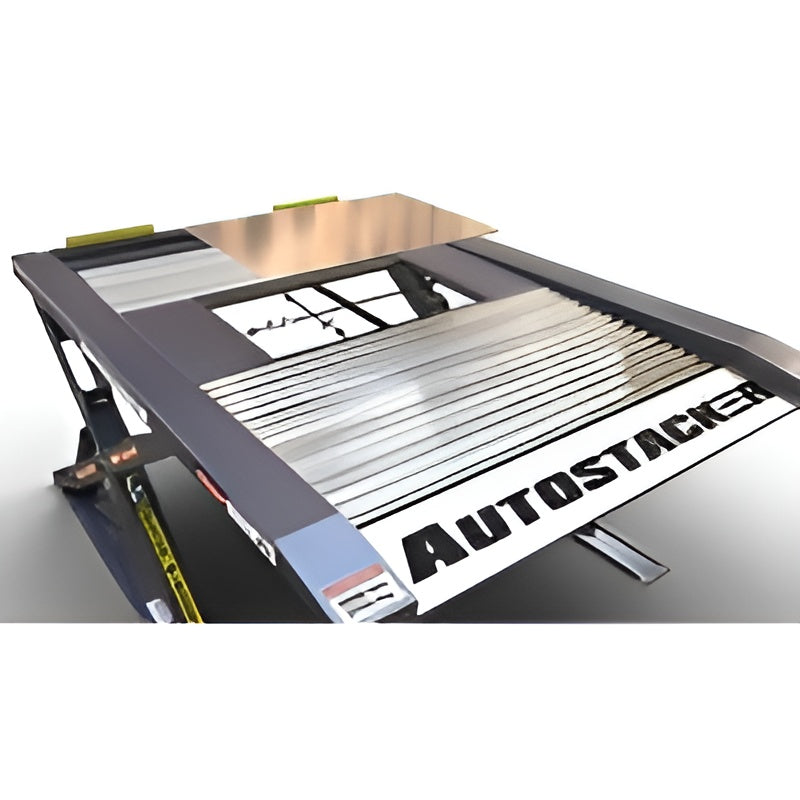

5260592 A6W Ex-Wide Scissors Parking Lift Platfo

• Right side scissors superstructure
• Left side scissors superstructure
• Front wheel trough
• Ramp assembly with logo plate
• Lower front tie-bar
• Galvanized decking section
• Front tire stops
• Complete parts package including all fasteners, hoses, fittings & anchor bolts
• Installation and operators manual

5585042 Power Unit Consolerm

• Standard Power Unit Console - 208-240V / 50/60HZ, 1-Phase

Product Manual

 Manual

What Our Experts Think

The Autostacker A6W-OPT2-G 6,000 Lbs Fore Control Kit, WIDE Parking Lift (Galvanized) - 5175286 is a durable and space-efficient solution for larger vehicle storage. Here’s why it’s highly recommended:

• High Capacity: Lifts up to 6,000 lbs, making it perfect for larger vehicles like trucks, SUVs, and vans.
• Wide Platform: Designed to accommodate wider vehicles, providing more versatility in vehicle storage.
• Fore Control System: Equipped with a front-mounted control system for easy and convenient operation.
• Galvanized Finish: Corrosion-resistant galvanized coating ensures long-lasting durability, even in challenging conditions.
• Space-Saving Design: Maximizes garage or parking space by allowing vehicles to be stacked efficiently.
• Safety Features: Includes advanced safety mechanisms to ensure secure and smooth lifting and lowering of vehicles.
• Easy Installation: Comes with all the necessary components and clear instructions for quick and easy setup.

This wide-format parking lift is an excellent choice for those looking to store larger vehicles safely and efficiently, all while saving space in the garage or commercial setting.

Q&A

Q: What is the weight capacity of this parking lift?
A: The Autostacker A6W-OPT2-G has a 6,000 lbs weight capacity, making it suitable for most cars, trucks, SUVs, and other heavy vehicles.

Q: What is the benefit of the "wide" design?
A: The wide platform provides extra space, making it ideal for larger vehicles or allowing for easier access when working on vehicles.

Q: How is the lift controlled?
A: This lift features a fore control system, providing smooth and precise operation for safely lifting and lowering vehicles.

Q: Is this lift suitable for home garages?
A: Yes, this lift is designed for both residential and commercial use, making it a great option for home garages or professional workshops.

Q: What is the material of the lift?
A: The lift is made with a galvanized finish, offering excellent corrosion resistance and durability for long-lasting performance, even in harsh environments.

Q: Is installation easy?
A: The lift includes clear installation instructions; however, professional installation is recommended to ensure safety and optimal functionality.

Q: What types of vehicles can this lift accommodate?
A: The 6,000 lb capacity and wide platform make this lift suitable for a variety of vehicles, including larger cars, trucks, and SUVs.

Q: Does the lift require much maintenance?
A: The lift requires minimal maintenance, such as periodic inspections and lubrication for smooth operation.

Q: Is there a warranty on the lift?
A: Yes, it comes with a manufacturer’s warranty for peace of mind and reliable performance.

Maintenance Tips

• Inspect Components Regularly: Check the frame, lifting arms, cables, and control kit for signs of wear, corrosion, or damage.
• Lubricate Moving Parts: Grease all moving parts, such as joints, bearings, and lift arms, to ensure smooth operation and reduce friction.
• Monitor Hydraulic System: Ensure hydraulic fluid levels are optimal, and inspect hoses, cylinders, and valves for leaks or damage.
• Test Safety Features: Periodically test limit switches, emergency stop systems, and overload protection to ensure they are working properly.
• Clean the Lift: Remove debris, dirt, and dust to maintain performance and prevent blockages in moving parts.

Regular maintenance will ensure the safe and efficient operation of your parking lift and help extend its lifespan.
