Awoco RH-BQ-R 14-1/2”D Built-in/Insert Stainless Steel Range Hood, 4-Speed, 650 CFM, LED Lights, Baffle Filters for Wood Hood - RH-BQ-R30

Awoco RH-BQ-R 14-1/2”D Built-in/Insert Stainless Steel Range Hood, 4-Speed, 650 CFM, LED Lights, Baffle Filters for Wood Hood - RH-BQ-R30

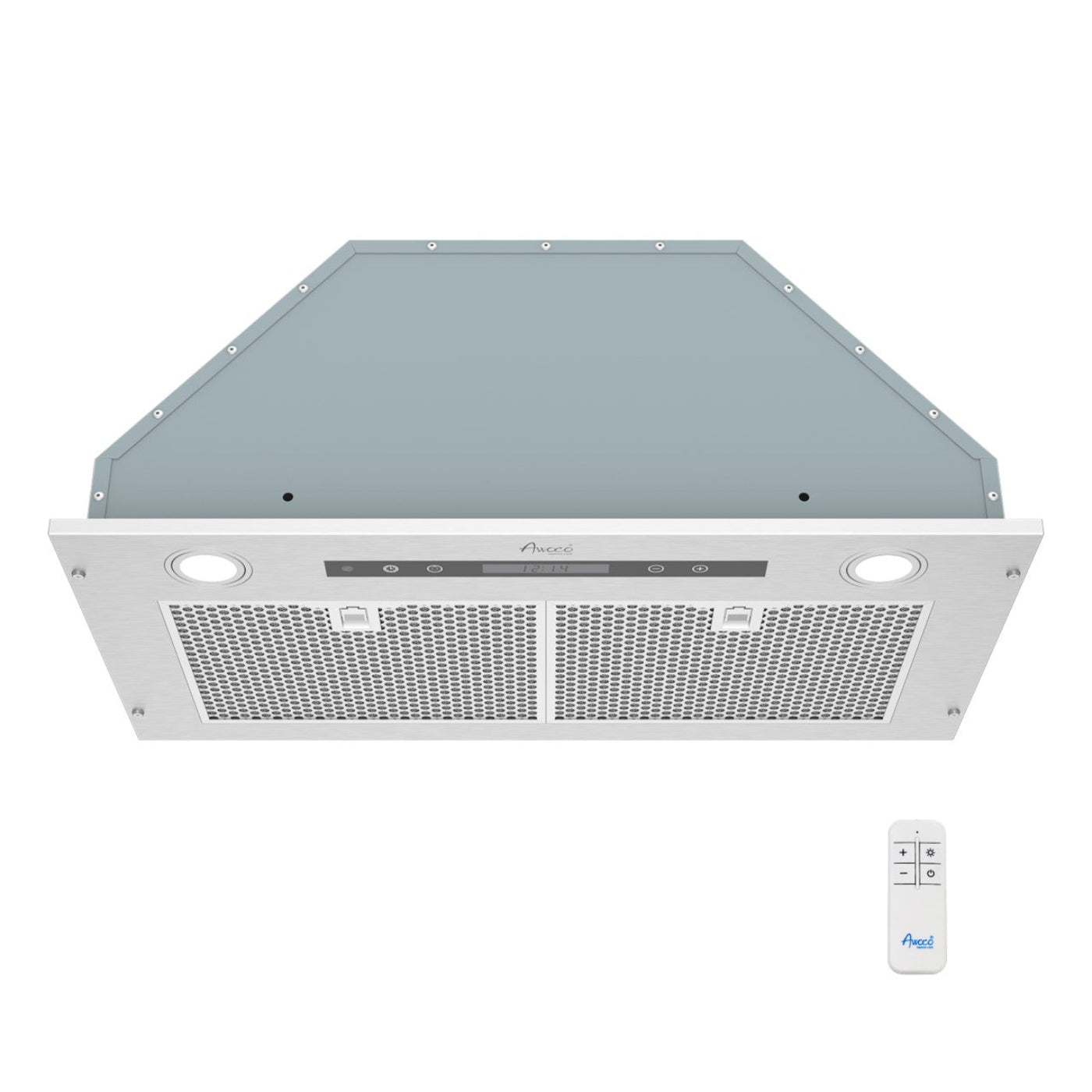

• BUILT-IN/ INSERT TYPE: Hood insert improves ventilation and lighting over your stove while providing a very strong performance. Built with high quality 1mm thick 18-gauge stainless steel with brush finishing. Perfect for 30” kitchen ranges that fits snug into wood hood.

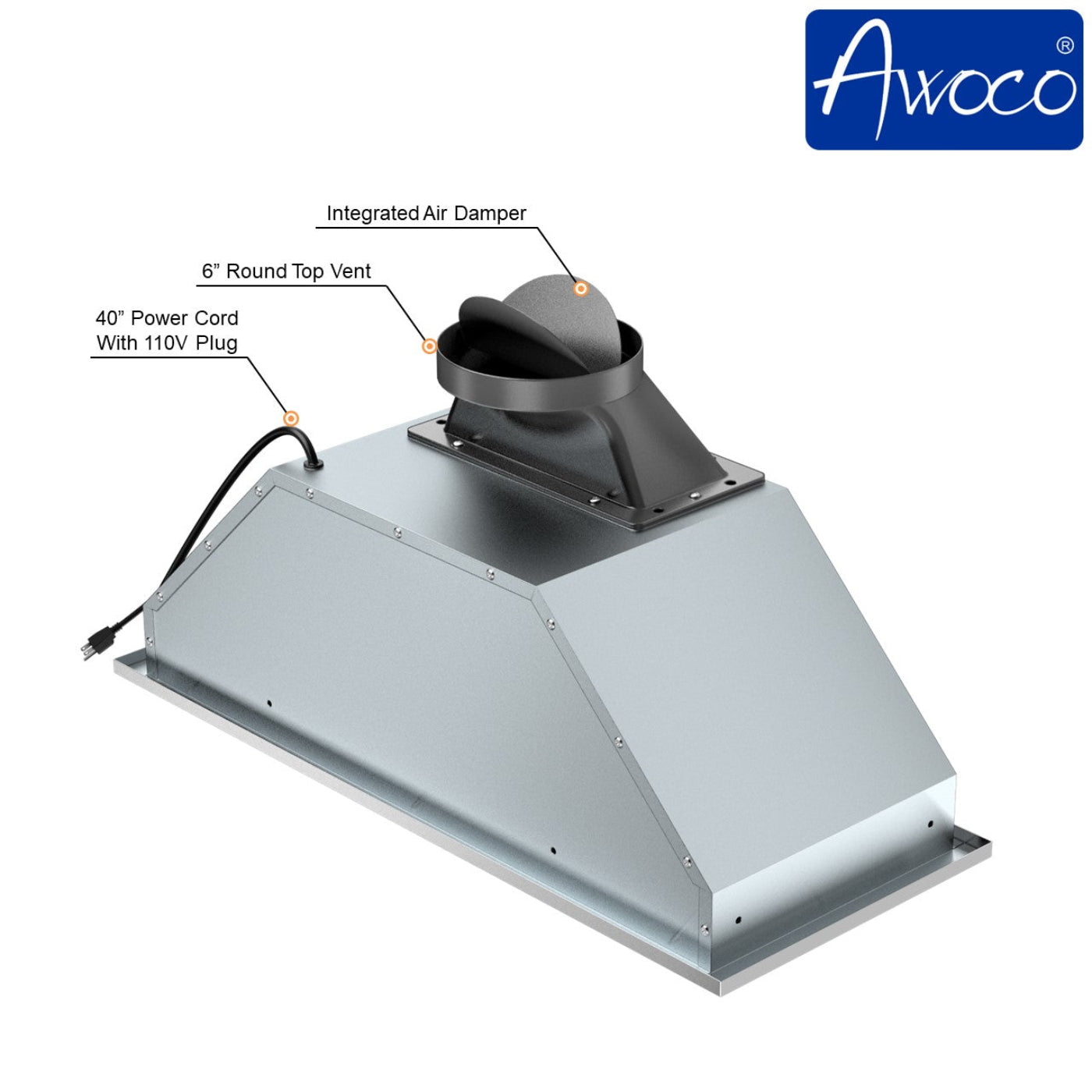

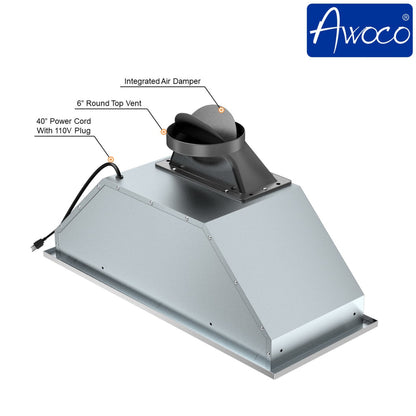

• DUCTED VENT OUTSIDE, 6” ROUND TOP VENT - 6” round top exhaust vent. Ducts are not included. Wood hood cut out hole size: 26-1/8" x 10-3/8". This is a ducted model, required vent on wall or roof designed for better performance.

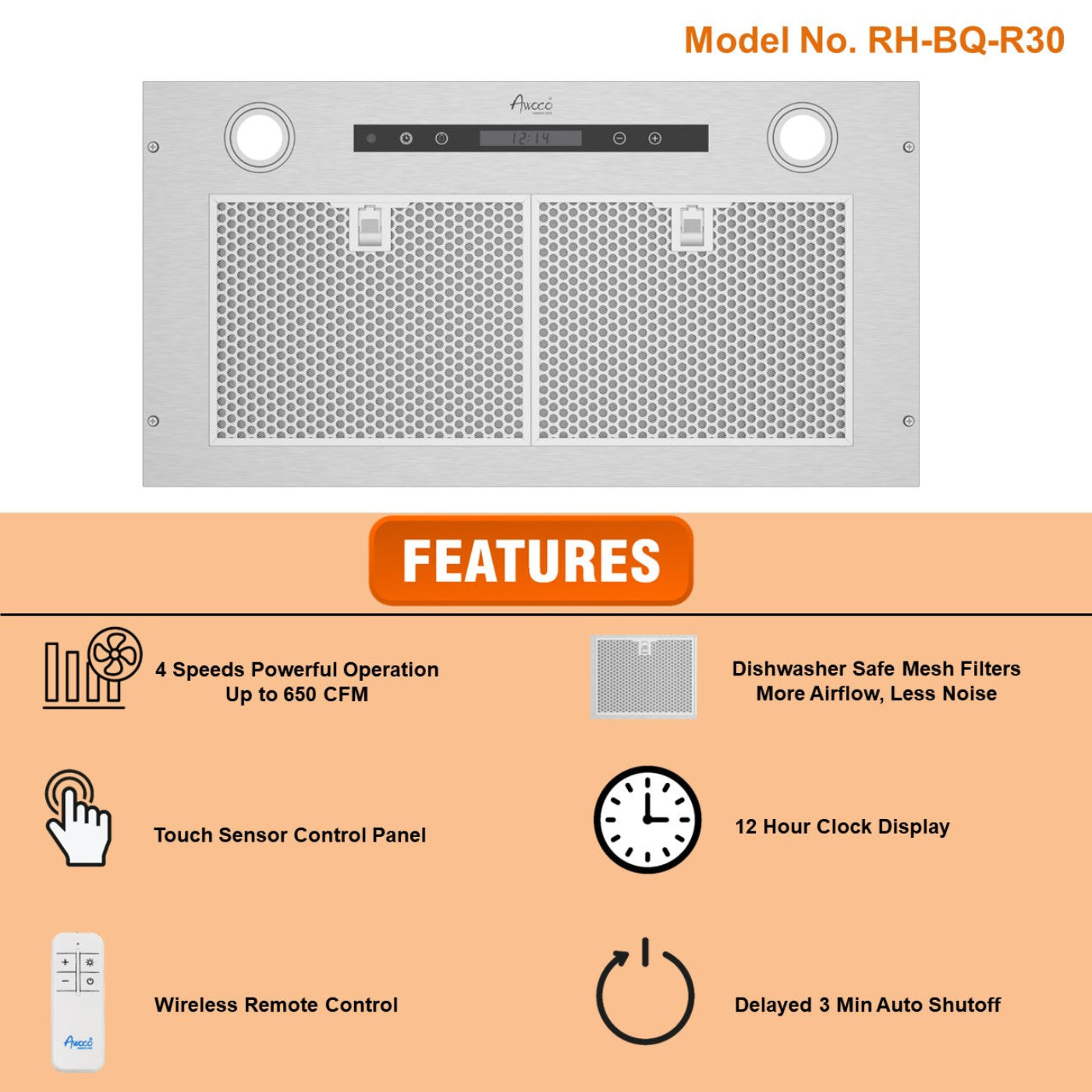

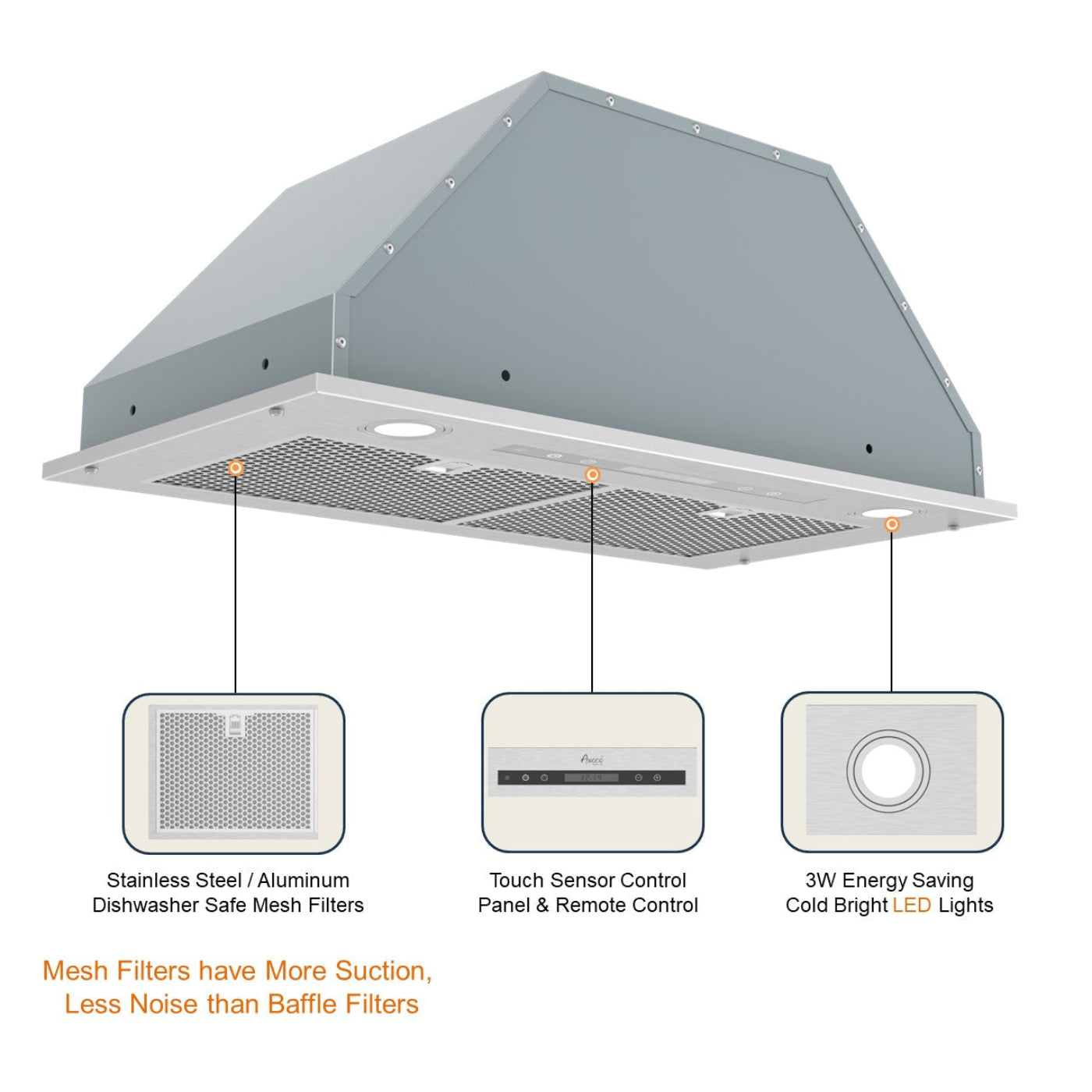

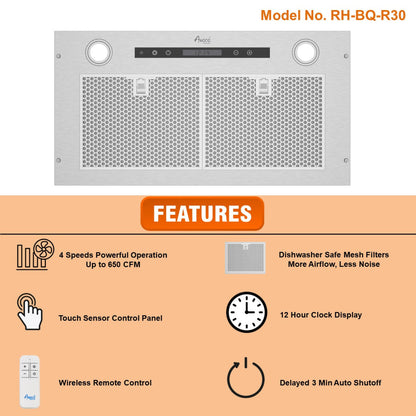

• 4 SPEEDS POWERFUL OPERATION WITH LED LIGHTS - 4 speeds (Q, I, II, III up to 650 CFM), touch sensor panel with wireless white plastic remote control. Comes with 2, 3W energy saving cold bright LED lights. Power rating: 120V/60Hz, 130W Max. Power cord with plug is included. Noise level at low: 38 dB, 2.0 sones. Noise level at high: 60 dB, 9.0 sones.

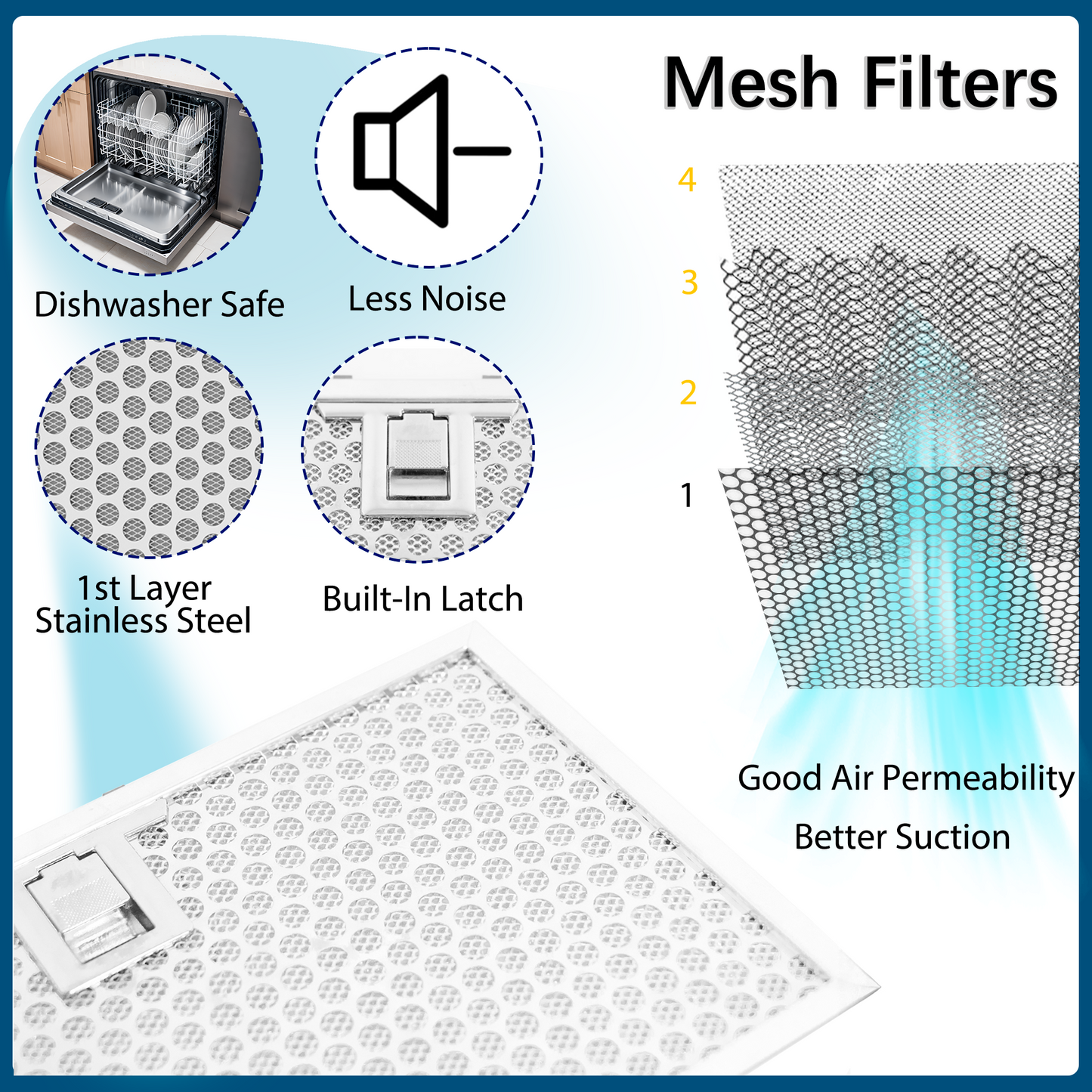

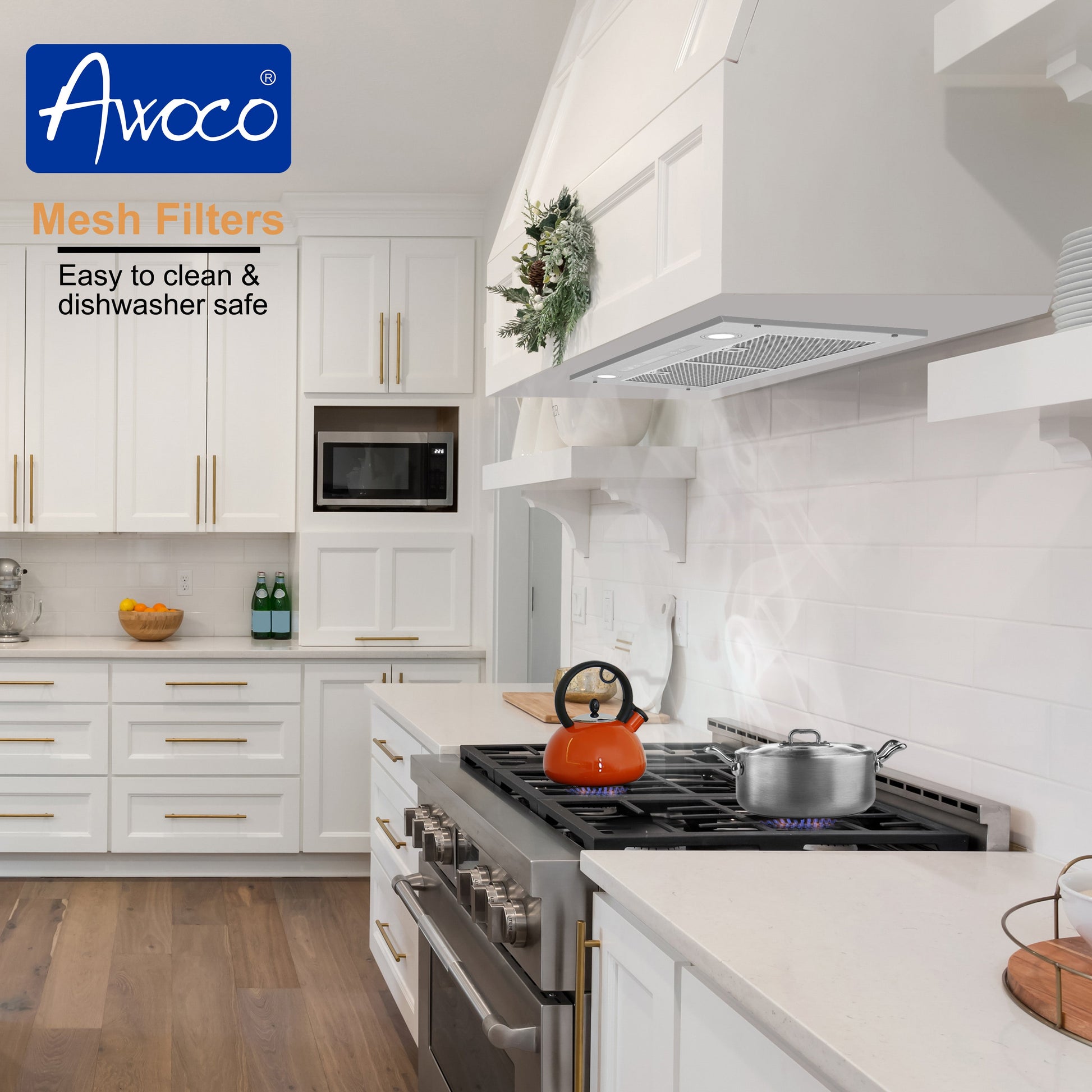

• DISHWASHER SAFE MESH FILTERS - 4 layers dishwasher safe commercial style stainless steel/aluminum mesh filters with built-in latch. Stainless steel for the 1st layer and aluminum for the remaining 3 layers, which provide good air permeability, better suction, and less noise compared to baffle filters. The oil is contained in the mesh filters; no oil holders are needed.
• 2 YEARS USA LIMITED PARTS WARRANTY - ETL Certified. Free parts, repair or exchange within 2 years. Awoco high quality product reputation and supreme customer service is a guarantee.

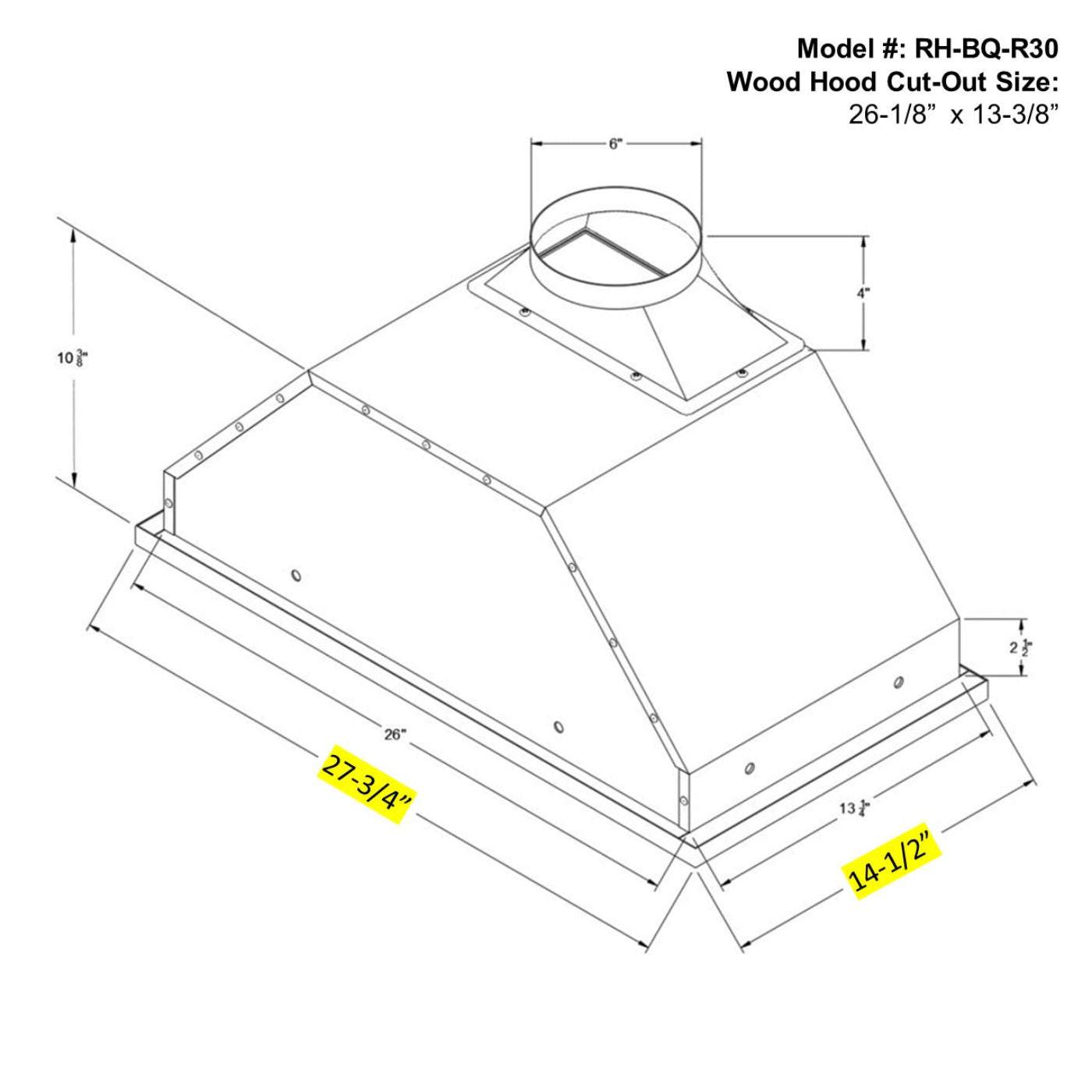

• 30" Hood Dimensions: 27-3/4"W x 14-1/2"D x 10-7/8"H. Hood weight: 26 lbs.

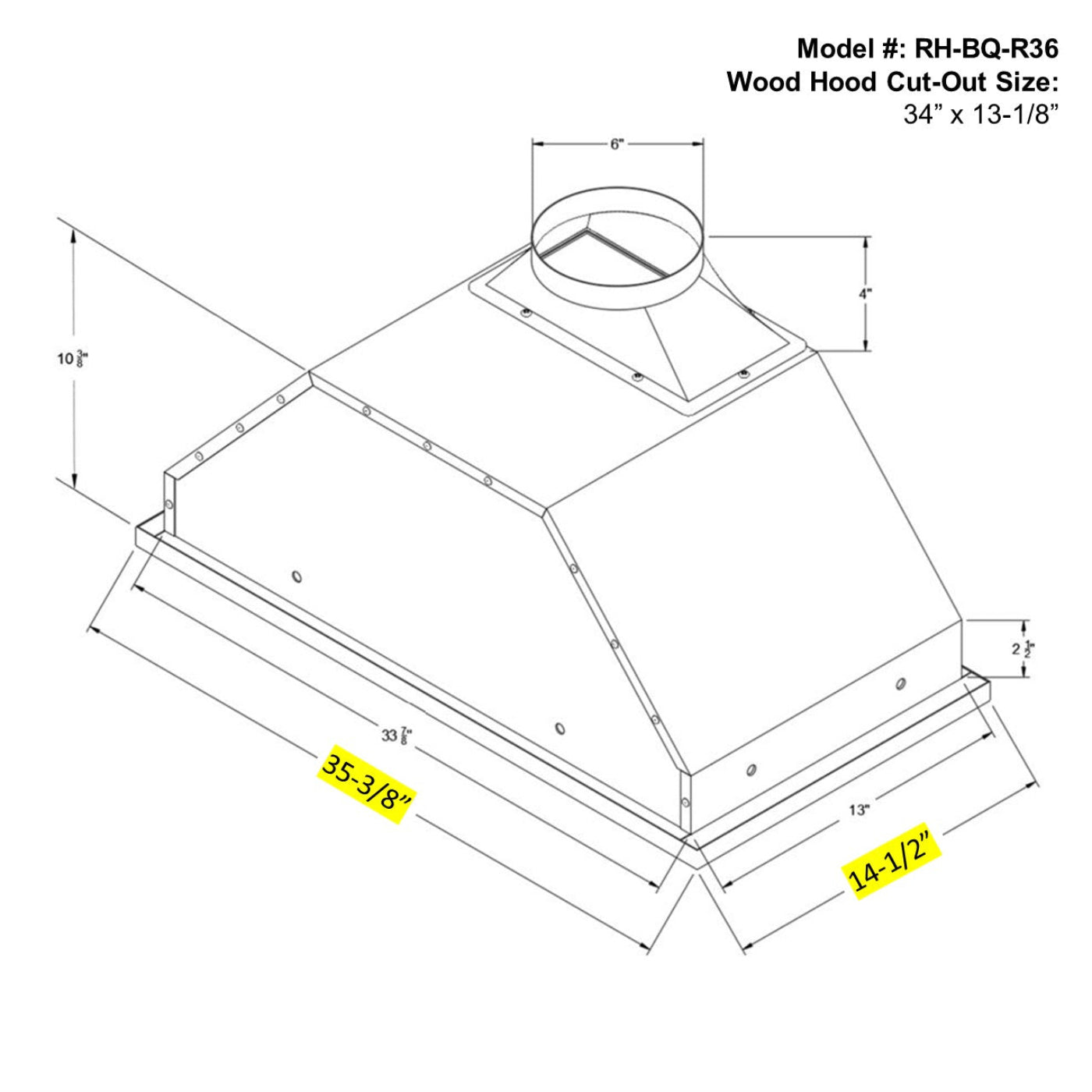

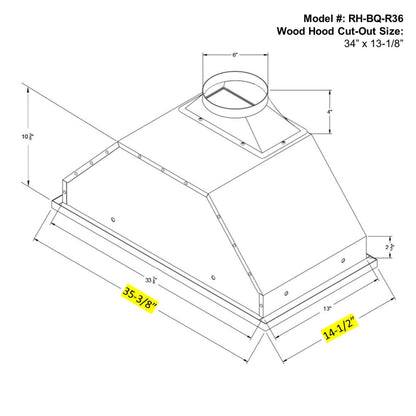

• 36" Hood Dimensions: 35-3/8"W x 14-1/2"D x 10-7/8"H. Hood weight: 29 lbs.

VIEW / DOWNLOAD

AWOCO 101 VIDEOS

• Powerful Ventilation – 650 CFM, 4-speed fan efficiently clears smoke, grease, and odors.
• Compact 14.5” Depth – Designed for custom wood hoods, offering a seamless built-in look.
• Durable Stainless Steel Construction – Sleek, modern, and resistant to stains and corrosion.
• Bright LED Lighting – Enhances cooktop visibility with energy-efficient illumination.
• Dishwasher-Safe Baffle Filters – Effectively traps grease for easy maintenance.
• Quiet Yet Strong Performance – High airflow with minimal noise levels for a better cooking experience.

Q: What is the Awoco RH-BQ-R30 Range Hood?
A: A 30-inch built-in/insert stainless steel range hood with a 14.5-inch depth, 650 CFM airflow, and 4-speed settings, designed for seamless installation inside a custom wood hood.

Q: How powerful is the ventilation?
A: The 650 CFM motor effectively removes smoke, grease, and odors, making it ideal for residential kitchens.

Q: What type of filters does it use?
A: It includes stainless steel baffle filters, which are dishwasher-safe for easy cleaning and long-term durability.

Q: Does it have lighting?
A: Yes, it features energy-efficient LED lights to illuminate the cooking area.

Q: What vent size does it require?
A: It uses a 6-inch round top vent for efficient air extraction.

Q: How is it controlled?
A: The range hood has push-button controls with 4 fan speed settings for customized ventilation.

Q: Is it suitable for custom wood hoods?
A: Yes, it is specifically designed for installation inside a custom-built wood hood or cabinetry.

Q: What material is it made of?
A: Constructed from high-quality stainless steel, ensuring durability and a sleek, modern appearance.

Q: Is installation hardware included?
A: Yes, all necessary mounting hardware is included for an easy setup.

• Clean Baffle Filters Regularly – Wash every 3–4 weeks with warm soapy water or place in the dishwasher to maintain suction power.
• Wipe Stainless Steel Exterior – Use a microfiber cloth and stainless steel cleaner to prevent grease stains and fingerprints.
• Inspect & Clean Blower Fan – Check every 2–3 months for grease buildup to ensure efficient airflow.
• Check & Replace LED Lights – Replace with compatible LEDs if lights flicker or dim.
• Keep Venting System Clear – Ensure ducts are free of blockages for optimal smoke and odor removal.
• Use Proper Speed Settings – Lower speeds for light cooking, higher speeds for heavy smoke and grease.
• Run Hood After Cooking – Let it run for 5–10 minutes post-cooking to eliminate lingering odors and moisture.
