Baumalight 1P24 Stump Grinder For Tractors -BML-1P24

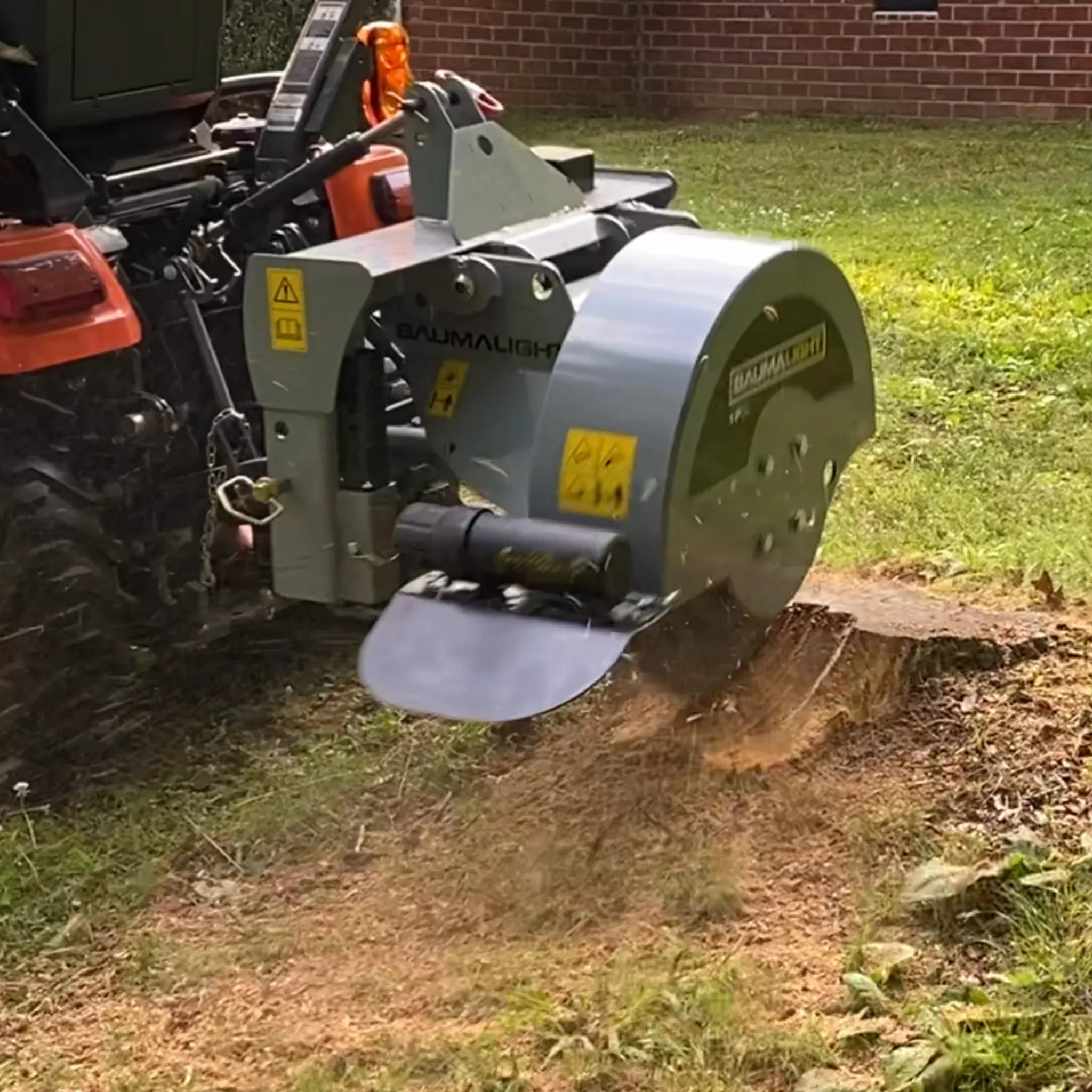

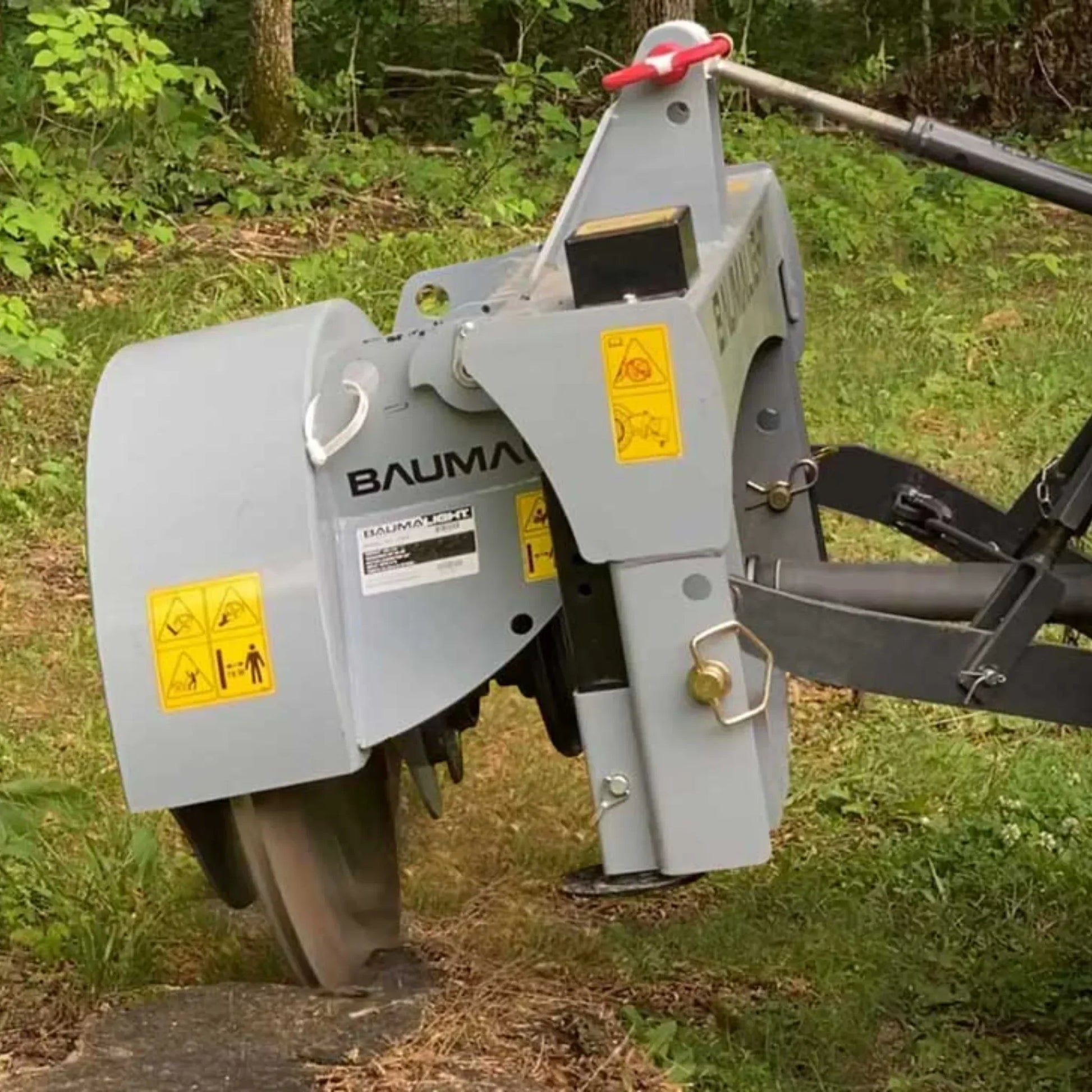

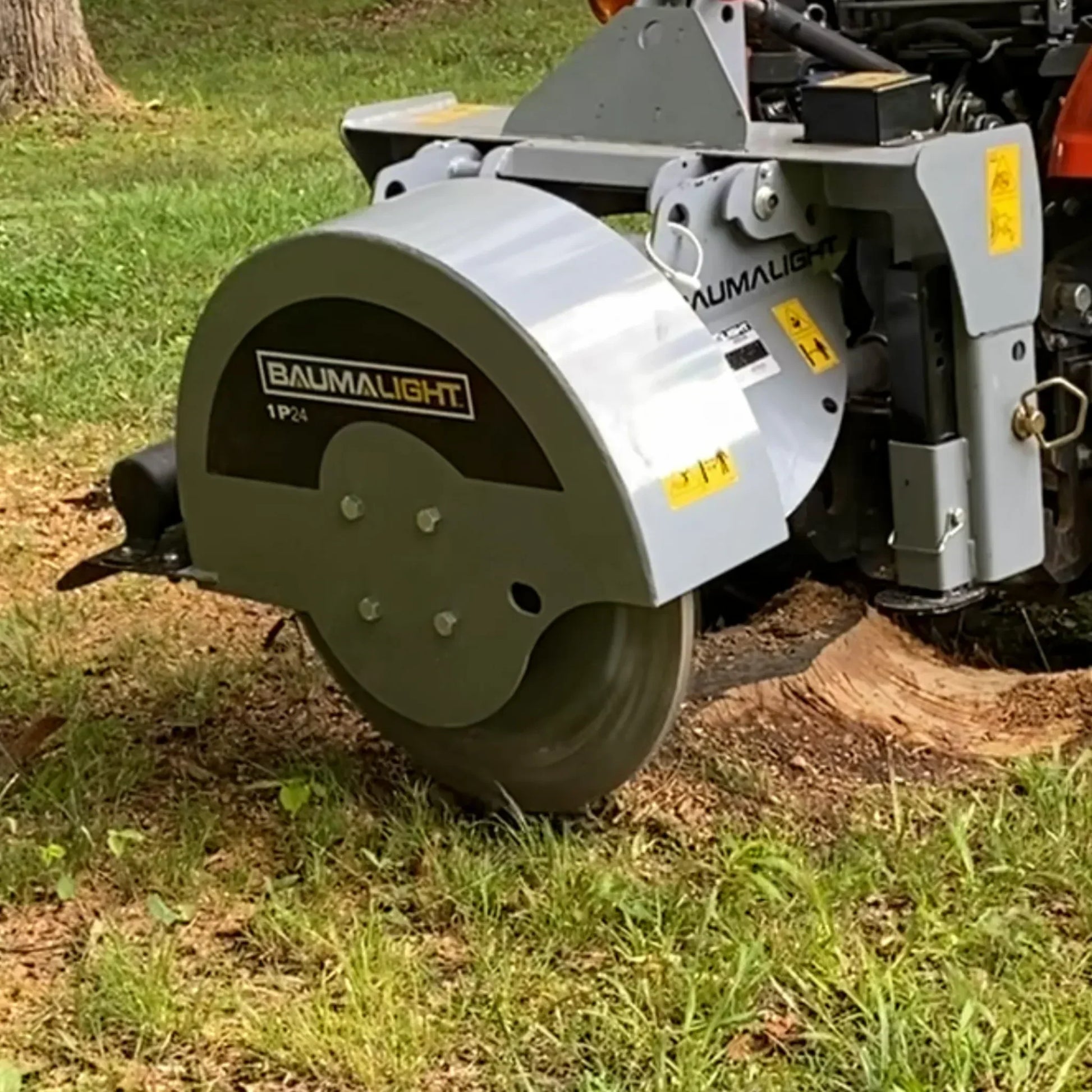

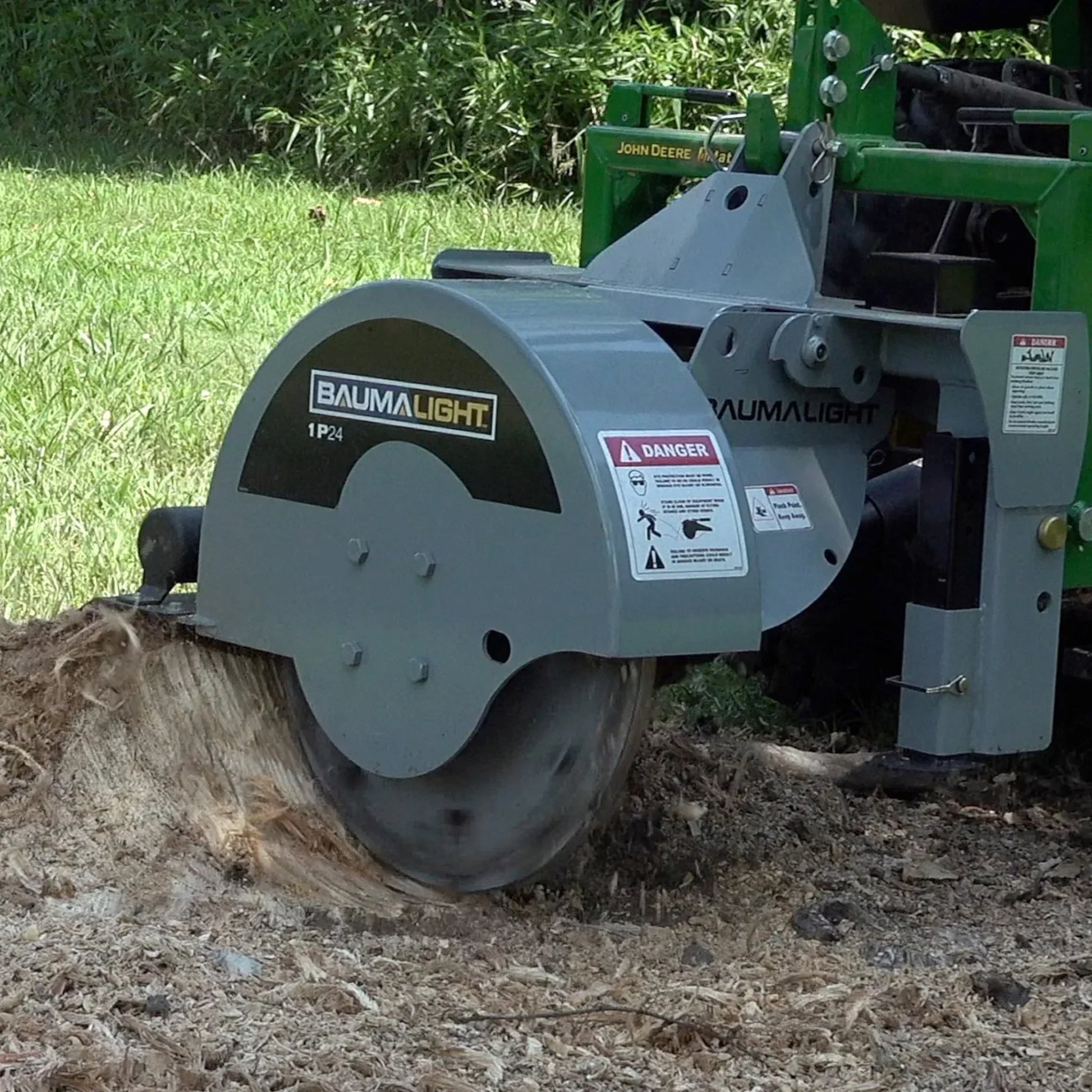

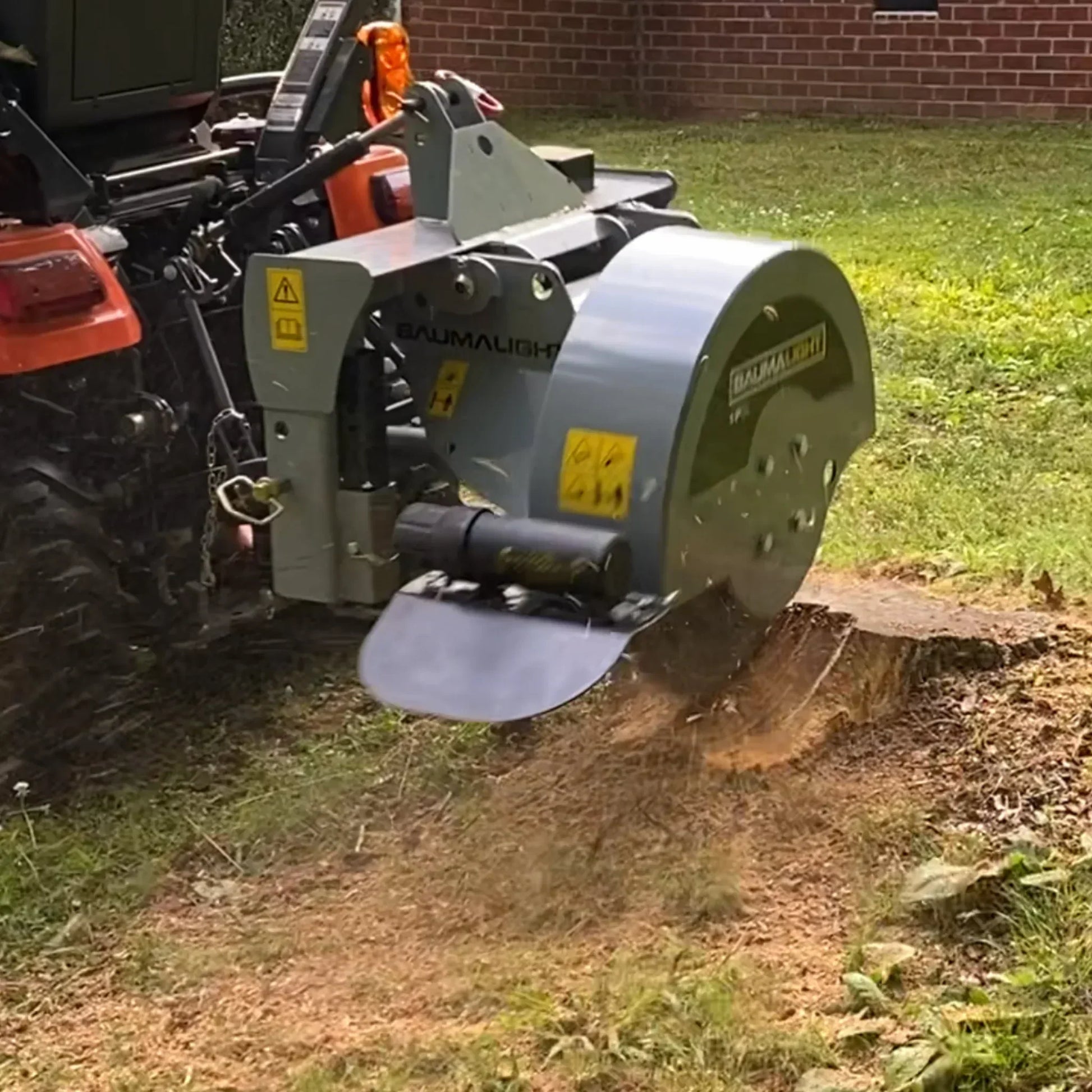

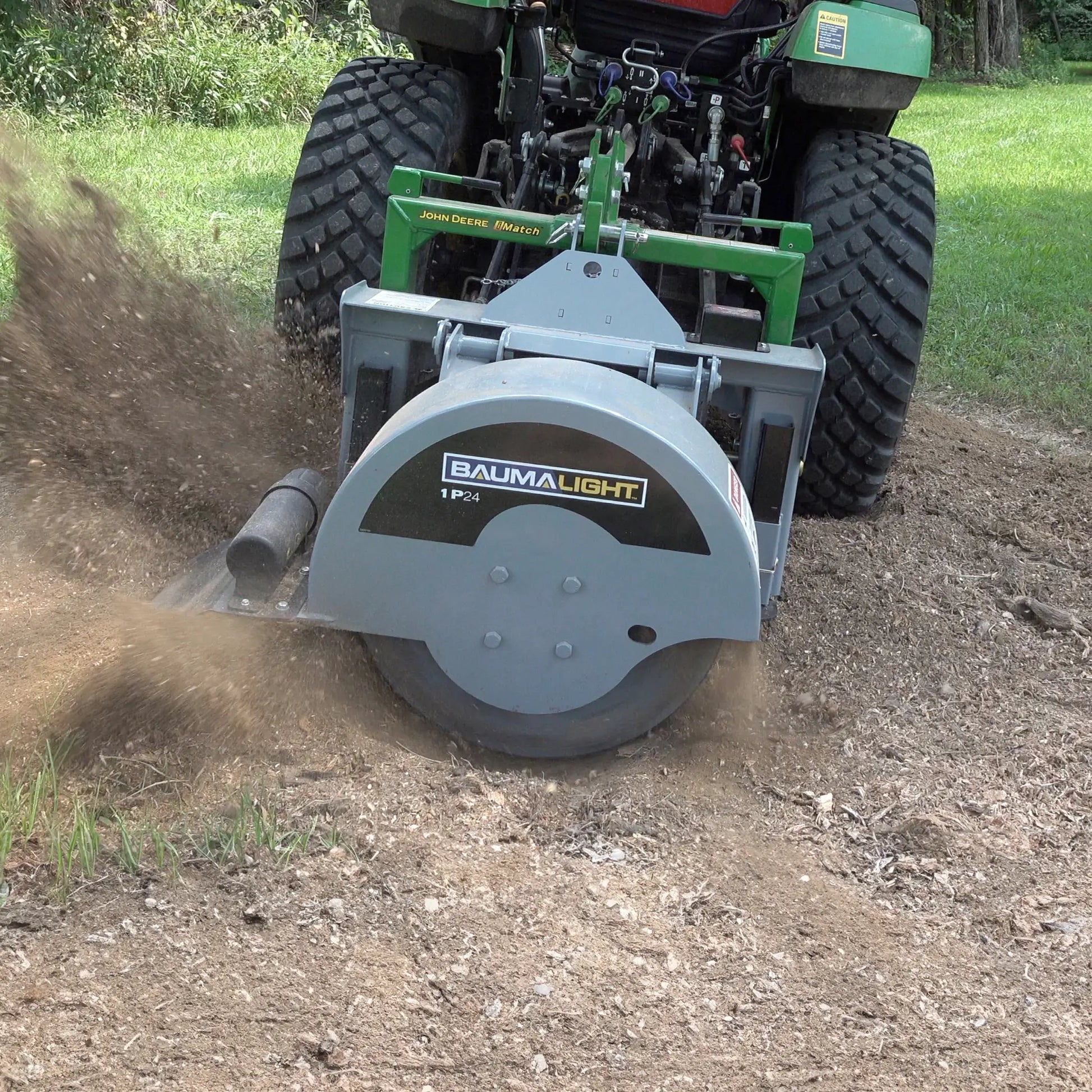

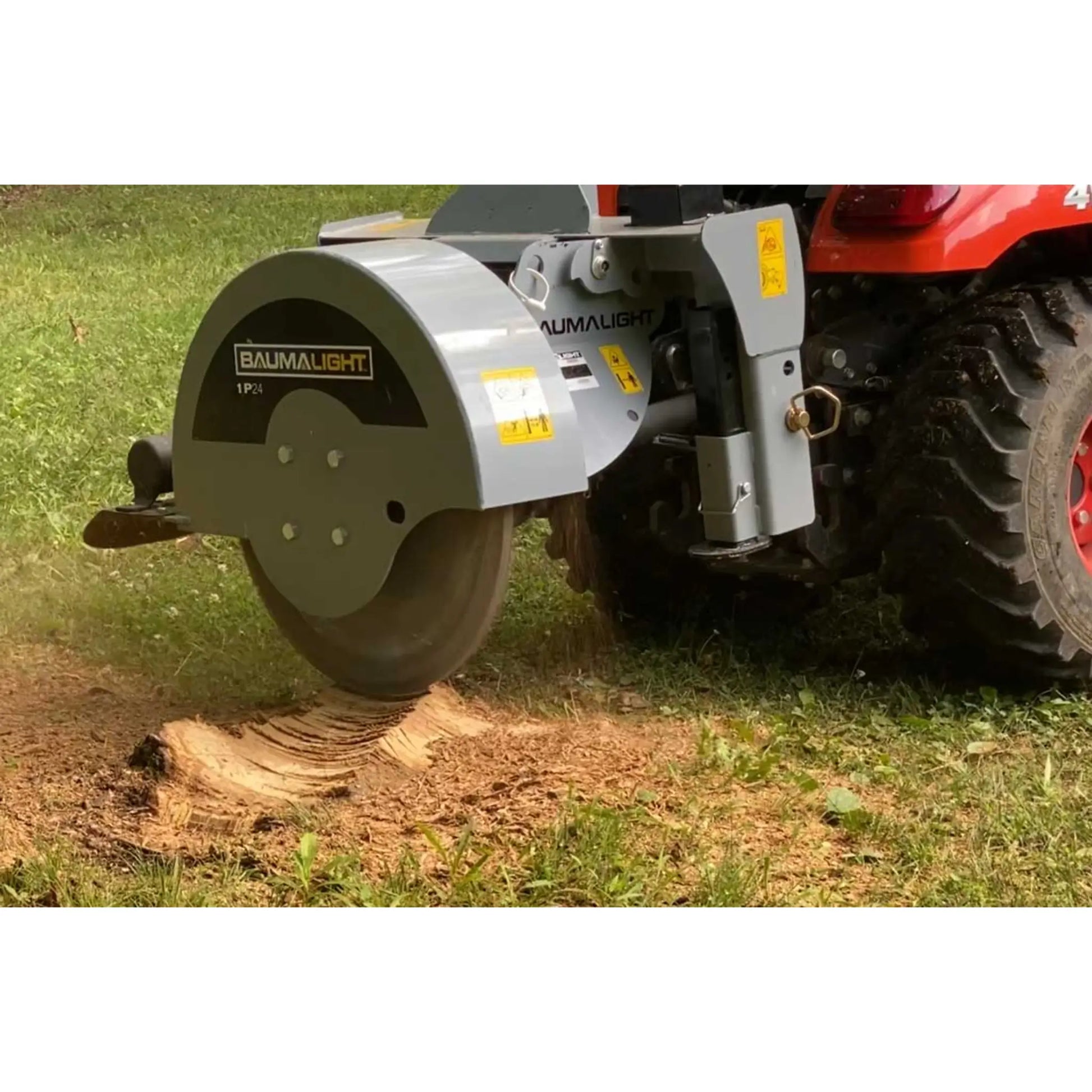

Elevate your stump removal with the Baumalight 1P24 PTO stump grinder, expertly designed for compact tractors with a hydrostatic drive and Category 1 3PH. This robust model features a 24-inch rotor with 34 replaceable carbide teeth, achieving an impressive cutting depth of 10 inches above ground and 6 inches below. Suitable for up to 30-inch wide and 12-inch deep stumps, the 1P24 ensures efficient grinding in approximately 15 to 20 minutes, depending on your tractor's horsepower.
Specifications
| Model No. |
1P24 |
3P24 |
3P34 |
3P40 |
| Recommended HP Size |
20-45 |
25-55 |
45-80 |
60-120 |
| Maximum Engine HP |
50 |
58 |
85 |
125 |
| Maximum PTO HP |
40 |
50 |
75 |
115 |
| Transmission |
Hydrostatic only |
Any |
Any |
Any |
| Hydraulic GPM |
-- |
5–20 |
5–20 |
5–20 |
| Rotor Size |
24" |
24" |
34" |
34" |
| Number of Teeth |
34 |
34 |
54 |
54 |
| Tooth Part number |
S1000 |
S1000 |
S1000 |
S1000 |
| Tooth Construction |
Carbide steel bolt-in |
Carbide steel bolt-in |
Carbide steel bolt-in |
Carbide steel bolt-in |
| Cutting Wheel Speed |
540 RPM |
810 RPM |
810 RPM |
1000 RPM |
| Cutting Height - Above Ground |
10" |
18" |
25" |
25" |
| Cutting Depth - Below Ground |
6" |
8" |
14" |
14" |
| Maximum Cutting Depth - Per Pass |
5" |
6" |
9" |
9" |
| Maximum Horizontal Cut |
22" |
22" |
32" |
32" |
| Swing Arc |
0° |
65° |
65° |
65° |
| Hub Torque |
803 Ft.-Lbs. |
803 Ft.-Lbs. |
803 Ft.-Lbs. |
1050 Ft.-Lbs. |
| Over Torque Protection |
Slip clutch |
Slip clutch |
Slip clutch |
Slip clutch |
| Hitch |
Cat I |
Cat I or II |
Cat II |
Cat II |
| Quick hitch compatibility |
Yes |
No |
No |
No |
| No. of Remotes Required - Hydraulic |
0 |
1 or 2 |
1 or 2 |
1 or 2 |
| Requires 12 Volt DC |
No |
No |
No |
No |
| Input Speed |
540 |
540 |
540 |
1000 |
| Unit Weight (Shipping) Lbs. |
350 |
920 |
1231 |
1280 |
| Width (Shipping) |
48" |
42" |
48" |
48" |
| Length (Shipping) |
48" |
49" |
54" |
54" |
Stump cutting time chart
 |
|
|
|
|
|
|
|
|
| Tractor HP |
20Hp |
30Hp |
40Hp |
60Hp |
70Hp |
80Hp |
90Hp |
120Hp |
| -- |
30 min |
20 min |
15 min |
-- |
-- |
-- |
-- |
-- |
 |
|
|
|
|
|
|
|
|
| Tractor HP |
20Hp |
30Hp |
40Hp |
60Hp |
70Hp |
80Hp |
90Hp |
120Hp |
| -- |
-- |
15 min |
12 min |
10 min |
-- |
-- |
-- |
-- |
 |
|
|
|
|
|
|
|
|
| Tractor HP |
20Hp |
30Hp |
40Hp |
60Hp |
70Hp |
80Hp |
90Hp |
120Hp |
| -- |
-- |
-- |
-- |
6 min |
5 min |
4 min |
-- |
-- |
 |
|
|
|
|
|
|
|
|
| Tractor HP |
20Hp |
30Hp |
40Hp |
60Hp |
70Hp |
80Hp |
90Hp |
120Hp |
| -- |
-- |
-- |
-- |
6 min |
5 min |
4 min |
3 min |
2 min |
