Baumalight GXM750 Stump Grinder For 7 - 18 Ton Excavators - BML-GXM750-X540-EWC7-9-B

Baumalight GXM750 Stump Grinder For 7 - 18 Ton Excavators - BML-GXM750-X540-EWC7-9-B

by Baumalight
SKU BML-GXM750-X540-EWC7-9-B
Save up to 6% Save 6%
$10,100.00
$10,100.00 - $16,100.00
$10,100.00
$9,494.99
$9,494.99 - $15,134.99
$9,494.99

  • CLEARANCE SALE.

  • ITEMS LEFT.

  • PEOPLE are also watching that product.

Baumalight GXM750 Stump Grinder For 7 - 18 Ton Excavators - BML-GXM750-X540-EWC7-9-B

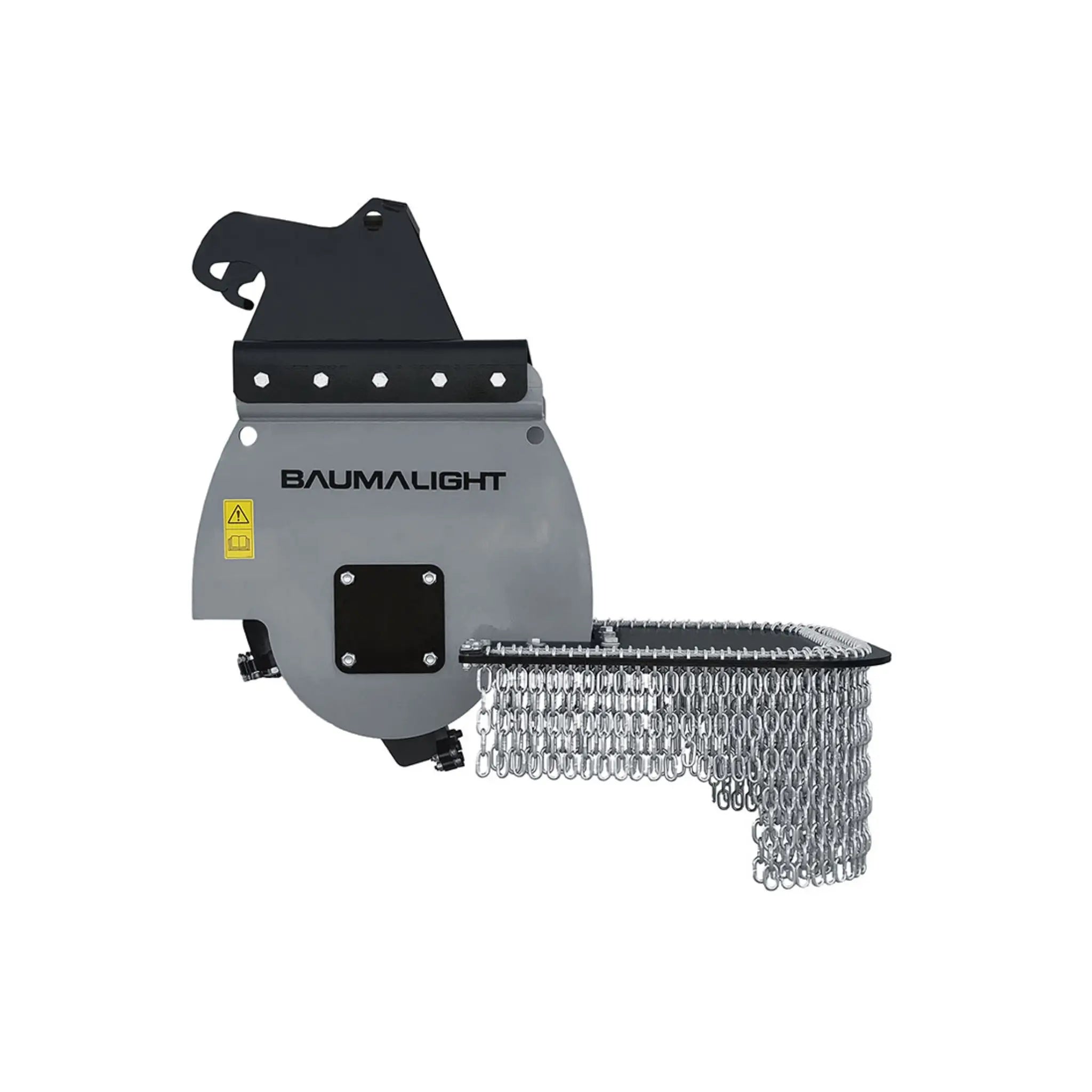

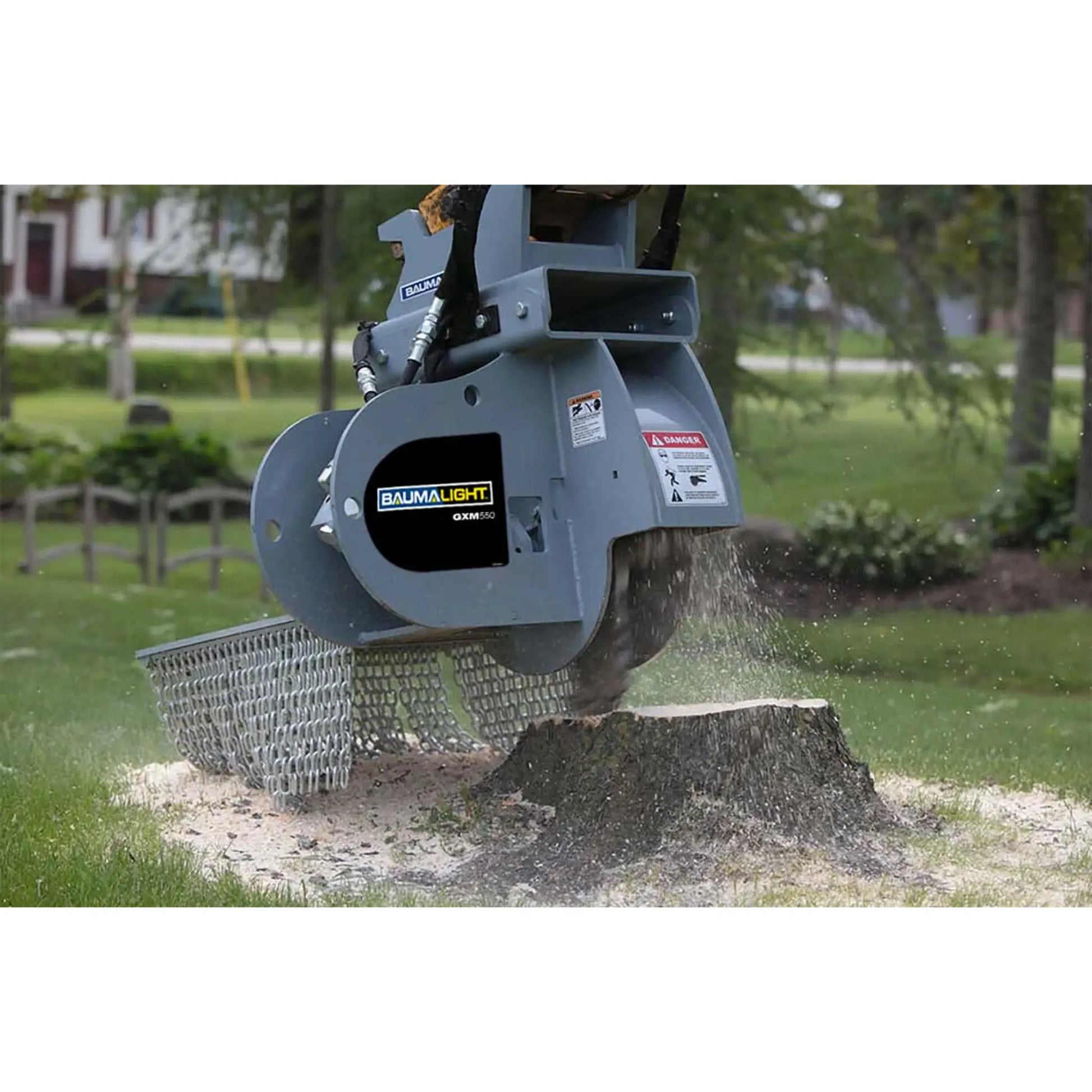

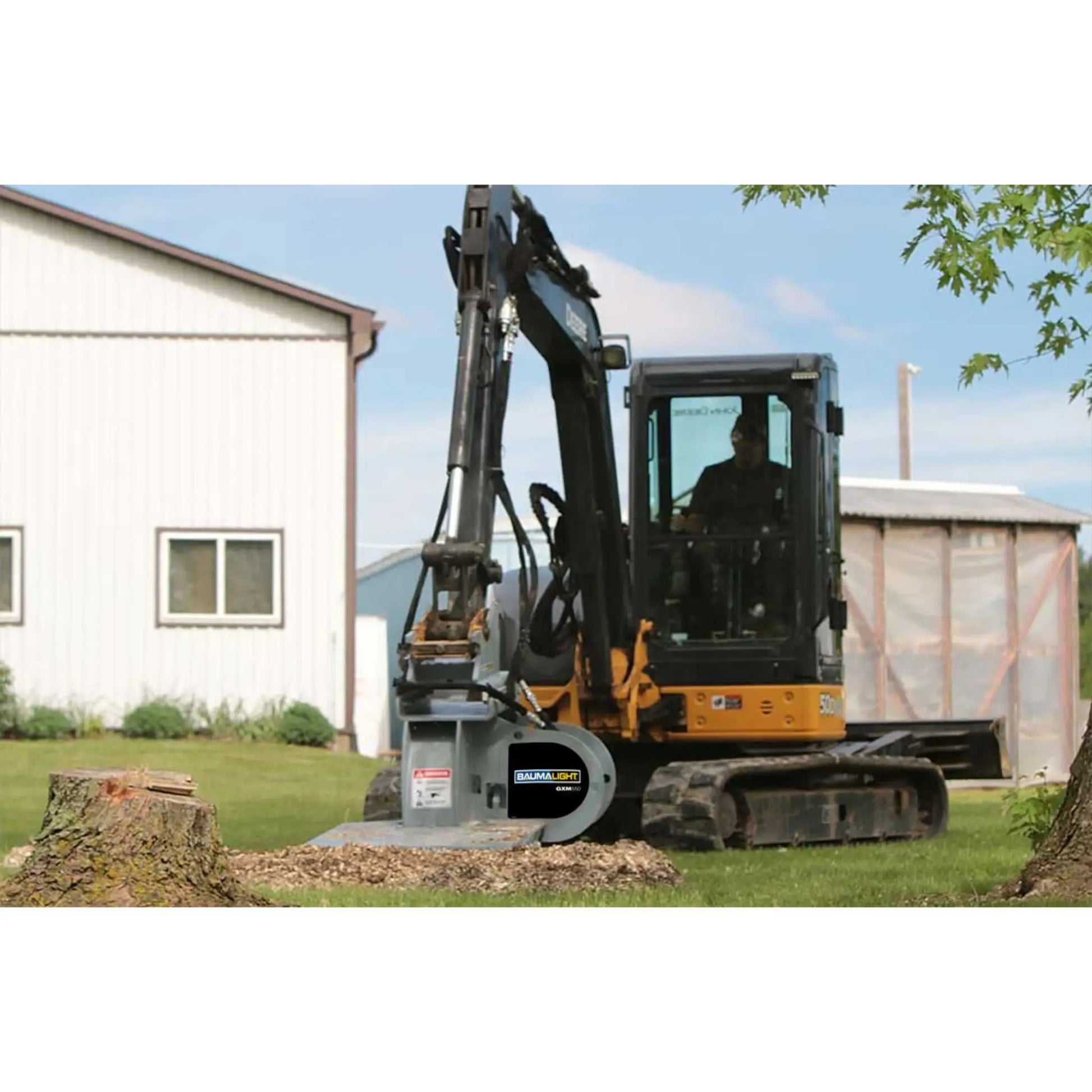

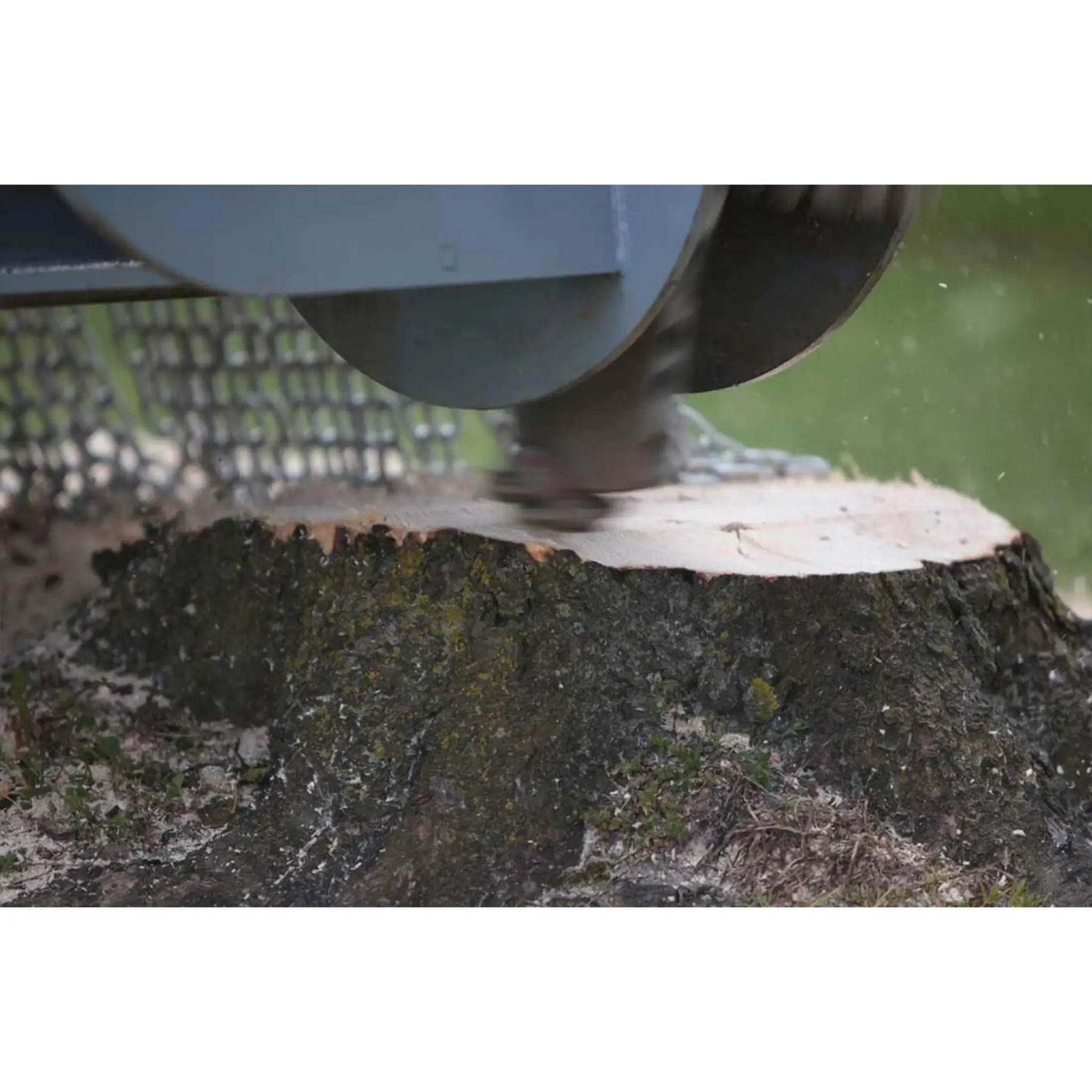

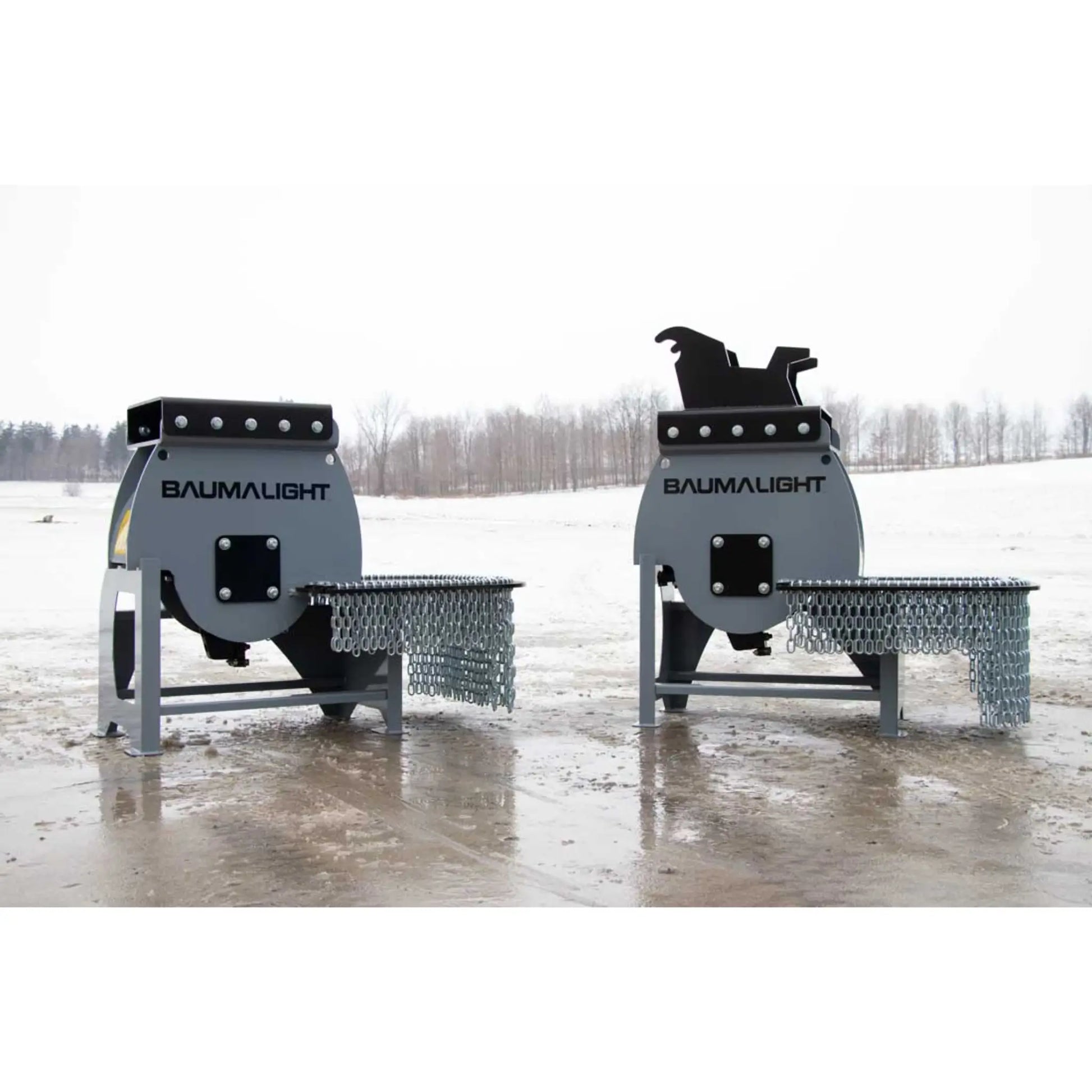

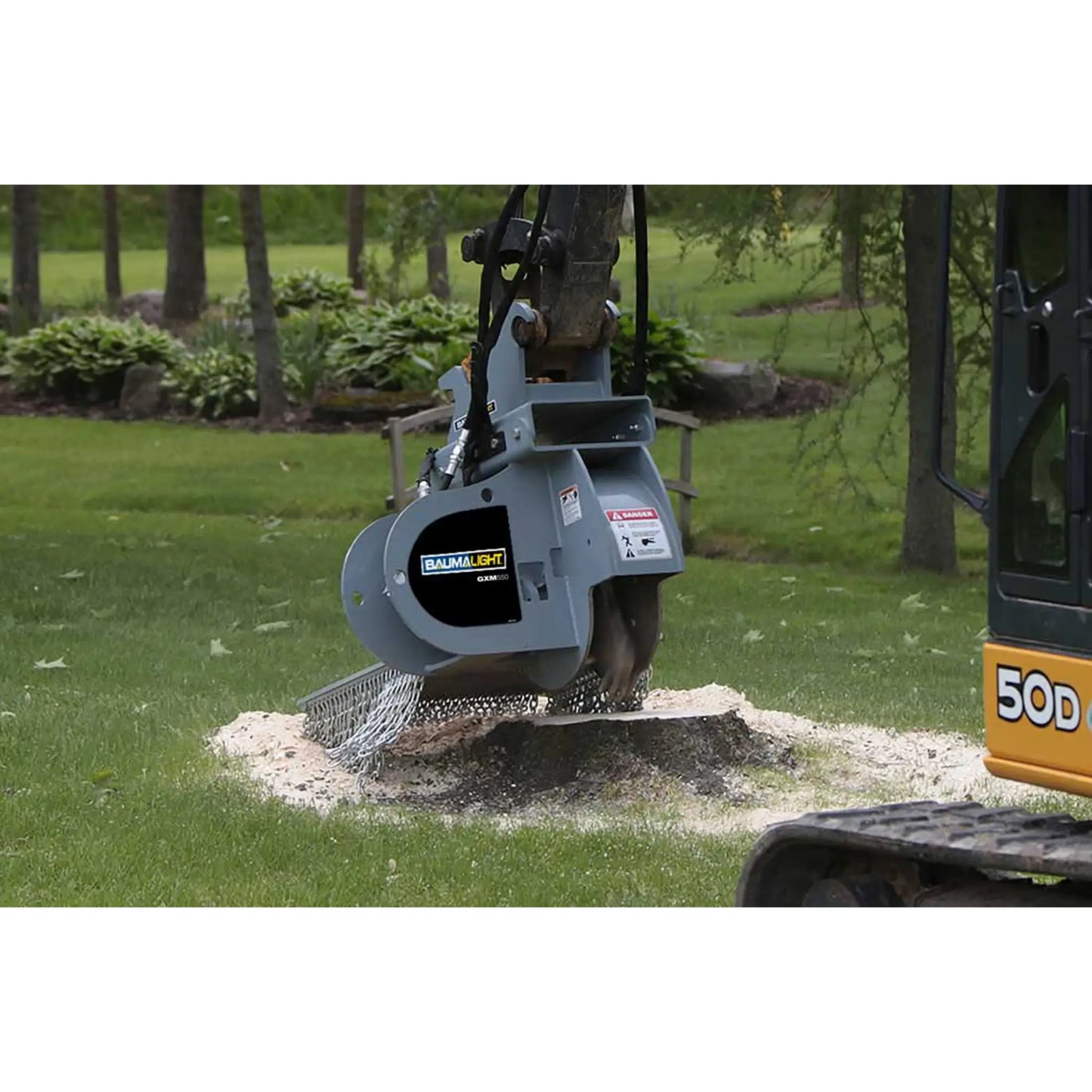

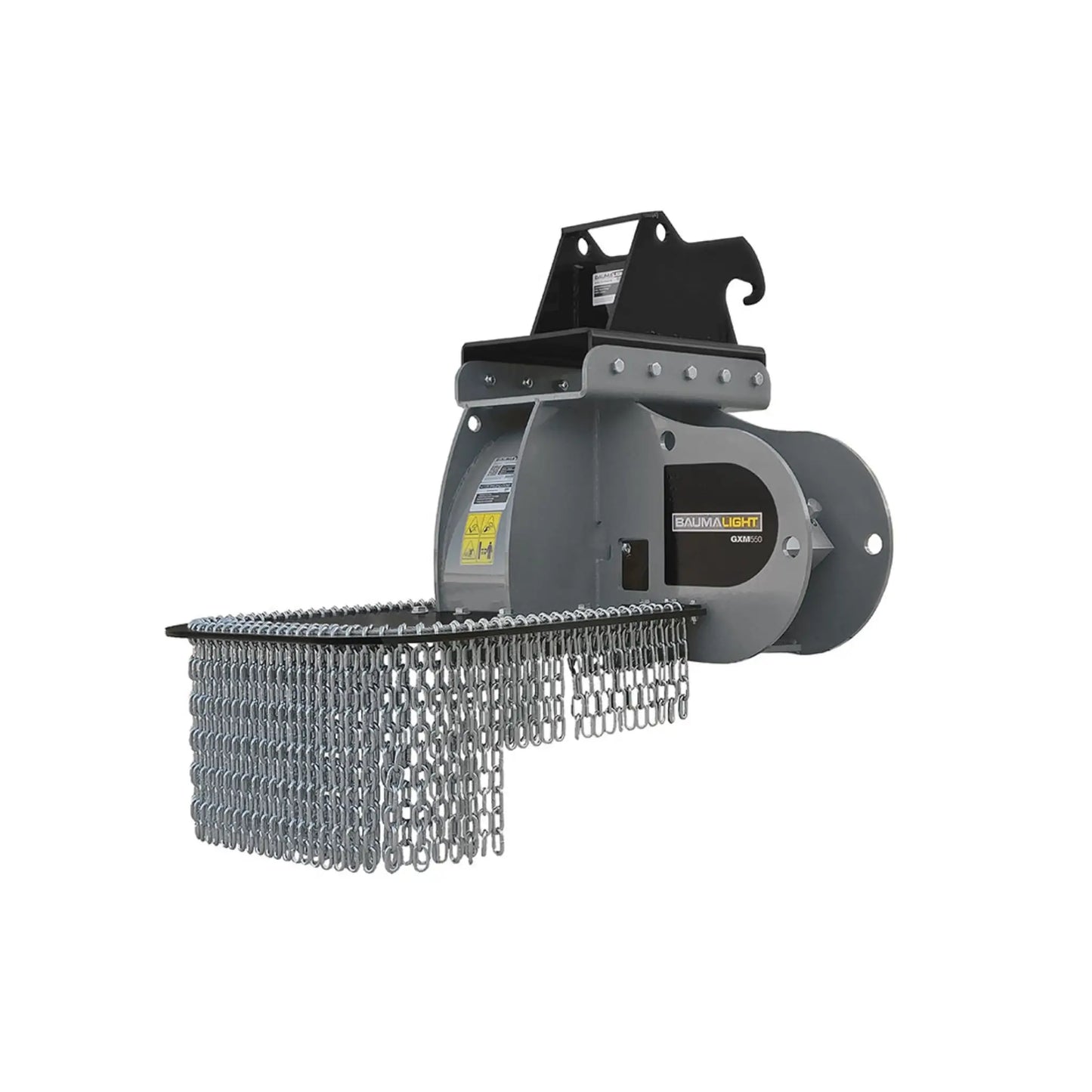

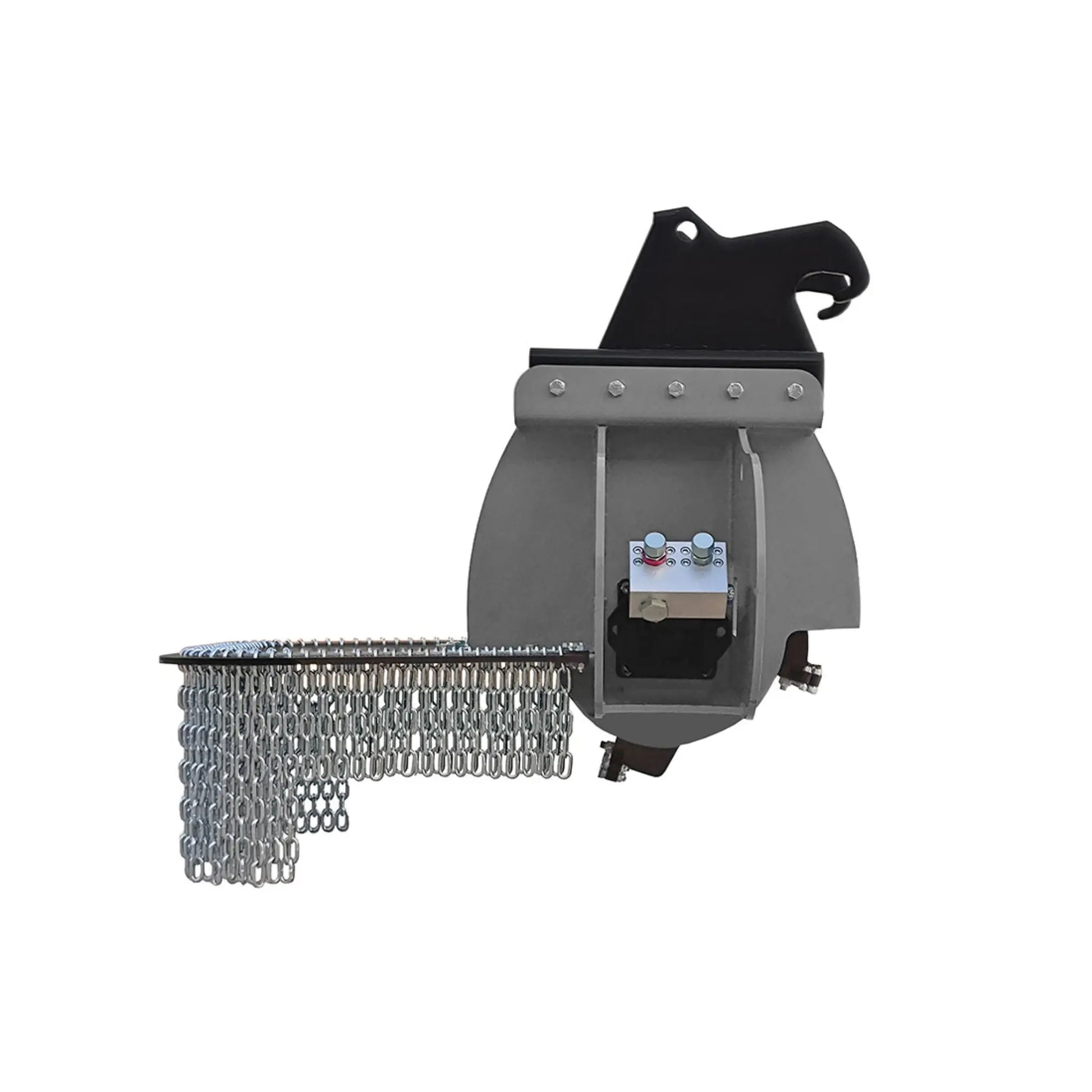

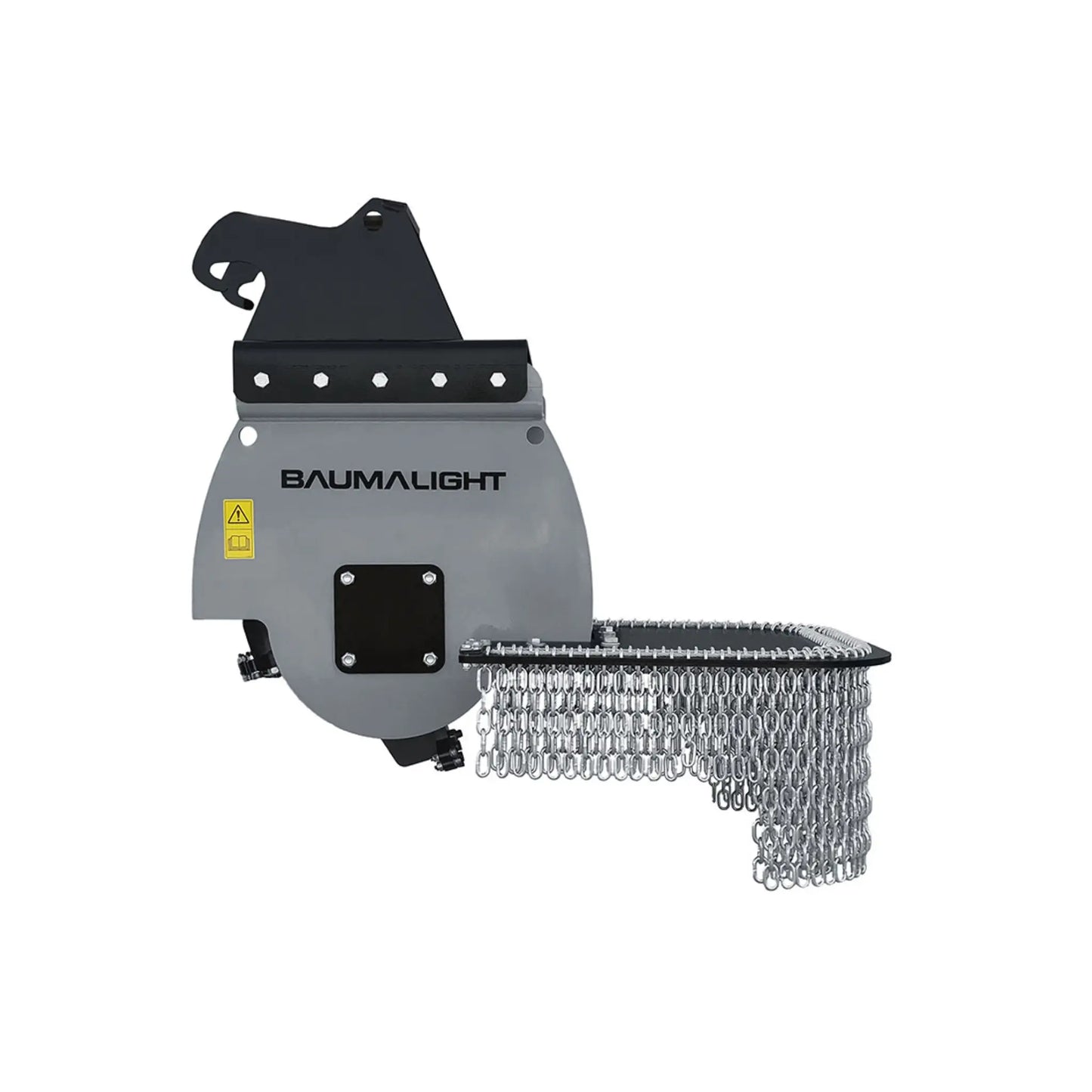

The GXM750 is your ultimate partner for stump removal on 7 to 18 ton excavators. Equipped with a 24" thick steel rotor, high-speed carbide teeth that rotate to maintain sharpness, and a powerful bent-axis piston motor, this grinder tackles the toughest stumps effortlessly. Enhanced safety features include a large blast shield and dual chain curtains to keep debris contained.

Model No. S14 S18 GXM350 GXM550 GXM750
Baumalight Connection Code A04 A04 A02 A02 A02
Recommended Carrier Size 1-2 ton 1.5-4 ton 1.5-4.5 ton 3.5-8 ton 7-18 ton
Motor Type Gerotor Gerotor High efficiency bent axis piston High efficiency bent axis piston High efficiency bent axis piston
Hydraulic GPM Check Motor Options Check Motor Options Check Motor Options Check Motor Options Check Motor Options
Rotor Size 18" 24" 19" 24" 24"
Number of Teeth 12 34 12 12 12
Tooth Part number H3000 S1000 H3000 H3000 H3000
Tooth Construction High speed Planer High speed High speed High speed
Cutting Wheel Speed Depends on GPM Depends on GPM Depends on GPM Depends on GPM Depends on GPM
Cutting Height - Above Ground No limit No limit No limit No limit No limit
Cutting Depth - Below Ground 6" 10" 16" 24" 24"
Maximum Cutting Depth - Per Pass 2" 5" 3/4" 1" 1"
Maximum Horizontal Cut 12" 22" 12" 22" 22"
Over Torque Protection Relieve valve Relieve valve Relieve valve Relieve valve Relieve valve
Hitch 1" pivot pins 1" pivot pins Bolt on Bolt on Bolt on
No. of Remotes Required - Hydraulic 1 1 1 1 1
Requires 12 Volt DC No No No No No
Unit Weight (Shipping) Lbs. 394 642 650 822 1300



36in Root Base

EXCAVATOR STUMP CUTTING TIMES BASED ON 24" STUMP


Motor Case Drain PSI 12 GPM 15 GPM 20 GPM 25 GPM 30 GPM 35 GPM 40 GPM 50 GPM 60 GPM CC Motor
Type 		RPM at
MAX GPM
X508 Motor
Available for :
GXM350,GXM550		 Critical 3,000 25 min 20 min -- -- -- -- -- -- -- 25 Piston 2300
4,000 20 min 15 min -- -- -- -- -- -- --
X510 Motor
Available for :
GXM350,GXM550		 Critical 3,000 25 min 15 min 8 min 7 min -- -- -- -- -- 34 Piston 4290
4,000 20 min 10 min 7 min 5 min -- -- -- -- --
X530 Motor
Available for :
GXM350,GXM550		 Critical 3,000 -- 16 min 8 min 7 min 7 min -- -- -- -- 47 Piston 2100
4,000 -- 11 min 7 min 5 min 5 min -- -- -- --
X540 Motor
Available for :
GXM550,GXM750		 Critical 3,000 -- -- 8 min 7 min 6 min 5 min -- -- -- 65 Piston 2100
4,000 -- -- 7 min 5 min 5 min 4 min -- -- --
X550 Motor
Available for :
GXM550,GXM750		 Critical 3,000 -- -- -- 7 min 6 min 5 min 4 min -- -- 64 Piston 2140
4,000 -- -- -- 5 min 5 min 4 min 3 min -- --
X570 Motor
Available for :
GXM750		 Critical 3,000 -- -- -- -- 7 min 6 min 4 min 3 min -- 84 Piston 2000
4,000 -- -- -- -- 6 min 4 min 3 min 3 min --
X590 Motor
Available for :
GXM750		 Critical 3,000 -- -- -- -- -- -- 5 min 3 min 3 min 108 Piston 1900
4,000 -- --



Order shipment preparation takes 3 days. Once shipped orders usually take 2 weeks to be delivered. These are estimations; delivery can be delayed for reasons beyond our control. You can always contact us to know the exact delivery time once you placed an order with us. Have a look at our shipping policy here.
