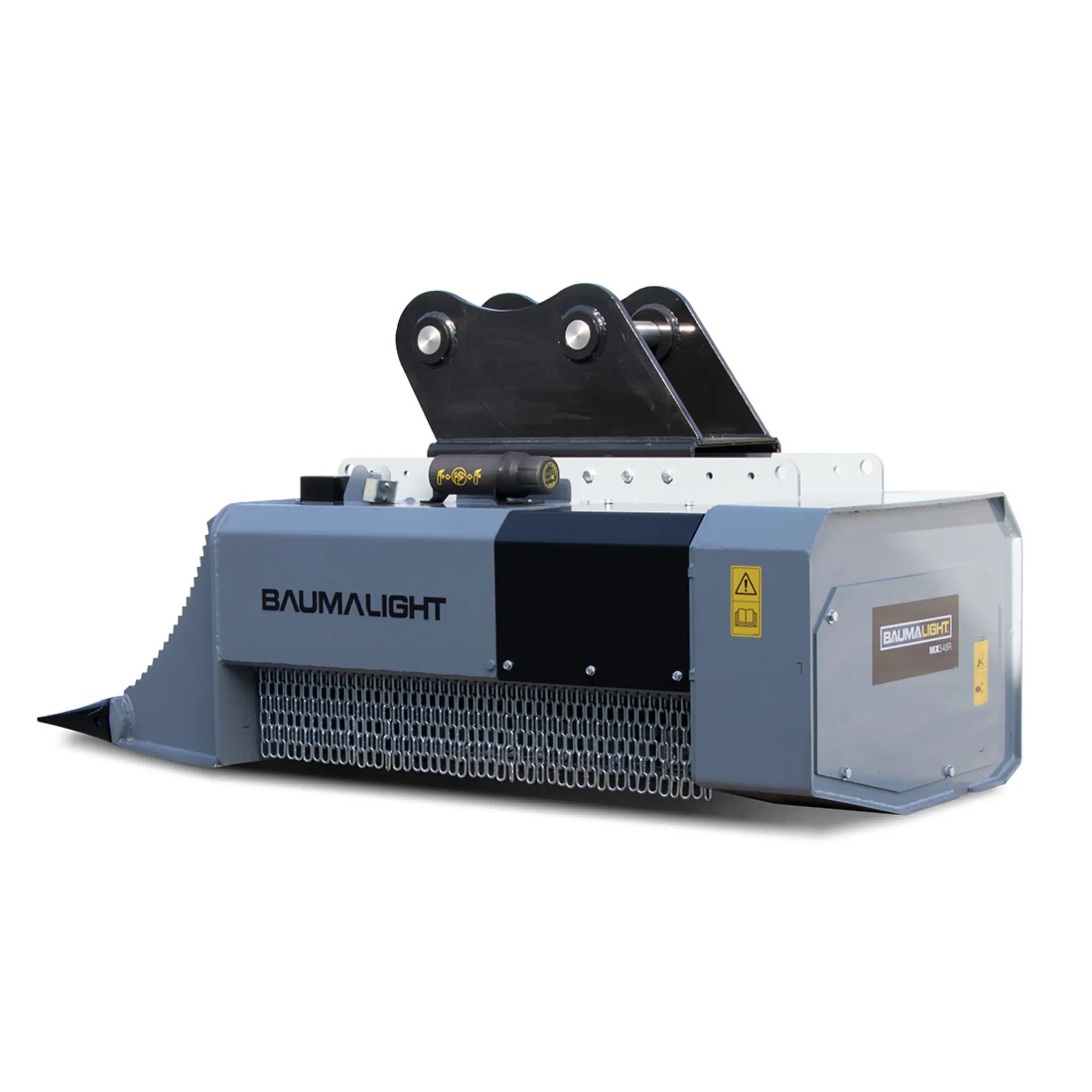

The Baumalight MX548R Fixed Tooth Mulcher for 8-20 Ton Excavators offers robust brush mulching for fence line maintenance and entry-level contractor work. Its frame integrates aggressive root rake ripper teeth to rip out rocks and move logs. Made from AR400 steel, it's both tough and lightweight. Choose between Planer and Ripper cutting teeth for optimal efficiency.
Experience unmatched versatility and power with the Baumalight MX548R Fixed Tooth Mulcher for 8-20 Ton Excavators. Engineered for durability, this heavy-duty mulcher features AR400 steel construction, making it substantially more robust than models made from mild steel. The MX548R isn't just about power; it's also about precision. Equipped with two cutting teeth options—Planer for efficient mulching and Ripper for a robust shredding action—this mulcher adapts to a variety of environments, particularly effective in clearing below-grade vegetation and fence lines.

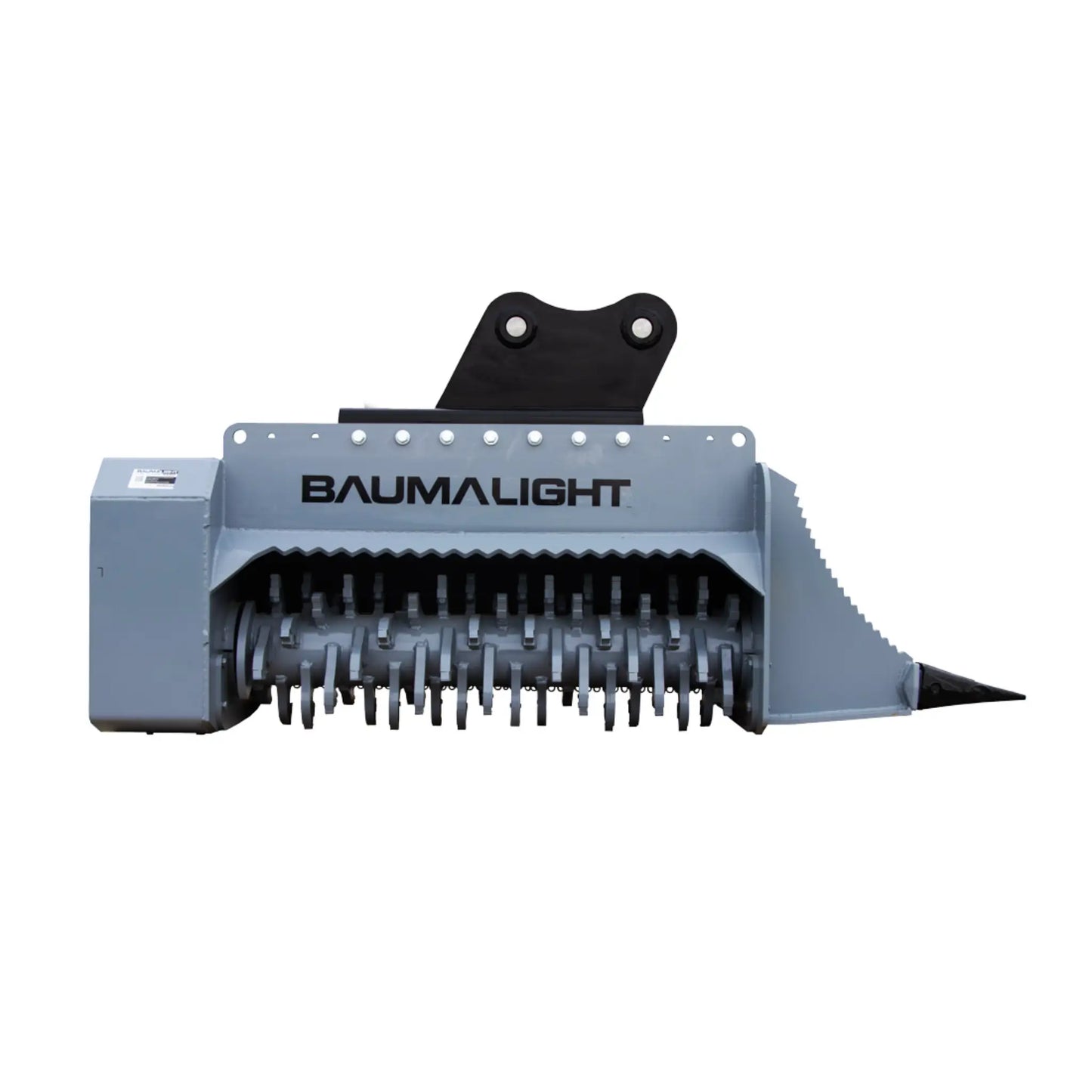

The MX548R sets itself apart with built-in aggressive root rake ripper teeth, designed to tackle the most challenging terrains by ripping out rocks and relocating logs. This feature enhances its utility, providing significant value for entry-level contractors and professionals maintaining expansive fence lines. Also, its integrated skid shoes promote optimal ground floating, allowing for smoother operation and less wear on your equipment.
Model No. | MX230 | MX330 | MX530 | MX530R | MX548R | MX948R | MX960R | MX1160R |
---|---|---|---|---|---|---|---|---|
A02 | A02 | A02 | A02 | A03 | A03 | A03 | A03 | |
Path Width | 38" | 38" | 40" | 40" | 62" | 70" | 90" | 90" |
Rotor Width | 30" | 30" | 30" | 30" | 48" | 48" | 60" | 60" |
Minimum Tracked Excavator Ton | 2 | 3 | 4 | 4 | 7 | 12 | 18 | 18 |
Minimum Wheeled Excavator Ton | 4 | 5 | 6 | 6 | 9 | 15 | 21 | 21 |
Max Tracked Excavator Ton | 6 | 8 | 12 | 12 | 20 | 30 | 33 | 33 |
Max wheeled Excavator Ton | 8 | 10 | 14 | 14 | 22 | 33 | 36 | 36 |
Cutting Depth | Level | Level | 1.5" Above to 1" Below Grade | 1.5" Above to 1" Below Grade | 1.5" Above to 1" Below Grade | Level | Level | Level |
Holder Style | Swing | Fixed | Fixed | Fixed | Fixed | Fixed | Fixed | Fixed |
Cutting Style | Flail | High Speed Teeth | Carbide Tipped Bolt In | Carbide Tipped Bolt In | Carbide Tipped Bolt In | Double Tipped Carbide | Double Tipped Carbide | Sharpenable Planer teeth |
Tooth Part number | F2000 | H3000 | P5000 | P5000 | P5000 | R9000 | R9000 | P11000 |
Number of cutters | 22 | 36 | 44 | 44 | 72 | 27 | 38 | 31 |
Rotor Shaft Size | 1.5" | 2" | 2" | 2" | 2" | 2" | 2" | 2" |
Rotor Diameter (tool tips) | 17.25" | 15" | 15" | 15" | 15" | 18.5" | 18.5" | 18.5" |
Rotor Weight (with tools) | 125 lbs | 175 lbs | 300 lbs | 300 lbs | 408 lbs | 617 lbs | 860 lbs | 872 lbs |
No. of Motor | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
Case Drain | Not important | Not important | See motor options | See motor options | Critical | Critical | Critical | Critical |
Unit Weight | 500 lbs | 750 lbs | 1036 lbs | 1166 lbs | 2167 lbs | 2838 lbs | 2910 lbs | 2925 lbs |
Maximum Brush Cutting Sizes
(Brush Diameter in Inches)
500 Series
MOTOR | PSI | CASE DRAIN |
8 GPM |
12 GPM |
15 GPM |
20 GPM |
25 GPM |
30 GPM |
35 GPM |
40 GPM |
45 GPM |
50 GPM |
55 GPM |
60 GPM |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
RPM | 555 | 832 | 1060 | 1390 | ||||||||||
A450 Roller-Vane | 2500 3000 3500 |
Not Needed Not Needed Recommended |
0.25" 0.5" 0.5" |
0.75" 1" 1" |
1" 1.25" 1.25" |
1.5" 2" 2" |
-- -- -- |
-- -- -- |
-- -- -- |
-- -- -- |
-- -- -- |
-- -- -- |
-- -- -- |
-- -- -- |
RPM | 640 | 846 | 1100 | 1370 | 1600 | |||||||||
B550 Roller-Vane | 2500 3000 3500 |
Not Needed Recommended Needed |
-- -- -- |
0.25" 0.5" 0.5" |
0.75" 1" 1" |
1.25" 1.75" 1.75" |
2.5" 3" 3" |
3" 3.5" 3.5" |
-- -- -- |
-- -- -- |
-- -- -- |
-- -- -- |
-- -- -- |
-- -- -- |
RPM | 1090 | 1640 | 2050 | |||||||||||
C508 Bent Axis Piston | 2500 3000 3500 4000 |
Critical | 1" 1.5" 2" 2.5" |
1.75" 2.25" 2.75" 3.25" |
2.25" 2.75" 3.25" 4" |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
RPM | 1190 | 1490 | 2000 | 2490 | ||||||||||
C510 Bent Axis Piston | 2500 3000 3500 4000 |
Critical | -- -- -- -- |
1.5" 2" 2.5" 3" |
2" 2.5" 3" 3.5" |
2.5" 3" 3.5" 4.5" |
3" 3.5" 4.5" 5" |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
RPM | 1450 | 1800 | 2100 | |||||||||||
C530 Bent Axis Piston | 2500 3000 3500 4000 |
Critical | -- -- -- -- |
-- -- -- -- |
-- -- -- -- |
2.5" 3" 3.5" 4.5" |
3.5" 4" 4.5" 5" |
4.5" 5" 5.5" 5.75" |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
RPM | 1500 | 1800 | 2100 | |||||||||||
C540 Bent Axis Piston | 2500 3000 3500 4000 |
Critical | -- -- -- -- |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
3.25" 3.75" 4.25" 4.75" |
5" 5.5" 5.75" 6" |
5.5" 6" 6.5" 7" |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
RPM | 1600 | 1875 | 2140 | |||||||||||
C550 Bent Axis Piston | 2500 3000 3500 4000 |
Critical | -- -- -- -- |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
4.5" 5" 5.5" 5.75" |
6" 6.5" 7" 7.5" |
6.5" 7" 7.5" 8" |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
RPM | 1400 | 1630 | 1830 | 2030 | ||||||||||
C570 Bent Axis Piston | 2500 3000 3500 4000 |
Critical | -- -- -- -- |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
5.5" 6" 6.5" 7" |
5" 5.5" 6" 6.5" |
6.5" 7" 7.5" 8" |
7" 7.5" 8" 8.5" |
-- -- -- |
-- -- -- |
RPM | 1400 | 1570 | 1750 | 1900 | ||||||||||
C590 Bent Axis Piston | 2500 3000 3500 4000 |
Critical | -- -- -- -- |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
-- -- -- -- |
4.5" 5" 5.5" 6" |
7" 7.5" 8" 9" |
8.5" 9" 9.5" 10" |
9" 9.5" 10" 11" |
Order shipment preparation takes 3 days. Once shipped orders usually take 2 weeks to be delivered. These are estimations; delivery can be delayed for reasons beyond our control. You can always contact us to know the exact delivery time once you placed an order with us. Have a look at our shipping policy here.
