Baumalight S16 Stump Grinder For Mini Skid Steers - BML-S16-S508-MU-14PIN

Baumalight S16 Stump Grinder For Mini Skid Steers - BML-S16-S508-MU-14PIN

by Baumalight
SKU BML-S16-S508-MU-14PIN
Save up to 6% Save 6%
$6,000.00
$6,000.00 - $7,400.00
$6,000.00
$5,640.99
$5,640.99 - $6,956.99
$5,640.99

  • CLEARANCE SALE.

  • ITEMS LEFT.

  • PEOPLE are also watching that product.

Baumalight S16 Stump Grinder For Mini Skid Steers - BML-S16-S508-MU-14PIN

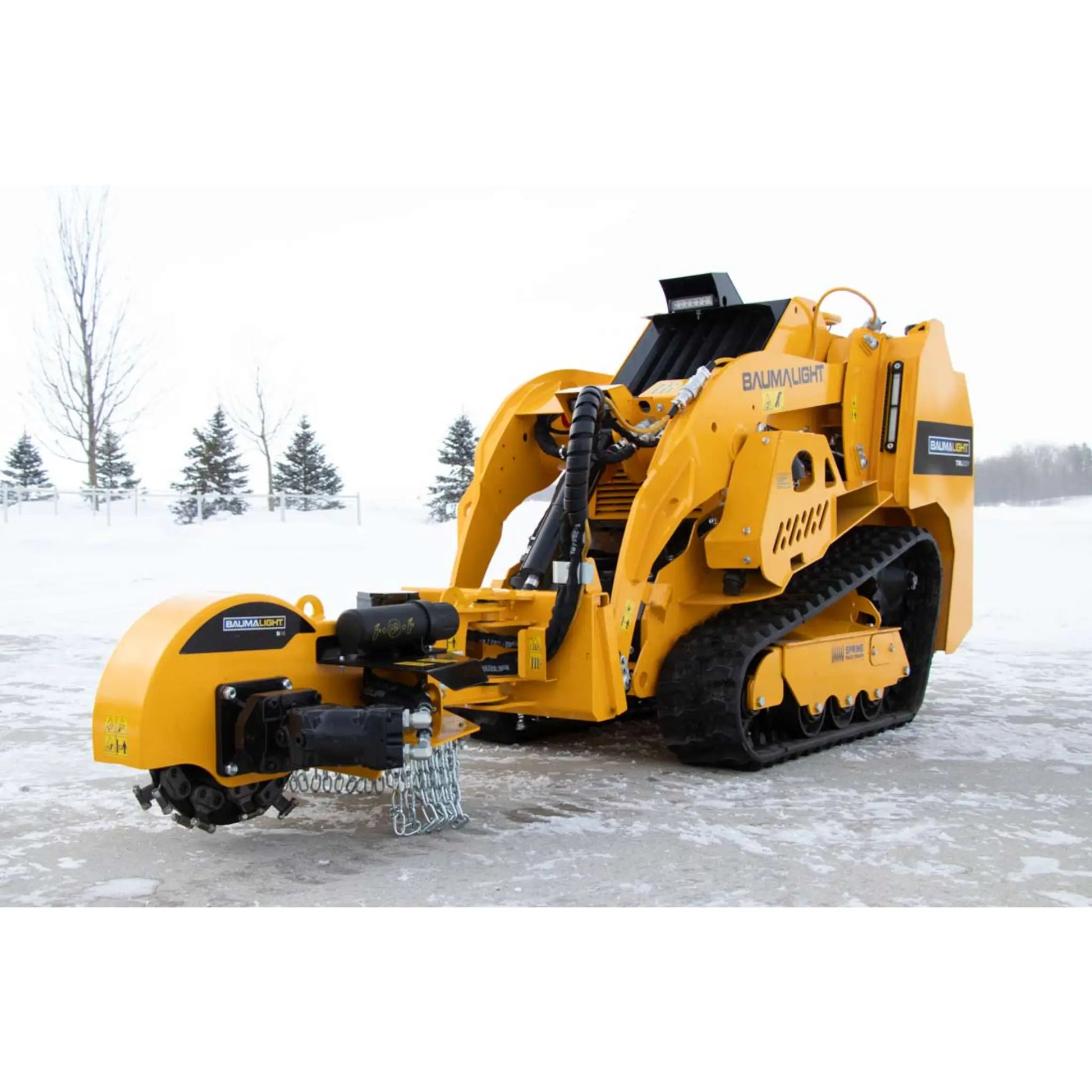

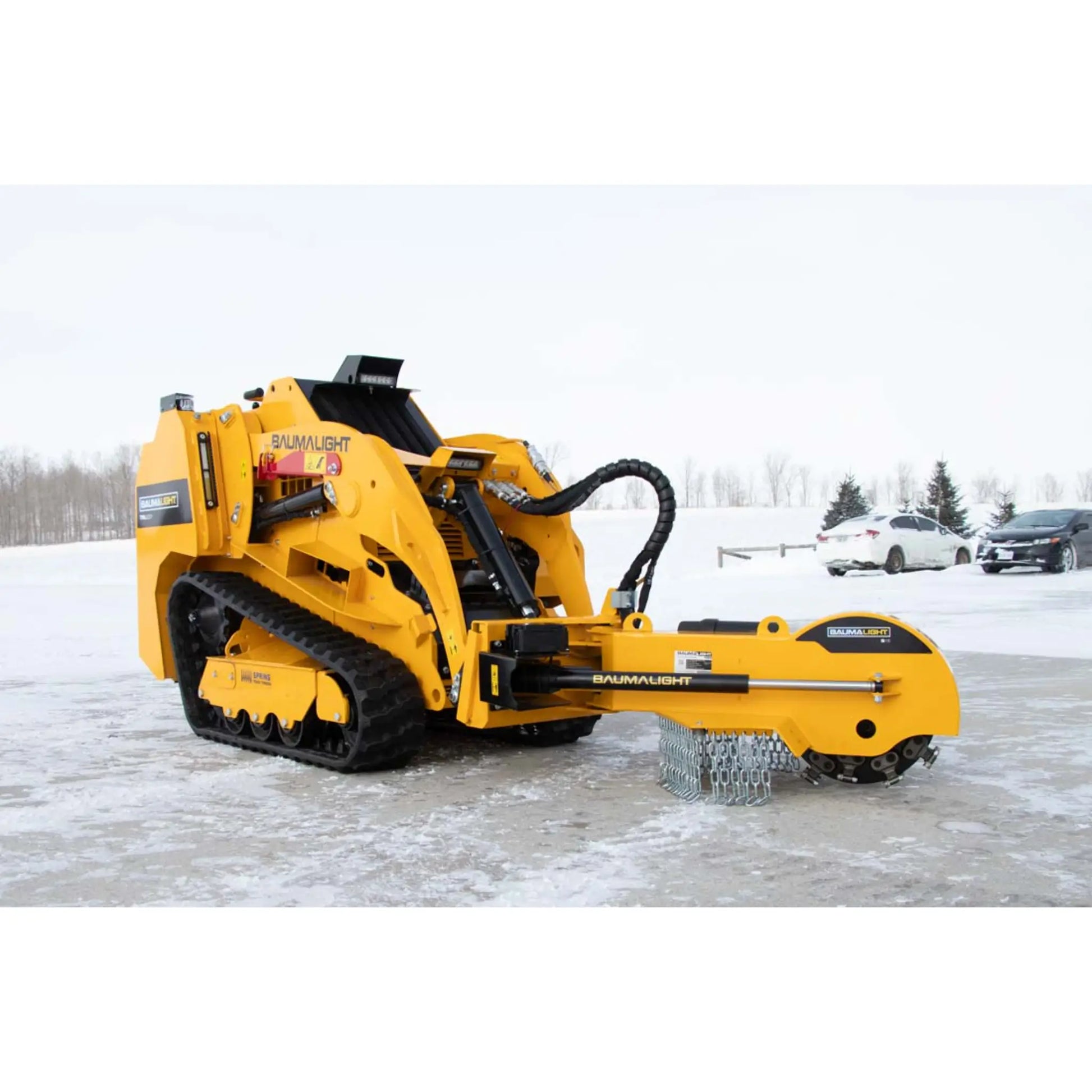

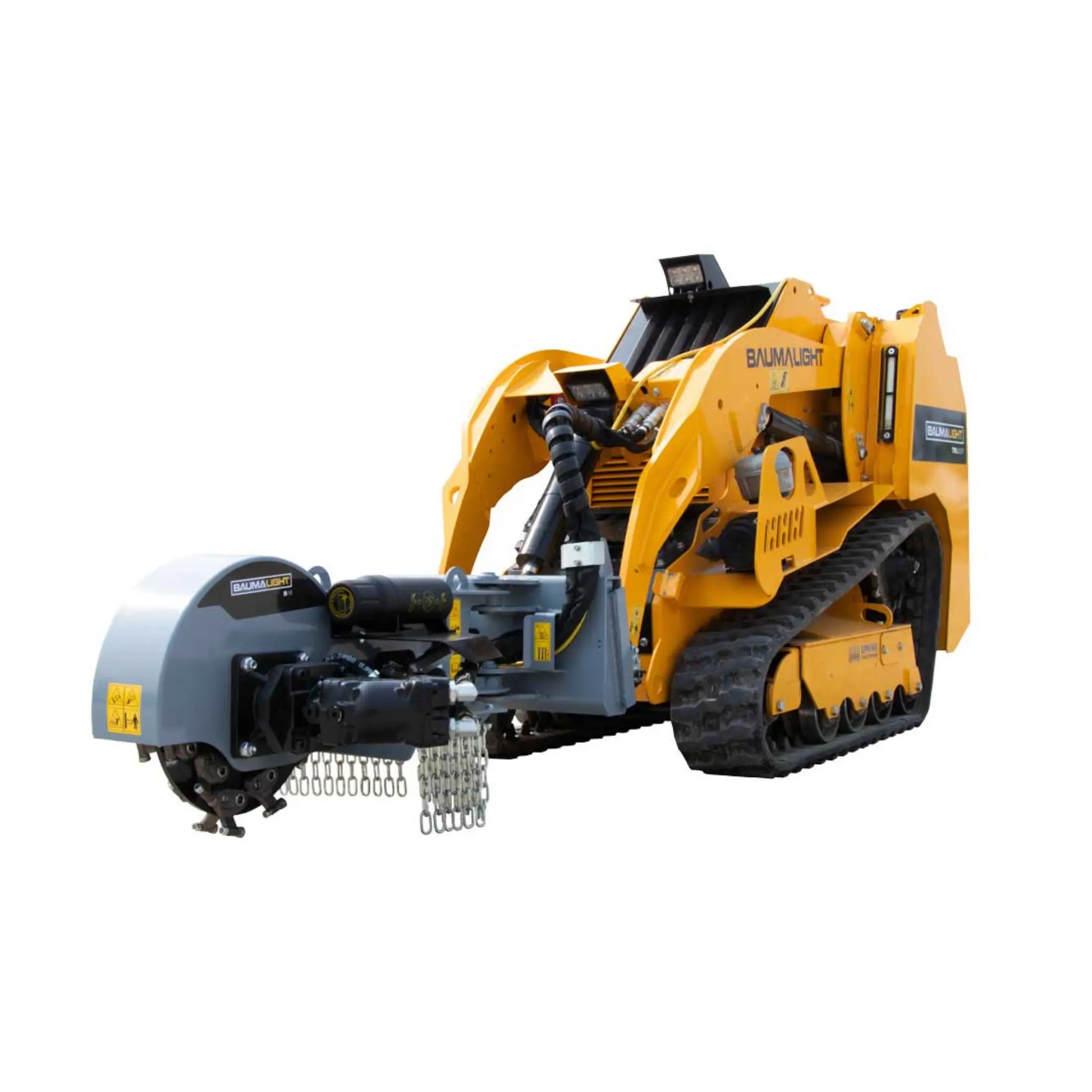

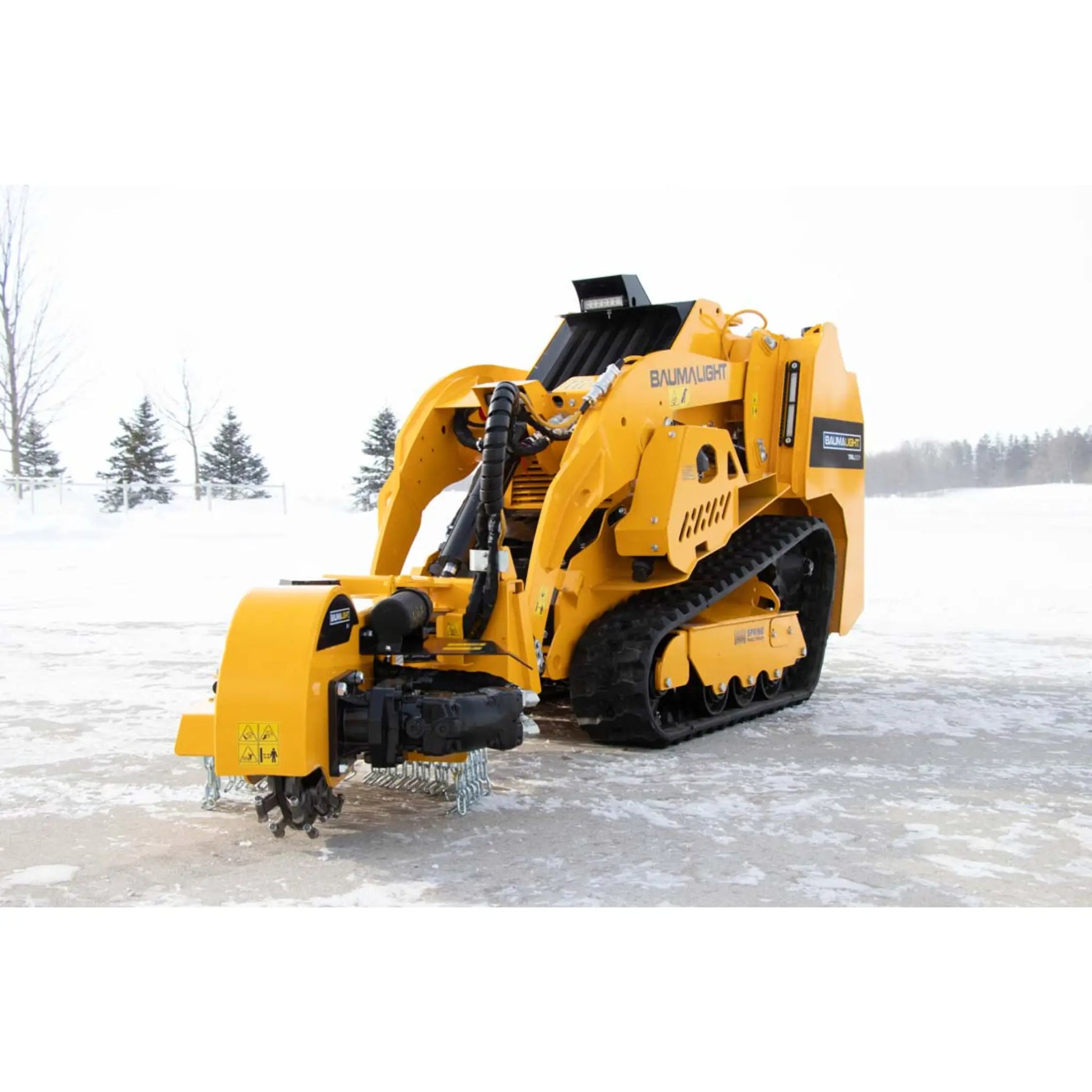

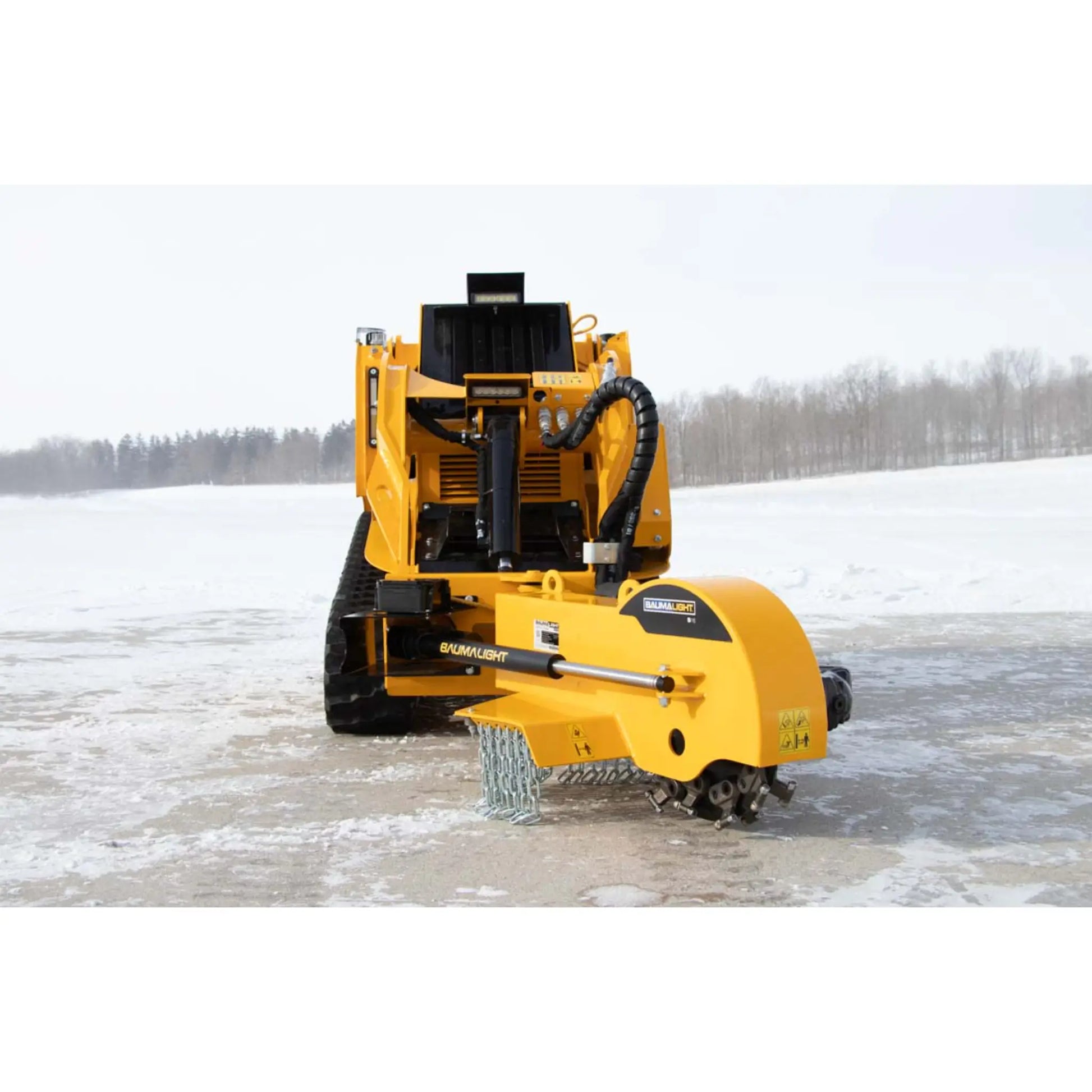

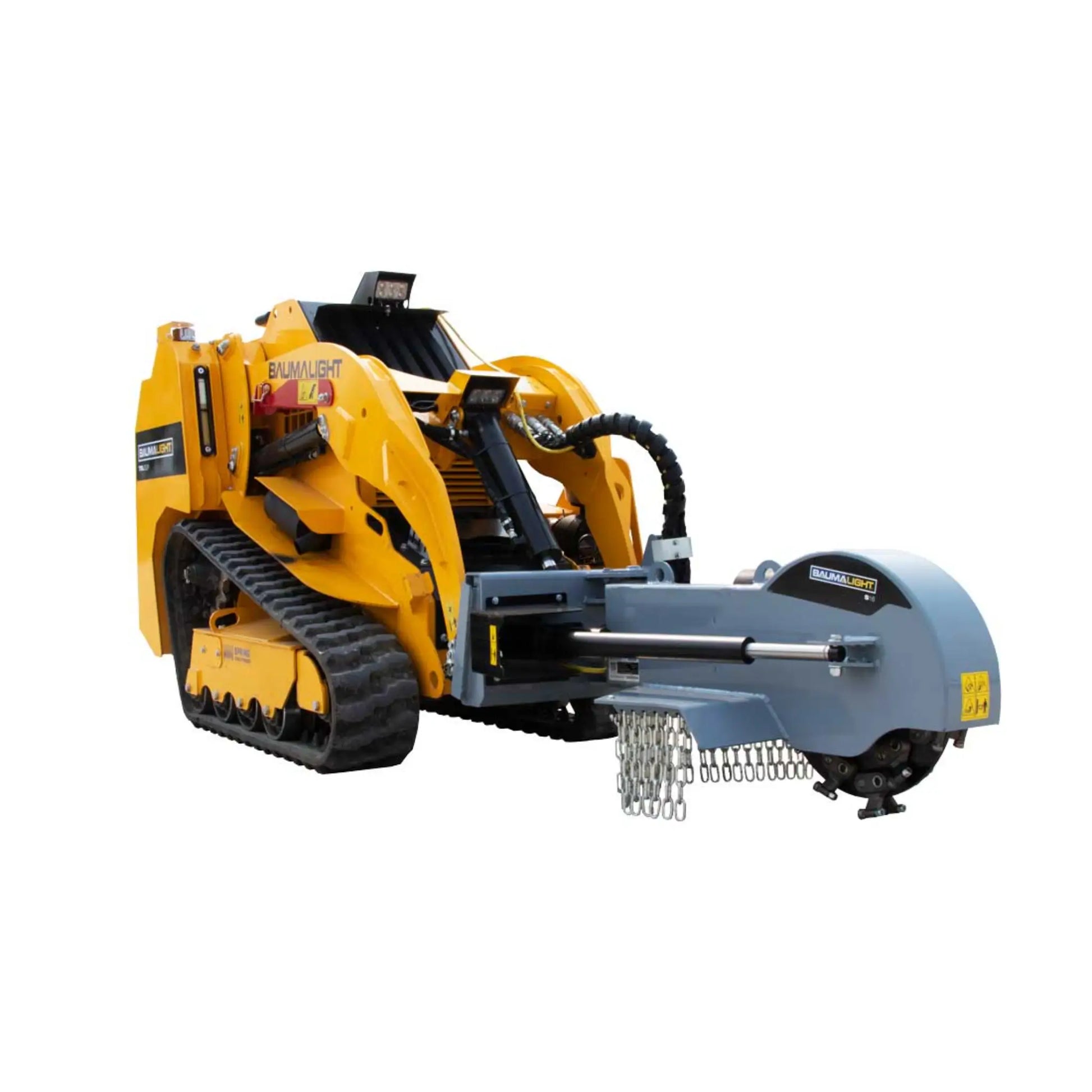

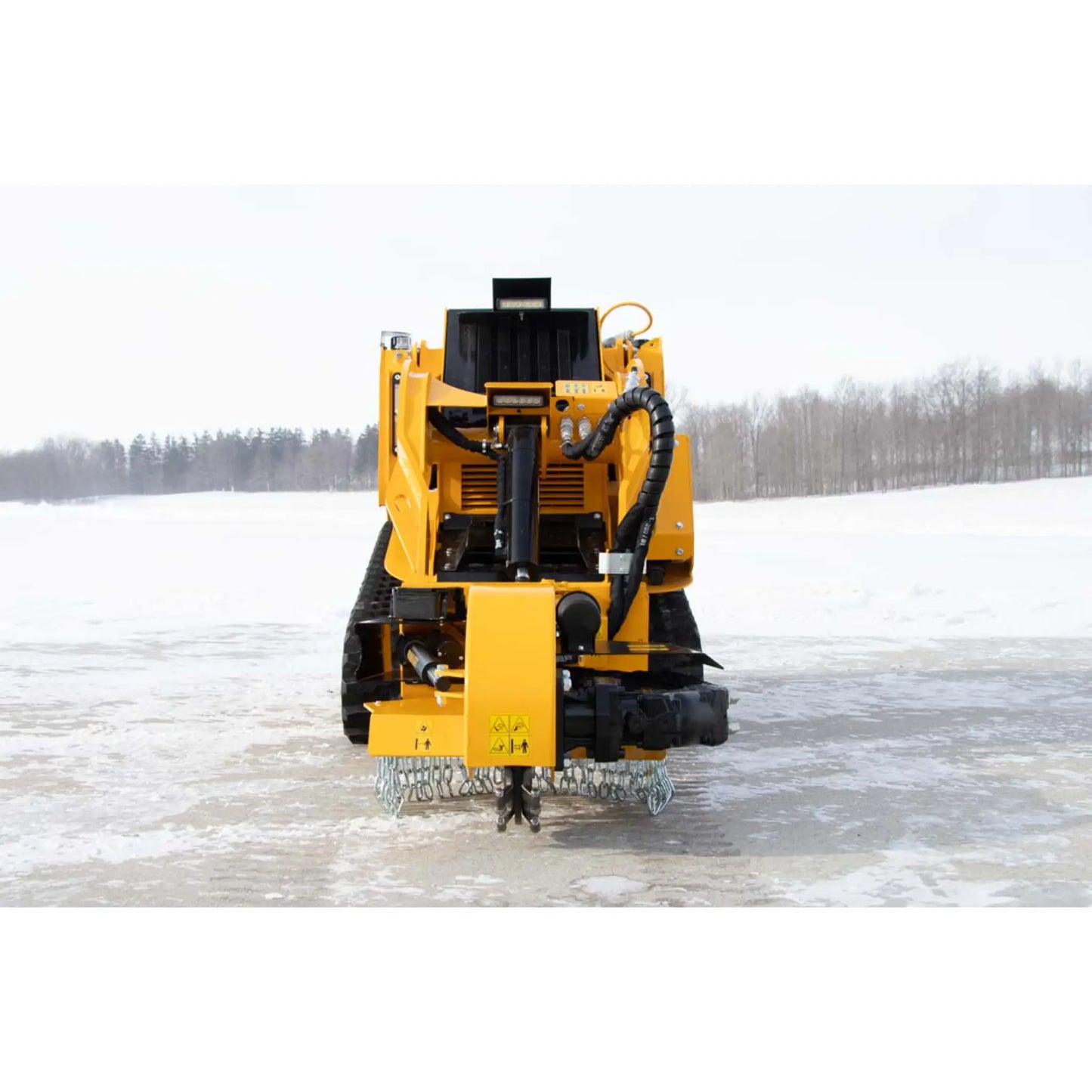

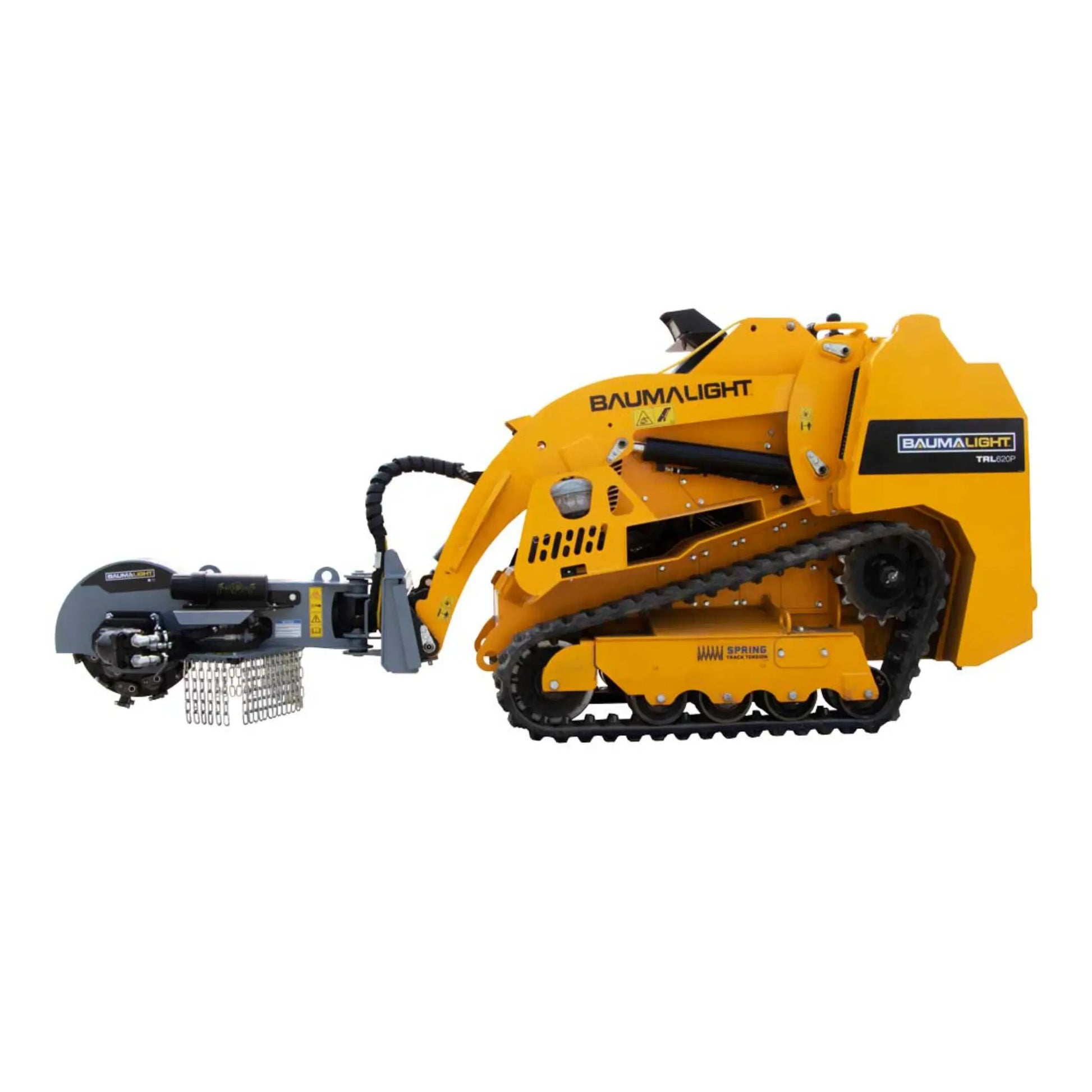

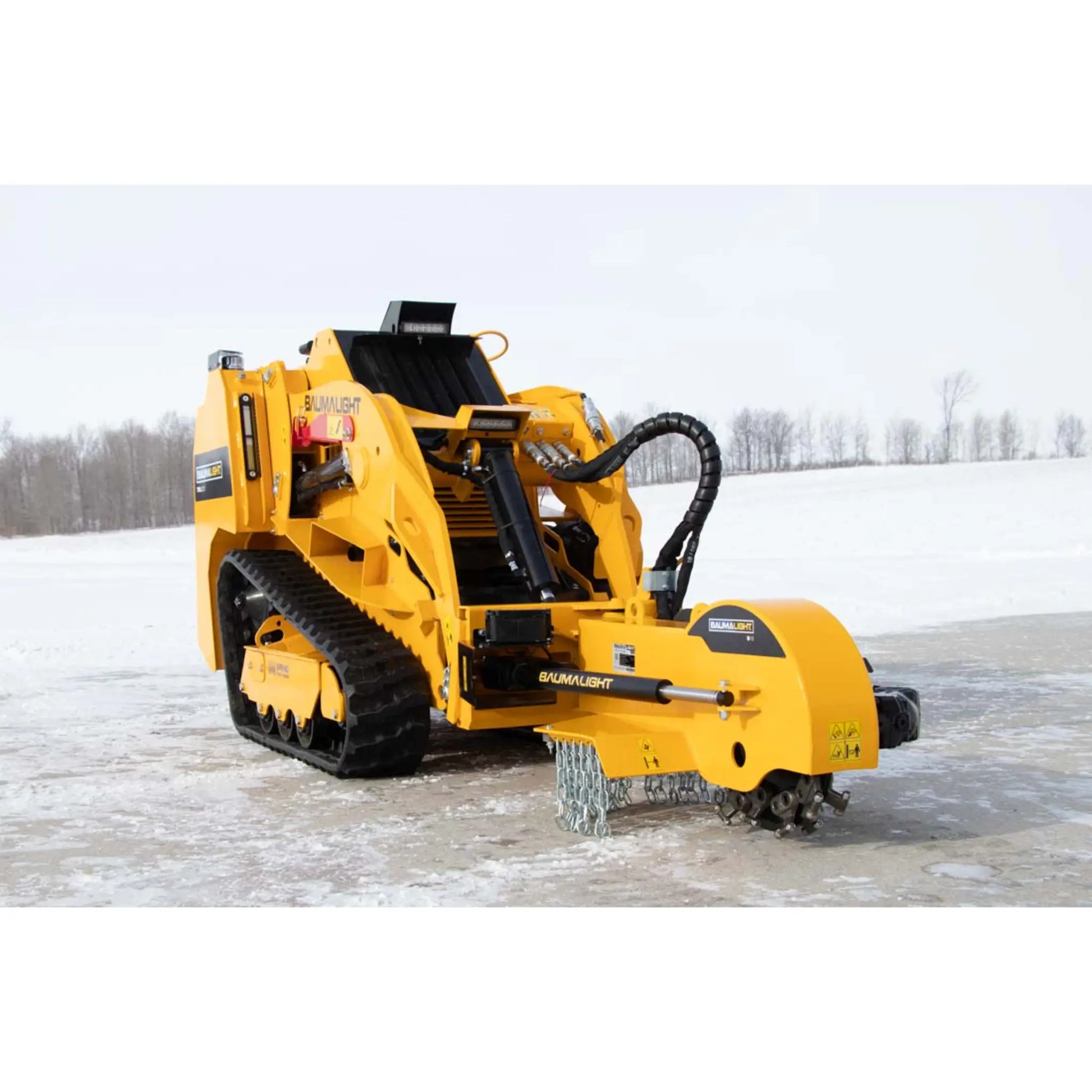

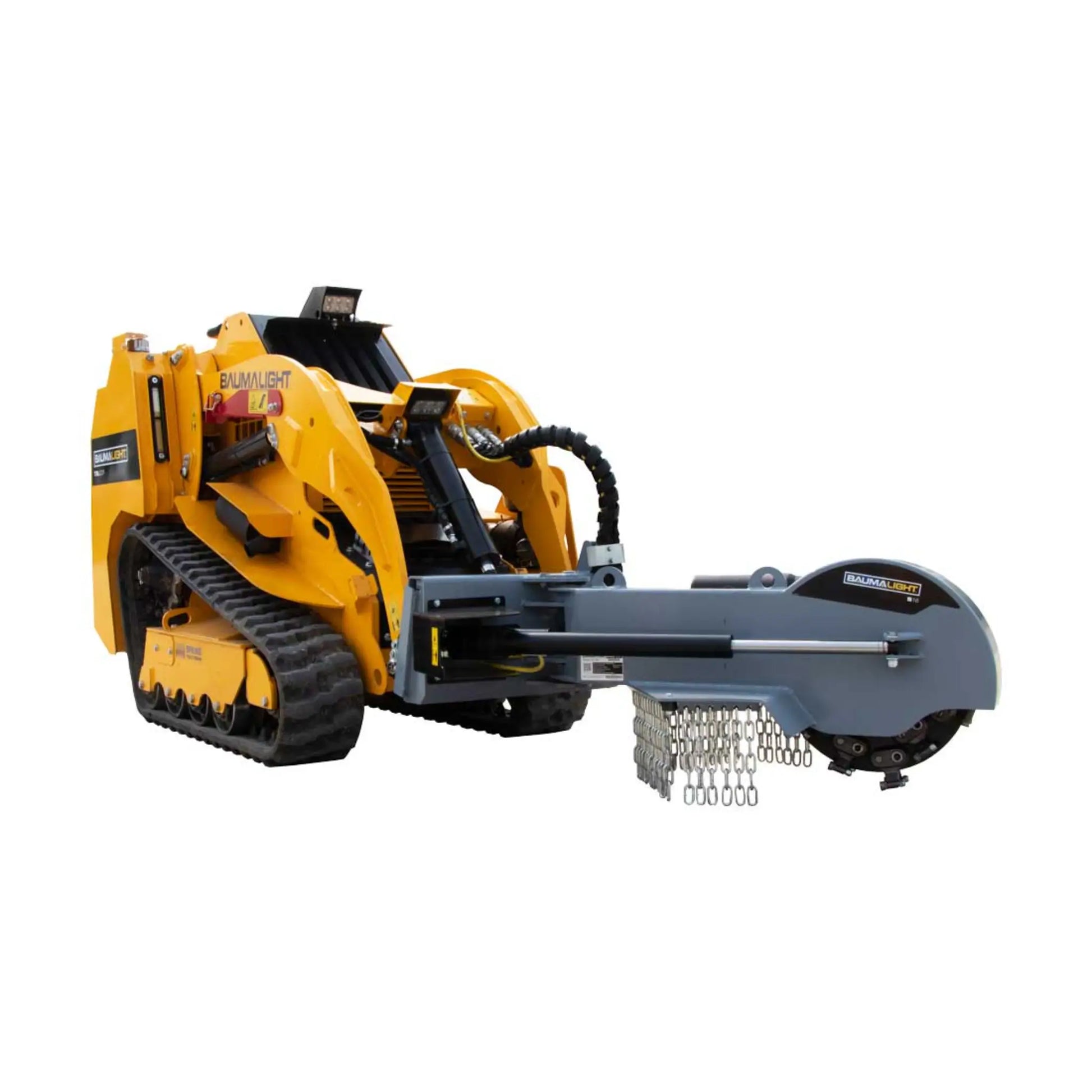

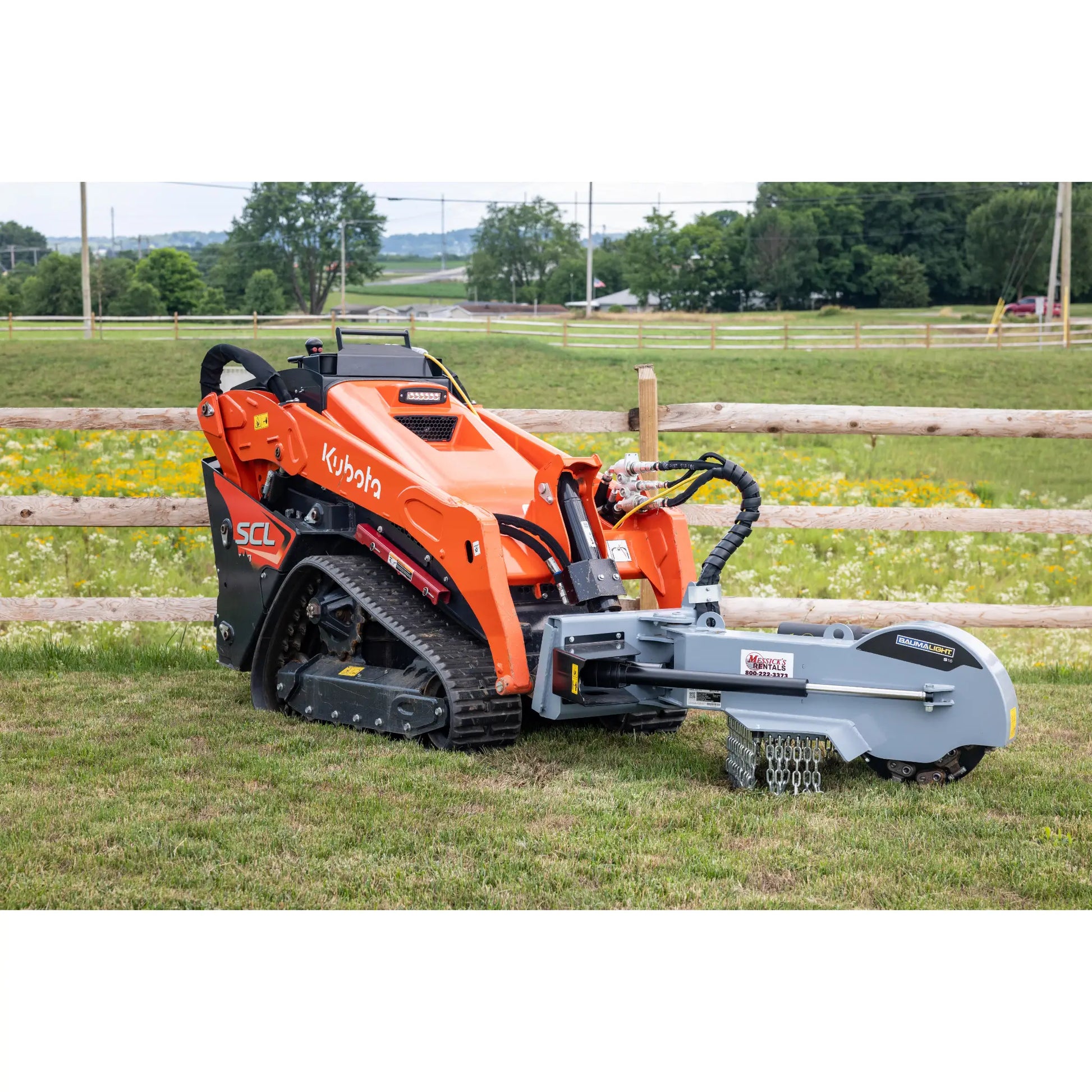

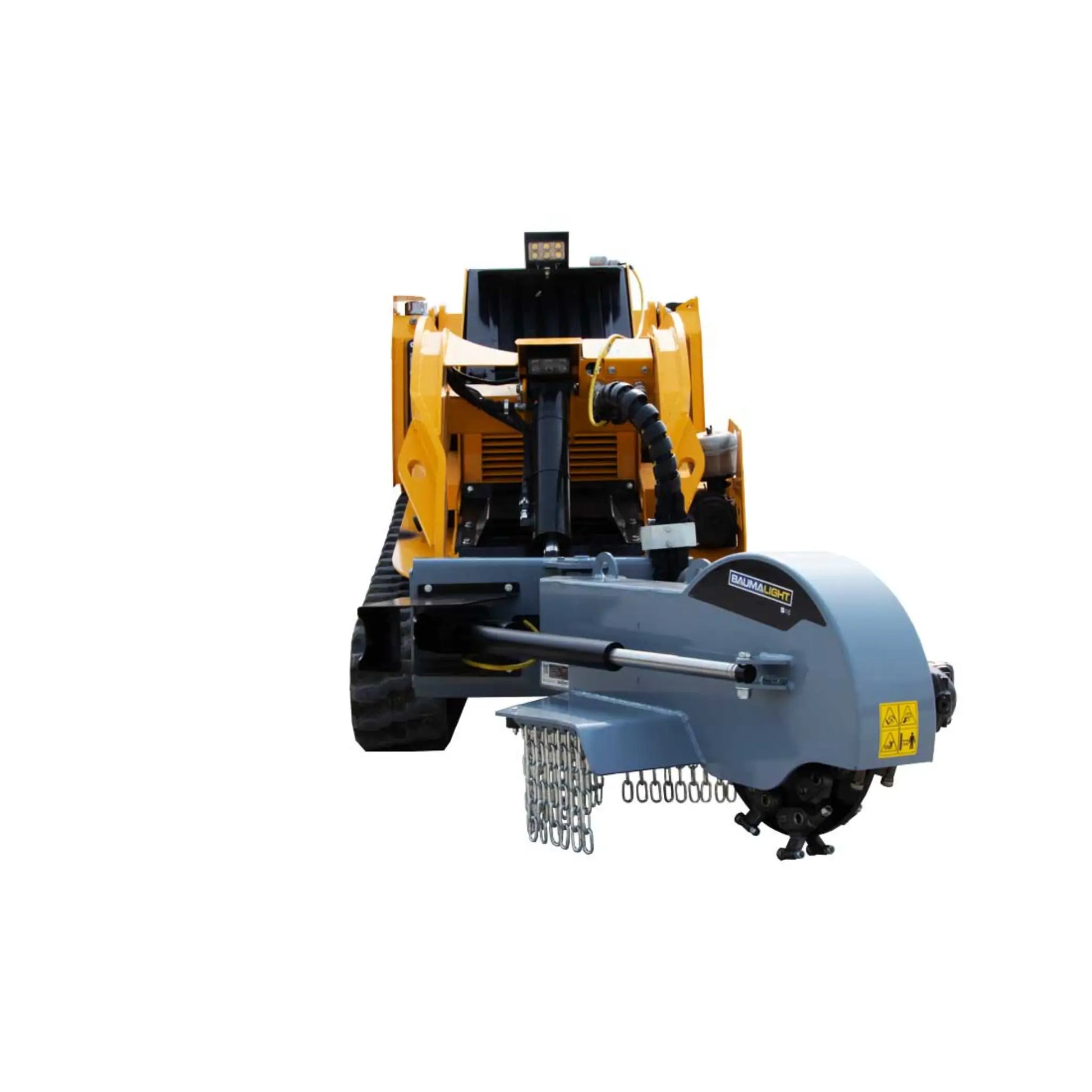

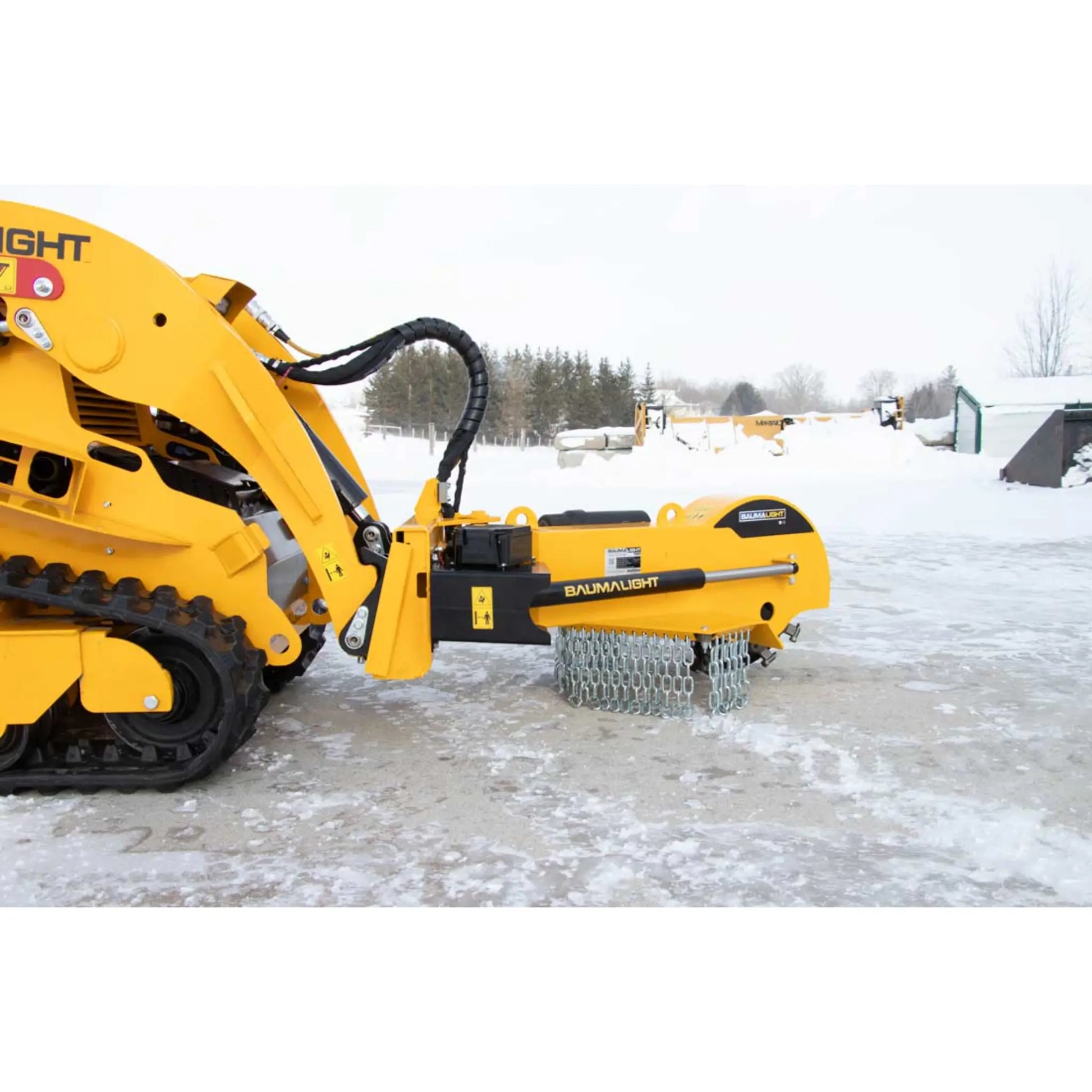

Experience unmatched stump grinding precision with the Baumalight S16 Mini Skidsteer Stump Grinder, featuring an electric actuator that expertly controls side-to-side swing and robust 12VDC electric linear actuators with IP69-rated stainless steel bodies. Its double-sided tooth rotor speeds up operations, while the unique concave carbide tips ensure aggressive cutting.

Model No. S14 S16 S18 S24 S28 S40
Recommended HP Size Mini Skidsteer Mini Skidsteer 25-80 30-80 50-120 50-120
Maximum Carrier Size Check GPM & PSI Check GPM & PSI Check GPM & PSI Check GPM & PSI Check GPM & PSI Check GPM & PSI
Motor Type Gerotor Bent Axis Piston Gerotor Gerotor Gerotor Bent Axis Piston
Hydraulic GPM Check Stump Cutting Size Chart Check Stump Cutting Size Chart Check Stump Cutting Size Chart Check Stump Cutting Size Chart Check Stump Cutting Size Chart Check Stump Cutting Size Chart
Rotor Size 18" 18" 24" 24" 24" 24"
Number of Teeth 12 24 34 34 34 20
Tooth Part number H3000 H3000 S1000 S1000 S1000 H3000
Tooth Construction High speed High speed Planer Planer Planer High speed
Cutting Wheel Speed Depends on GPM Depends on GPM Depends on GPM Depends on GPM Depends on GPM Depends on GPM
Cutting Height - Above Ground No limit No limit No limit No limit No limit No limit
Cutting Depth - Below Ground 6" 6" 10" 10" 10" 24"
Maximum Cutting Depth - Per Pass 2" 2" 5" 6" 6" 1"
Maximum Horizontal Cut 12" 12" 22" 22" 22" 22"
Swing Arc Self-feeding 56° Self-feeding 60° 63° 85°
Hub Torque 150 Ft.-Lbs. - 250 Ft.-Lbs. 250 Ft.-Lbs. 803 Ft.-Lbs. -
Over Torque Protection Relieve valve Relieve valve Relieve valve Relieve valve Relieve valve Remote
Hitch 1" pivot pins 1" pivot pins Mini Plate Quick Attach Quick Attach Quick Attach
No. of Remotes Required - Hydraulic 1 1 1 1 1 1
Requires 12 Volt DC No Yes No Yes Yes Yes
Unit Weight (Shipping) Lbs. 394 400 642 995 995 1,200



36in Root Base



3skidsteer Stump Cutting Times Based on 24" Stump
Motor Case Drain PSI 12 GPM 15 GPM 20 GPM 25 GPM 30 GPM 35 GPM 40 GPM 50 GPM CC Motor
Type 		RPM at
MAX GPM
S508 Motor
Available for : S16		 Critcal 2500 40 min 30 min 20 min -- -- -- -- -- 25 Piston 2700
3,000 30 min 25 min 15 min -- -- -- -- --
S445 Motor
Available for : S24		 Recommended 2500 -- 60 min 40 min 35 min -- -- -- -- 125 Roller Vane 520
3,000 -- 50 min 30 min 30 min -- -- -- --
3,500* -- 50 min 30 min 30 min -- -- -- --
S545 Motor
Available for : S24		 Recommended 2500 -- 80 min 40 min 35 min 25 min 20 min -- -- 130 Roller Vane 700
3,000 -- 70 min 30 min 30 min 20 min 16 min -- --
3,500* -- 60 min 30 min 30 min 20 min 16 min -- --
S645 Motor
Available for : S28		 Recommended 3,000 -- 40 min 40 min 25 min 15 min 12 min 10 min 130 Roller Vane 540
3,500 -- -- 30 min 20 min 12 min 10 min 8 min
S740 Motor
Available for : S40		 Critcal 2500 -- -- 30 min 15 min 12 min 10 min -- -- 56 Piston 2100
3,000 -- -- 25 min 12 min 10 min 8 min -- --
3,500* -- -- 23 min 10 min 8 min 6 min -- --
S770 Motor
Available for : S40		 Critcal 2500 -- -- -- 30 min 20 min 9 min 8 min 7 min 84 Piston 2000



Order shipment preparation takes 3 days. Once shipped orders usually take 2 weeks to be delivered. These are estimations; delivery can be delayed for reasons beyond our control. You can always contact us to know the exact delivery time once you placed an order with us. Have a look at our shipping policy here.
