Baumalight SWA540 Boom Mower For Skid Steers - BML-SWA540-D510-F2-JS4

Baumalight SWA540 Boom Mower For Skid Steers - BML-SWA540-D510-F2-JS4

by Baumalight
SKU BML-SWA540-D510-F2-JS4
Save up to 6% Save 6%
$21,700.00
$21,000.00 - $23,300.00
$21,700.00
$20,398.99
$19,740.99 - $21,902.99
$20,398.99

  • CLEARANCE SALE.

  • ITEMS LEFT.

  • PEOPLE are also watching that product.

Baumalight SWA540 Boom Mower For Skid Steers - BML-SWA540-D510-F2-JS4

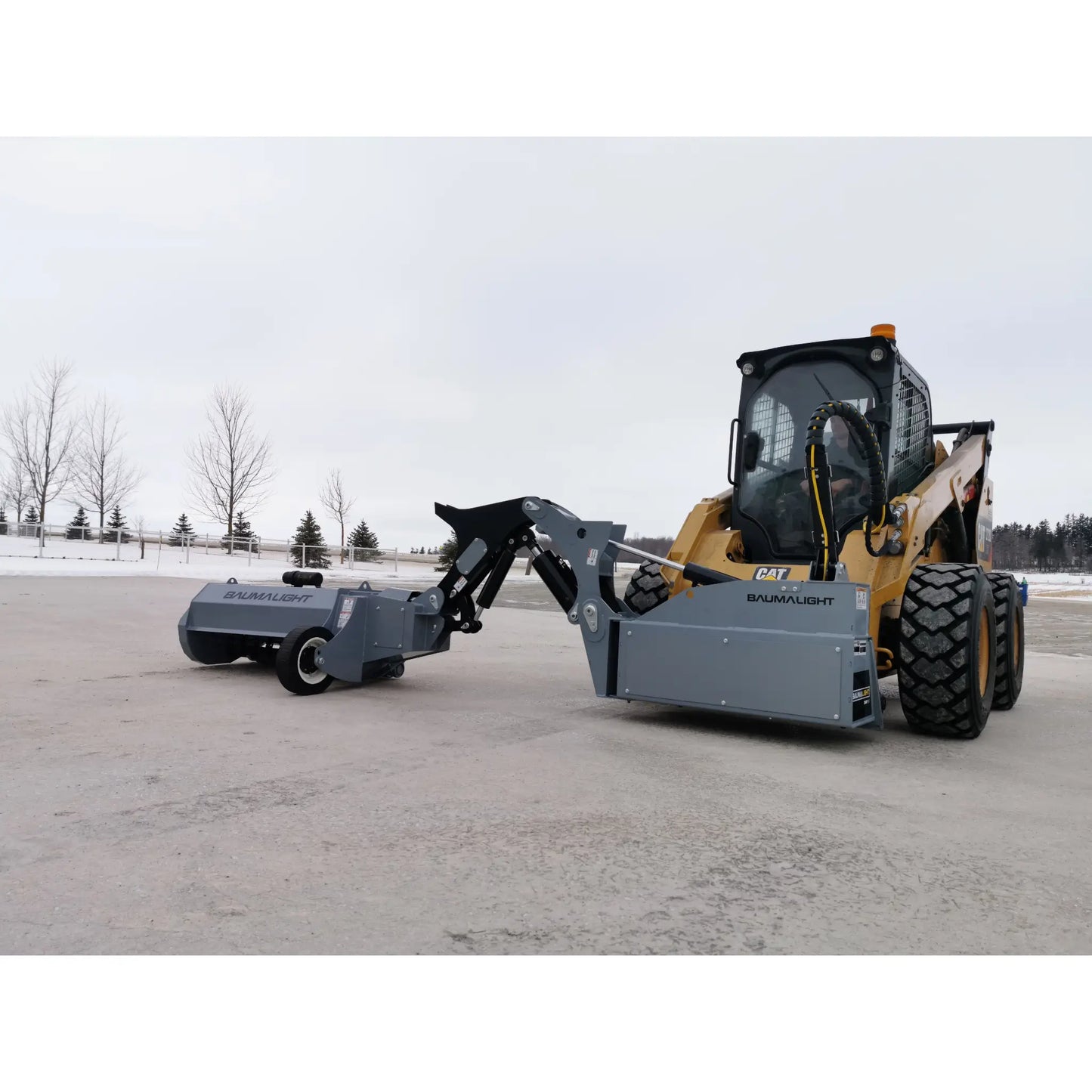

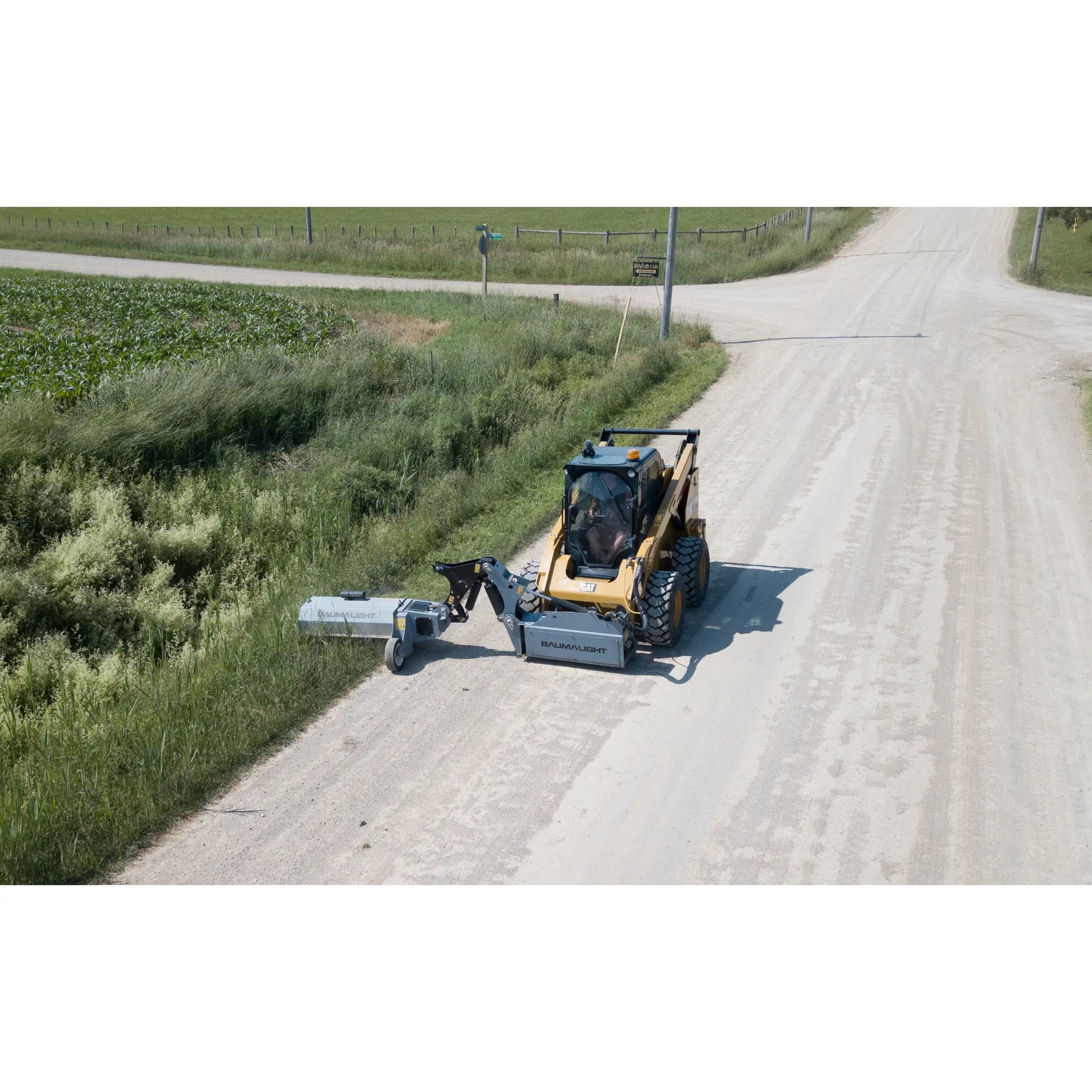

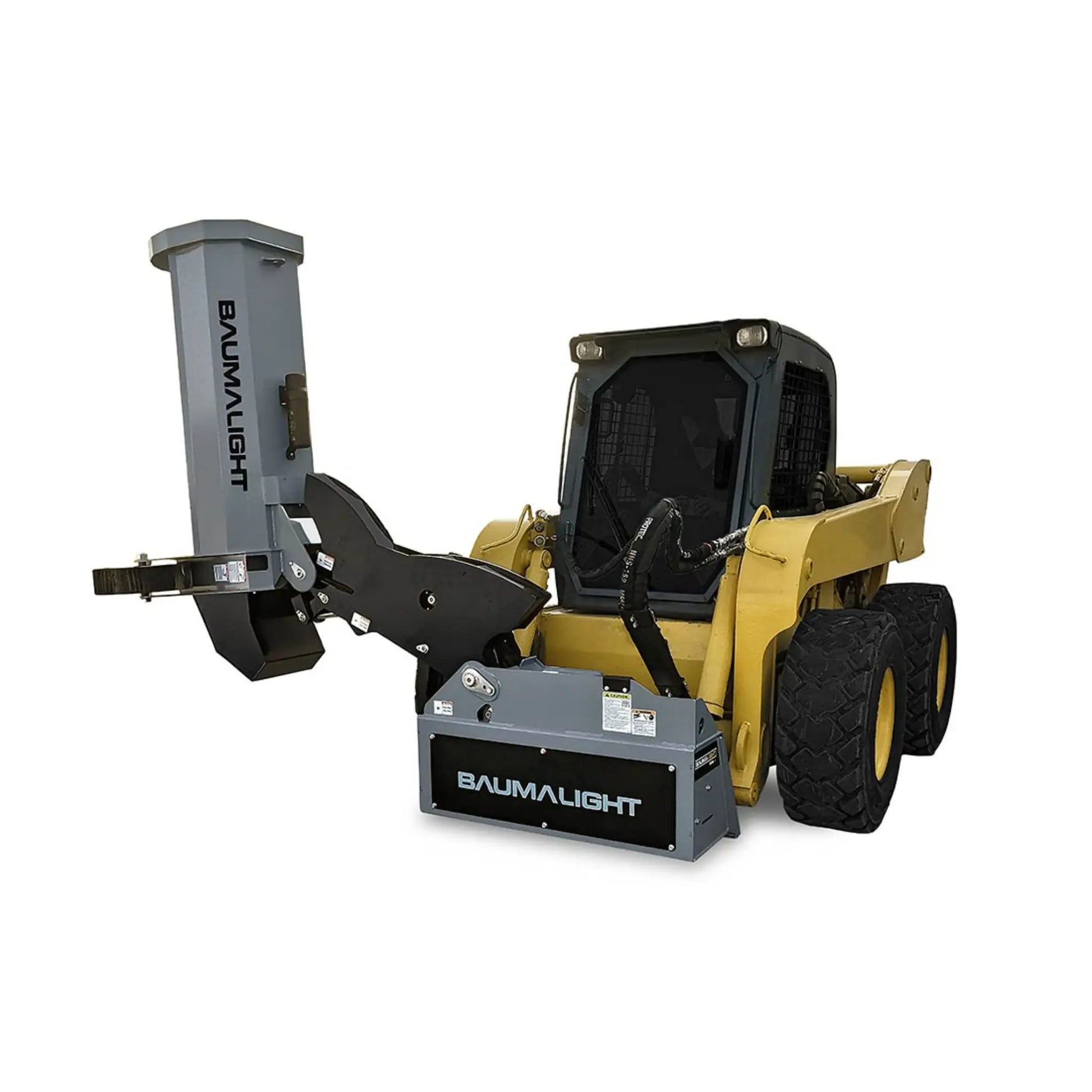

Maintain roadsides and fence lines effortlessly with Baumalight's SWA540 Boom Mower for Skid steers. Designed for carriers weighing at least 4,500 lbs, this ditch mower features a curved single-arm boom with a 6-foot reach, a 48" wide mowing head, and 200 series flail teeth. The boom conveniently folds up for easy transport between projects.

Baumalight’s SWA540 Boom Mower for Skidsteer allows you to easily maintain roadside and fenceline grass and brush. The SWA540 is designed to work with skid steers with a minimum carrier weight of 4,500 lbs. With a 6 foot reach, the curved single arm boom gives you easy access hard to reach grass.

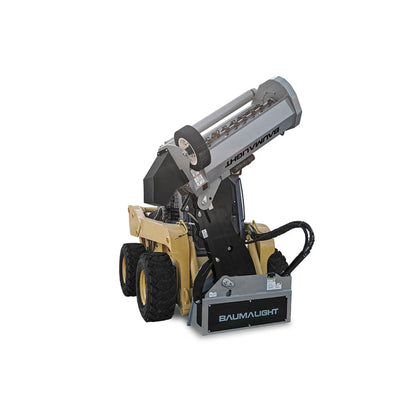

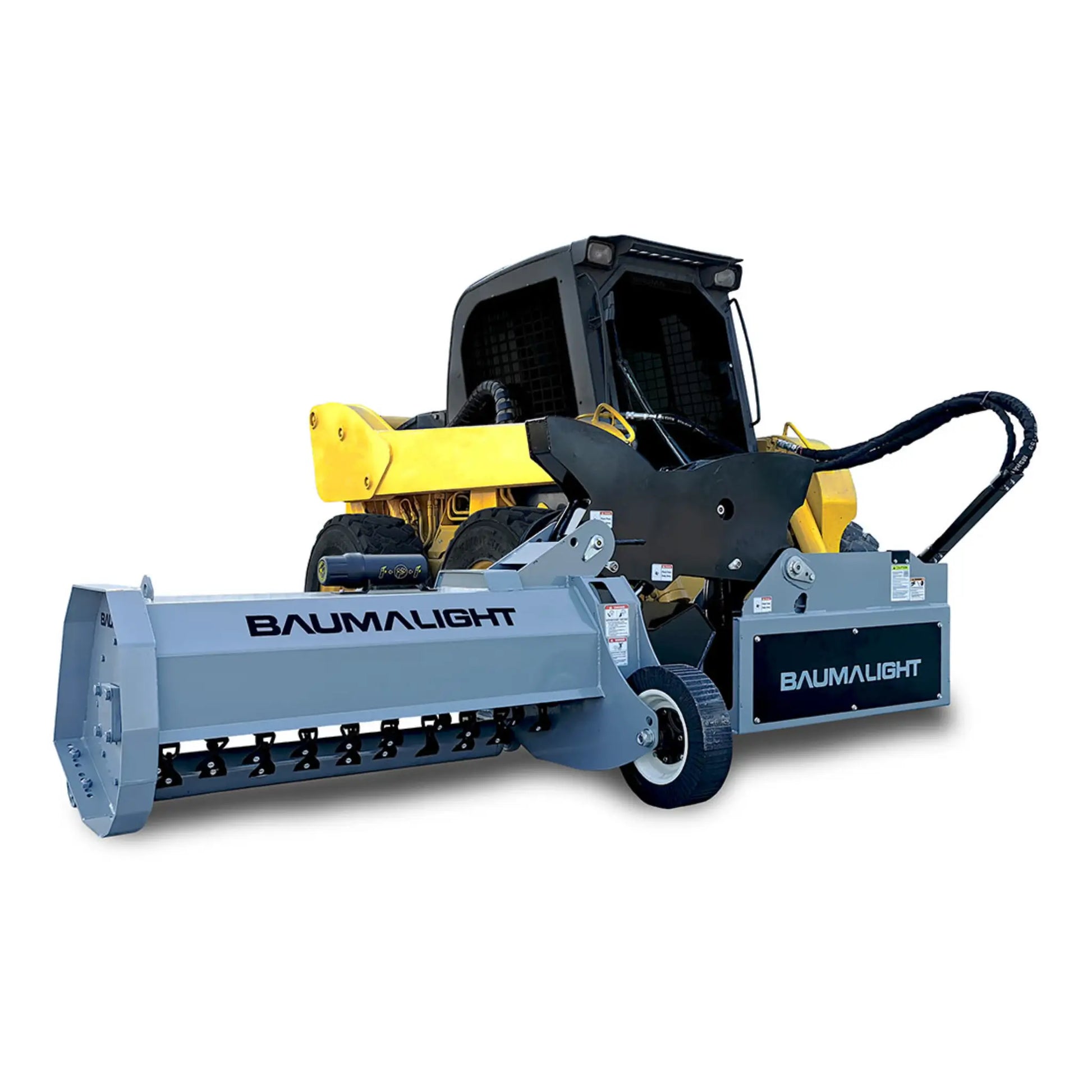

This ditch mower has a full 48” wide mowing head and features our 200 series flail teeth. When it’s time to move on to the next project, the boom conveniently folds up for travel.
Model No. SWA540 SWA550 SWA560 SWF560 SWF580 SWA750
Total reach when flat 6 ft 7 ft 10 ft 10 ft 14 ft 7 ft
Cutting Width 48" 60" 60" 48" 48" 42"
Boom Type Single Arm Single Arm Single Arm Boom & Stick Boom & Stick Single Arm
Type of Blades Flail Flail Flail Flail Flail Rotary cutter
Minimum Skidsteer weight
Warning; not applicable to wheel loaders		 4,500 lbs 5,000 lbs 5,500 lbs 6,000 lbs 8,000 lbs 8,000 lbs
Maximum Skidsteer weight 10,500 lbs 11,000 lbs 12,000 lbs 12,000 lbs 16,000 lbs 12,000 lbs
Requires Case Drain Yes Yes Yes Yes Yes Yes
Hydraulic Hose & Couplers Hose only Hose only Hose only Hose only Hose only Hose only
Max PSI 4,500 4,500 4,500 4,500 4,500 4,500
Motor type Piston Piston Piston Piston Piston Piston
Estimated dealer set-up time 6 hours 6 hours 6 hours 8 hours 9 hours 7 hours
No. of blade clusters
F2000(Standard)		 38 48 48 38 38 -
No. of blade clusters
F3000(Optional)		 76 96 96 76 76 -
Shipping weight 1775 lbs 1900 lbs 1750 lbs 1650 lbs 1800 lbs 2050 lbs



Maximum Mowing Size
(Brush Diameter in Inches)

MOTOR MOTOR
TYPE 		CC CASE
DRAIN 		IDEAL
RPM 		BLADE
STYLE 		PSI 20 GPM 25 GPM 30 GPM 35 GPM 40 GPM
RPM 1500 2000 2500 3000 3500
D510 Piston 34 Critical 2200 F2000 3000
3500		 0.375"
0.5"		 0.5"
0.75"		 0.75"
0.75"		 N/A N/A
D510 Piston 34 Critical 2200 F3000 3000
3500		 0.75"
1"		 1"
1"		 1"
1"		 N/A N/A





MOTOR MOTOR
TYPE 		CC CASE
DRAIN 		IDEAL
RPM 		BLADE
STYLE 		PSI 20 GPM 25 GPM 30 GPM 35 GPM 40 GPM
RPM 1000 1500 1800 2100 2500
D530 Piston 47 Critical 2100 F2000 3000
3500		 0.5"
0.75"		 0.75"
0.75"		 0.75"
0.75"		 0.75"
0.75"		 0.75"
0.75"
D530 Piston 47 Critical 2100 F3000 3000
3500		 1"
1"		 1"
1"		 1"
1"		 1"
1"		 1"
1"



 

Order shipment preparation takes 3 days. Once shipped orders usually take 2 weeks to be delivered. These are estimations; delivery can be delayed for reasons beyond our control. You can always contact us to know the exact delivery time once you placed an order with us. Have a look at our shipping policy here.
