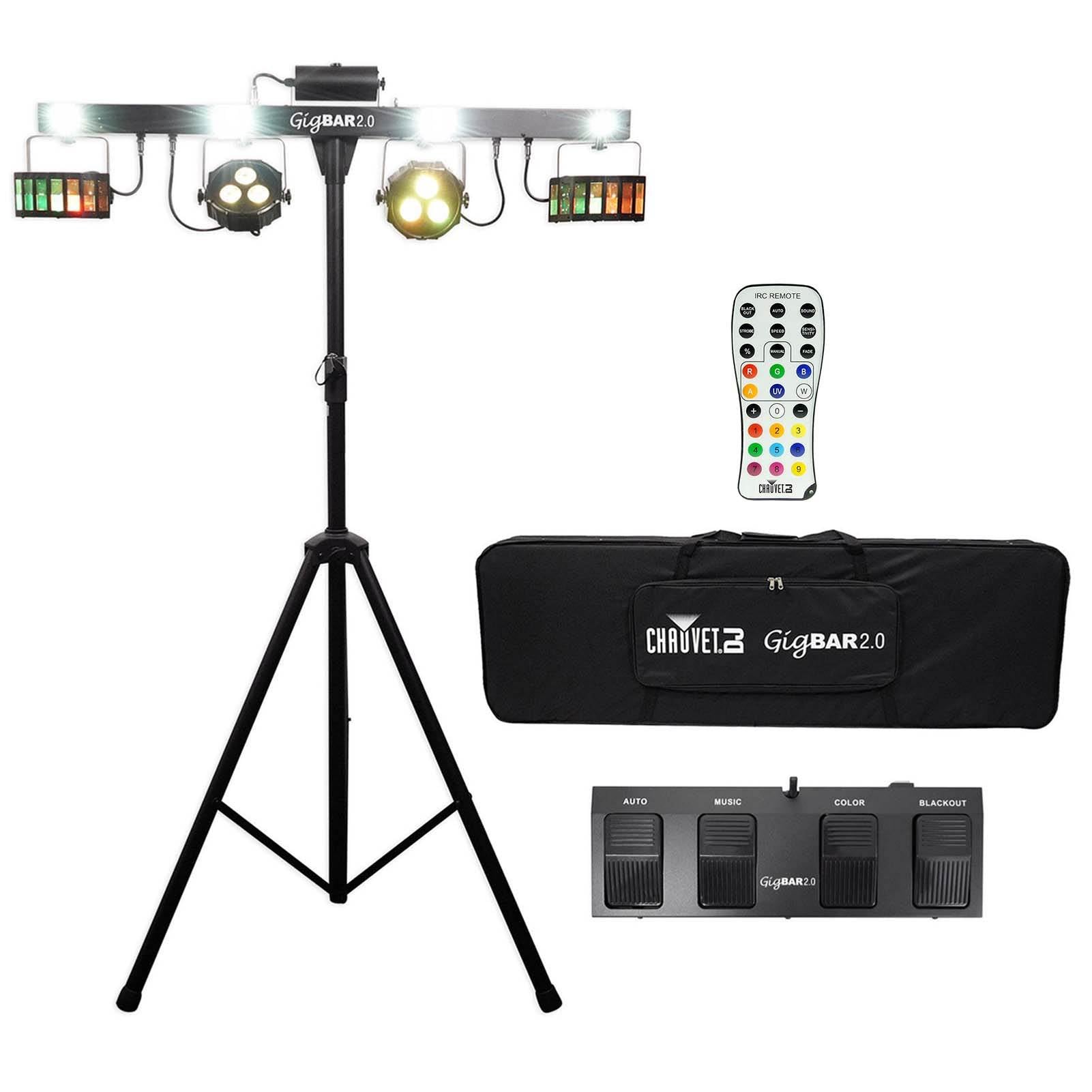

CHAUVET DJ 4-in-1 LED GigBAR 2.0 Light FX System w/ Tripod+Remote+Footswitch+Bag - 70743

CHAUVET DJ 4-in-1 LED GigBAR 2.0 Light FX System w/ Tripod+Remote+Footswitch+Bag - 70743

Rig up your gig with the GigBAR 2 Lighting System from CHAUVET DJ and put on a show that will send your crowd over the moon.

Your audience will be dreaming in color after they witness the beauty and flashiness of 2 LED Derby fixtures, LED wash lights and 4 high-power LED strobe lights all mounted on one sleek, black bar. Additional pars and strobes give off increased color mixing and effects that will make their jaws drop to the floor.

It covers any room or stage setting with just 4 individually adjustable and interchangeable heads. The LED strobe lights create exciting chase and slow motion effects as well as featuring built-in automated and sound-activated programs. The red and green scatter hundreds of bright dots and beams in all the right directions and make your gig rock. You control the system from the display, included IRC-6 remote,wireless foot switch, or through the DMX.

Be prepared to put on an unforgettable show or event and to get lost in the music and lights with this 4-in-1 LED GigBAR2 from CHAUVET DJ.

Features

• 4-in-1 light that includes a pair of LED Derby, LED pars, and strobe effect all mounted on one bar
• Cover any room or stage with 4 individually adjustable and interchangeable heads
• Get in and get out quickly with the included tripod, wireless footswitch and free carry bags
• Ready for every application using the included mounting brackets to attach to truss
• 4 high-power, LED strobe lights create exciting chase and slow motion effects
• Adjustable red and green laser scatters hundreds of bright dots and beams in all the right directions
• Phenomenal built in automated and sound-activated programs that include all 4 effects to make one complete show
• Easily control from the display, included IRC-6, wireless foot switch or DMX to take your gig to a higher level
• Master/slave multiple units under the control of a single IRC or wireless foot switch
• Save time running cables and extension cords by power linking multiple units
• Specifications:
• DMX Channels: 3, 11, or 23
• DMX Connectors: 3-pin XLR
• Strobe Rate: (strobe): 0 to 18 Hz
• Beam Angle: (pars): 13 degrees (strobe): 8 degrees
• Field Angle: (pars): 24 degrees (strobe): 18
• Coverage Angle: (laser): 93 degrees (Derby): 114 degrees
• Fits Tripod Size: 37.4 millimeter
• Illuminance: (pars): 1,205 lux at 2 m (per head) (strobe): 86 lux at 2 m (per zone)
• Power Linking: 8 units at 120 V; 15 units at 230 V
• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power and Current: 68 W, 1 A @ 120 V, 60 Hz; 64 W, 0.5 A @ 230 V, 50 Hz
• Foot Switch Operating Frequency: 433 MHz
• Foot Switch Max Unobstructed Distance: 100 feet
• Footswitch Battery: 12-Volt, A23
• Includes power cord, IRC-6 remote, tripod, tripod carry bag, wireless footswitch, and user manual

• Dimensions:
• 46.7 x 4.3 x 15.2 inches
• Stand Height: 59 to 98.4 inches
• Tripod Leg Width: 47.2 inches
• Weight: 14.6 pounds

What our Experts Think

• True all-in-one lighting rig (DJ-ready setup)
  Combines multiple effects—wash lights, derby beams, strobes, and laser—on a single bar for a complete stage or dancefloor show in minutes.
• 4-in-1 FX system (big visual impact)
  Includes RGB+UV PAR wash lights, rotating derby effects, white/UV strobes, and a red/green laser, all synchronized for layered lighting effects.
• Fast setup + portable design (mobile DJ focus)
  Comes with tripod, carry bags, and wireless footswitch—built for quick load-in/load-out at weddings, clubs, and events.
• Multiple control options (flexible operation)
  Can be controlled via DMX, sound-activated modes, onboard display, remote, or footswitch, making it usable for beginners and pros alike.
• Wide room coverage (venue-filling output)
  Designed to flood small-to-medium venues with multicolor beams, UV washes, and strobe effects for high-energy dancefloor lighting.
• Built for event reliability (plug-and-play simplicity)
  Strong “set it and run it” system—popular with mobile DJs who want consistent shows without complex programming.

Q&A

Q: What is the CHAUVET GigBAR 2.0 used for?
A: It is an all-in-one lighting system designed for DJs, bands, weddings, parties, and stage events to create a complete light show from a single setup.

Q: What lighting effects are included?
A: It features derby lights, RGB+UV wash lights, strobe lights, and a red/green laser all mounted on one bar for full-room coverage.

Q: How many lighting fixtures does it have?
A: It includes 2 derby effects, 2 wash lights, 4 strobes, and 1 laser module integrated into one unit.

Q: Does it support DMX control?
A: Yes, it supports DMX with multiple channel modes, allowing full customization of effects, colors, and transitions.

Q: Can it work without a controller?
A: Yes, it has built-in auto programs and sound-activated modes, plus remote and footswitch control for plug-and-play use.

Q: Is it wireless?
A: It includes wireless footswitch control and IR remote support, reducing the need for manual operation during shows.

Q: Does it come with a stand and case?
A: Yes, it includes a tripod stand and carry bags, making setup and transport quick and easy.

Q: Is it good for beginners?
A: Yes, it is designed as a “plug-and-play” system, making it easy for beginners while still offering DMX control for professionals.

Maintenance Tips

• Clean LED lenses regularly (dry microfiber only) – keeps derby, wash, laser, and strobe output bright and clear.
• Avoid liquids on fixture bar – protects internal wiring, DMX circuits, and LED modules.
• Dust the unit after every event – prevents buildup on vents and moving parts.
• Secure all knobs, mounts, and tripod joints – ensures stability during performance setups.
• Inspect power and DMX connections – prevents flicker, signal loss, or random fixture behavior.
• Test footswitch & remote before gigs – ensures reliable wireless control during shows.
• Store in included carry bag – protects optics, cables, and bar during transport.
• Avoid overheating (don’t block ventilation) – extends LED lifespan and performance consistency.
• Keep laser output clean and unobstructed – ensures sharp aerial effects and safe operation.
