Chauvet DJ 4-in-1 LED GigBAR 2.0 Light FX System w/ Tripod+Remote+Footswitch+Bag - 141551

Chauvet DJ 4-in-1 LED GigBAR 2.0 Light FX System w/ Tripod+Remote+Footswitch+Bag - 141551

Rig up your gig with the GigBAR 2 Lighting System from Chauvet and put on a show that will send your crowd over the moon.

Your audience will be dreaming in color after they witness the beauty and flashiness of 2 LED Derby fixtures, LED wash lights, a laser, and 4 high-power LED strobe lights all mounted on one sleek, black bar. An addition of UV in the pars and strobes give off increased color mixing and effects that will make their jaws drop to the floor.

It covers any room or stage setting with just 4 individually adjustable and interchangeable heads. The LED strobe lights create exciting chase and slow motion effects as well as featuring built-in automated and sound-activated programs. The red and green laser scatter hundreds of bright dots and beams in all the right directions and make your gig rock. You control the system from the display, included IRC-6 remote,wireless foot switch, or through the DMX.

Be prepared to put on an unforgettable show or event and to get lost in the music and lights with this 4-in-1 LED GigBAR2 from Chauvet.

Features

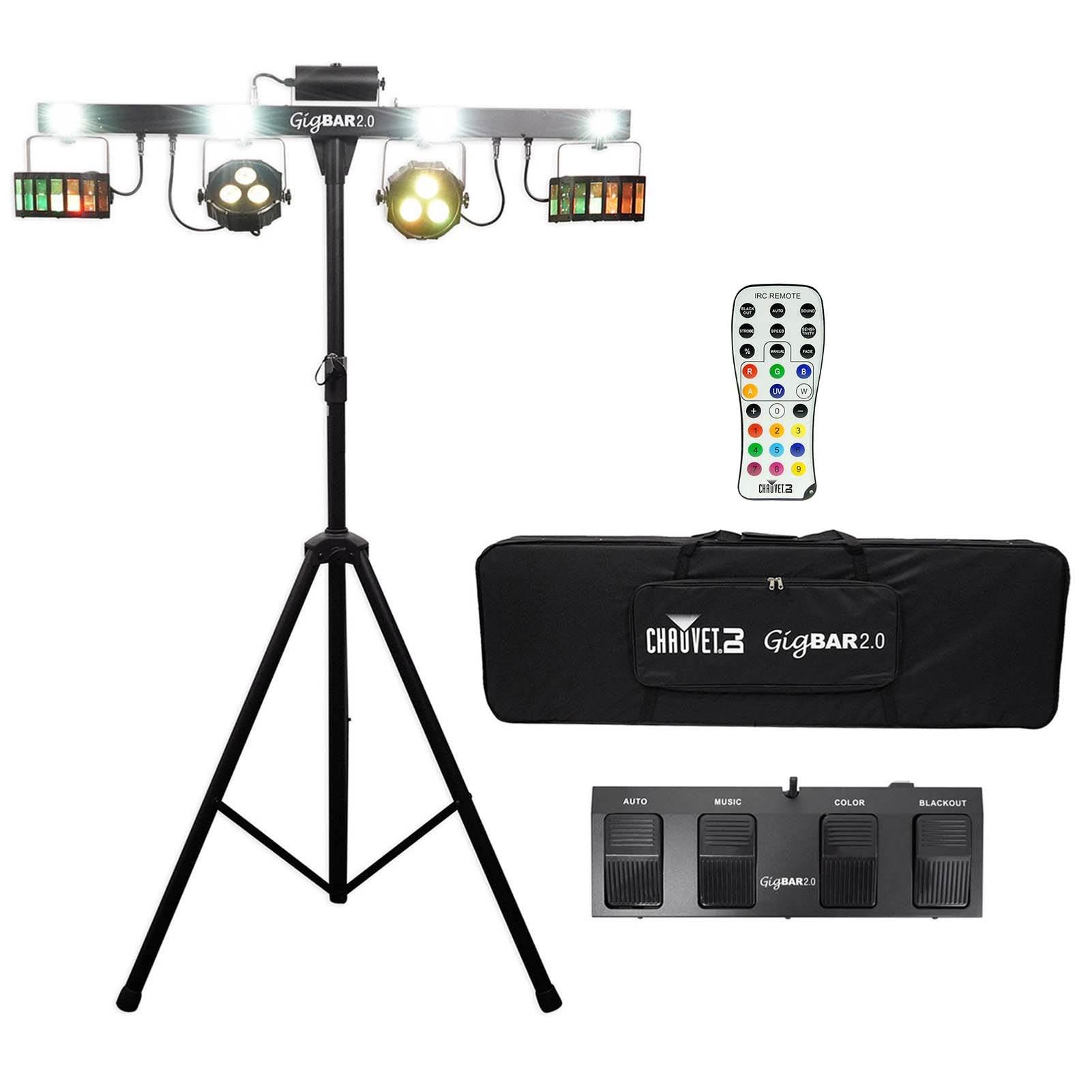

• 4-in-1 light that includes a pair of LED Derby, LED pars, a laser, and strobe effect all mounted on one bar
• Added UV in pars and strobes for increased color mixing and effects
• Cover any room or stage with 4 individually adjustable and interchangeable heads
• Get in and get out quickly with the included tripod, wireless footswitch and free carry bags
• Ready for every application using the included mounting brackets to attach to truss
• 4 high-power, LED strobe lights create exciting chase and slow motion effects
• Adjustable red and green laser scatters hundreds of bright dots and beams in all the right directions
• Phenomenal built in automated and sound-activated programs that include all 4 effects to make one complete show
• Easily control from the display, included IRC-6, wireless foot switch or DMX to take your gig to a higher level
• Master/slave multiple units under the control of a single IRC or wireless foot switch
• Save time running cables and extension cords by power linking multiple units
• Specifications:
• DMX Channels: 3, 11, or 23
• DMX Connectors: 3-pin XLR
• Strobe Rate: (strobe): 0 to 18 Hz
• Beam Angle: (pars): 13 degrees (strobe): 8 degrees
• Field Angle: (pars): 24 degrees (strobe): 18
• Coverage Angle: (laser): 93 degrees (Derby): 114 degrees
• Fits Tripod Size: 37.4 millimeter
• Illuminance: (pars): 1,205 lux at 2 m (per head) (strobe): 86 lux at 2 m (per zone)
• Power Linking: 8 units at 120 V; 15 units at 230 V
• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power and Current: 68 W, 1 A @ 120 V, 60 Hz; 64 W, 0.5 A @ 230 V, 50 Hz
• Foot Switch Operating Frequency: 433 MHz
• Foot Switch Max Unobstructed Distance: 100 feet
• Footswitch Battery: 12-Volt, A23
• Includes power cord, IRC-6 remote, tripod, tripod carry bag, wireless footswitch, and user manual
• Includes warranty card
• Dimensions:
• 46.7 x 4.3 x 15.2 inches
• Stand Height: 59 to 98.4 inches
• Tripod Leg Width: 47.2 inches
• Weight: 14.6 pounds

What our Experts Think

• All-in-one DJ lighting powerhouse: The CHAUVET DJ GigBAR 2.0 (141551) is widely regarded as a complete plug-and-play lighting system, combining multiple effects on a single bar for fast setup and high-impact shows.
• 4-in-1 integrated effects system: Includes LED derby lights, wash lights, a red/green laser, and high-power strobes, all pre-mounted for instant stage coverage and dynamic visuals.
• Designed for maximum simplicity: Experts consistently highlight its “set up in minutes” workflow, making it ideal for mobile DJs, weddings, parties, and small events where speed matters.
• Multiple control options: Offers flexible operation via DMX, wireless footswitch, onboard display, or IRC remote, allowing both beginner-friendly use and advanced control when needed.
• Strong crowd impact with minimal effort: Built-in automated and sound-activated programs let users run a full light show without programming, ideal for “set-and-forget” operation during gigs.
• Portable complete kit: Includes tripod, carry bags, and wireless footswitch, making transport and setup efficient for mobile entertainers.
• Best suited for small-to-mid venues: Experts position it as a top choice for mobile DJs, school dances, weddings, and house parties, rather than large-scale concert production.
• Trade-offs to consider: While extremely convenient, it offers less customization than multi-fixture DMX setups, and effects can feel “preset-heavy” for advanced lighting designers.

Q&A

Q: What is the CHAUVET DJ GigBAR 2.0 (141551)?
A: It is a 4-in-1 all-in-one DJ lighting system that combines LED derby effects, LED PAR wash lights, a laser, and strobes all mounted on a single bar for fast setup and full-room lighting coverage.

Q: What lighting effects does it include?
A: It features 2 rotating LED derby lights, 2 RGB+UV PAR wash lights, 4 LED strobe lights, and a red/green laser for dynamic stage and dancefloor effects.

Q: Is it easy to set up?
A: Yes, it is designed for quick “plug-and-play” setup, using a single bar with included tripod, so one person can assemble it in minutes.

Q: How can it be controlled?
A: It can be controlled via onboard display, IRC-6 remote, wireless footswitch, sound-active mode, or DMX, giving both beginner and professional control options.

Q: Is it suitable for professional DJ or event use?
A: Yes, it is widely used for mobile DJs, weddings, parties, school events, and small stage productions due to its portability and full lighting coverage.

Q: Does it support automatic or sound modes?
A: Yes, it includes built-in auto programs and sound-activated modes, allowing it to run without manual control.

Q: What makes it different from separate lighting fixtures?
A: Instead of multiple stands and cables, it provides a complete lighting rig in one compact system, reducing setup time and complexity.

Q: Is it portable?
A: Yes, it includes a tripod, carry bag, and lightweight bar system, making it easy to transport for mobile gigs.

Maintenance Tips

• Wipe all fixtures and lenses regularly with a soft dry microfiber cloth to maintain brightness and prevent dust buildup on LEDs and optics.
• Avoid water, alcohol, or harsh cleaners—the system contains sensitive LED, laser, and DMX components that can be easily damaged.
• Keep ventilation areas clear during operation to prevent overheating during long DJ sets or continuous use.
• Inspect and secure all cables (DMX, power, footswitch, remote receiver) before every show to avoid signal loss or interruptions.
• Store in the included carry bags and tripod case to protect from dust, moisture, and transport damage.
• Check tripod stability and locking mechanisms regularly to ensure safe mounting at events (especially on uneven floors).
• Update or reset control settings (DMX / built-in programs) when needed to maintain smooth synchronized effects across all 4 lighting elements.
• Avoid direct eye-level aiming of lasers and strobes during setup—adjust angles toward floor or ceiling for safety and better audience comfort.
• Run occasional full system test cycles before events to confirm all effects (derby, wash, strobe, laser) are working properly.
