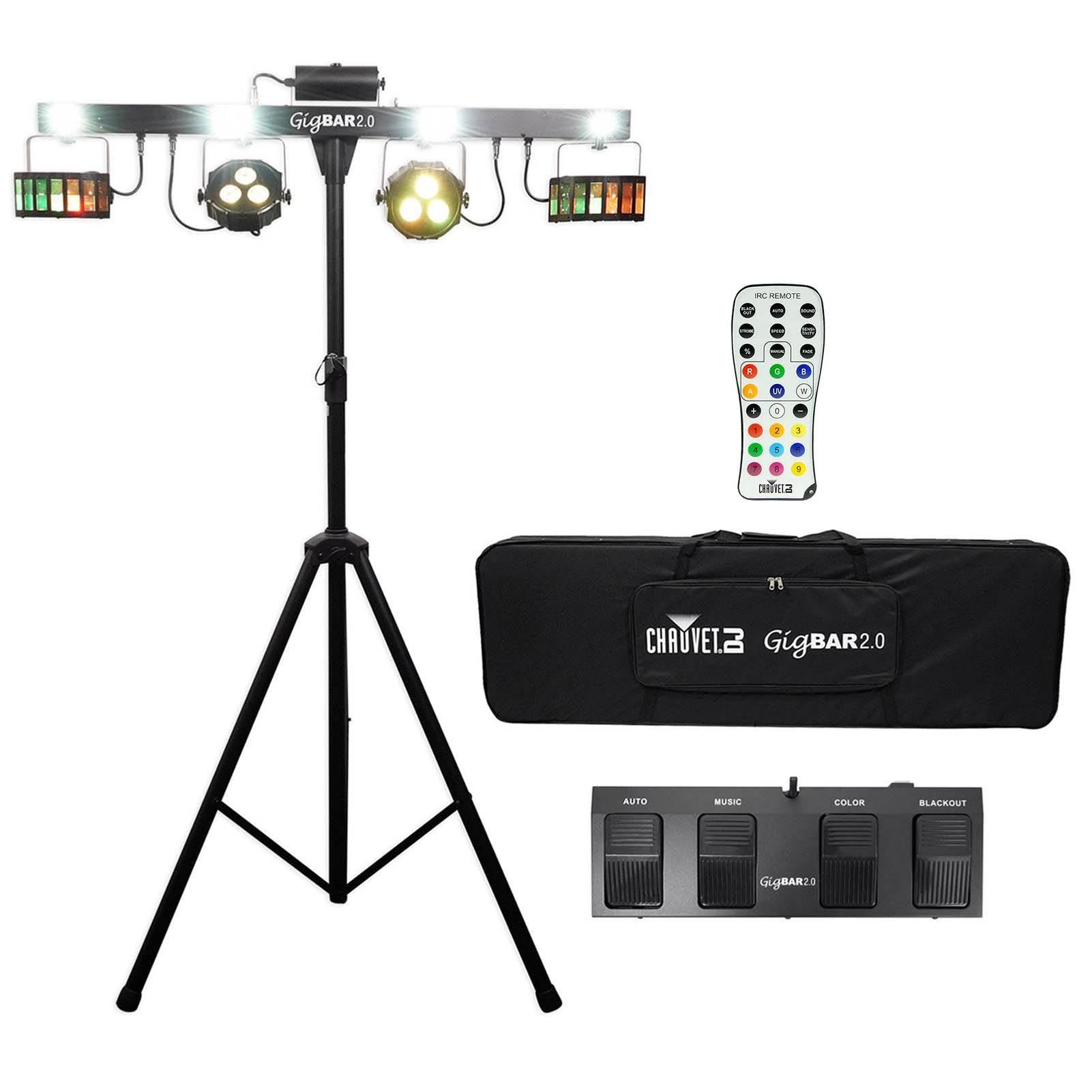

Chauvet DJ 4-in-1 LED GigBAR 2.0 Light FX System w/ Tripod+Remote+Footswitch+Bag - 140832

Chauvet DJ 4-in-1 LED GigBAR 2.0 Light FX System w/ Tripod+Remote+Footswitch+Bag - 140832

Rig up your gig with the GigBAR 2 Lighting System from Chauvet and put on a show that will send your crowd over the moon.

Your audience will be dreaming in color after they witness the beauty and flashiness of 2 LED Derby fixtures, LED wash lights, a laser, and 4 high-power LED strobe lights all mounted on one sleek, black bar. An addition of UV in the pars and strobes give off increased color mixing and effects that will make their jaws drop to the floor.

It covers any room or stage setting with just 4 individually adjustable and interchangeable heads. The LED strobe lights create exciting chase and slow motion effects as well as featuring built-in automated and sound-activated programs. The red and green laser scatter hundreds of bright dots and beams in all the right directions and make your gig rock. You control the system from the display, included IRC-6 remote,wireless foot switch, or through the DMX.

Be prepared to put on an unforgettable show or event and to get lost in the music and lights with this 4-in-1 LED GigBAR2 from Chauvet.

Features

• 4-in-1 light that includes a pair of LED Derby, LED pars, a laser, and strobe effect all mounted on one bar
• Added UV in pars and strobes for increased color mixing and effects
• Cover any room or stage with 4 individually adjustable and interchangeable heads
• Get in and get out quickly with the included tripod, wireless footswitch and free carry bags
• Ready for every application using the included mounting brackets to attach to truss
• 4 high-power, LED strobe lights create exciting chase and slow motion effects
• Adjustable red and green laser scatters hundreds of bright dots and beams in all the right directions
• Phenomenal built in automated and sound-activated programs that include all 4 effects to make one complete show
• Easily control from the display, included IRC-6, wireless foot switch or DMX to take your gig to a higher level
• Master/slave multiple units under the control of a single IRC or wireless foot switch
• Save time running cables and extension cords by power linking multiple units
• Specifications:
• DMX Channels: 3, 11, or 23
• DMX Connectors: 3-pin XLR
• Strobe Rate: (strobe): 0 to 18 Hz
• Beam Angle: (pars): 13 degrees (strobe): 8 degrees
• Field Angle: (pars): 24 degrees (strobe): 18
• Coverage Angle: (laser): 93 degrees (Derby): 114 degrees
• Fits Tripod Size: 37.4 millimeter
• Illuminance: (pars): 1,205 lux at 2 m (per head) (strobe): 86 lux at 2 m (per zone)
• Power Linking: 8 units at 120 V; 15 units at 230 V
• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power and Current: 68 W, 1 A @ 120 V, 60 Hz; 64 W, 0.5 A @ 230 V, 50 Hz
• Foot Switch Operating Frequency: 433 MHz
• Foot Switch Max Unobstructed Distance: 100 feet
• Footswitch Battery: 12-Volt, A23
• Includes power cord, IRC-6 remote, tripod, tripod carry bag, wireless footswitch, and user manual
• Includes warranty card
• Dimensions:
• 46.7 x 4.3 x 15.2 inches
• Stand Height: 59 to 98.4 inches
• Tripod Leg Width: 47.2 inches
• Weight: 14.6 pounds

What our Experts Think

• All-in-one DJ lighting system (instant setup)
  Combines 2 derby effects, 2 LED wash PARs, strobe lights, and a laser all mounted on one bar for a complete stage/dancefloor show in minutes.
• 4-in-1 FX coverage (high-impact visuals)
  Delivers layered lighting effects—color wash, moving beams, strobes, and laser patterns—ideal for weddings, clubs, and mobile DJ setups.
• Built for fast mobile events (plug-and-play design)
  Includes tripod, footswitch, remote control, and carry bags, making it easy to transport and set up for one-person operation.
• Multiple control options (flexibility in use)
  Can be operated via DMX, sound-activated modes, wireless footswitch, or IR remote, giving both beginner-friendly and pro-level control.
• Room-filling light output (venue coverage)
  Designed to wash small-to-medium spaces with color, motion, and effects that sync to music for dancefloor energy.
• Automated + sound-reactive programs (easy performance mode)
  Built-in shows let the system run automatically or respond to music without programming—useful for fast gigs.

Q&A

Q: What is the CHAUVET GigBAR 2.0 used for?
A: It is an all-in-one lighting system for DJs, parties, weddings, and stage events, combining multiple lighting effects in a single portable setup.

Q: What lighting effects are included?
A: It features 2 LED derby effects, LED wash lights (with UV), a laser, and 4 high-power LED strobes all built into one bar.

Q: Does it support DMX control?
A: Yes, it supports DMX operation for advanced control, along with built-in automated and sound-activated programs.

Q: Can it work without a controller?
A: Yes, it can run in auto mode, sound-active mode, or with the included footswitch and remote, making it plug-and-play.

Q: Does it include a stand and accessories?
A: Yes, it comes with a tripod stand, wireless footswitch, remote control, and carrying bags for transport.

Q: Is it easy to set up?
A: Yes, it’s designed for fast, one-person setup, with everything mounted on a single bar system.

Q: What makes it different from basic lighting setups?
A: It combines four lighting effects (derby, wash, strobe, laser) in one unit, eliminating the need for multiple fixtures and complex wiring.

Q: What type of events is it best for?
A: It is ideal for mobile DJs, weddings, clubs, school events, and small-to-medium stage productions.

Q: Why choose the CHAUVET GigBAR 2.0?
A: It delivers a complete light show in one portable system with DMX control, sound activation, and quick setup, making it highly practical for event lighting.

Maintenance Tips

• Clean lenses with dry microfiber cloth – keeps derby, wash, laser, and strobe output bright and clear.
• Avoid liquids on fixtures – protects LEDs, DMX board, and internal wiring.
• Dust after every event – prevents buildup on vents and optics for consistent performance.
• Secure tripod & mounting hardware – ensures stability during live shows.
• Check DMX, power, and footswitch connections – avoids flicker or control issues.
• Test remote & footswitch before gigs – ensures reliable hands-free control.
• Store in included carry bag – protects optics and body during transport.
• Avoid overheating (keep vents clear) – extends LED lifespan and system reliability.
• Handle laser output carefully – keep lens clean and never obstruct beam path.
