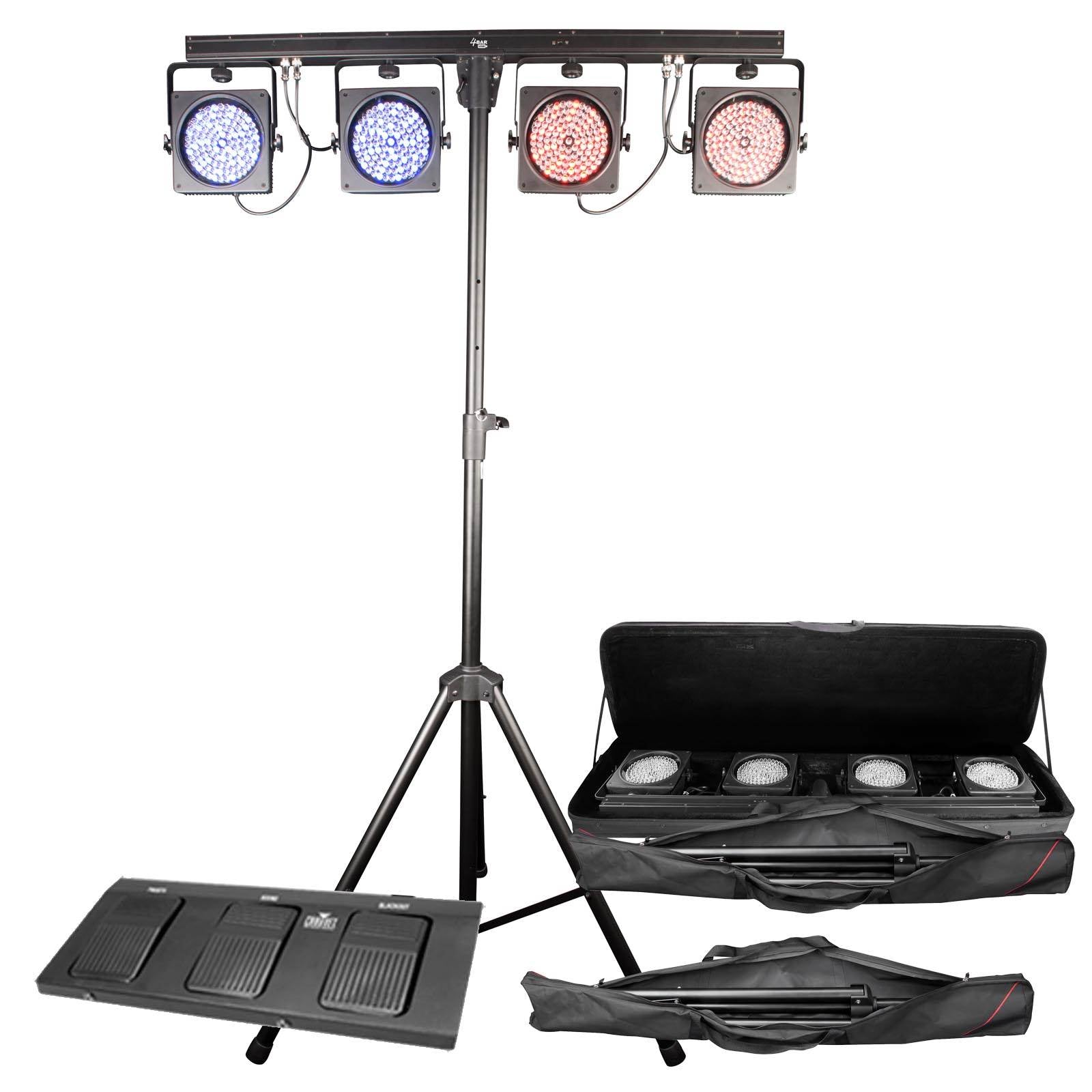

CHAUVET DJ 4BAR USB DMX LED Wash Light System w/Tripod, Travel Bags - 427414

CHAUVET DJ 4BAR USB DMX LED Wash Light System w/Tripod, Travel Bags  - 427414

• Complete wash lighting solution designed for mobile entertainers
• Out of the box wireless control with included footswitch that controls multiple units
• Achieve total room or stage coverage with 4 individually adjustable heads
• D Fi USB compatibility for wireless master/slave or DMX control
• Easily set up and tear down in minutes using the included tripod, wireless footswitch and carry bags
• Increase mounting options by safely mounting to truss using the built in bolts
• Create large, coordinated light shows with other 4BAR fixtures in master/slave mode
• Sound activated programs dance to the beat of the music
• Easily control static colors and automated programs with the optional IRC 6 remote
• Generate a synchronized show in master/slave mode with easy to access, built in automated programs
• Specifications:
• DMX Channels: 3 or 15
• DMX Connectors: 3 pin XLR
• Light Source: 432 LEDs (144 red, 144 green, 144 blue) 0.25 W, (20 mA), 100,000 hours life expectancy
• Strobe Rate: 0 to 20 Hz
• PWM Frequency: 1.2 kHz
• Beam Angle: 21°
• Field Angle: 33°
• Illuminance: 725 lux @ 2 m (per pod)
• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto ranging)
• Power and Current: 36 W, 0.6 A @ 120 V, 60 Hz
• 36 W, 0.3 A @ 230 V, 50 Hz
• Weight: 10.8 lb (4.9 kg)
• (Controller): 0.8 lb (1.8 kg)
• Size: 47.4 x 2 x 11 in (1,205 x 50 x 285 mm)
• (Controller): 12.4 x 5.2 x 1.5 in (315 x 132 x 38 mm)
• Stand Height: 7 ft 4 in (2.2 m)
• Approvals: CE
• Optional Controllers: IRC 6, D Fi USB
• Included:
• 4BAR USB
• Power cord
• 4BAR carry bag
• Stand carry bag
• Tripod
• Wireless Footswitch
• Part number: 4BAR USB
• Product Condition: Open Box – Like new
• Product Sold as is

What our Experts Think

• Complete plug-and-play wash system: The CHAUVET DJ 4BAR USB (427414) is widely viewed as a ready-to-use LED wash lighting kit on a single bar, designed for fast setup and mobile DJ efficiency.
• Four independently adjustable heads: Each fixture can be aimed separately, allowing wide or focused stage/dance floor coverage from a single stand.
• DMX + USB flexibility: Supports USB-based D-Fi wireless control and standard DMX operation, making it adaptable for both simple plug-and-play use and advanced lighting setups.
• Fast setup design: Includes tripod, footswitch, and carry bags, enabling quick deployment and teardown—ideal for mobile DJs and event production.
• Built-in auto & sound modes: Offers automated programs and sound-activated effects, allowing operation without a controller for small gigs or beginner setups.
• Scalable lighting control: Can be linked in master/slave mode with other 4BAR units, creating synchronized multi-bar lighting shows for larger venues.
• Reliable LED wash output: Designed to deliver even RGB wash coverage for dance floors, stages, and event spaces, making it a staple for mobile entertainers.
• Trade-off experts note: While highly convenient, it offers less creative flexibility than multi-fixture DMX rigs, and is best suited for straightforward lighting needs rather than complex programming.

Q&A

Q: What is the CHAUVET DJ 4BAR USB (427414)?
A: The CHAUVET DJ 4BAR USB is an all-in-one LED wash lighting system designed for DJs and mobile entertainers, featuring four adjustable LED light heads mounted on a single bar.

Q: What does this lighting system include?
A: It includes a 4-head LED wash bar, adjustable tripod stand, wireless footswitch, carry bags, and power cable, making it a complete portable lighting kit.

Q: How does it control lighting effects?
A: It can be controlled via DMX, sound-active mode, automated programs, and optional wireless control (D-Fi USB compatible on supported setups).

Q: Are the lights adjustable?
A: Yes, each of the four LED heads is individually adjustable, allowing you to aim light across a stage or dance floor.

Q: Is it easy to set up?
A: Yes, it is designed for fast plug-and-play setup, typically requiring only a few minutes with the included tripod and quick-mount system.

Q: What type of lighting does it produce?
A: It produces a RGB LED wash effect, ideal for coloring walls, dance floors, stages, and event spaces with smooth, even light coverage.

Q: Is it suitable for professional DJ use?
A: Yes, it is widely used by mobile DJs, wedding entertainers, and small event productions due to its portability and simplicity.

Q: Can it run without DMX programming?
A: Yes, it includes built-in auto programs and sound-activated modes, so it can run without any DMX controller.

Q: What makes it different from multiple separate lights?
A: Instead of multiple stands and cables, it provides a single integrated lighting rig, reducing setup time and transport complexity.

Q: Who is this lighting system best for?
A: It is best for users who want a simple, portable, and complete wash lighting solution for events without needing complex lighting programming.

Maintenance Tips

• Clean LED pods and lenses regularly with a dry microfiber cloth to maintain maximum brightness and even color output.
• Avoid water, alcohol, or harsh cleaners—the fixture contains sensitive LEDs and DMX electronics.
• Keep ventilation openings clear during operation to prevent overheating during long DJ sets.
• Inspect tripod, mounting hardware, and safety bolts before each use to ensure stable setup and safe overhead operation.
• Check DMX and power connections frequently for loose plugs or wear to avoid signal loss during performance.
• Store in included carry bags and transport case to protect from dust, humidity, and physical damage.
• Coil cables properly after use to prevent internal wire damage and extend lifespan of connectors.
• Update control software or DMX profiles when applicable for smoother synchronization and effects performance.
• Avoid long exposure to heat or moisture to preserve LED lifespan and electronic reliabilit
