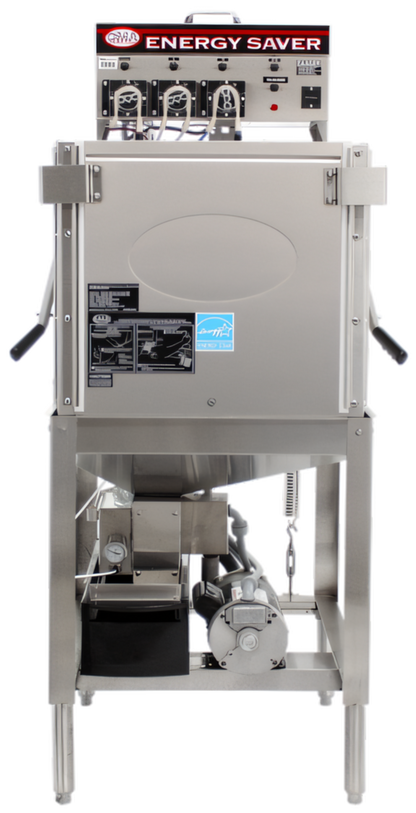

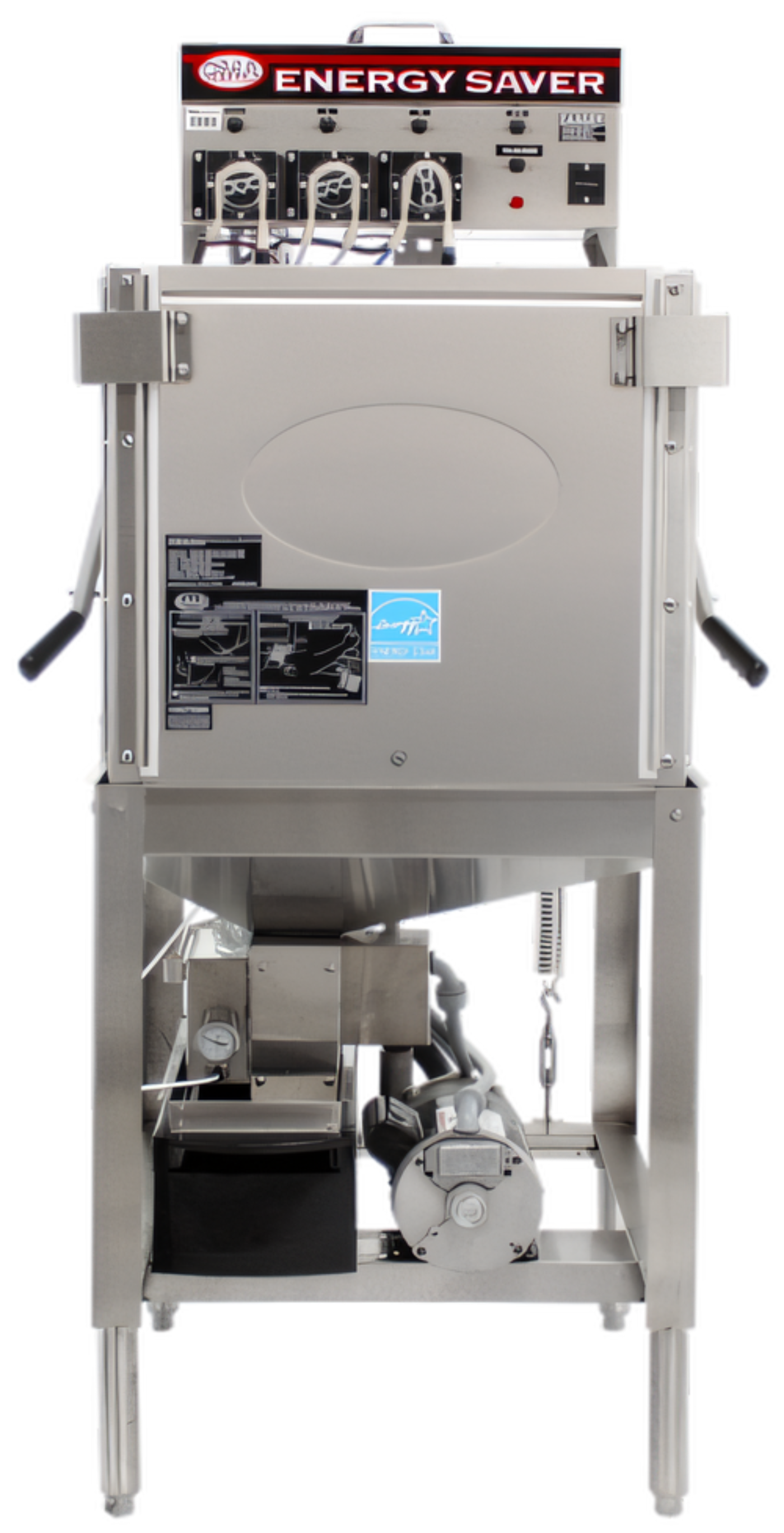

CMA Dishmachines Energy Mizer Dishwashers - E-3D-EXT
Low-Temperature • Chemical Sanitizing • 40 Racks/Hour
Give your dishroom maximum throughput with minimum utility costs. The Energy Mizer E-EXT handles up to 160 covers per hour while using just 1.01 gal / rack—all without the need for a booster heater or steam.
Features
- NSF-rated 90-second cycle (45 s wash / 15 s rinse / 30 s dwell).
- Extended 20-1/2" door opening fits full-size sheet pans and trays.
- Top-mounted controls with built-in chemical pumps & deliming system—no extra dispensers to mount.
- Poly Pro scrap accumulator keeps food soil out of the drain and wash pump.
- Auto start/stop and power drain streamline workflow and reduce labor.
- All-stainless steel construction and reinforced stainless wash arms for long service life.
Save on Utilities
- Uses 40.4 gal/hr—up to 50 % less water than conventional door machines.
- Low-temperature (120 °F supply) chemical sanitizing eliminates costly booster heaters.
- Air-gap fill system prevents back-flow to protect your potable water line.
Smart Design Details
-
1 HP / 52 GPM wash pump powers through heavy soil loads.
- Convertible straight-thru or corner configuration (field kit required) for easier kitchen layout changes.
- Three-door, straight-thru design speeds loading/unloading and reduces bottlenecks.
- Compatible with optional accessories: solid/powder dual-bowl dispenser, stainless tables, slant shelf, and more.
Specifications
| Capacity |
40 racks/hr • 160 covers/hr |
| Cycle Time |
90 s (45 s wash / 15 s rinse / 30 s dwell) |
| Water Usage |
1.01 gal per rack • 40.4 gal/hr |
| Door Clearance |
20-1/2" (52 cm) |
| Overall Dimensions |
25-3/4" W × 25-3/4" D × 60" H
80-1/2" H with doors open |
| Wash Pump |
1 HP, 52 GPM |
| Water Supply |
120 °F required (140-160 °F recommended)
½" NPT inlet • 2" gravity drain |
| Electrical |
115 V, 16 A, single-phase |
| Construction |
All stainless steel, Poly Pro scrap accumulator |
What our Experts Think
-
High-capacity commercial performance — The CMA E-3D-EXT Energy Mizer delivers up to 40 racks per hour (160 covers/hour), making it a strong fit for busy restaurants, hotels, and institutional kitchens that need nonstop warewashing throughput.
-
Low-temp chemical sanitizing efficiency — Designed to operate without a booster heater, it uses chemical sanitation to reduce energy load while still meeting NSF requirements for safe dishwashing.
-
Ultra-efficient water usage — Consumes about ~1.0 gallon per rack, helping significantly reduce utility costs in high-volume operations.
-
Extended clearance for versatility — The 20.5" door opening accommodates larger trays, sheet pans, and oversized kitchenware, increasing operational flexibility.
-
Three-door straight-through design for workflow speed — Enables smooth loading and unloading from multiple sides, minimizing bottlenecks during peak service hours.
-
Built for long-term durability — Heavy-duty stainless steel construction with reinforced wash arms ensures reliable performance in constant daily use environments.
-
Smart automation for labor savings — Features include auto start/stop, built-in chemical pumps, deliming system, and scrap management to reduce manual handling and improve consistency.
Q&A
Q: What is the CMA Dishmachines E-3D-EXT Energy Mizer Dishwasher used for?
A: The CMA E-3D-EXT is a commercial extended-door, straight-thru conveyor-style door dishwasher designed for high-volume restaurants, cafeterias, hotels, and institutional kitchens. It washes, rinses, and chemically sanitizes dishes, pans, and utensils in a continuous workflow.
Q: How many racks per hour does the CMA E-3D-EXT handle?
A: It processes up to 40 racks per hour with a fast 90-second cycle, making it suitable for busy dish rooms with constant demand.
Q: What type of sanitizing system does it use?
A: It uses a low-temperature chemical sanitizing system, eliminating the need for a booster heater while still meeting commercial sanitation standards.
Q: What makes the E-3D-EXT different from standard dishwashers?
A: It features an extended 20.5-inch door opening that allows large sheet pans, trays, and oversized wares to pass through easily, improving workflow efficiency in high-volume kitchens.
Q: Is it water and energy efficient?
A: Yes. It uses roughly around 1 gallon of water per rack and is designed to reduce utility costs while maintaining high cleaning performance
Maintenance Tips
- Clean spray arms and nozzles daily; remove and flush to prevent clogging and ensure full spray coverage
- Remove and thoroughly clean the drain screen/scrap accumulator regularly to prevent food buildup and drainage issues
- Empty and rinse scrap tray frequently during operation, especially in heavy-use periods
- Inspect chemical feed lines and ensure detergent, rinse aid, and sanitizer levels are correct for consistent cleaning performance
- Run a daily cleaning cycle and wipe down interior surfaces to maintain hygiene and prevent residue buildup
- Check door seals, gaskets, and wash chamber for leaks or wear to avoid water loss and heat inefficiency
- Descale/de-lime periodically to prevent mineral buildup on heating elements and internal plumbing
- Verify water pressure (typically 15–65 PSI) and temperature (hot water supply required for proper operation) for optimal performance
- Inspect wash pump operation and spray arm rotation regularly to ensure proper mechanical function
- Keep exterior stainless steel clean and dry to maintain durability and sanitation standard
