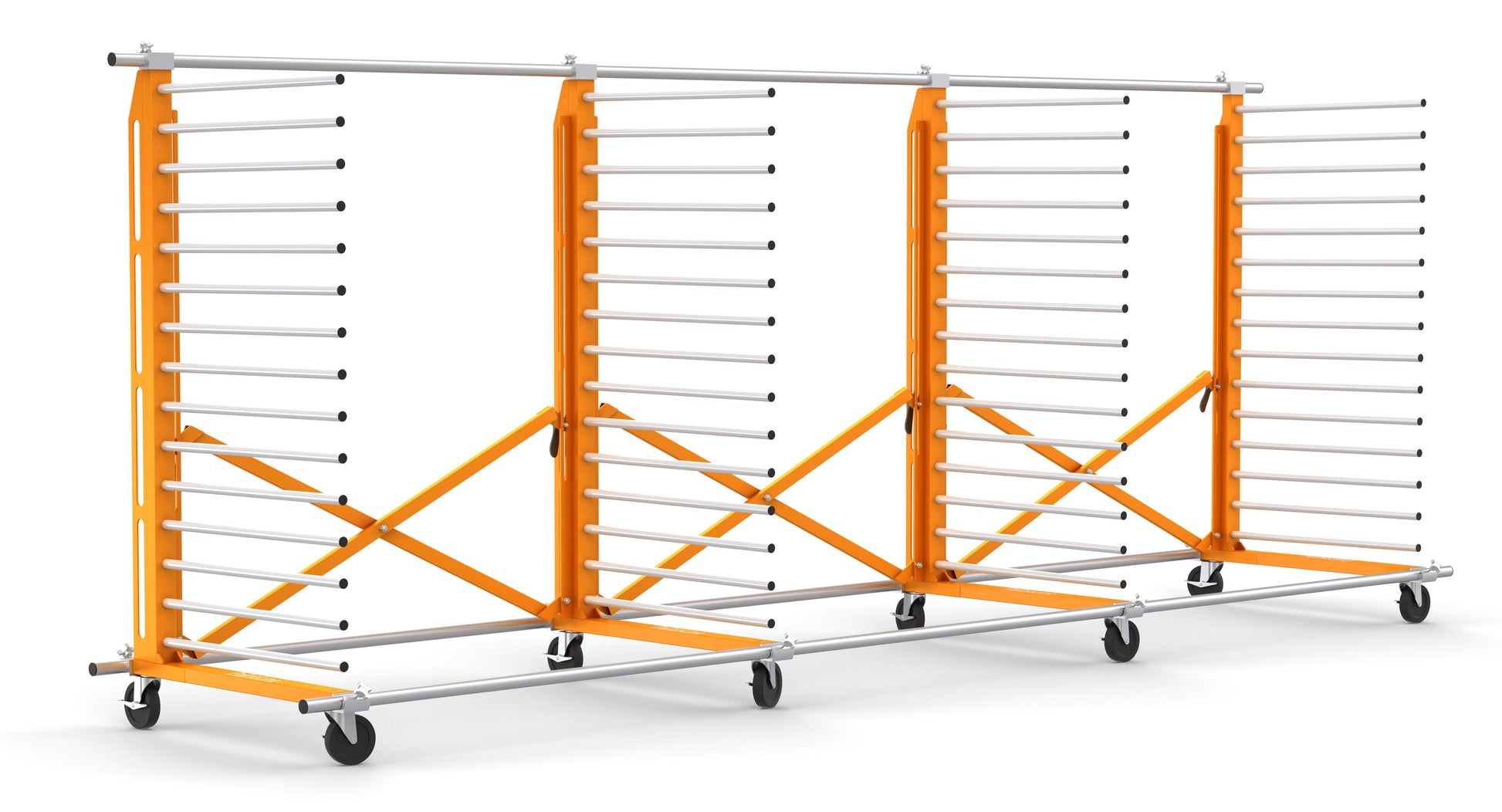

PaintLine ProDryingRack EX-4 Plus Series - PDREX4

Features

• Adding one tower, stabilizers and shelves create the PDREX-3, with 120” of horizontal rack space and 1,350 LBS of weight capacity.
• Adding two towers and stabilizer component sets creates the PDREX-4, which has 180” of horizontal rack space and 1,800 LBS of weight capacity.
• Removable, quick-release shelves for a variety of part sizes.
• Quick-release front, back, and top support.

What our Experts Think

• Maximum-capacity production drying system
  The PDREX4 is the largest configuration in the ProDryingRack EX Plus Series, designed for high-output cabinet and millwork shops that need serious drying space.
• Industry-leading horizontal capacity
  Delivers up to 180" (15 ft) of drying space per level, making it ideal for long cabinet doors, trim runs, and batch production workflows.
• Heavy-duty 4-tower configuration
  Built on a modular system with four expandable towers and 15 removable shelves per tower, allowing flexible, scalable organization.
• Extreme load handling strength
  Supports up to ~1,800 lbs total capacity, making it suitable for dense production loads like solid wood doors and stair components.
• Built for professional shop environments
  All-metal construction with reinforced supports, powder-coated finish, and industrial locking casters ensures durability under daily use.
• Mobile even when fully loaded
  Heavy-duty casters with stabilizers allow the entire rack to be safely rolled around the shop without unloading materials.
• Highly configurable workflow design
  Shelves are fully removable and adjustable, enabling fast adaptation for mixed-size production runs and finishing stages.


Q&A


Maintenance Tips

• Clean shelf tubes after every batch: Remove overspray, dust, and dried finish from removable rods to keep smooth contact and prevent surface defects on cabinet parts.
• Keep expansion rails debris-free: Wipe clamp levers and sliding frame joints so the rack expands/contracts smoothly (20”–180” system range) without sticking.
• Inspect locking casters regularly: Clean 5” wheels and ensure locks engage fully—critical for safe movement under heavy loads (up to ~1,800 lbs total).
• Tighten frame hardware periodically: Check bolts, stabilizers, and tower connections to maintain rigidity in the 4-tower structure.
• Prevent paint buildup on support points: Hardened finish on contact surfaces can affect spacing and loading efficiency—clean promptly after use.
• Avoid uneven loading: Distribute weight evenly across shelves to reduce frame stress and maintain stability during rolling or storage.
• Keep powder-coated steel dry: Wipe down after cleaning or humid conditions to prevent corrosion and extend lifespan.
• Store in a clean, dry shop area: Reduces dust accumulation and keeps moving parts operating smoothly for high-volume workflows.
