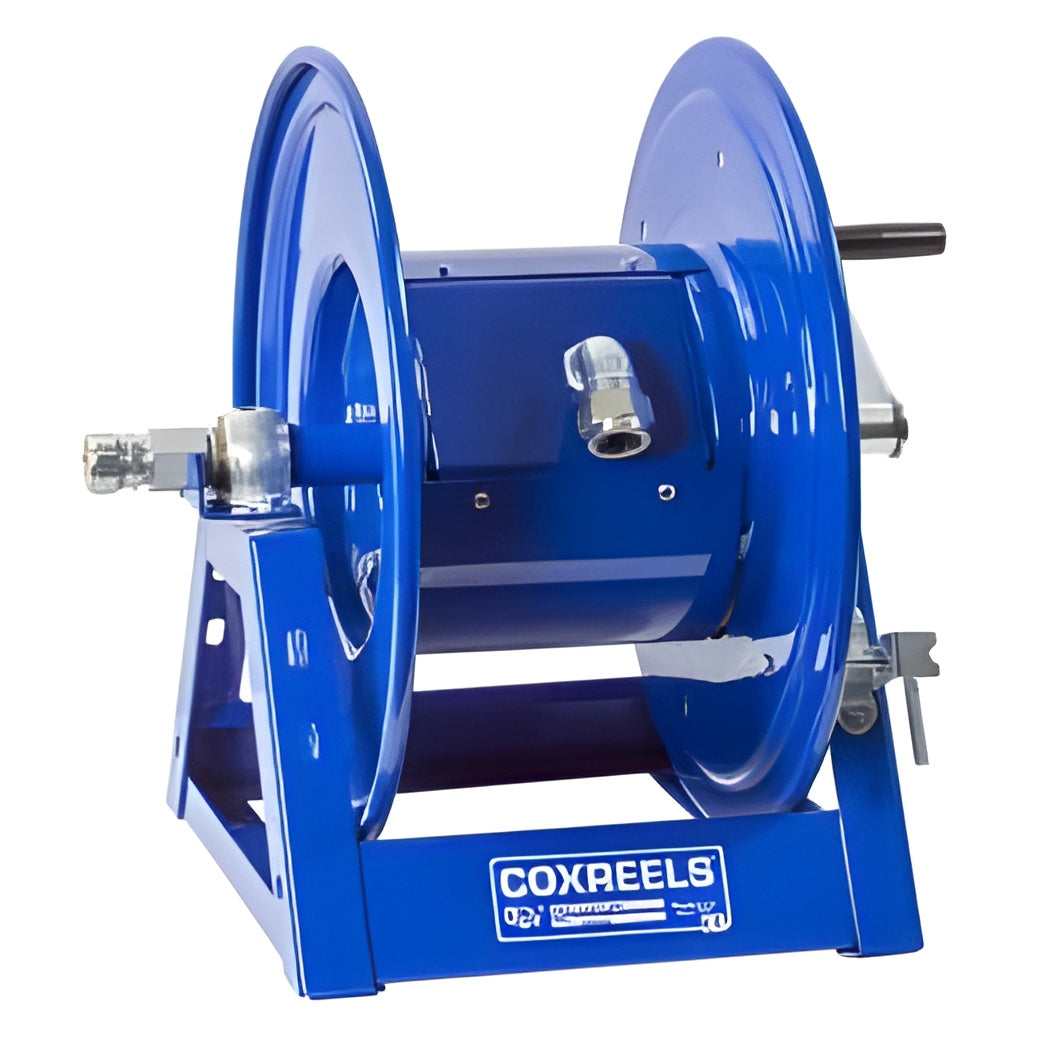

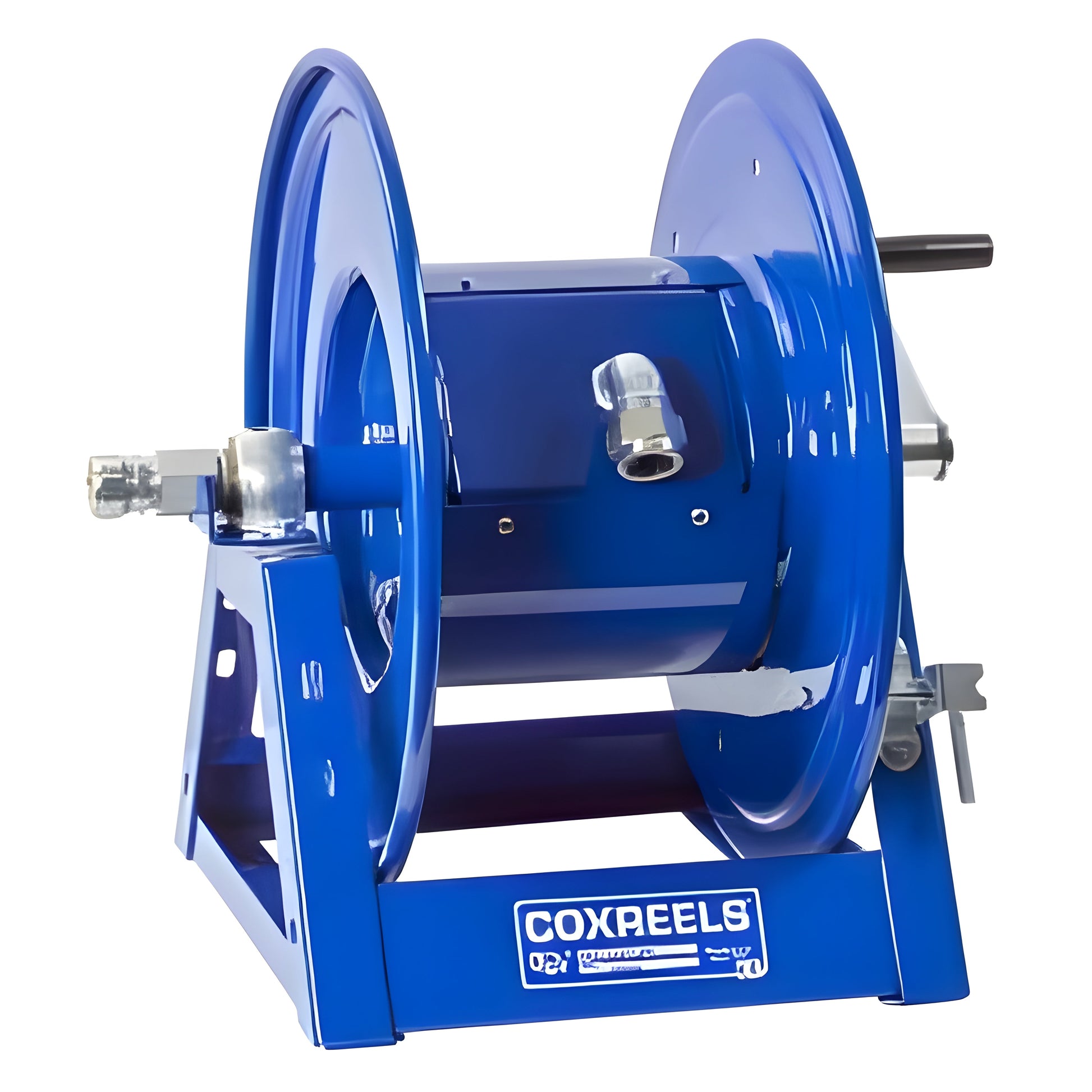

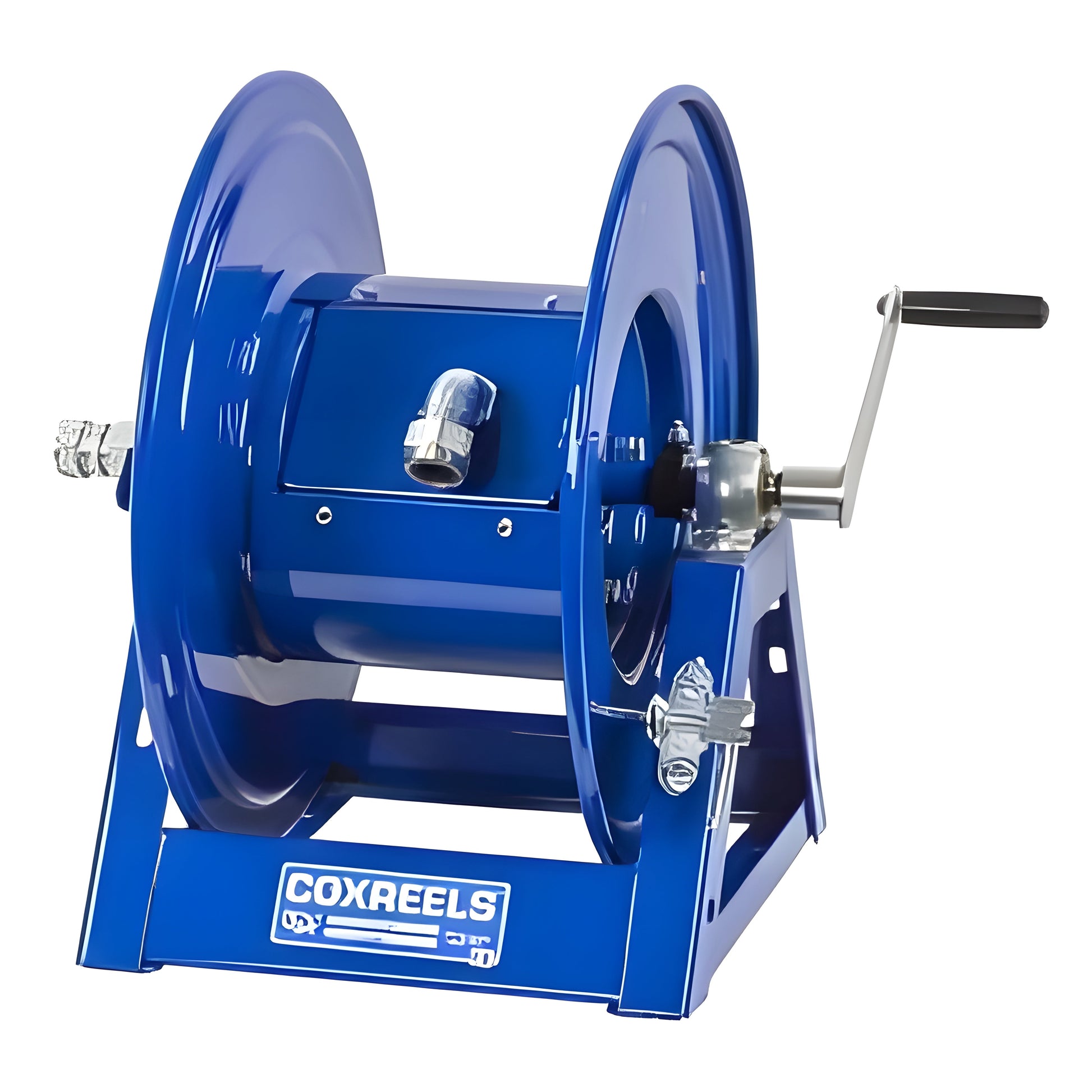

Coxreels 1125PCL Series Professional-Grade Hand Crank Reels - 1125PCL-8-C
1125PCL Series Professional-Grade Hand Crank Reels
COXREELS 1125PCL Series professional-grade hand crank reels feature the industry preferred design including a drum-located, easy to access slip ring assembly for simple routine maintenance and a sturdy all-welded "A" frame built to efficiently handle the most demanding of tasks. The unique permanently lubricated and self-aligning pillow block bearings at each end of the drum allow smooth rotation and are specifically designed for rough, heavy-duty applications. These innovative models handle long length of 12/3 gauge or 10/3 gauge SO type power cord.
- Professional grade heavy duty steel construction.
- Rolled edges & ribbed discs provide strength & safety.
- Leading 2-year manufacturer's limited warranty.
-
Made in the U.S.A. - Sold & Supported Worldwide.
Features
-
SLIP RING ASSEMBLY - Drum-located slip ring assembly with easy to access removable panel for simple routine maintenance. No need to remove the reel from its mount.
-
CNC SPUN DISCS - Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection, and operator safety.
-
"A" FRAME - Sturdy one piece, all CNC robotically welded 12 gauge steel "A" frame base, not bolted, for superior reel structure. Mounting pattern located in the steel base for easy reel installation and detachment.
-
PERMANENTLY LUBRICATED BEARINGS - Sturdy permanently lubricated and self-aligning pillow block bearings for smooth rotation and trouble-free operation.
-
CABLE KEEPER - Integrated anti-rotation cable keeper prevents the 5 foot lead cable from whipping or twisting.
-
OTHER FEATURES INCLUDE - long lasting, chip resistant and rust inhibiting CPC powder coat finish, adjustable tension brake prevents free wheeling and front bevel geared crank for easy mechanical retraction.
Specifications
| MODEL |
LENGTH |
HOSE |
SHIP WEIGHT (LBS) |
AMPS |
VOLTS |
OVERALL DIMENSIONS (W) (H) (L) |
MOUNTING PATTERN (M) (N) |
BASE (X) (Y) |
| 1125PCL-8-C |
250' |
No |
35 |
30 AMP |
600V |
21.5"(W) 18.5"(H) 17.5"(L) |
11.44"(M) 10"(N) |
13.38"(X) 15.25"(Y) |
| 1125PCL-8M-C |
250' |
No |
35 |
45 AMP |
600V |
21.5"(W) 18.5"(H) 17.5"(L) |
11.44"(M) 10"(N) |
13.38"(X) 15.25"(Y) |
What Our Experts Think
-
Professional-Grade Design: Engineered for heavy-duty performance, built to withstand demanding industrial tasks.
-
Smooth Hand Crank Operation: Provides easy and controlled manual retraction, ideal for frequent use.
-
Durable Construction: High-quality steel frame and components ensure long-lasting durability and reliability.
-
Corrosion-Resistant Finish: Protects the reel from rust and wear in tough environments.
-
Versatile Use: Suitable for a variety of hoses, cables, and cords, perfect for workshops, garages, and industrial settings.
-
Compact & Space-Efficient: Designed to save space while maintaining maximum functionality.
-
Easy Installation: Quick setup and minimal maintenance required for long-term performance.
Q&A
Q: What is the Coxreels 1125PCL Series Professional-Grade Hand Crank Reel - 1125PCL-8-C?
A: The Coxreels 1125PCL-8-C is a heavy-duty, professional-grade hand crank hose reel designed for managing air, water, and oil hoses in demanding environments.
Q: What is the hose capacity of this reel?
A: The 1125PCL-8-C can accommodate hoses up to 75 feet in length and 1/2 inch in diameter, providing versatile hose storage and easy retraction.
Q: How does the hand crank mechanism work?
A: The reel features a smooth hand crank for manual hose winding, offering precise control over hose retraction and preventing tangling.
Q: Is the reel durable?
A: Yes, it is built with high-quality, heavy-gauge steel and a corrosion-resistant finish for long-lasting performance in industrial and commercial settings.
Q: Is this reel easy to install?
A: Yes, the 1125PCL-8-C offers flexible mounting options, including wall, floor, or ceiling installation, for convenient use in various environments.
Q: What are typical applications for this reel?
A: This reel is ideal for use in workshops, garages, and industrial environments, managing hoses for air, water, or oil applications
Maintenance Tips
-
Clean Regularly: Wipe down the reel and hose with a damp cloth to remove dirt and debris. Avoid harsh chemicals that could damage the finish.
-
Lubricate the Crank Mechanism: Apply a light lubricant to the hand crank and reel components to ensure smooth operation and prevent wear.
-
Inspect Hose: Check the hose for any signs of wear, cracking, or kinks. Replace the hose if necessary.
-
Tighten Fasteners: Periodically check bolts, screws, and other fasteners to ensure the reel is securely mounted and stable.
-
Storage: Store in a dry, sheltered area when not in use to prevent rust and corrosion, especially in harsh environments.
