1185 Series Medium Pressure Hand Crank Hose Reels

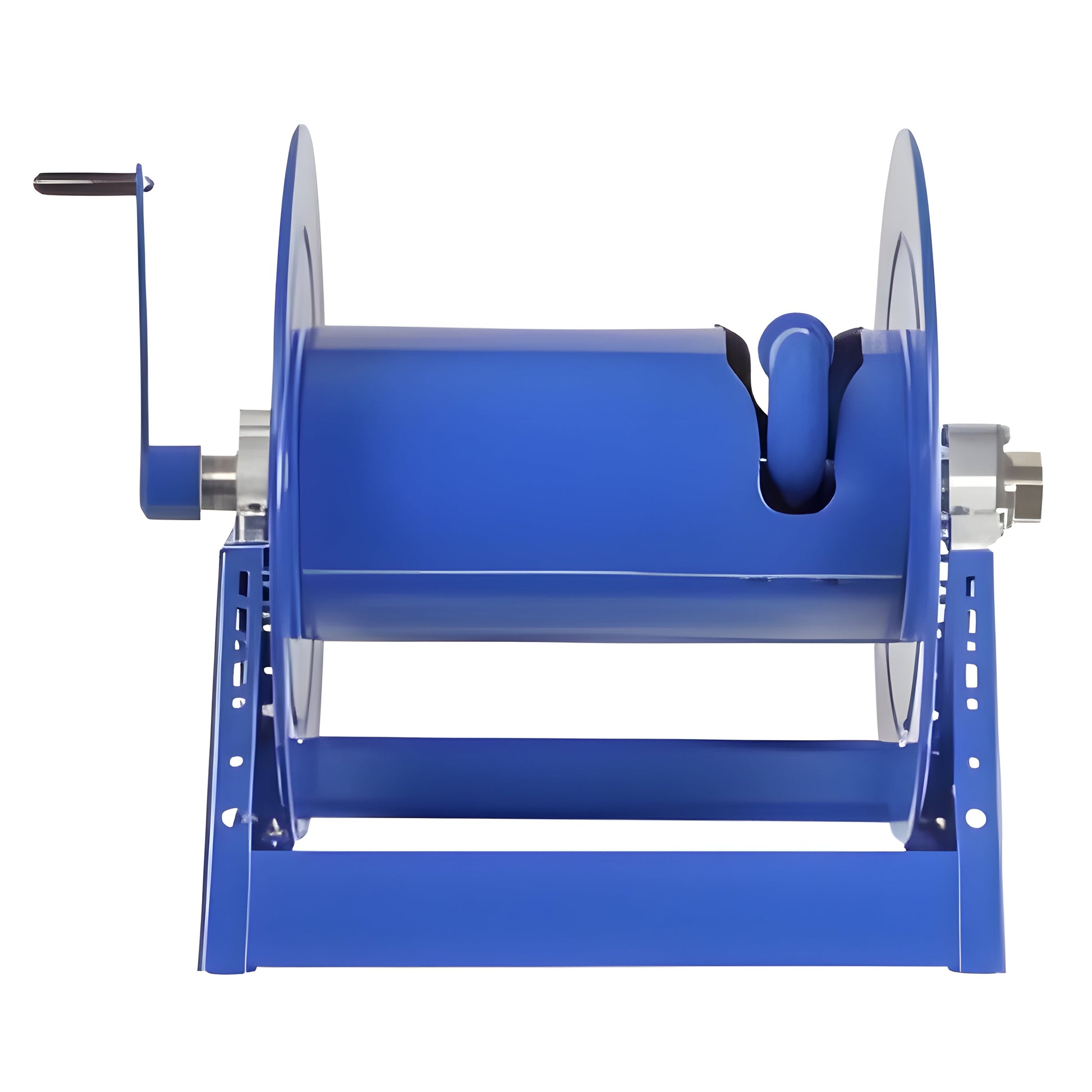

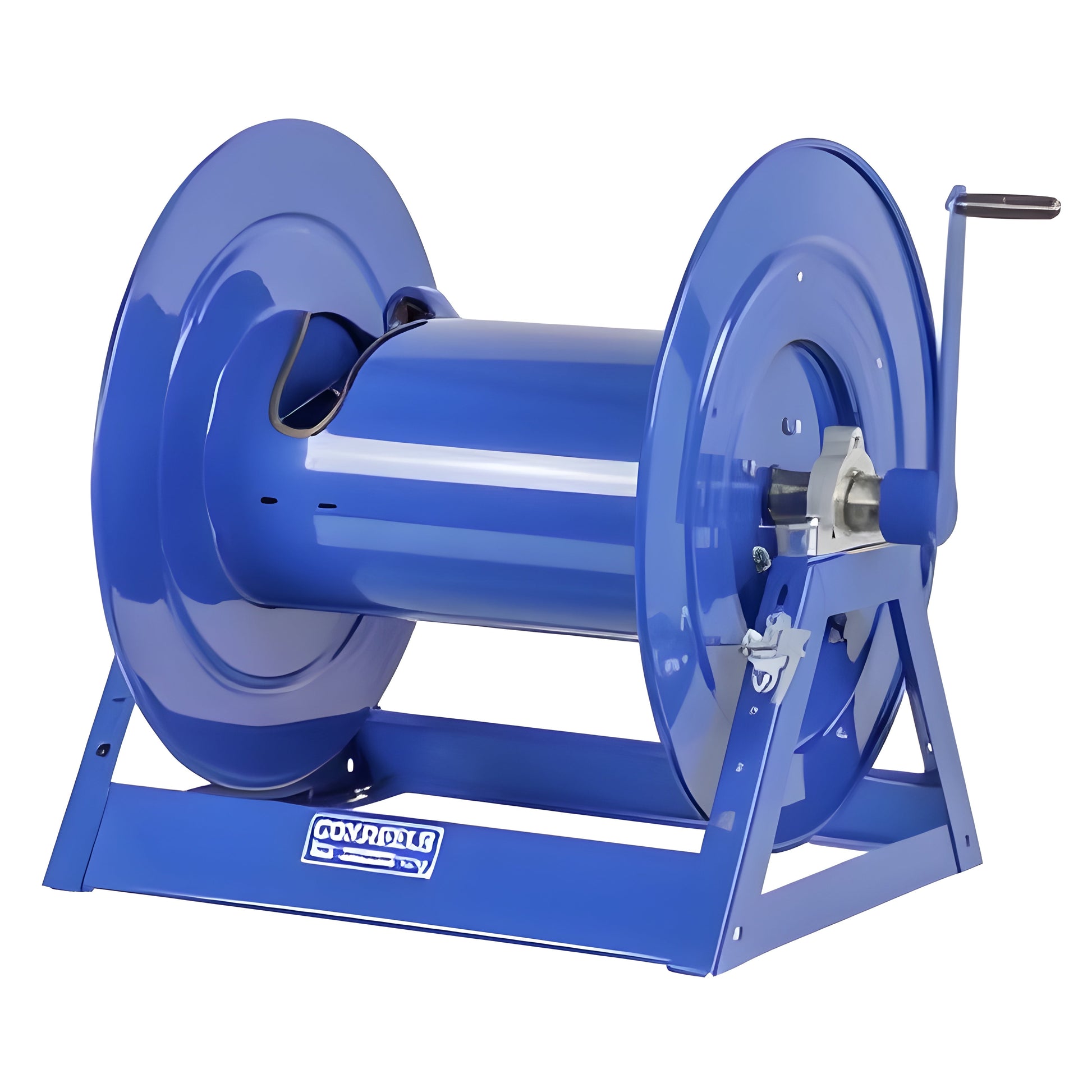

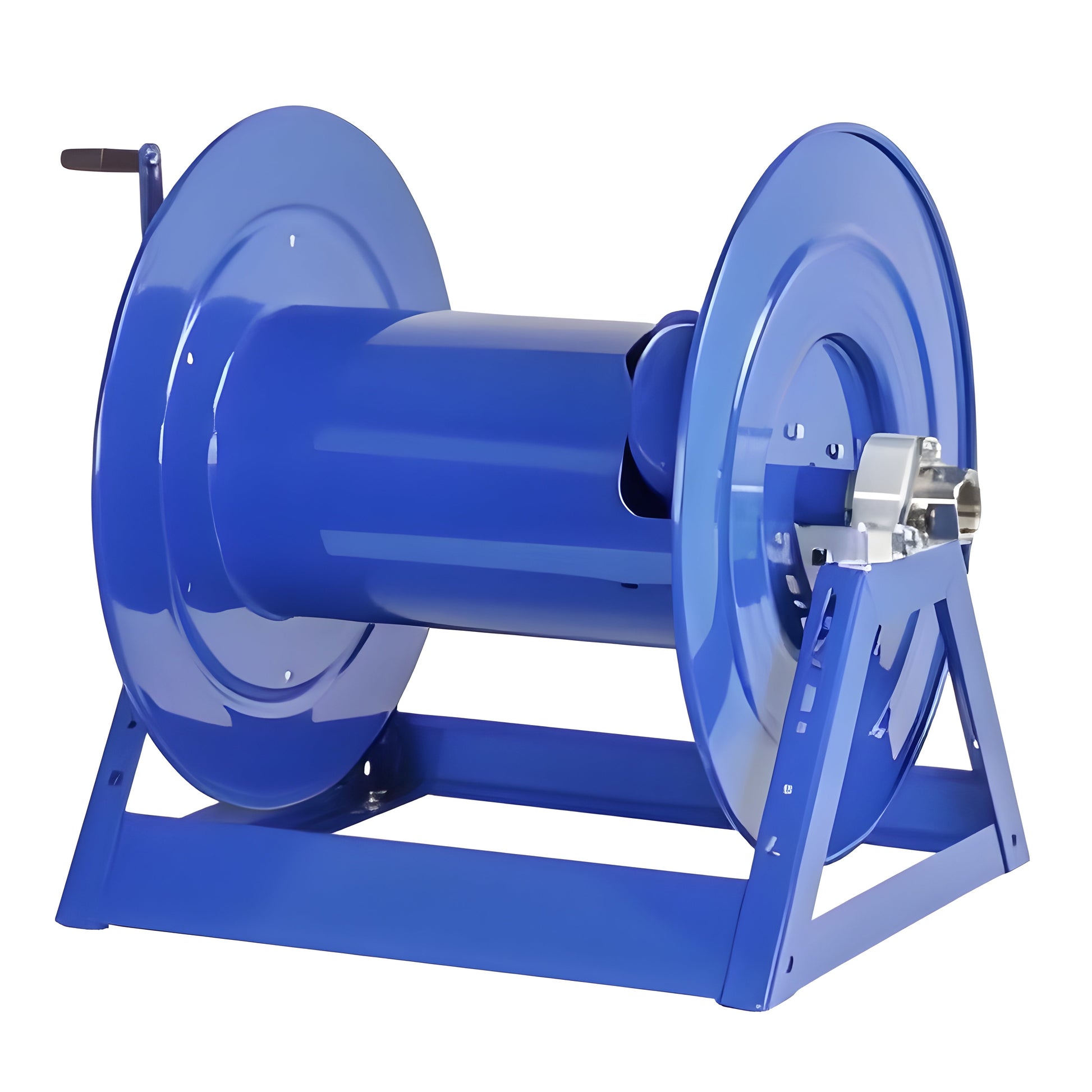

COXREELS 1185 Series hand crank hose reels are designed to handle long lengths of large diameter hose for increased volume delivery. Coxreels’ exclusive low profile outlet riser and open drum design provide a non-crimping, flat smooth hose wrap. The sturdy all welded "A" frame base provides exceptional strength to handle the extra weight without sacrificing performance, even in demanding mobile applications.
- Professional grade heavy duty steel construction.
- Rolled edges & ribbed discs provide strength & safety.
- Leading 2-year manufacturer's limited warranty.
-
Made in the U.S.A. - Sold & Supported Worldwide.
Features
-

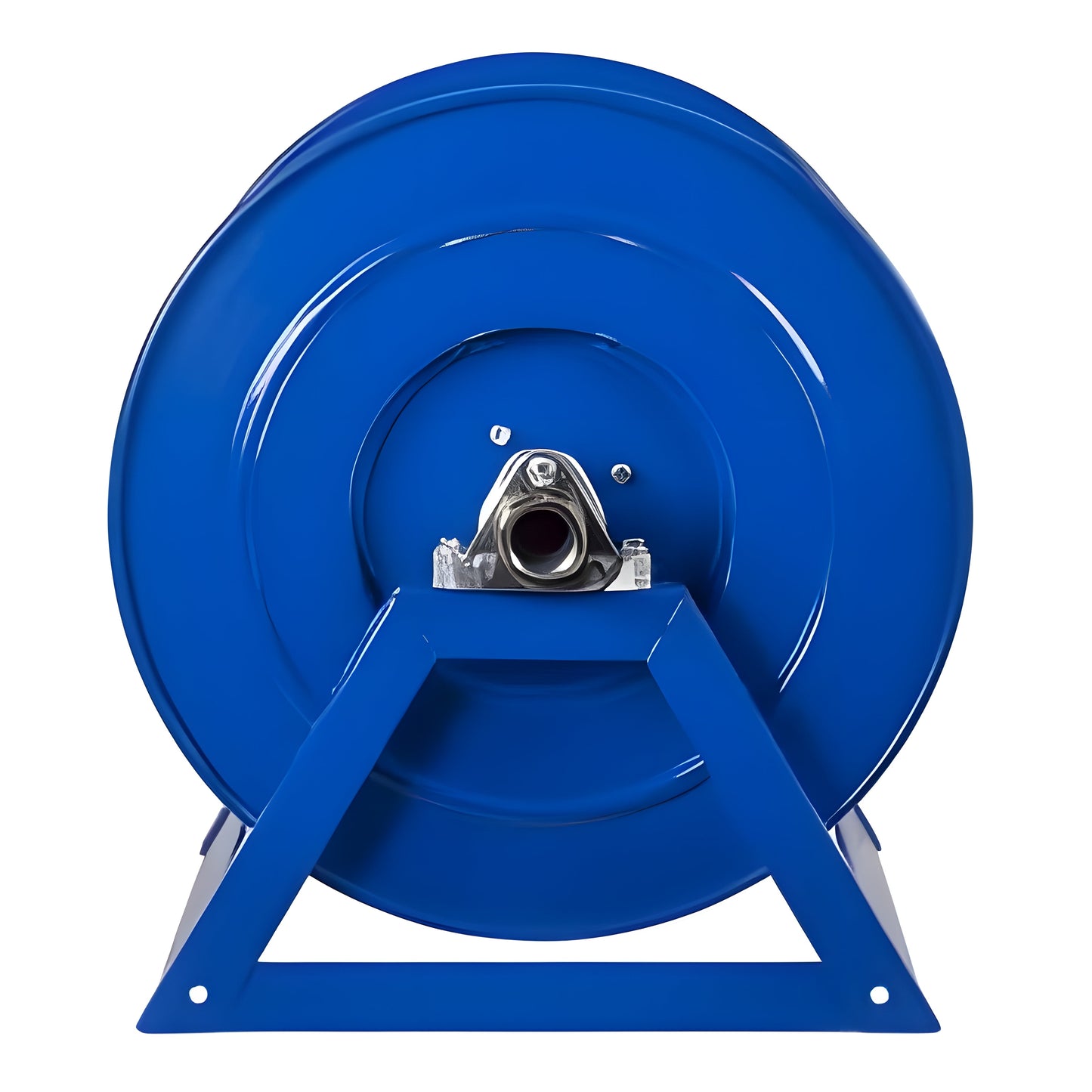

SWIVEL - In-line electroless nickel plated steel full-flow NPT swivel for simple seal maintenance and fast and easy hose installation. No need to remove the reel from its mount.
-
CNC SPUN DISCS - Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection, and operator safety.
-

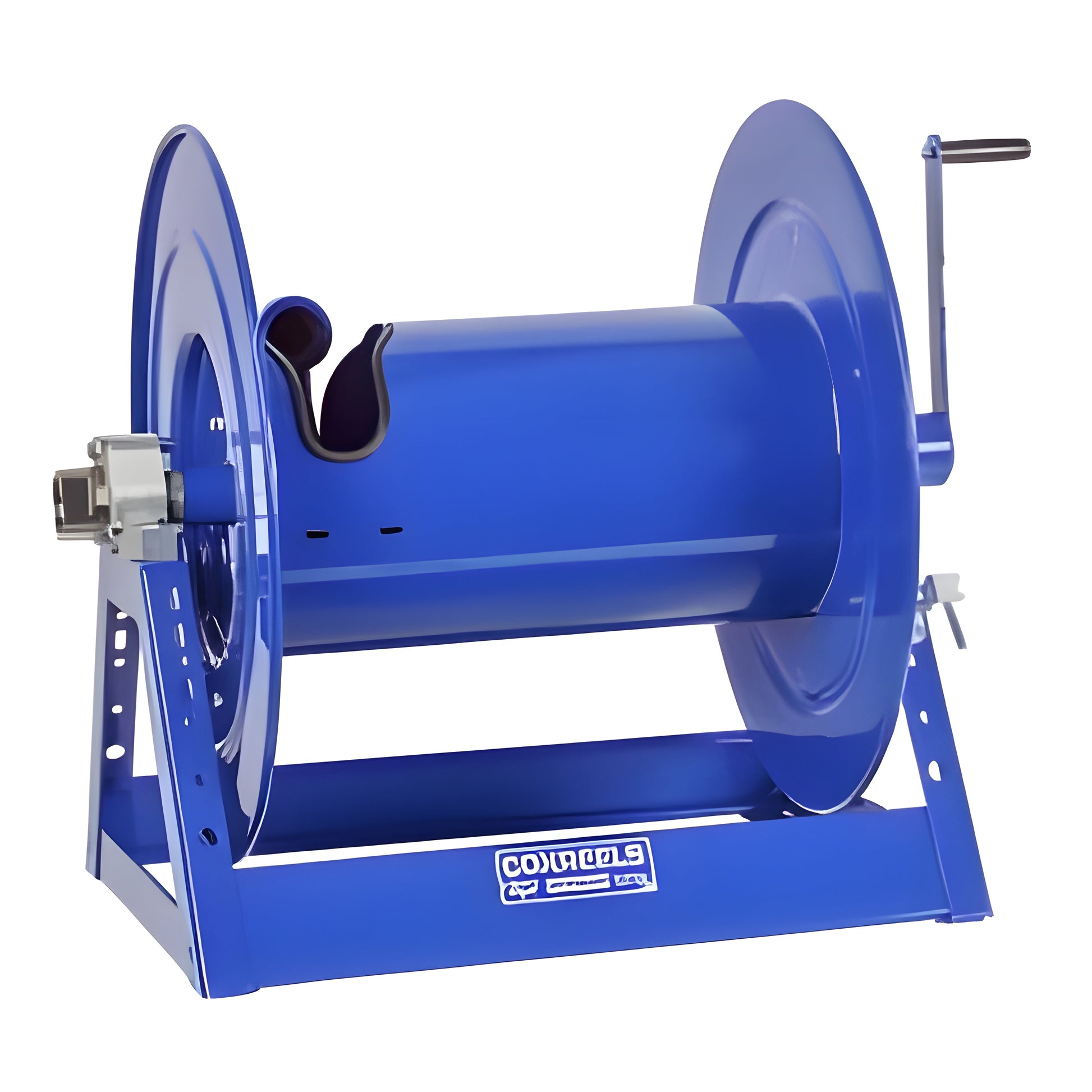

OUTLET RISER - Exclusive low profile outlet riser and open drum slot design provides a non-crimping, flat smooth hose wrap.
-

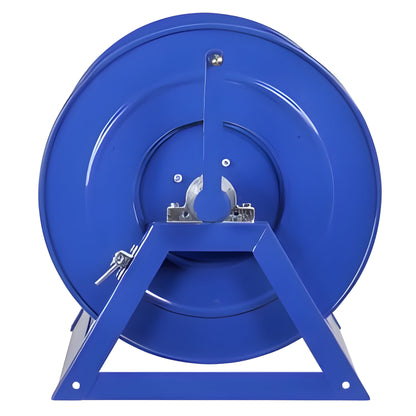

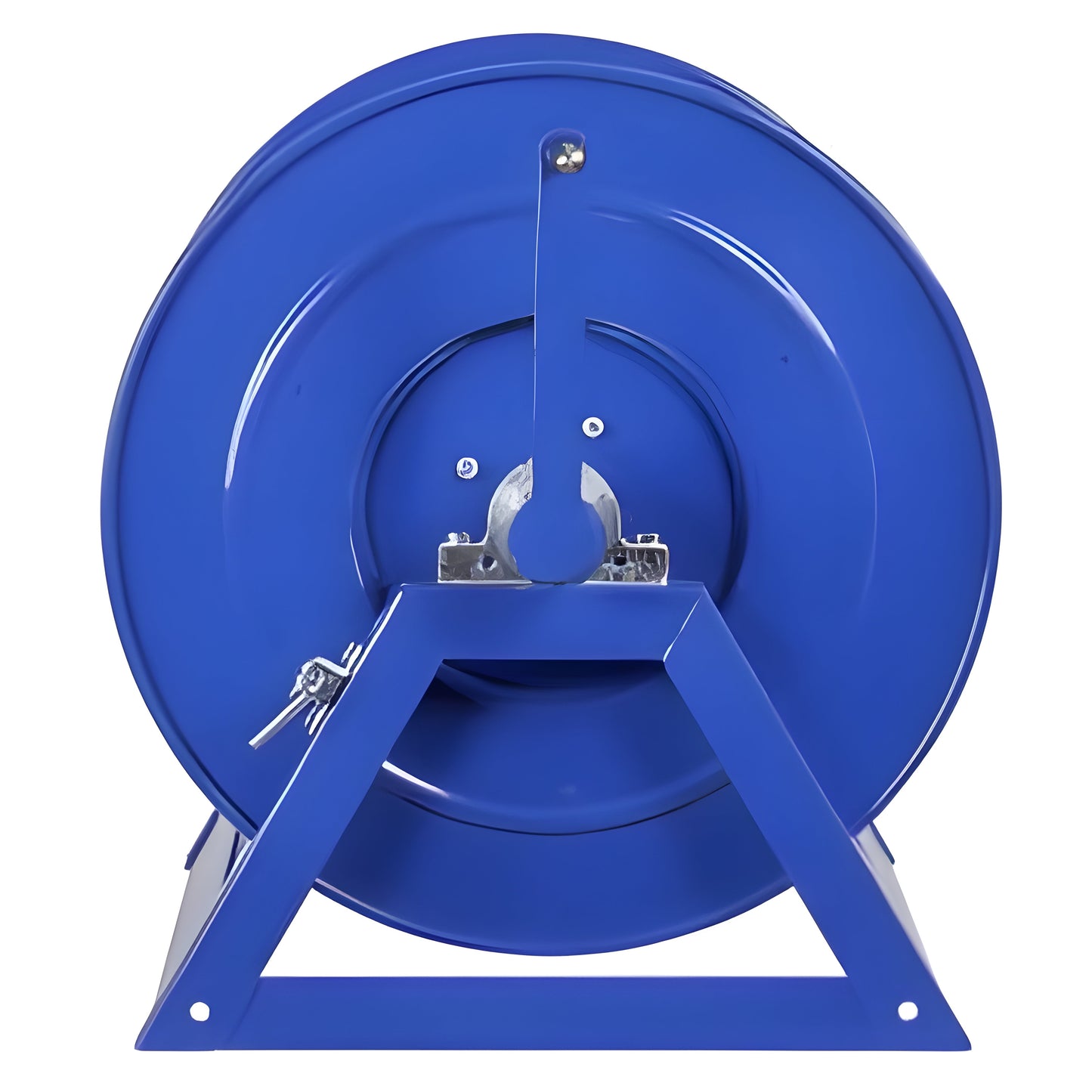

"A" FRAME - Sturdy one piece, all CNC robotically welded 12 gauge steel "A" frame base, not bolted, for superior reel structure. Mounting pattern located in the steel base for easy reel installation and detachment.
-
PERMANENT LUBRICATED BEARINGS - Robust lubricated horizontal surface mount bearings for easy rotation.
-
OTHER FEATURES INCLUDE - long lasting, chip resistant and rust inhibiting CPC powder coat finish, long handled locking pin to secure reel, and front bevel geared crank for easy mechanical retraction.
Specifications
| MODEL |
I.D |
O.D |
LENGTH |
HOSE |
MAX PSI |
SHIP WEIGHT (LBS) |
OVERALL DIMENSIONS (W) (H) (L) |
MOUNTING PATTERN (M) (N) |
BASE (X) (Y) |
| 1185-1124 |
1 1/2" |
2 1/16" |
50' |
No |
1500 |
76 |
25"(W) 26"(H) 24"(L) |
14.75"(M) 16"(N) |
17"(X) 22.25"(Y) |
| 1185-1124-C |
1 1/2" |
2 1/16" |
50' |
No |
1500 |
79 |
25"(W) 26"(H) 24"(L) |
14.75"(M) 16"(N) |
17"(X) 22.25"(Y) |
| 1185-1524 |
1 1/2" |
2 1/16" |
75' |
No |
1,500 |
81 |
29"(W) 26"(H) 24"(L) |
18.75"(M) 16"(N) |
21"(X) 22.25"(Y) |
| 1185-1524-C |
1 1/2" |
2 1/16" |
75' |
No |
1,500 |
84 |
29"(W) 26"(H) 24"(L) |
18.75"(M) 16"(N) |
21"(X) 22.25"(Y) |
| 1185-2020 |
1 1/2" |
2 1/16" |
70' |
No |
1500 |
70 |
33.5"(W) 21.63"(H) 20"(L) |
23.25"(M) 16"(N) |
25.5"(X) 19.63"(Y) |
| 1185-2020-C |
1 1/2" |
2 1/16" |
70' |
No |
1500 |
83 |
33.5"(W) 21.63"(H) 20"(L) |
23.25"(M) 16"(N) |
25.5"(X) 19.63"(Y) |
| 1185-2024 |
1 1/2" |
2 1/16" |
100' |
No |
1500 |
94 |
33.5"(W) 26"(H) 24"(L) |
23.25"(M) 16"(N) |
25.5"(X) 22.25"(Y) |
| 1185-2024-C |
1 1/2" |
2 1/16" |
100' |
No |
1500 |
97 |
33.5"(W) 26"(H) 24"(L) |
23.25"(M) 16"(N) |
25.5"(X) 22.25"(Y) |
| 1185-2028 |
1 1/2" |
2 1/16" |
125' |
No |
1500 |
109 |
33.5"(W) 30"(H) 28"(L) |
23.25"(M) 18.5"(N) |
25.5"(X) 24.5"(Y) |
| 1185-2028-C |
1 1/2" |
2 1/16" |
125' |
No |
1500 |
112 |
33.5"(W) 30"(H) 28"(L) |
23.25"(M) 18.5"(N) |
25.5"(X) 24.5"(Y) |
| 1185-2528 |
1 1/2" |
2 1/16" |
150' |
No |
1500 |
122 |
38.5"(W) 30"(H) 28"(L) |
28.25"(M) 18.5"(N) |
30.5"(X) 24.5"(Y) |
| 1185-2528-C |
1 1/2" |
2 1/16" |
150' |
No |
1500 |
125 |
38.5"(W) 30"(H) 28"(L) |
28.25"(M) 18.5"(N) |
30.5"(X) 24.5"(Y) |
| 1185-3324 |
1 1/2" |
2 1/16" |
175' |
No |
1500 |
154 |
46.5"(W) 26"(H) 24"(L) |
36.25"(M) 18.5"(N) |
38.5"(X) 22.25"(Y) |
| 1185-3324-C |
1 1/2" |
2 1/16" |
175' |
No |
1500 |
157 |
46.5"(W) 26"(H) 24"(L) |
36.25"(M) 18.5"(N) |
38.5"(X) 22.25"(Y) |
| 1185-3328 |
1 1/2" |
2 1/16" |
250' |
No |
1500 |
169 |
46.5"(W) 30"(H) 28"(L) |
36.25"(M) 18.5"(N) |
35.5"(X) 24.5"(Y) |
| 1185-3328-C |
1 1/2" |
2 1/16" |
250' |
No |
1500 |
172 |
46.5"(W) 30"(H) 28"(L) |
36.25"(M) 18.5"(N) |
35.5"(X) 24.5"(Y) |
What Our Experts Think
-
Medium Pressure Capability: Designed to handle pressures up to 1,000 PSI, ideal for fluid and air transfer applications in industrial settings.
-
Hand Crank Operation: Provides manual control for smooth and easy hose retraction, offering flexibility and efficiency.
-
Heavy-Duty Construction: Built with durable materials to withstand harsh environments and frequent use.
-
Corrosion-Resistant Finish: Coated to prevent rust and wear, ensuring long-lasting reliability and performance.
-
Space-Saving Design: Compact reel design allows for efficient storage while keeping hoses easily accessible.
-
Versatile Applications: Perfect for automotive, manufacturing, and general industrial uses requiring medium-pressure hose management.
-
Smooth Hose Deployment: Designed for consistent, smooth operation, reducing strain on hoses and preventing tangling.
Q&A
Q: What is the Coxreels 1185 Series Medium Pressure Hand Crank Hose Reel - 1185-1124?
A: The Coxreels 1185-1124 is a hand crank hose reel designed for medium-pressure applications. It provides efficient hose storage and retraction, ideal for managing hoses in industrial, commercial, and workshop settings.
Q: What is the hose capacity of this reel?
A: The 1185-1124 can accommodate up to 124 feet of medium-pressure hose, offering ample capacity for various applications.
Q: How does the hand crank mechanism work?
A: The reel features a smooth hand crank that allows for manual hose retraction, providing precise control over the storage of the hose while preventing tangling.
Q: Is the reel durable?
A: Yes, the 1185 Series is built with heavy-duty steel and a corrosion-resistant finish, ensuring long-lasting durability and performance in demanding environments.
Q: Is this reel easy to install?
A: Yes, the 1185-1124 is designed for easy installation with multiple mounting options, including wall, floor, or ceiling mounting, providing flexibility in different workspaces.
Q: What are typical applications for this reel?
A: This reel is ideal for medium-pressure fluid transfer in industrial, automotive, and manufacturing environments, where space-saving hose management is essential.
Maintenance Tips
-
Model: 1185-1124
-
Hose Capacity: 100 feet of 1/2” medium pressure hose
-
Construction: Heavy-duty steel frame with a corrosion-resistant powder-coat finish for extended durability.
-
Mounting Type: Designed for wall or floor mounting for flexible installation.
-
Crank Type: Manual hand crank for smooth and efficient hose retraction.
-
Pressure Rating: Rated for medium pressure applications (up to 3000 PSI).
-
Roller Design: Smooth, evenly spaced rollers to reduce hose wear and prevent kinking during operation.
-
Hose Exit: Adjustable hose guide for easy and proper hose management.
-
Applications: Ideal for commercial and industrial use with medium-pressure air, water, or fluid hoses.
